Banana Plug Cable Assembly: Everything you need to know

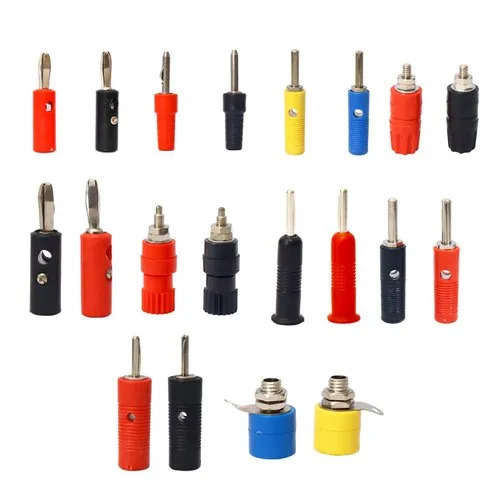

What are banana plugs

A banana connector is a single-conductor electrical connector designed for quick wire-to-equipment connections. Primarily used in audio systems and electronic testing, it features a simple yet reliable spring-loaded design with a cylindrical metal pin (resembling a banana shape) and an outer conductive collar. Available in plug and jack configurations, it outperforms many connectors in ease of use and durability.

The name derives from the pin’s slight central bulge, which visually mimics a banana. Its spring mechanism ensures secure contact, while compact size suits high-density applications. Common variants include stacked (for multi-circuit connections) and shielded types (to reduce interference).

Ideal for lab equipment, speakers, and prototyping, banana connectors comply with safety standards like IEC 61010. Their color-coded insulation (e.g., red/black) simplifies polarity identification. Despite newer alternatives, they remain popular due to cost-effectiveness and reusability.

Key Features of banana plugs

Ease of Use

Banana connectors are designed for quick, tool-free installation, making them accessible even for beginners. To install, users simply strip the wire’s insulation, insert the conductor into the connector, and secure it—often via a screw terminal or crimping mechanism. This plug-and-play design eliminates the need for soldering or specialized tools, streamlining setups in labs, audio systems, and prototyping environments. Their intuitive design ensures fast, secure connections while minimizing installation errors.

Versatility

Available in standardized sizes (e.g., 2mm and 4mm diameters), banana connectors adapt to diverse electrical and signal requirements. The 4mm variant is common in high-current applications (e.g., power supplies, speaker systems), while 2mm plugs suit compact electronics and precision instruments. Their compatibility with stackable designs and color-coded insulation (red/black for polarity) further enhances flexibility. From audio equipment to oscilloscopes and multimeter leads, these connectors bridge gaps across industries without requiring custom solutions.

Reliability

The spring-loaded pin design ensures a tight, vibration-resistant fit between plug and jack, critical in dynamic environments (e.g., live sound stages or mobile test rigs). The metal shroud or collar provides additional mechanical stability, preventing accidental disconnections even under movement. Materials like brass or phosphor bronze (often gold-plated) reduce oxidation, maintaining low contact resistance over time. This durability makes them a trusted choice for applications where signal integrity and long-term performance are paramount.

Types of banana plugs

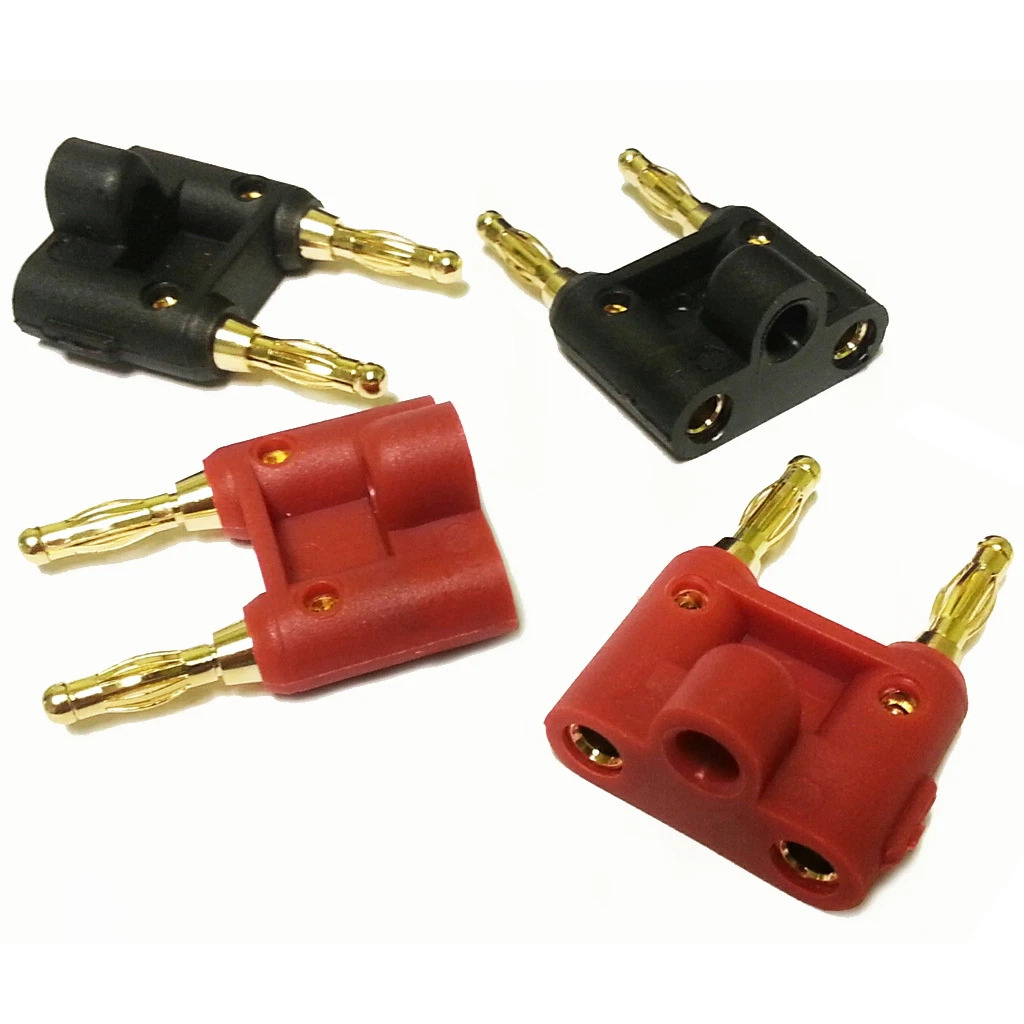

Dual/Double Banana Plugs

Dual Banana Plugs provide a streamlined solution for stereo and balanced connections, featuring a standardized 19mm (¾-inch) center-to-center spacing for consistent and secure terminal alignment. These connectors enable quick and reliable attachment of both positive/negative terminals or left/right audio channels in a single plug, reducing setup time and minimizing wiring errors. Ideal for test and measurement equipment such as oscilloscopes, multimeters, and power supplies, dual banana plugs ensure stable two-point connections in demanding applications. Their robust design also makes them suitable for high-end audio systems, speaker wiring, and laboratory setups where precision and repeatability are critical.

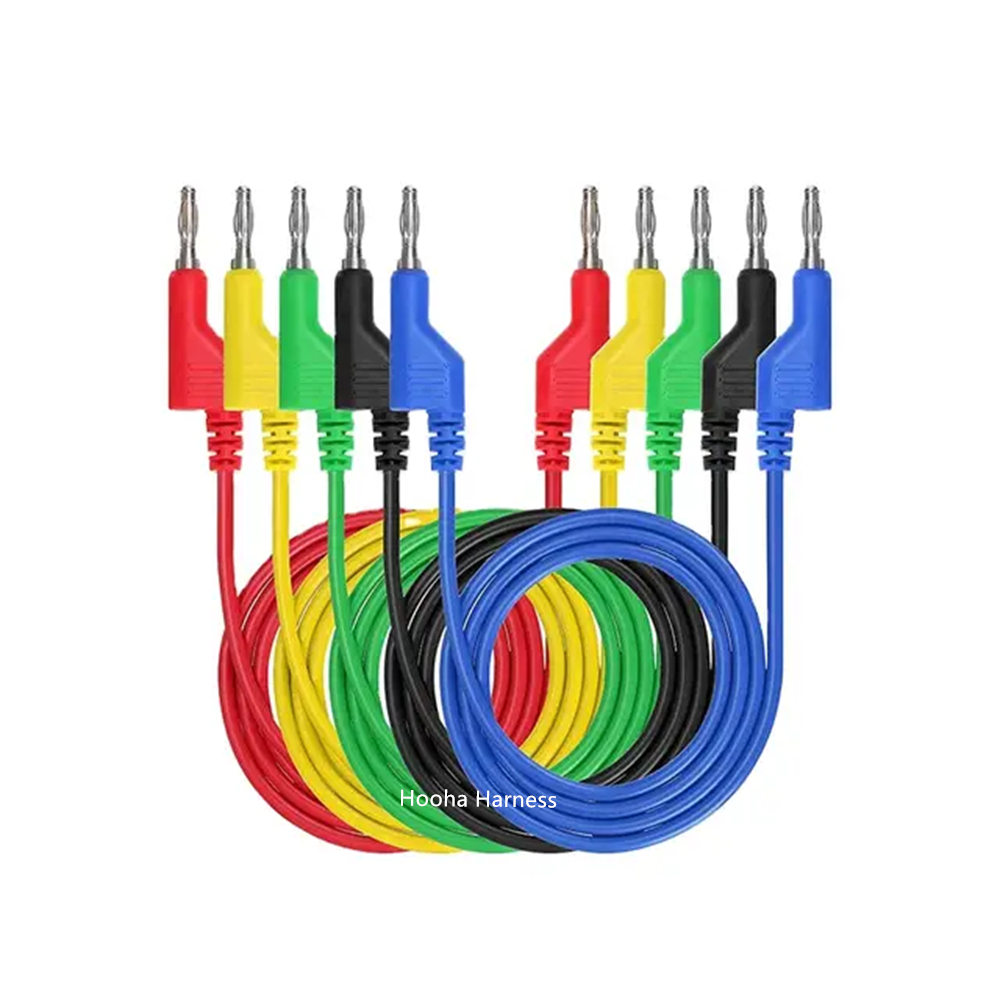

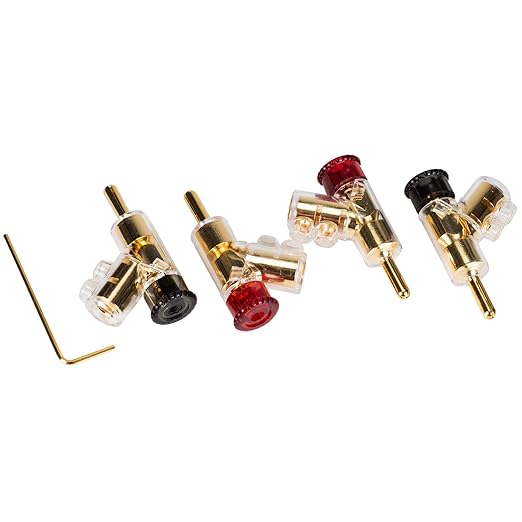

Stackable Banana Plugs

Stackable banana plugs enable multiple parallel connections from a single jack, making them ideal for test setups and audio systems where signal distribution is critical. These plugs feature a built-in female socket at the rear, allowing another banana plug to be inserted directly—eliminating the need for external splitters or adapters. This daisy-chaining capability is especially useful in laboratory environments, where multiple instruments or probes often require simultaneous connection to a single test point. Their space-saving design and secure spring-loaded contacts ensure reliable signal integrity while simplifying complex wiring configurations.

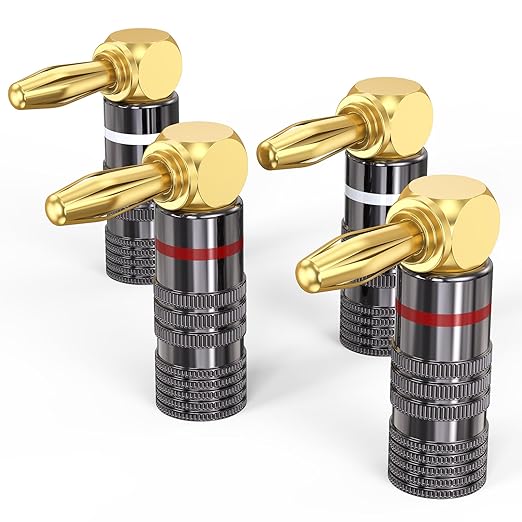

Right-Angle Banana Plugs

Right-angle plugs provide a space-saving solution for confined areas where traditional straight plugs would be cumbersome or risk damaging cables due to excessive bending. Their 90-degree angled design minimizes the depth needed behind devices, allowing for seamless integration in tight installations. This makes them especially useful for wall-mounted audio systems, rack-mounted equipment, or electronics housed in narrow enclosures where clearance is limited. By reducing cable strain and preventing awkward bends, right-angle connectors enhance both durability and signal integrity, particularly in high-frequency or high-current applications. They are commonly used in professional audio setups, home theater systems, and industrial control panels where efficient space management is critical.Available in various connector types—such as RCA, XLR, and banana plugs—they offer flexibility across different wiring scenarios. Some designs also feature low-profile housings or swivel mechanisms for further adaptability. Whether for permanent installations or temporary setups, right-angle plugs ensure a cleaner, more organized cable routing while maintaining reliable electrical connections.

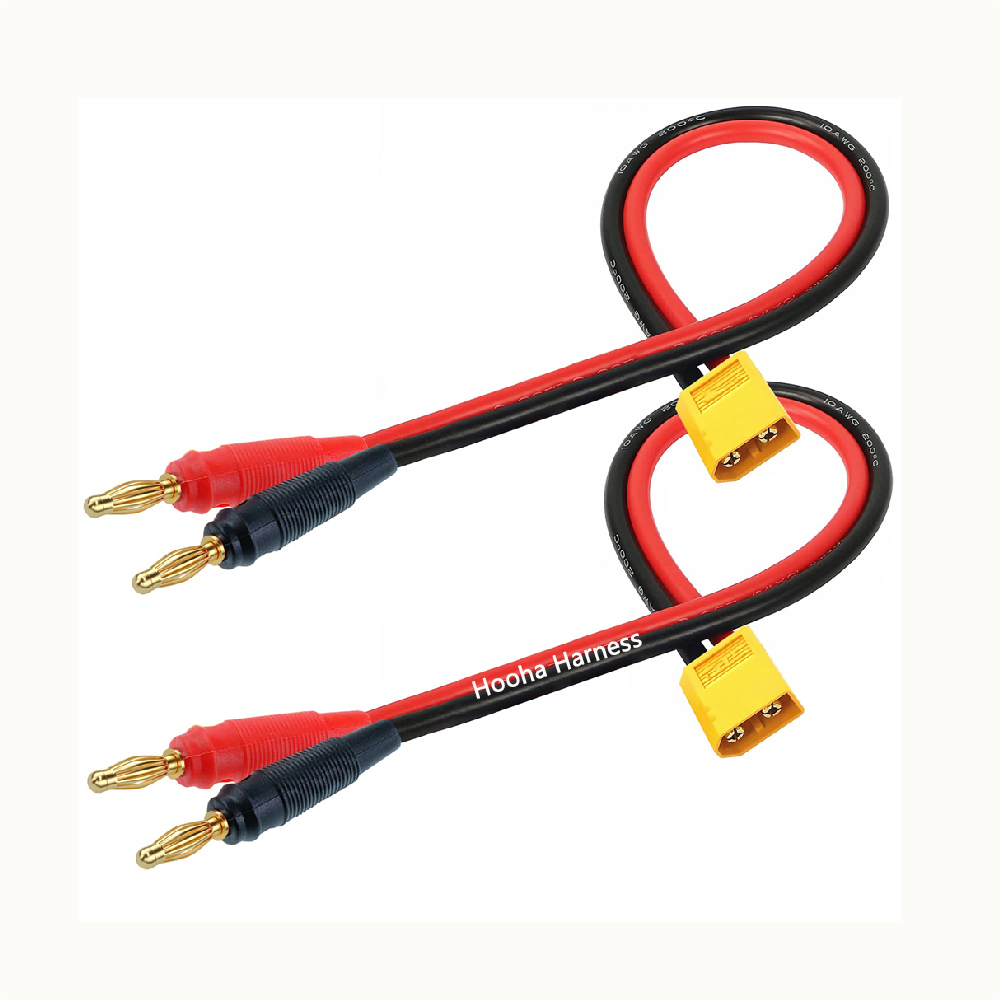

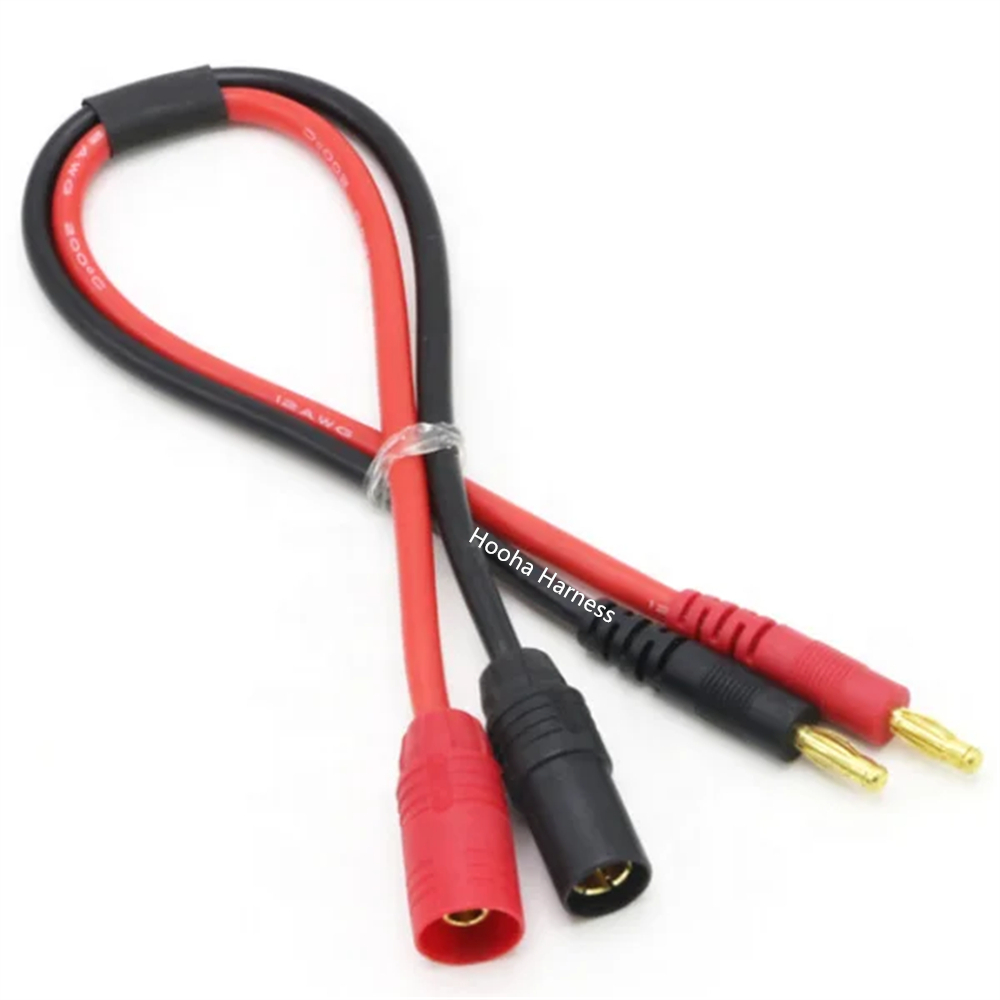

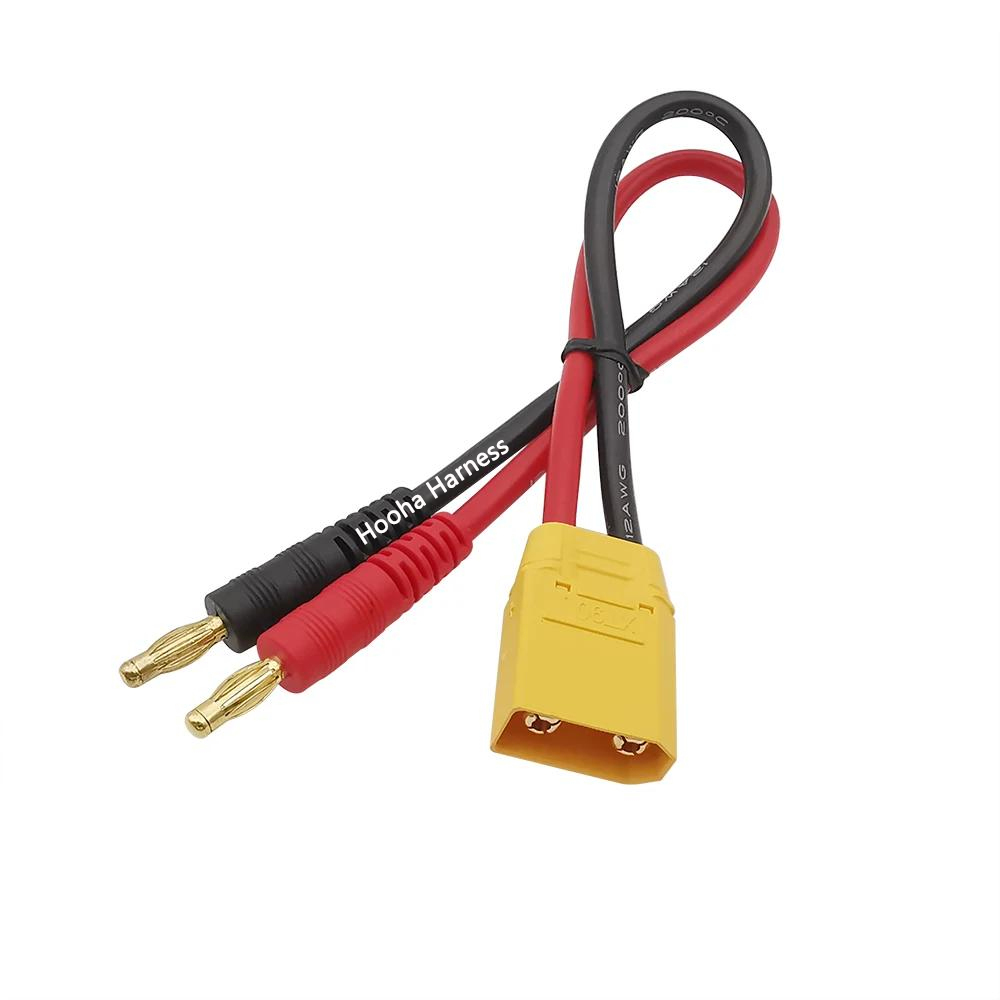

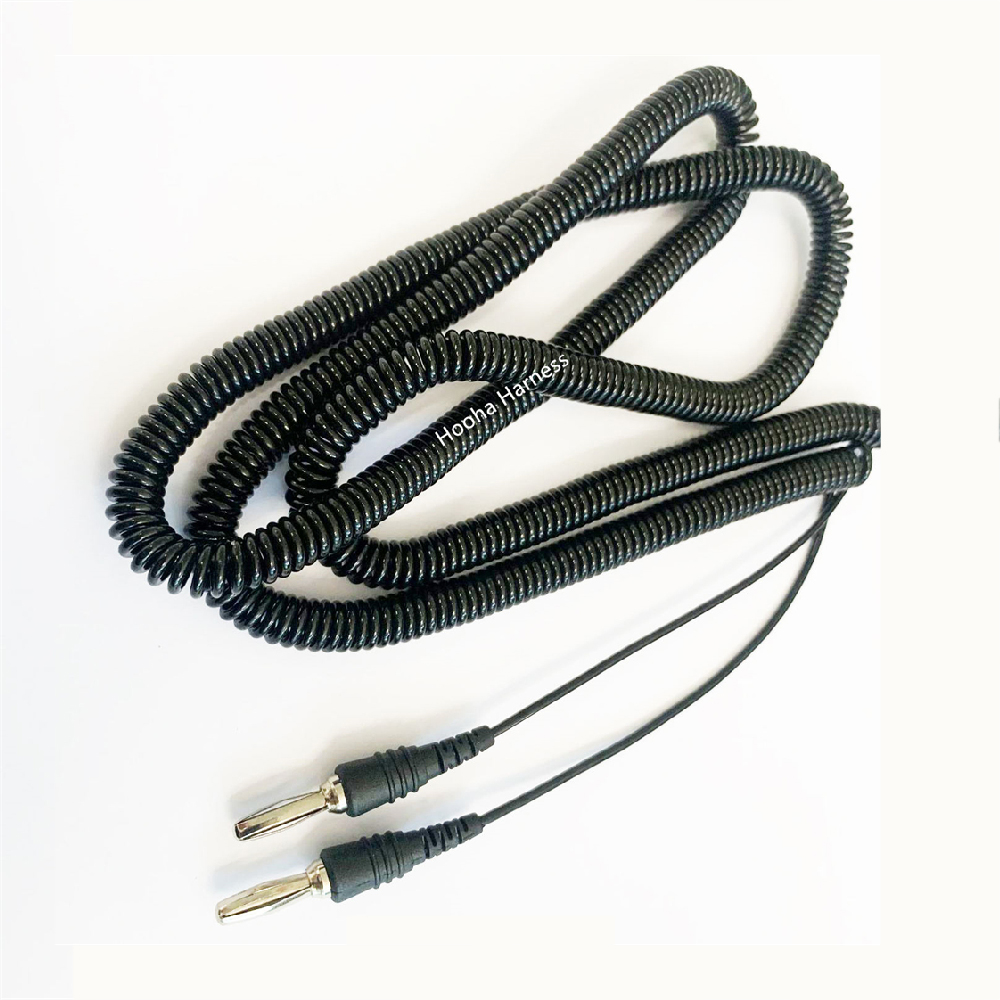

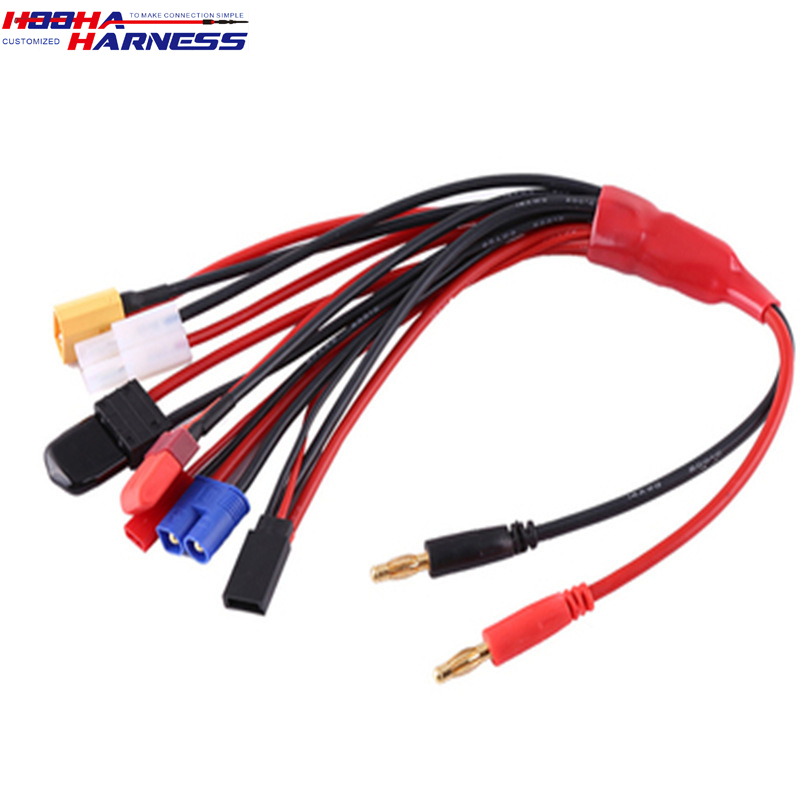

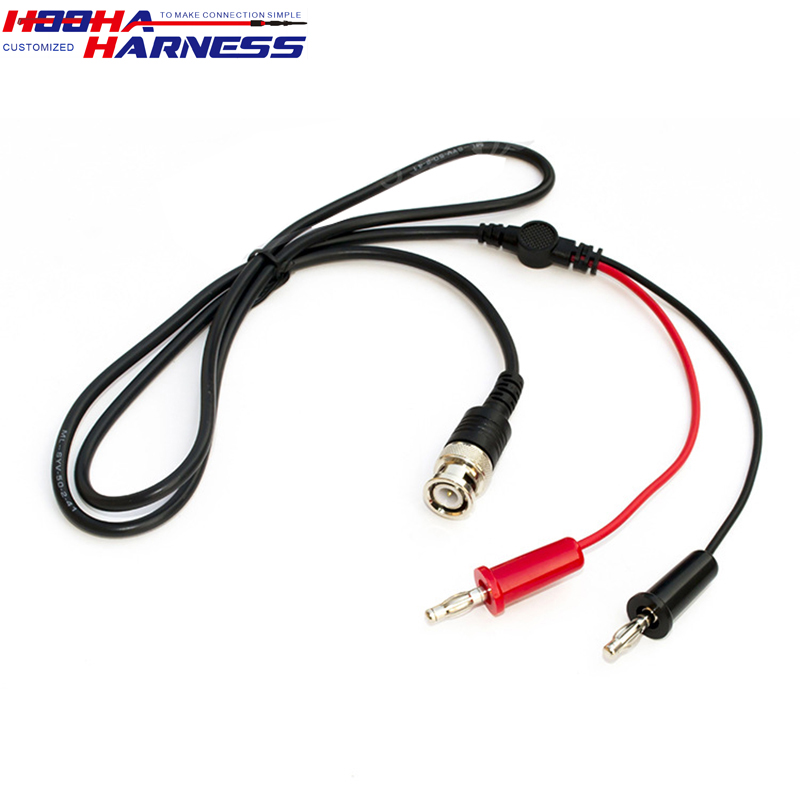

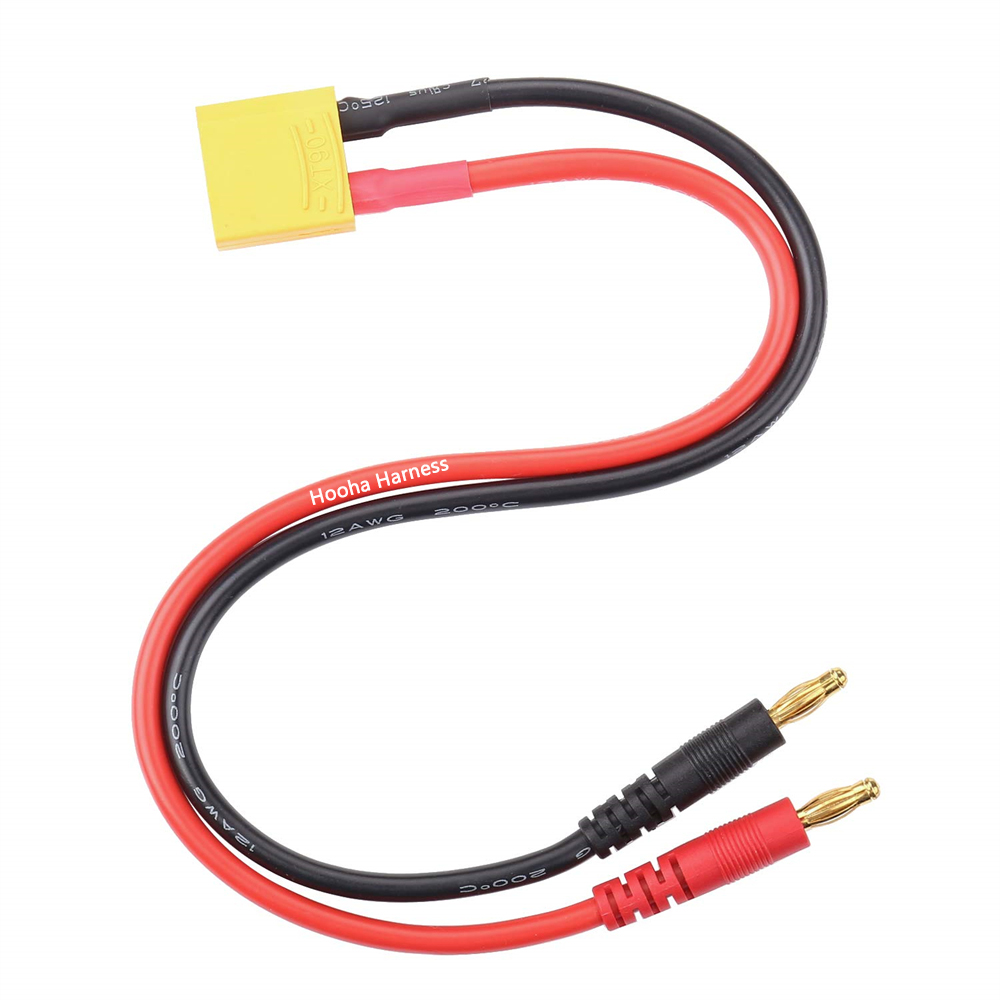

Some parts of banana plug we made
