PET Braided Sleeve, Wire Harness Wrapping Material
Introduction

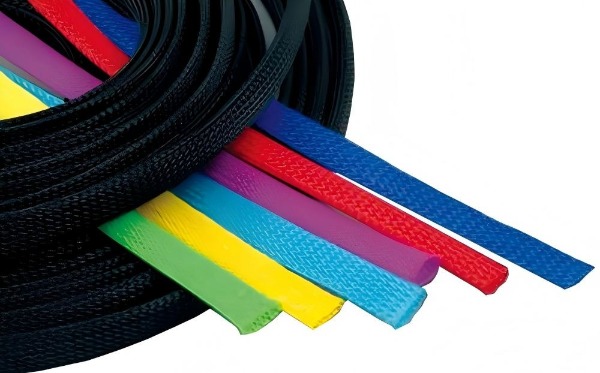

Braided sleeves are essential in custom wire harnesses, offering tailored protection and organization for complex wiring systems. Constructed from durable, interwoven materials like polyester, nylon, or fiberglass, these sleeves shield cables from abrasion, heat, chemicals, and environmental stress while maintaining flexibility for intricate routing. Customizable in diameter, color, and material, they adapt to specific harness designs, ensuring seamless integration into automotive, aerospace, industrial, or medical applications. Their expandable structure simplifies installation and maintenance, while features like EMI shielding or flame resistance enhance safety and compliance. By combining rugged durability with lightweight design, braided sleeves extend harness lifespan and reliability in demanding environments.
Features
- Woven from single filament fibers, it is lightweight and extremely soft.
- It has strong elasticity and flexibility, suitable for protecting wires of different diameters and irregularly shaped objects.
- It has excellent wear resistance and heat insulation, with an operating temperature range of -40℃ to +150℃.
- It has good coverage, is impact-resistant, and the wires are not exposed or protruding.
- It has a wide range of applications and can be used to protect round and flat wires.
- It has a fire-resistant grade and the material complies with environmental protection standards.
- It has good aging resistance anis resistant to ultraviolet light.
- It has strong solvent resistance and is resistant to acid, alkali and salt solutions.
Specifications
| Model code | Lines number * lines ID * count lines | ID(mm) | Wrapped Item OD |
| HH-BS-01 | 1*0.25*24 | φ2 | Φ2--Φ4 |
| HH-BS-02 | 1*0.25*32 | φ4 | Φ3—Φ6 |
| HH-BS-03 | 1*0.25*40 | φ6 | Φ4—Φ8 |
| HH-BS-04 | 1*0.25*48 | φ8 | Φ5—Φ10 |
| HH-BS-05 | 1*0.25*56 | φ10 | φ6—Φ15 |
| HH-BS-06 | 1*0.25*64 | φ12 | Φ7—Φ18 |
| HH-BS-07 | 1*0.25*72 | φ15 | Φ8—Φ20 |
| HH-BS-08 | 1*0.25*96 | φ18 | Φ12—Φ25 |
| HH-BS-09 | 1*0.25*120 | φ20 | Φ15—Φ30 |
| HH-BS-10 | 3*0.20*24 | φ3 | Φ4—Φ6 |
| HH-BS-11 | 3*0.20*32 | φ5 | Φ5—Φ8 |
| HH-BS-12 | 3*0.20*40 | φ8 | Φ6—Φ12 |
| HH-BS-13 | 3*0.20*48 | φ12 | Φ10—Φ15 |
| HH-BS-14 | 3*0.20*56 | φ15 | Φ12—Φ18 |
| HH-BS-15 | 3*0.20*64 | φ18 | Φ14—Φ22 |
| HH-BS-16 | 3*0.20*72 | φ20 | Φ16—Φ25 |
| HH-BS-17 | 3*0.20*96 | φ25 | Φ20—Φ30 |
| HH-BS-18 | 3*0.20*120 | φ30 | Φ30—Φ40 |
| HH-BS-19 | 3*0.25*24 | φ6 | Φ5—Φ8 |
| HH-BS-20 | 3*0.25*32 | φ9 | Φ8—Φ12 |
| HH-BS-21 | 3*0.25*40 | φ12 | Φ10—Φ18 |
| HH-BS-22 | 3*0.25*48 | φ15 | Φ12—Φ22 |
| HH-BS-23 | 3*0.25*56 | φ18 | Φ14—Φ25 |
| HH-BS-24 | 3*0.25*64 | φ20 | Φ16—Φ30 |
| HH-BS-25 | 3*0.25*72 | φ25 | φ20—Φ35 |
| HH-BS-26 | 3*0.25*96 | φ30 | φ25—Φ50 |
| HH-BS-27 | 3*0.25*120 | φ40 | Φ35—Φ60 |
| HH-BS-28 | 4*0.25*120 | φ50 | φ45—Φ75 |
| HH-BS-29 | 5*0.25*120 | φ60 | Φ55—Φ90 |
Application
- Automotive: Protects wiring harnesses, hoses, and cables from abrasion, heat, and chemicals in vehicles.
- Aerospace: Shields critical wiring and fluid lines in aircraft, meeting high standards for temperature and vibration resistance.
- Electronics: Manages and safeguards internal/external cables in devices like computers, appliances, and consumer electronics.
- Industrial Machinery: Protects hydraulic hoses, pneumatic systems, and robotic components from wear and extreme conditions.
- Marine: Resists saltwater, UV rays, and moisture for boat wiring, hoses, and offshore equipment.
- Medical: Provides biocompatible, sterilizable sleeves for imaging machines, surgical tools, and diagnostic devices.
- Renewable Energy: Guards cables in wind turbines and solar installations against environmental stress and movement.
- Construction/Infrastructure: Protects cables in buildings, bridges, and HVAC systems from physical and environmental damage.
- Telecommunications: Ensures durability for fiber optic and communication cables, especially in harsh outdoor environments.
- Military/Defense: Offers rugged protection for wiring in vehicles, communication gear, and field equipment under extreme conditions.
