Cable Tie, Wire Harness Wrapping Material

Introduction

Material: Nylon 66, 94V-2 certificated by UL.
Heat-resisting Acid & erosion control, insulate well and not apt to age.
Operating temperature: -35°C to 85°C
Color: Natural (or white, standard color), Brown, Orange, Green, Purple, Black, Red, Yellow, Blue, Grey.

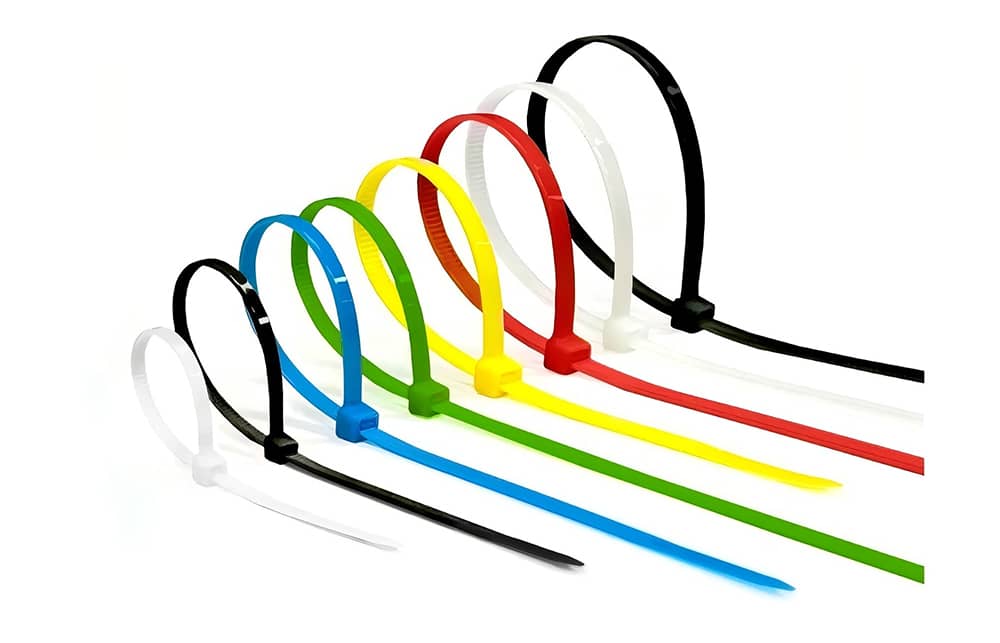

Cable Tie

Specifications

Item No.	Length		Width (mm)	Bundle Range (mm)	Tensile Force
Item No.	Inch	(mm)	Width (mm)	Bundle Range (mm)	LBS	KGS
HH-ZH-3x60	2 3/8	60	2.5	2-11	18	8
HH-ZH-3x80	3 3/16	80	2.5	2-16	18	8
HH-ZH-3x100	4	100	2.5	2-22	18	8
HH-ZH-3x120	4 3/4	120	2.5	2-30	18	8
HH-ZH-3x150	6	150	2.5	2-35	18	8
HH-ZH-3x200	8	200	2.5	3-50	18	8
HH-ZH-4x100	4	100	3.6	3-22	40	18
HH-ZH-4x120	4 3/4	120	3.6	3-30	40	18
HH-ZH-4x180	7	180	3.6	3-42	40	18
HH-ZH-4x250	10	250	3.6	3-65	40	18
HH-ZH-4x300	11 5/6	300	3.6	3-80	40	18
HH-ZH-4x370	14 1/2	370	3.6	3-102	40	18
HH-ZH-4x400	15 3/4	400	3.6	3-105	40	18
HH-ZH-5x100	4	100	4.8	3-22	50	22
HH-ZH-5×200	8	200	4.8	3-50	50	22
HH-ZH-5×250	10	250	4.8	3-65	50	22
HH-ZH-5x350	13 3/4	350	4.8	3-90	50	22
HH-ZH-5x400	15 3/4	400	4.8	3-105	50	22
HH-ZH-5x430	17	430	4.8	3-110	50	22
HH-ZH-5×500	19 11/16	500	4.8	3-150	50	22
HH-ZH-5x600	23 5/8	600	4.8	3-170	50	22
HH-ZH-5x650	25 9/16	650	4.8	3-190	50	22
HH-ZH-8x150	6	150	7.6	3-33	120	55
HH-ZH-8x200	8	200	7.6	3-50	120	55
HH-ZH-8x300	11 5/8	300	7.6	4-82	120	55
HH-ZH-8x400	15 3/4	400	7.6	4-105	120	55
HH-ZH-8x450	17 3/4	450	7.6	4-118	120	55
HH-ZH-8x550	21 11/16	550	7.6	4-160	120	55
HH-ZH-8x600	23 5/8	600	7.6	4-170	120	55
HH-ZH-450	17 3/4	450	9	4-118	175	80
HH-ZH-550	21 1/16	550	9	8-160	175	80
HH-ZH-650	25 9/16	650	9	8-190	175	80
HH-ZH-700	27 1/2	700	9	10-205	175	80
HH-ZH-1220	48	1220	9	10-340	175	80
HH-ZH-500	19 11/16	550	10	12-150	200	91
HH-ZH-300	11 5/8	300	12.7	12-82	250	114
HH-ZH-540	21 1/4	540	12.7	14-155	250	114
HH-ZH-750	29 9/16	750	12	10-220	250	114
HH-ZH-780	30 3/4	780	12.7	14-230	250	114
