Cooling Fan Wiring Harness, China Custom Assembly Manufacturer
Introduction
We are a Professional Cooling Fan Wiring Harness Custom Assembly Manufacturer in China. A cooling fan wiring harness is a sophisticated electromechanical assembly engineered to transmit electrical power and control signals to cooling fans within automotive and industrial systems. Unlike generic cables, this harness serves as the central nervous system for thermal management, linking the vehicle’s ECU or battery to radiator or condenser fans. Its primary function is to ensure the reliable operation of the cooling fan, which is critical for preventing engine overheating and maintaining optimal performance. Given that cooling fans operate in harsh environments characterized by high temperatures, vibrations, and exposure to moisture or oil, the harness must be meticulously designed. A failure in the harness can lead to fan malfunction, resulting in catastrophic engine damage. Therefore, understanding the construction and specifications of a cooling fan wiring harness is essential for engineers and procurement specialists seeking durable and efficient thermal management solutions.
Classification
Cooling fan wiring harnesses are categorized based on their application environment, structural complexity, and control logic. Below is a classification table outlining common types:
By Application
- Automotive Radiator/Condenser: Designed for high-current engine cooling; requires high heat and fluid resistance.
- Industrial Machinery: Built for heavy-duty equipment; focuses on robustness and EMI shielding.
- HVAC/Electronics: Used in cabinet cooling; emphasizes precise signal transmission and compact design.
By Structure
- Single Fan Harness: Simple configuration for single-motor setups; cost-effective and straightforward.
- Dual Fan Harness: Integrates multiple branches for dual-motor synchronization; includes complex splitting.
By Control Logic
- PWM Controlled: Incorporates shielded twisted pairs for Pulse Width Modulation signals to regulate fan speed.
- Thermostat Controlled: Relies on resistive sensors; simpler wiring focused on power delivery and ground.
Each type demands specific material properties and connector configurations to meet the operational demands of its respective sector.
Custom Cooling Fan Wiring Harness Cases

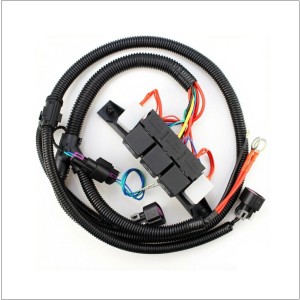

Electric Fan Control Wiring Harness

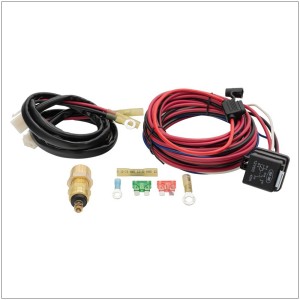

Electric Fan Relay Wiring Kit

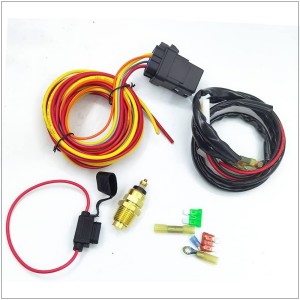

Electric Cooling Fan Wire Harness

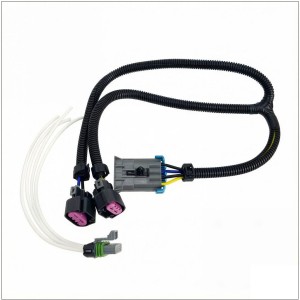

Dual Cooling Fan Harness

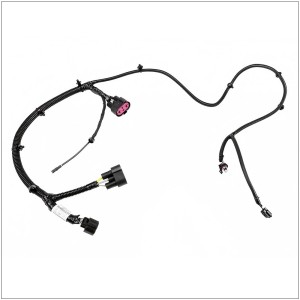

Cooling Fan Wiring Harness

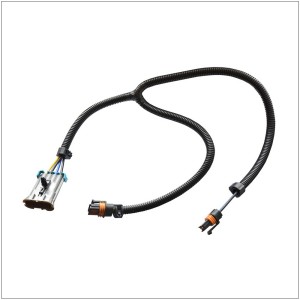

Radiator Fan Wire Harness

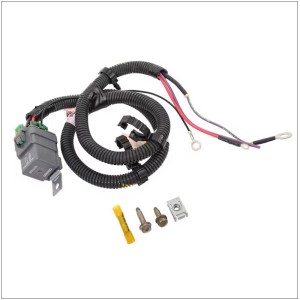

Engine Cooling Fan Wiring Harness

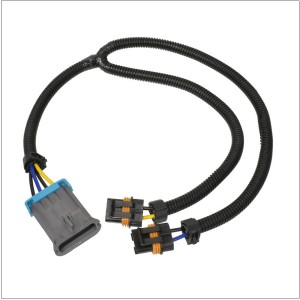

Engine Cooling Fan Motor Wiring Harness
Applications
The cooling fan wiring harness performs three critical functions: power transmission, signal integrity, and system protection. Firstly, it delivers stable high-current power—often ranging from 10A to 30A—from the battery to the fan motor. This requires conductors with low resistance to minimize voltage drop. Secondly, for modern vehicles utilizing PWM (Pulse Width Modulation) control, the harness ensures the integrity of low-voltage signal lines, preventing electromagnetic interference that could disrupt speed regulation. Thirdly, the harness incorporates protective elements such as relays and fuses. These components act as fail-safes, interrupting current flow in the event of a short circuit or overload, thereby protecting the vehicle’s main electrical architecture. Additionally, the physical routing of the harness provides environmental shielding, safeguarding internal copper strands from abrasive engine bay elements like road salt, oil mist, and flying debris.
Raw Material Selection
Selecting the right materials is paramount to ensuring longevity and compliance with automotive standards. The following table provides a comparative overview of recommended materials:
| Component | Recommended Specification | Key Characteristics | Application Reason |
| Connectors | TE Connectivity AMP MCP 2.8 / Molex MX150 | IP67/IP68 rated, PA66 GF (Glass-filled), High-temp | Withstands engine heat up to 130°C; prevents water ingress. |
| Wire (Primary) | SAE GXL / FLRY-B (0.75mm² - 4.0mm²) | Thin-wall, 125°C rating, Oil/Fuel resistant | Meets USCAR and ISO 6722 standards; reduces weight while handling high current. |
| Relays | 40A/70A Automotive Micro Relay | SPST/SPDT, Sealed housing | Provides switching capacity for high-power fan motors. |
| Sleeving | PA6 Corrugated Conduit + PET Braid | Abrasion-resistant, Flame-retardant | Protects against mechanical wear and high under-hood temperatures. |
Specifically, connectors from TE or Molex offer terminal position assurance (TPA) to prevent pin pull-out. Wire selection prioritizes cross-linked polyethylene (XLPE) insulation due to its superior thermal stability compared to PVC.
Manufacturing

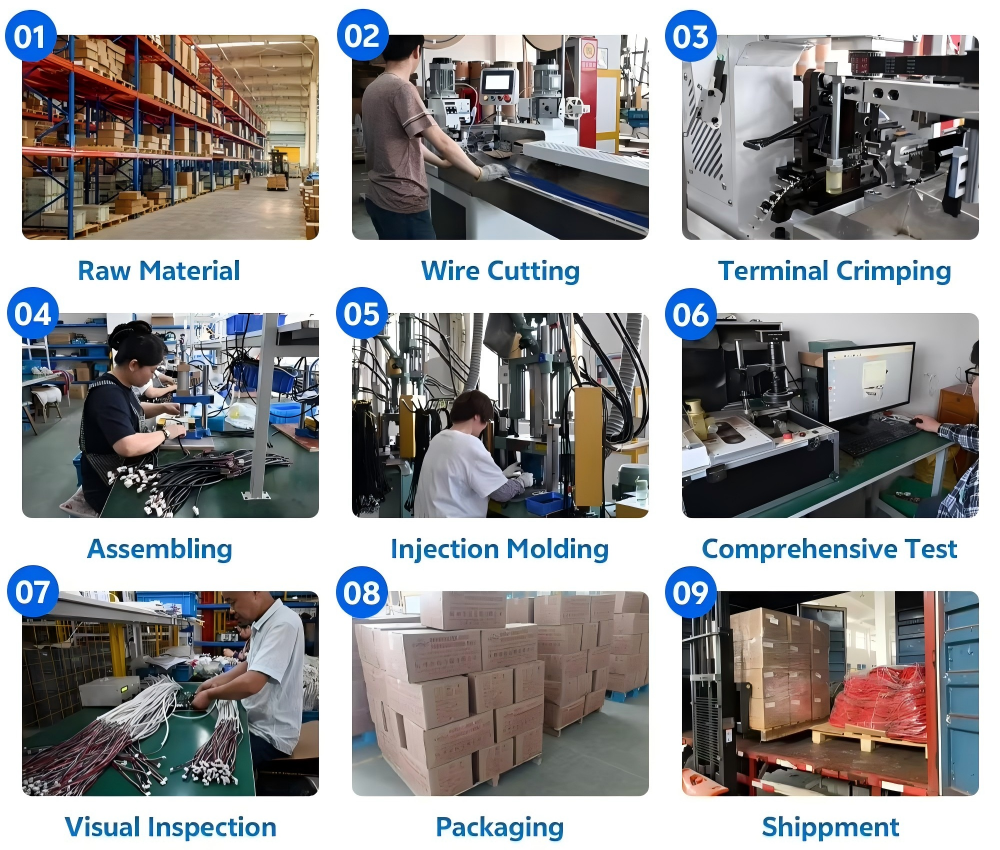

The manufacturing of a cooling fan wiring harness follows a rigorous sequence to ensure consistency. The general process includes: precision wire cutting and stripping, terminal crimping via calibrated pneumatic presses, manual or automated component insertion into housings, and final assembly with protective taping or overmolding.
Dimensional Accuracy and Testing: Each wire is cut according to digital work instructions to ensure proper fitment within the vehicle chassis. Following assembly, every single harness undergoes a 100% Continuity Test. Utilizing advanced hipot testers, we verify the absence of opens, shorts, or miswires. This electrical validation ensures that the pin-to-pin mapping is perfect and that the insulation resistance meets IPC/WHMA-A-620 Class 3 requirements. By combining precise dimensional control with comprehensive electrical testing, we guarantee that each harness will perform flawlessly upon installation.
Quality Control
Quality is non-negotiable in automotive wiring harness production. Hooha Harness operates under an IATF 16949 certified quality management system, ensuring process consistency from raw material receipt to final shipment. Our adherence to the IPC/WHMA-A-620 standard governs every aspect of assembly, particularly crimp height and pull-test strength. Beyond visual inspections, our testing regime includes:
-
Continuity & Hipot Testing: 100% verification of electrical paths and dielectric strength.
-
Crimp Cross-Section Analysis: Periodic destructive testing to validate terminal compression.
-
Environmental Simulation: Salt spray and thermal shock tests on sample batches to confirm material suitability.
These protocols ensure that our cooling fan wiring harnesses not only meet but exceed OEM specifications for durability and safety. By integrating robust quality control with advanced manufacturing techniques, Hooha Harness provides reliable solutions that withstand the most demanding automotive environments.
Custom Wire Harness Assembly
- Connectors: Support TE, Deutsch, Aptiv, Amphenol, Sumitomo, Yazaki, etc.
- Wire Gauge:
- depends on your needs
- Recommended by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 100 pieces.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
