Deutsch DRB series connectors Introduction

The Deutsch DRB series connectors are designed to withstand challenging environments with moisture, dirt, and rough terrain that could potentially damage electrical connections. These high-density pin-count rectangular connectors feature a high-performance thermoplastic body with a bulkhead-mounted flange for a secure environmental seal. With their resistance to shock, vibration, and high temperatures, the DRB series connectors are an excellent choice for firewall-mounted pass-through applications.

The DRB Series connectors are durable connectors that are perfect for bulkhead applications. They can accommodate various wire gauges and have high pin counts, including 48, 60, 102, and 128 cavities. To enhance design flexibility, the DRB Series offers multiple mounting flange options and wire arrangements. It is well-suited for use in on and off-highway applications, marine environments, industrial settings, and agriculture markets even in harsh conditions.

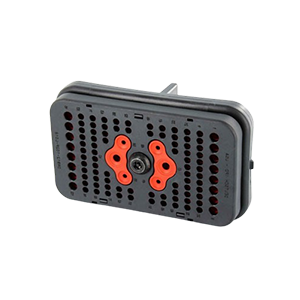

DRB Connector

Deutsch DRB Connectors Series Overview

• Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)

• 6-22 AWG (16.00-0.35 mm 2 )

• 48, 60, 102, and 128 cavity arrangements

• Flange mount

• Rectangular, thermoplastic housing

• Jackscrew for mating

• Wedgelocks confirm contact alignment and retention

Features

Product Type Features

- Mixed & Hybrid Connector: Yes
- Connector Shape: Rectangular
- Connector System: Wire-to-Wire
- Connector & Housing Type: Housing for Female Terminals, Housing for Male Terminals
- Sealable: No, Yes
- Connector & Contact Terminates To: Wire & Cable
- Primary Locking Feature: Integrated in Housing

Configuration Features

- Blank Cavity Position: 0
- Connector Modification: Wire Router
- Connector Seal Code: E Seal
- Number of Positions: 48, 60, 102, 128
- Number of Rows: 6, 12

Electrical Characteristics

- Operating Voltage (VDC): 250
- Operating Voltage (VAC): 250
- Nominal Voltage Architecture (V): 250

Body Features

- Cable Exit Angle: 180°
- Primary Product Color: Black
- Connector & Keying Code: A, B

Contact Features

- Contact Size: Size 12, Size 16, Size 20, Size 4, Size 8
- Contact Type: Pin, Socket
- Mating Pin Diameter (mm): 1.02, 1.59, 2.39, 3.61, 5.72
- Mating Pin Diameter (in): .04, .063, .094, .142, .225
- Contact Current Rating (Max) (A): 7.5, 13, 25, 60, 100

Mechanical Attachment

- Terminal Position Assurance: No, Yes
- Strain Relief: With
- Mating Alignment Type: Keyed
- Mating Alignment: With
- Connector Mounting Type: Cable Mount (Free-Hanging)

Housing Features

- Housing Material: PA GF
- Centerline (Pitch) (mm): 3.81, 4.45, 4.7, 6.71, 22.5
- Centerline (Pitch) (in): .15, .175, .185, .264, .886

Dimensions

- Connector Height (mm): 62.64, 66.19, 75.34
- Connector Height (in): 2.466, 2.606, 2.966
- Product Width (mm): 66.19, 125.75, 125.76
- Product Width (in): 2.606, 4.951
- Product Length (mm): 35.71, 44.4, 45.16, 50.22, 52.76, 54.38, 58.19
- Product Length (in): 1.406, 1.748, 1.778, 1.977, 2.077, 2.141, 2.291
- Row-to-Row Spacing (mm); .64, 3.81, 4.83, 6.6, 6.99, 7.57, 7.62, 7.77, 8.2, 8.41, 8.61, 8.63
- Row-to-Row Spacing (in): .025, .15, .19, .26, .275, .298, .3, .306, .323, . 331, .339, .34
- Compatible Insulation Diameter Range (mm): 1.02 - 2.41, 1.35 - 3.05, 2.46 - 4.01, 3.43 - 5.59, 6.63 - 7.42
- Compatible Insulation Diameter Range (in): .04 - .095, .053 - .12, .097 - .158, .135 - .22, . 261 - .292

Usage Conditions

- Operating Temperature (Max) (°C): 125
- Operating Temperature (Max) (°F): 257
- Operating Temperature Range (°C): -55 - 125
- Operating Temperature Range (°F): -67 - 257

Operation/Application

- Circuit Application: Power

Industry Standards

- Degree of Protection: IP68, IP6K9K
- Compatible With Agency/Standards Products: SAE J2030

DRB Connectors Housing Part Number

Product Description	Part Number	Number of Positions	Connector & Housing Type	Centerline (Pitch)	Sealable	Mating Pin Diameter	Number of Rows	Contact Current Rating (Max)
REC, 48P, BLK, E, CAP, A	DRB12-48PAE-L018	48	Housing for Male Terminals	3.81 mm, 4.7 mm, 6.71 mm	Yes	1.02 mm, 1.59 mm, 2.39 mm	6	7.5 A, 13 A, 25 A
REC, 48P, BLK, E, CAP, B	DRB12-48PBE-L018	48	Housing for Male Terminals	3.81 mm, 4.7 mm, 6.71 mm	Yes	1.02 mm, 1.59 mm, 2.39 mm	6	7.5 A, 13 A, 25 A
REC, 60P, BLK, E, CAP, A	DRB12-60PAE-L018	60	Housing for Male Terminals	3.81 mm, 4.45 mm	Yes	1.02 mm, 1.59 mm	6	7.5 A, 13 A
REC, 60P, BLK, NON-ENV, A	DRB12-60PANE	60	Housing for Male Terminals	3.81 mm, 4.45 mm	No	1.02 mm, 1.59 mm	6	7.5 A, 13 A
REC, 60P, BLK, E, CAP, B	DRB12-60PBE-L018	60	Housing for Male Terminals	3.81 mm, 4.45 mm	Yes	1.02 mm, 1.59 mm	6	7.5 A, 13 A
PLG, 48P, BLK, E, CAP, A	DRB16-48SAE-L018	48	Housing for Female Terminals	3.81 mm, 4.7 mm, 6.71 mm	Yes	1.02 mm, 1.59 mm, 2.39 mm	6	7.5 A, 13 A, 25 A
PLG, 48P, BLK, E, CAP, B	DRB16-48SBE-L018	48	Housing for Female Terminals	3.81 mm, 4.7 mm, 6.71 mm	Yes	1.02 mm, 1.59 mm, 2.39 mm	6	7.5 A, 13 A, 25 A
PLG, 60P, BLK, E, CAP, A	DRB16-60SAE-L018	60	Housing for Female Terminals	3.81 mm, 4.45 mm	Yes	1.02 mm, 1.59 mm	6	7.5 A, 13 A
PLG, 60P, BLK, E, CAP, B	DRB16-60SBE-L018	60	Housing for Female Terminals	3.81 mm, 4.45 mm	Yes	1.02 mm, 1.59 mm	6	7.5 A, 13 A
REC, 102P, BLK, E, CAP, A	DRB12-102PAE-L018	102	Housing for Male Terminals	4.45 mm, 6.71 mm, 22.5 mm	Yes	1.59 mm, 2.39 mm, 3.61 mm, 5.72 mm	12	13 A, 25 A, 60 A, 100 A
REC, 102P, BLK, NON-ENV, A	DRB12-102PANE	102	Housing for Male Terminals	4.45 mm, 6.71 mm, 22.5 mm	No	1.59 mm, 2.39 mm, 3.61 mm, 5.72 mm	12	13 A, 25 A, 60 A, 100 A
REC, 128P, BLK, E, CAP, A	DRB12-128PAE-L018	128	Housing for Male Terminals	4.45 mm, 6.71 mm	Yes	1.59 mm, 2.39 mm	12	13 A, 25 A
REC, 128P, BLK, NON-ENV, CAP, A	DRB12-128PANE-L018	128	Housing for Male Terminals	4.45 mm, 6.71 mm	No	1.59 mm, 2.39 mm	12	13 A, 25 A
REC, 128P, BLK, E, CAP, B	DRB12-128PBE-L018	128	Housing for Male Terminals	4.45 mm, 6.71 mm	Yes	1.59 mm, 2.39 mm	12	13 A, 25 A
REC, 128P, BLK, NON-ENV, CAP, B	DRB12-128PBNE-L018	128	Housing for Male Terminals	4.45 mm, 6.71 mm	No	1.59 mm, 2.39 mm	12	13 A, 25 A
PLG, 102P, BLK, E, CAP, A	DRB16-102SAE-L018	102	Housing for Female Terminals	4.45 mm, 6.71 mm, 22.5 mm	Yes	1.59 mm, 2.39 mm, 3.61 mm, 5.72 mm	12	13 A, 25 A, 60 A, 100 A
PLG, 102P, BLK, E, CAP, B	DRB16-102SBE-L018	102	Housing for Female Terminals	4.45 mm, 6.71 mm, 22.5 mm	Yes	1.59 mm, 2.39 mm, 3.61 mm, 5.72 mm	12	13 A, 25 A, 60 A, 100 A
PLG, 128P, BLK, E, CAP, A	DRB16-128SAE-L018	128	Housing for Female Terminals	4.45 mm, 6.71 mm	Yes	1.59 mm, 2.39 mm	12	13 A, 25 A
PLG, 128P, BLK, E, CAP, B	DRB16-128SBE-L018	128	Housing for Female Terminals	4.45 mm, 6.71 mm	Yes	1.59 mm, 2.39 mm	12	13 A, 25 A

If you want to find these connectors' specs, then search TE's official website by using the correct part number and download the specs. you will get the exact info.
