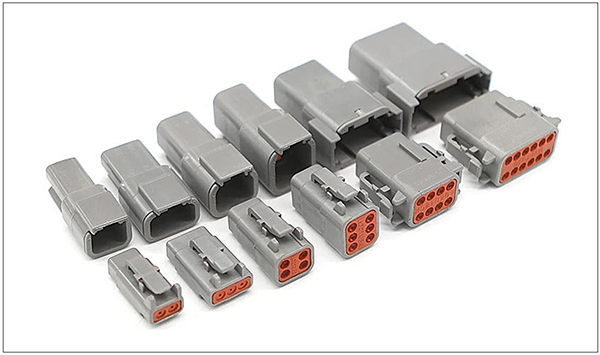

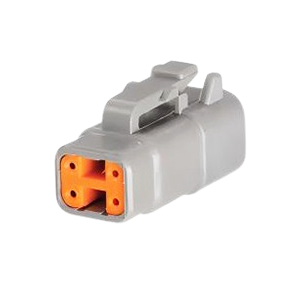

DTM Series Connectors
The Deutsch DTM Series of transportation connectors features a miniature contact with an enhanced design based on the world-class, field-proven Deutsch "DT" Series. The DTM connector is specifically designed for harsh environmental applications where reliable signal circuits are crucial to optimal performance. It is commonly used in areas such as the engine, transmission, and other under-the-hood components. In fact, wherever data signals or critical electronic circuits are present, the tried-and-tested Deutsch design of the DTM ensures dependable peak connector performance. It is available in 2-, 3-, 4-, 6-, 8-, and 12-cavity configurations.
Deutsch DTM series connectors offer solutions for your smaller-wire-gauge applications. Building on the DT design strengths, the DTM connector line was developed to meet the need for lower-amperage, multi-pin connectors. The DTM series allows the designer to use multiple size 20 contacts, each with 7.5 amp continuous capacity, within a single shell.
Connector Specifications
- Brand: TE Connectivity
- Pitch: 4.19mm (0.165in)
- Mounting Style: Cable Mount / Free Hanging
- Termination Style: Crimp
- Wire Gauge: 16 - 22 AWG
- Application: Wire to Wire
- Current Rating: 7.5A
- Ingress Protection: IP68, IP6K9K
- Operating Temp: -55℃ - +125℃
- Voltage Rating: 250V
Deutsch Connector Performance Specs
- Durability: No electrical or mechanical defects after 100 cycles of engagement and disengagement.
- Vibration: No unlocking or unmating and no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
- Fluid Resistance: Connectors exhibit no damage when exposed to the majority of fluids commonly used in industrial applications.
- Insulation Resistance: 1000 megohms minimum at 25°C.
- Immersion: IP68 rating
- Moisture Resistance: Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
- Dielectric Withstanding Voltage: Current leakage less than 2 milliamps at 1500 volts AC.
Deutsch DTM Connector Part Number

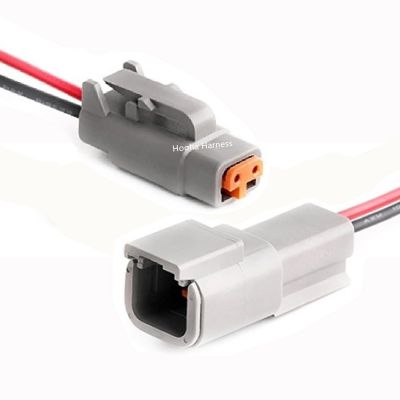

2P 2Pin 2Way 2-hole 2-cavity
| Product Description | Part Number | Connector System |
| PLG, 2P, GRY, N, XCAP | DTM06-2S-E007 | Wire-to-Wire |
| REC, 2P, BLK, FEEDTHRU, NI | DT04-2P-N006 | Wire-to-Wire |
| REC, 2P, BLK, FEEDTHRU, NI | DT04-2P-P036 | Wire-to-Wire |
| REC, 2P, GRY, 4700 OHM RESISTOR, AU | DT04-2P-P049 | Wire-to-Wire |
| REC, 2P, BLK, 600V, 1.28V, 4A DIODE, NI | DT04-2P-RT01 | Wire-to-Wire |
| REC, 2P, BLK, 400V, 1.00V, 3A DIODE, NI | DT04-2P-RT02 | Wire-to-Wire |
| REC, 2P, GRN, TVS DIODE, NI | DT04-2P-RT06 | Wire-to-Wire |
| REC, 2P, BLK, 511 OHM RESISTOR, NI | DT04-2P-RT21 | Wire-to-Wire |
| REC, 2P, BLK, 620 OHM RESISTOR, NI | DT04-2P-RT22 | Wire-to-Wire |
| REC, 2P, BLK, 120 OHM RESISTOR, NI | DT04-2P-RT24 | Wire-to-Wire |
| REC, 2P, BLK, 27K OHM RESISTOR, NI | DT04-2P-RT25 | Wire-to-Wire |
| REC, 2P, BLK, 1.5K OHM RESISTOR, NI | DT04-2P-RT26 | Wire-to-Wire |
| REC, 2P, GRY, N | DTM04-2P | Wire-to-Wire |
| REC, 2P, GRY, N, CAP | DTM04-2P-E003 | Wire-to-Wire |
| REC, 2P, BLK, N | DTM04-2P-E004 | Wire-to-Wire |
| REC, 2P, BLK, N, CAP | DTM04-2P-E005 | Wire-to-Wire |
| REC, 2P, GRY, N, XCAP | DTM04-2P-E007 | Wire-to-Wire |
| REC, 2P, BLK, N, XCAP | DTM04-2P-EE03 | Wire-to-Wire |
| REC, 2P, BLK, 120 OHM RESISTOR, AU, B | DTM04-2P-EP10 | Component-to-Wire |
| REC, 2P, GRY, 120 OHM RESISTOR, AU, A | DTM04-2P-P006 | Component-to-Wire |
| REC, 2P, BLK, Y-SPLITTER, AU, AB, B | DTM04-2P-P007 | Wire-to-Panel, Wire-to-Wire |
| PLG, 2P, GRY, N | DTM06-2S | Wire-to-Wire |
| PLG, 2P, GRY, N, CAP | DTM06-2S-E003 | Wire-to-Wire |
| PLG, 2P, BLK, N | DTM06-2S-E004 | Wire-to-Wire |
| PLG, 2P, BLK, N, CAP | DTM06-2S-E005 | Wire-to-Wire |
| PLG, 2P, BLK, N, XCAP | DTM06-2S-EE03 | Wire-to-Wire |
| PLG, 2P, BLK, 120 OHM RESISTOR, AU, B | DTM06-2S-EP10 | Component-to-Wire |
| PLG, 2P, GRY, 120 OHM RESISTOR, AU, A | DTM06-2S-P006 | Component-to-Wire |
| REC, 2P, BLK, N, HI TEMP, A | DTMH04-2PA | Wire-to-Wire |
| REC, 2P, BLK, N, HI TEMP, B | DTMH04-2PB | Wire-to-Wire |
| REC, 2P, BLK, N, HI TEMP, C | DTMH04-2PC | Wire-to-Wire |
| PLG, 2P, BLK, N, HI TEMP, A | DTMH06-2SA | Wire-to-Wire |
| PLG, 2P, BLK, N, HI TEMP, B | DTMH06-2SB | Wire-to-Wire |
| PLG, 2P, BLK, N, HI TEMP, C | DTMH06-2SC | Wire-to-Wire |

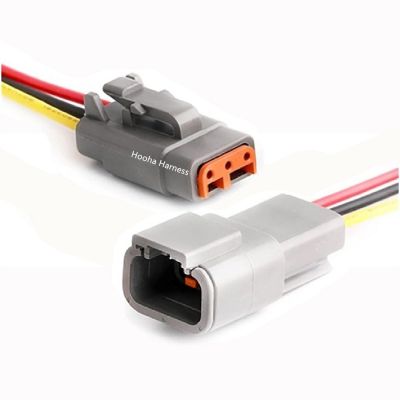

3P 3Pin 3Way 3-hole 3-cavity
| Product Description | Part Number | Connector System |
| REC, 3P, GRY, N | DTM04-3P | Wire-to-Wire |
| REC, 3P, GRY, N, CAP | DTM04-3P-E003 | Wire-to-Wire |
| REC, 3P, BLK, N | DTM04-3P-E004 | Wire-to-Wire |
| REC, 3P, BLK, N, CAP | DTM04-3P-E005 | Wire-to-Wire |
| DTM04-3P-E007, REC, 3P, GRY, N, XCAP | DTM04-3P-E007 | Wire-to-Wire |
| PLG, 3P, GRY, N | DTM06-3S | Wire-to-Wire |
| PLG, 3P, GRY, BLOCKED | DTM06-3S-C017 | Wire-to-Wire |
| PLG, 3P, BLK, N | DTM06-3S-E004 | Wire-to-Wire |
| PLG, 3P, GRY, N, XCAP | DTM06-3S-E007 | Wire-to-Wire |
| REC, 3P, BLK, N, HI TEMP, A | DTMH04-3PA | Wire-to-Wire |
| PLG, 3P, BLK, N, HI TEMP, A | DTMH06-3SA | Wire-to-Wire |
4P 4Pin 4Way 4-hole 4-cavity
| Product Description | Part Number | Connector System |
| REC, 4P, GRY, N | DTM04-4P | Wire-to-Wire |
| REC, 4P, GRY, N, CAP | DTM04-4P-E003 | Wire-to-Wire |
| REC, 4P, BLK, N | DTM04-4P-E004 | Wire-to-Wire |
| REC, 4P, BLK, N, CAP | DTM04-4P-E005 | Wire-to-Wire |
| PLG, 4P, GRY, N | DTM06-4S | Wire-to-Wire |
| PLG, 4P, GRY, BLOCKED | DTM06-4S-C017 | Wire-to-Wire |
| DTM06-4S-E003, PLG, 4P, GRY, N, CAP | DTM06-4S-E003 | Wire-to-Wire |
| PLG, 4P, BLK, N | DTM06-4S-E004 | Wire-to-Wire |
| PLG, 4P, GRY, N, XCAP | DTM06-4S-E007 | Wire-to-Wire |
| REC, 4P, BLK, N, HI TEMP, A | DTMH04-4PA | Wire-to-Wire |
6P 6Pin 6Way 6-hole 6-cavity
| Product Description | Part Number | Connector System |
| REC, 6P, GRY, N | DTM04-6P | Wire-to-Wire |
| REC, 6P, GRY, N, CAP | DTM04-6P-E003 | Wire-to-Wire |
| REC, 6P, BLK, N | DTM04-6P-E004 | Wire-to-Wire |
| REC, 6P, BLK, N, CAP | DTM04-6P-E005 | Wire-to-Wire |
| REC, 6P, BLK, N, HIGH TEMP | DTM04-6P-EE04 | Wire-to-Wire |
| PLG, 6P, GRY, N | DTM06-6S | Wire-to-Wire |
| PLG, 6P, GRY, BLOCKED | DTM06-6S-C017 | Wire-to-Wire |
| PLG, 6P, BLK, N | DTM06-6S-E004 | Wire-to-Wire |
| PLG, 6P, BLK, N, CAP | DTM06-6S-E005 | Wire-to-Wire |
| PLG, 6P, GRY, N, XCAP | DTM06-6S-E007 | Wire-to-Wire |
| PLG, 6P, BLK, N, XCAP | DTM06-6S-EE03 | Wire-to-Wire |
| PLG, 6P, BLK, N, HIGH TEMP | DTM06-6S-EE04 | Wire-to-Wire |
8P 8Pin 8Way 8-hole 8-cavity
| Product Description | Part Number | Connector System |
| REC, 8P, GRY, N, A | DTM04-08PA | Wire-to-Wire |
| REC, 8P, GRY, N, CAP, A | DTM04-08PA-E003 | Wire-to-Wire |
| REC, 8P, BLK, N, CAP, A | DTM04-08PA-E005 | Wire-to-Wire |
| REC, 8P, BLK, N, HIGH TEMP, A | DTM04-08PA-EE04 | Wire-to-Wire |
| REC, 8P, BLK, N, HIGH TEMP, CAP, A | DTM04-08PA-EE08 | Wire-to-Wire |
| REC, 8P, BLK, N, B | DTM04-08PB | Wire-to-Wire |
| REC, 8P, BRN, N, D | DTM04-08PD | Wire-to-Wire |
| PLG, 8P, GRY, N, A | DTM06-08SA | Wire-to-Wire |
| PLG, 8P, BLK, N, A | DTM06-08SA-E004 | Wire-to-Wire |
| PLG, 8P, GRY, N, XCAP, A | DTM06-08SA-E007 | Wire-to-Wire |
| PLG, 8P, BLK, N, HIGH TEMP, A | DTM06-08SA-EE04 | Wire-to-Wire |
| PLG, 8P, BLK, N, HIGH TEMP, CAP, A | DTM06-08SA-EE08 | Wire-to-Wire |
| PLG, 8P, BLK, N, B | DTM06-08SB | Wire-to-Wire |
| PLG, 8P, BLK, N, XCAP, B | DTM06-08SB-E007 | Wire-to-Wire |
| PLG, 8P, GRN, N, C | DTM06-08SC | Wire-to-Wire |
| PLG, 8P, BRN, N, D | DTM06-08SD | Wire-to-Wire |
12P 12Pin 12Way 12-hole 12-cavity
| Product Description | Part Number | Connector System |
| 12POS, STAMPED 20, PIN HSG ASSY, SLD, COD 2 | 1-2303064-2 | Wire-to-Panel |
| REC, 12P, GRY, N, FLANGE, A | 2303064-1 | Wire-to-Panel |
| REC, 8P, GRY, N, A | DTM04-08PA | Wire-to-Wire |
| REC, 8P, GRY, N, CAP, A | DTM04-08PA-E003 | Wire-to-Wire |
| REC, 8P, BLK, N, CAP, A | DTM04-08PA-E005 | Wire-to-Wire |
| REC, 8P, BLK, N, HIGH TEMP, A | DTM04-08PA-EE04 | Wire-to-Wire |
| REC, 8P, BLK, N, HIGH TEMP, CAP, A | DTM04-08PA-EE08 | Wire-to-Wire |
| REC, 8P, BLK, N, B | DTM04-08PB | Wire-to-Wire |
| REC, 8P, BRN, N, D | DTM04-08PD | Wire-to-Wire |
| REC, 12P, GRY, N, A | DTM04-12PA | Wire-to-Wire |
| REC, 12P, GRY, N, CAP, A | DTM04-12PA-E003 | Wire-to-Wire |
| REC, 12P, BLK, N, CAP, A | DTM04-12PA-E005 | Wire-to-Wire |
| REC, 12P, GRY, N, FLANGE, A | DTM04-12PA-L012 | Wire-to-Panel, Wire-to-Wire |
| REC, 12P, BLK, N, B | DTM04-12PB | Wire-to-Wire |
| REC, 12P, BLK, N, FLANGE, B | DTM04-12PB-L012 | Wire-to-Panel, Wire-to-Wire |
| REC, 12P, GRN, N, C | DTM04-12PC | Wire-to-Wire |
| REC, 12P, BRN, N, D | DTM04-12PD | Wire-to-Wire |
| REC, 12P, BLK, N, HIGH TEMP, D | DTM04-12PD-EE04 | Wire-to-Wire |
| PLG, 8P, GRY, N, A | DTM06-08SA | Wire-to-Wire |
| PLG, 8P, BLK, N, A | DTM06-08SA-E004 | Wire-to-Wire |
| PLG, 8P, GRY, N, XCAP, A | DTM06-08SA-E007 | Wire-to-Wire |
| PLG, 8P, BLK, N, HIGH TEMP, A | DTM06-08SA-EE04 | Wire-to-Wire |
| PLG, 8P, BLK, N, HIGH TEMP, CAP, A | DTM06-08SA-EE08 | Wire-to-Wire |
| PLG, 8P, BLK, N, B | DTM06-08SB | Wire-to-Wire |
| PLG, 8P, BLK, N, XCAP, B | DTM06-08SB-E007 | Wire-to-Wire |
| PLG, 8P, GRN, N, C | DTM06-08SC | Wire-to-Wire |
| PLG, 8P, BRN, N, D | DTM06-08SD | Wire-to-Wire |
| PLG, 12P, GRY, N, A | DTM06-12SA | Wire-to-Wire |
| PLG, 12P, GRY, N, CAP, A | DTM06-12SA-E003 | Wire-to-Wire |
| PLG, 12P, GRY, N, XCAP, A | DTM06-12SA-E007 | Wire-to-Wire |
| PLG, 12P, BLK, N, HIGH TEMP, A | DTM06-12SA-EE04 | Wire-to-Wire |
| PLG, 12P, BLK, N, B | DTM06-12SB | Wire-to-Wire |
| PLG, 12P, BLK, N, CAP, B | DTM06-12SB-E003 | Wire-to-Wire |
| PLG, 12P, BLK, N, XCAP, B | DTM06-12SB-E007 | Wire-to-Wire |
| PLG, 12P, BLK, N, HIGH TEMP, B | DTM06-12SB-EE04 | Wire-to-Wire |
| PLG, 12P, GRN, N, C | DTM06-12SC | Wire-to-Wire |
| PLG, 12P, GRN, N, CAP, C | DTM06-12SC-E003 | Wire-to-Wire |
| PLG, 12P, GRN, N, XCAP, C | DTM06-12SC-E007 | Wire-to-Wire |
| PLG, 12P, BRN, N, D | DTM06-12SD | Wire-to-Wire |
| PLG, 12P, BRN, N, CAP, D | DTM06-12SD-E003 | Wire-to-Wire |
| PLG, 12P, BRN, N, XCAP, D | DTM06-12SD-E007 | Wire-to-Wire |
| PLG, 12P, BLK, N, HIGH TEMP, D | DTM06-12SD-EE04 | Wire-to-Wire |
Custom Wire Harness Cases
DTM 2 Pin Connector Wiring
DTM 3 Pin Connector Wiring

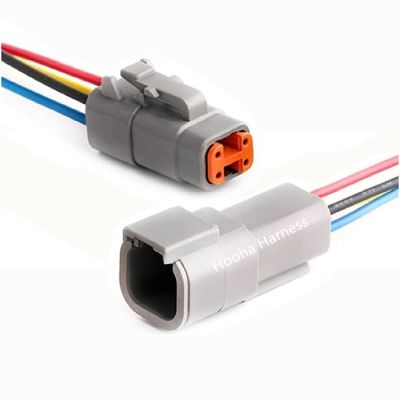

DTM 4 Pin Connector Wiring

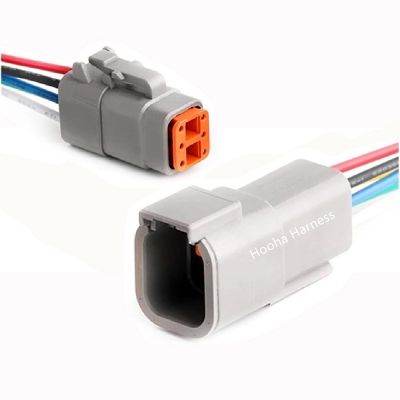

DTM 6 Pin Connector Wiring

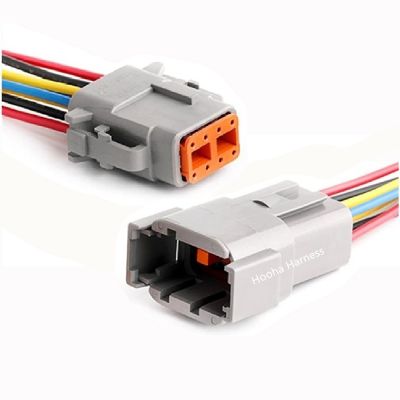

DTM 8 Pin Connector Wiring

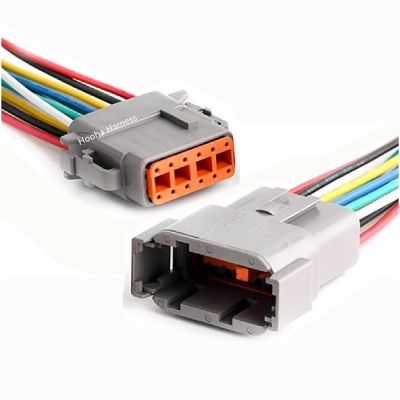

DTM 12 Pin Connector Wiring

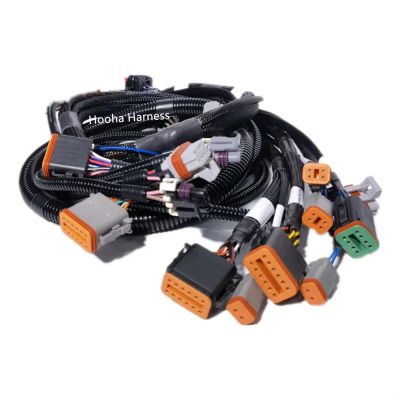

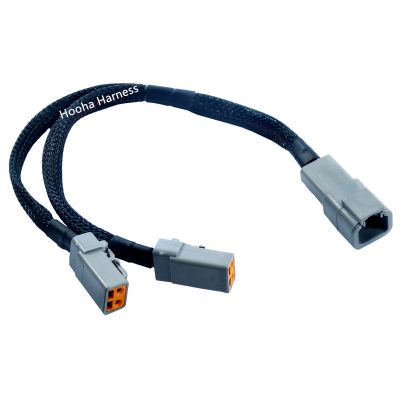

Deutsch DTM Wiring Harness

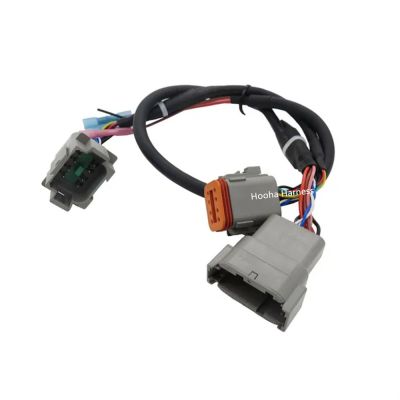

Deutsch DTM Wiring Harness
Deutsch DTM Wiring Harness
Support Custom Wire Harness Assembly
- Connectors: All Deutsch DTM Series Connectors.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
