Deutsch DTP connector and Cable Assembly
DTP Series Connectors

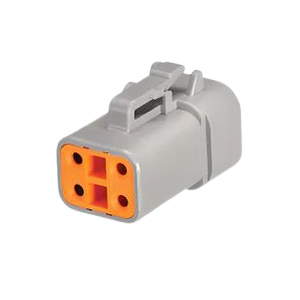

The DTP Series connectors are designed to meet all of your power application requirements with exceptional reliability and quality. They combine the trusted performance of Deutsch's DT Series with the added flexibility of power contacts. These connectors are environmentally sealed and available in two or four-pin configurations. They can be mounted in-line or on a flange, and have a continuous current rating of 25 amps at +120º C. Choose from 2 or 4 cavity arrangements.

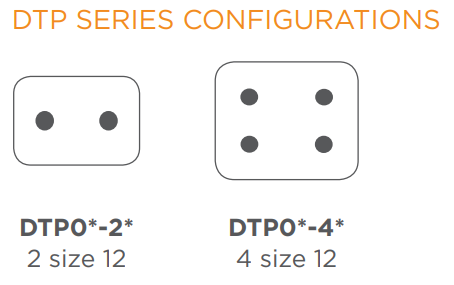

Deutsch DTP series connectors provide solutions for your power application requirements. Building on both the DT and DTM design strengths, the DTP connector line was developed to fill the need for higher amperage, multi-pin connectors. The DTP series allows the designer to use multiple size 12 contacts, each with 25 amp continuous capacity, within a single shell. The DTP connectors are currently available in two and four pin configurations.
Deutsch Connector Performance Specs
- Temperature: Operating at temperatures -55°C to +125°C
- Durability: No electrical or mechanical defects after 100 cycles of engagement and disengagement.
- Vibration: No unlocking or unmating and no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
- Fluid Resistance: Connectors show no damage when exposed to most fluids used in industrial applications.
- Insulation Resistance: 1000 megohms minimum at 25°C.
- Immersion: IP68 rating
- Moisture Resistance: Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
- Dielectric Withstanding Voltage: Current leakage less than 2 milliamps at 1500 volts AC.
- Thermal Cycle: No cracking, chipping, or leaking after 20 test cycles from -55°C to +125°C.
Connector Specifications
- Brand: TE Connectivity
- Pitch: 6.71mm (0.264in)
- Mounting Style: Cable Mount / Free Hanging
- Termination Style: Crimp
- Wire Gauge: 10-14 AWG
- Application: Wire to Wire
- Current Rating: 25A
- Ingress Protection: IP68
- Operating Temp: -55℃ - +125℃
- Voltage Rating: 200V
Deutsch DTP Connector Part Number
2P 2Pin 2Way 2-hole 2-cavity
| Product Description | Part Number | Connector System |
| REC, 2P, GRY, N | DTP04-2P | Wire-to-Wire |
| REC, 2P, GRY, E | DTP04-2P-C015 | Wire-to-Wire |
| REC, 2P, GRY, E, CAP | DTP04-2P-CE01 | Wire-to-Wire |
| REC, 2P, BLK, E | DTP04-2P-CE02 | Wire-to-Wire |
| REC, 2P, BLK, E, XCAP | DTP04-2P-CE09 | Wire-to-Wire |
| REC, 2P, GRY, N, CAP | DTP04-2P-E003 | Wire-to-Wire |
| REC, 2P, BLK, N | DTP04-2P-E004 | Wire-to-Wire |
| REC, 2P, BLK, N, XCAP | DTP04-2P-EE01 | Wire-to-Wire |
| PLG, 2P, GRY, N | DTP06-2S | Wire-to-Wire |
| PLG, 2P, GRY, E | DTP06-2S-C015 | Wire-to-Wire |
| PLG, 2P, GRY, BLOCKED | DTP06-2S-C017 | Wire-to-Wire |
| PLG, 2P, GRY, E, CAP | DTP06-2S-CE01 | Wire-to-Wire |
| PLG, 2P, BLK, E, XCAP | DTP06-2S-CE09 | Wire-to-Wire |
| PLG, 2P, GRY, N, CAP | DTP06-2S-E003 | Wire-to-Wire |
| PLG, 2P, BLK, N | DTP06-2S-E004 | Wire-to-Wire |
| PLG, 2P, BLK, N, XCAP | DTP06-2S-EE01 | Wire-to-Wire |
4P 4Pin 4Way 4-hole 4-cavity
| Product Description | Part Number | Connector System |
| REC, 4P, GRY, N | DTP04-4P | Wire-to-Wire |
| REC, 4P, GRY, E | DTP04-4P-C015 | Wire-to-Wire |
| REC, 4P, GRY, E, CAP | DTP04-4P-CE01 | Wire-to-Wire |
| REC, 4P, BLK, E, CAP | DTP04-4P-CE03 | Wire-to-Wire |
| REC, 4P, GRY, N, CAP | DTP04-4P-E003 | Wire-to-Wire |
| REC, 4P, BLK, N | DTP04-4P-E004 | Wire-to-Wire |
| REC, 4P, GRY, N, FLANGE | DTP04-4P-L012 | Wire-to-Wire |
| REC, 4P, GRY, N, CAP, FLANGE | DTP04-4P-LE07 | Wire-to-Wire |
| REC, 4P, BLK, 180DEG FEEDTHRU | DTP04-4P-P018 | Wire-to-Panel, Wire-to-Wire |
| REC, 4P, GRY, 90DEG FEEDTHRU | DTP04-4P-P052 | Wire-to-Panel, Wire-to-Wire |
| REC, 4P, GRN, 90DEG FEEDTHRU | DTP04-4P-P059 | Wire-to-Panel, Wire-to-Wire |
| PLG, 4P, GRY, N | DTP06-4S | Wire-to-Wire |
| PLG, 4P, GRY, E | DTP06-4S-C015 | Wire-to-Wire |
| PLG, 4P, BLK, E | DTP06-4S-CE02 | Wire-to-Wire |
| PLG, 4P, BLK, E, CAP | DTP06-4S-CE03 | Wire-to-Wire |
| PLG, 4P, GRY, N, CAP | DTP06-4S-E003 | Wire-to-Wire |
| PLG, 4P, BLK, N | DTP06-4S-E004 | Wire-to-Wire |
| PLG, 4P, BLK, N, XCAP | DTP06-4S-EE01 | Wire-to-Wire |
Custom Wire Harness Cases

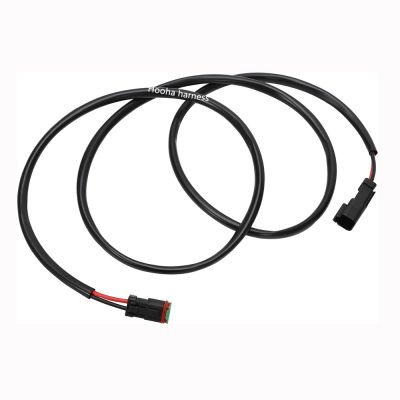

60 inch Extension DTP 2 Pin Connector Harness

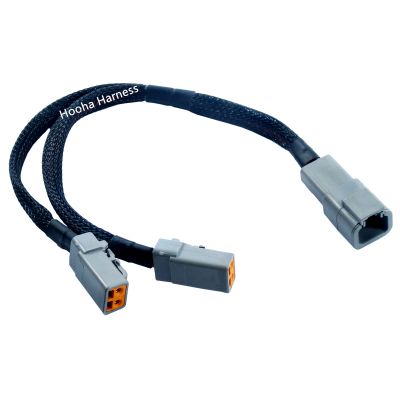

DTP 2 Pin Male to Female 1 to 2 Wiring

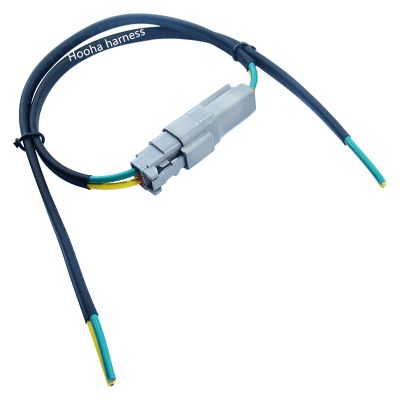

DTP 2p male to female wiring

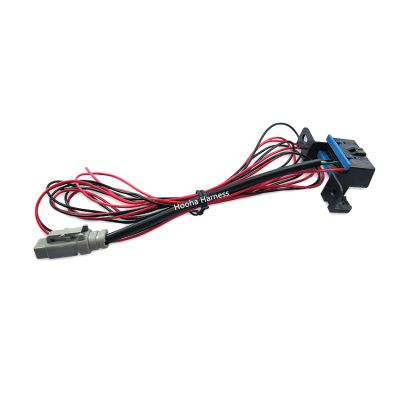

DTP 2P to OBD wire harness
DTP 2 Pin Male and Female Connector Wiring

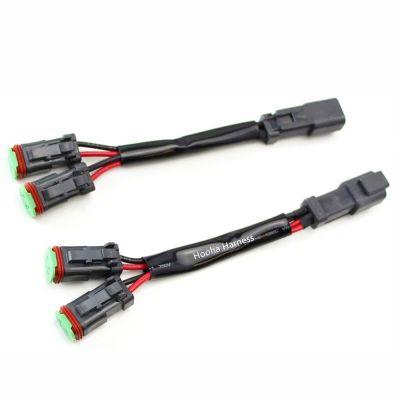

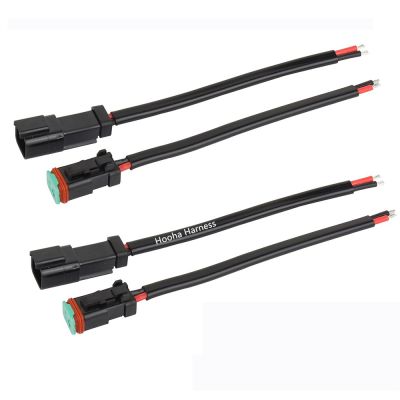

Dual Outputs Deutsch DTP Adapters Connectors
Support Custom Wire Harness Assembly
- Connectors: All Deutsch DTP Series Connectors.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
