Deutsch HD10 Connector and Cable Assembly

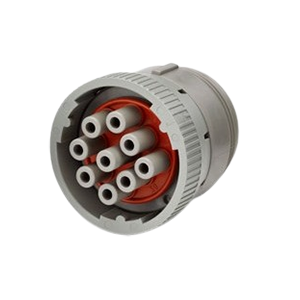

HD10 Series Connector
The Deutsch HD10 Connector series features environmentally sealed connectors with durable thermoplastic housing, making them highly sought after in the diagnostics industry. Offering 3 to 9 cavity arrangements and accommodating size 4 to 16 contacts, these connectors are designed for an extended service life cycle.

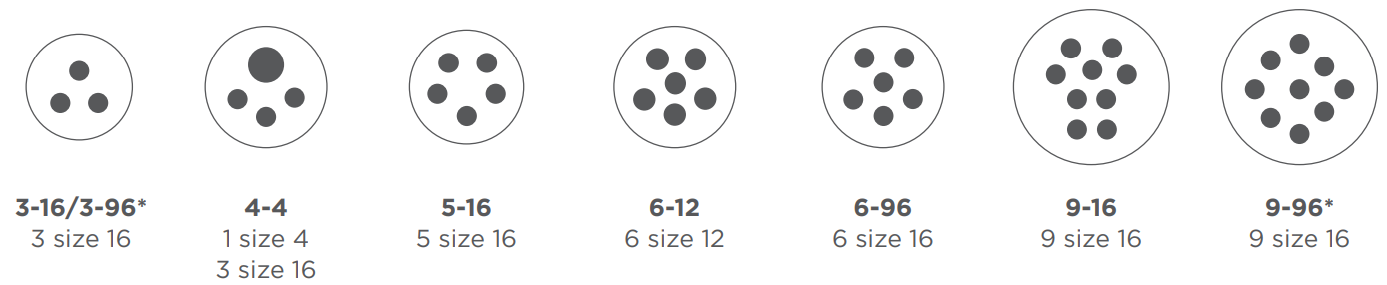

The HD10 series is an environmentally sealed, thermoplastic, and cylindrical connector series. With arrangements from 3 to 9 cavities, HD10 connectors accept size 4, 12, or 16 contacts and are available either in-line or flanged. HD10 connectors are heavily used for diagnostic applications and are available with or without a coupling ring.
HD10 Connector Performance Specs
- Temperature: Operating at temperatures-55°Cto+125°C
- Durability: No electrical or mechanical defects after 100 cycles of engagement and disengagement.
- Vibration: No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
- Fluid Resistance: Connectors show no damage when exposed to most fluids used in industrial applications.
- Insulation Resistance: 1000 megohms minimum at 25C.
- Immersion: IP68 rating
- Moisture Resistance: Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
- Dielectric Withstanding Voltage: Current leakage less than 2 milliamps at 1500 volts AC.
- Thermal Cycle: No cracking, chipping, or leaking after 20 test cycles from -55C to +125C.
Deutsch HD10 Connector Part Number
3P 3Pin 3Way 3-hole 3-cavity
| Product Description | Part Number | Connector & Housing Type | Color |
| SQ FG REC ASM | HD10-3-96P | Housing for Male Terminals | Gray |
| INL REC ASM | HD14-3-16P | Housing for Male Terminals | Gray |
| INL REC ASM | HD14-3-96P | Housing for Male Terminals | Gray |
| PLUG ASM | HD16-3-16S | Housing for Female Terminals | Gray |
| PLUG ASM | HD16-3-96S | Housing for Female Terminals | Gray |
5P 5Pin 5Way 5-hole 5-cavity
| Product Description | Part Number | Connector & Housing Type | Color |
| SQ FG REC ASM | HD10-5-16P | Housing for Male Terminals | Gray |
| SQ FG REC ASM | HD10-5-16P-B009 | Housing for Male Terminals | Gray |
| INL REC ASM | HD14-5-16P | Housing for Male Terminals | Gray |
| PLUG ASM | HD16-5-16S | Housing for Female Terminals | Gray |
6P 6Pin 6Way 6-hole 6-cavity
| Product Description | Part Number | Connector & Housing Type | Color |
| SQ FG REC ASM | HD10-6-12P | Housing for Male Terminals | Gray |
| SQ FG REC ASM | HD10-6-12P-E004 | Housing for Male Terminals | Black |
| SQ FG REC ASM | HD10-6-96P | Housing for Male Terminals | Gray |
| INL REC ASM | HD14-6-12P | Housing for Male Terminals | Gray |
| INL REC ASM | HD14-6-96P | Housing for Male Terminals | Gray |
| PLUG ASM | HD16-6-12S | Housing for Female Terminals | Gray |
| PLUG ASM | HD16-6-12S-B010 | Housing for Female Terminals | Gray |
| PLG, 6P, GRY, N, THRD, 16 | HD16-6-96S | Housing for Female Terminals | Gray |
9P 9Pin 9Way 9-hole 9-cavity
| Product Description | Part Number | Connector & Housing Type | Color |
| SQ FG REC ASM | HD10-9-16P | Housing for Male Terminals | Gray |
| SQ FG REC ASM | HD10-9-16P-B009 | Housing for Male Terminals | Gray |
| SQ FG REC ASM | HD10-9-1939P | Housing for Male Terminals | Black |
| RECP ASM | HD10-9-1939P-B022 | Housing for Male Terminals | Black |
| RECP ASM | HD10-9-1939P-BP03 | Housing for Male Terminals | Green |
| RECP ASM, J1939 TYPE 2 | HD10-9-1939P-P080 | Housing for Male Terminals | Green |
| SQ FG REC ASM | HD10-9-1939PE | Housing for Male Terminals | Black |
| RECP ASM | HD10-9-1939PE-B022 | Housing for Male Terminals | Black |
| RECP ASM | HD10-9-1939PE-BP03 | Housing for Male Terminals | Green |
| RECP ASM | HD10-9-1939PE-P080 | Housing for Male Terminals | Green |
| SQ FG REC ASM | HD10-9-96P | Housing for Male Terminals | Gray |
| SQ FG REC ASM | HD10-9-96P-B009 | Housing for Male Terminals | Gray |
| RECP ASM | HD10-9-96P-B025 | Housing for Male Terminals | Black |
| RECP ASM | HD10-9-96P-BE09 | Housing for Male Terminals | Gray |
| SQ FG REC ASM | HD10-9-96PE | Housing for Male Terminals | Gray |
| SQ FG REC ASM | HD10-9-96PE-B009 | Housing for Male Terminals | Gray |
| RECP ASM | HD10-9-96PE-B025 | Housing for Male Terminals | Black |
| Rcpt, 9-96, E-Seal, D-Hole, HD10 | HD10-9-96PE-BE09 | Housing for Male Terminals | Gray |
| INL REC ASM | HD14-9-16P | Housing for Male Terminals | Gray |
| INL REC ASM | HD14-9-1939P | Housing for Male Terminals | Black |
| RECP ASM | HD14-9-1939P-P080 | Housing for Male Terminals | Green |
| INL REC ASM | HD14-9-1939PE | Housing for Male Terminals | Black |
| INL REC ASM | HD14-9-96P | Housing for Male Terminals | Gray |
| INL REC ASM | HD14-9-96P-C016 | Housing for Male Terminals | Gray |
| INL REC ASM | HD14-9-96PE | Housing for Male Terminals | Gray |
| PLUG ASM | HD16-9-16S | Housing for Female Terminals | Gray |
| PLUG ASM | HD16-9-1939S | Housing for Female Terminals | Black |
| PLUG ASM | HD16-9-1939S-P080 | Housing for Female Terminals | Green |
| PLUG ASM | HD16-9-1939SE | Housing for Female Terminals | Black |
| PLUG ASM | HD16-9-1939SE-P080 | Housing for Female Terminals | Green |
| PLUG ASM | HD16-9-96S | Housing for Female Terminals | Gray |
| PLUG ASM | HD16-9-96S-C016 | Housing for Female Terminals | Gray |
| PLUG ASM | HD16-9-96SE | Housing for Female Terminals | Gray |
| PLUG ASM | HD17-9-1939S | Housing for Female Terminals | Black |
| PLUG ASM | HD17-9-1939S-P080 | Housing for Female Terminals | Green |
| PLUG ASM | HD17-9-1939SE | Housing for Female Terminals | Black |
Support Custom Wire Harness Assembly
- Connectors: All Deutsch HD10 Series Connectors.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
