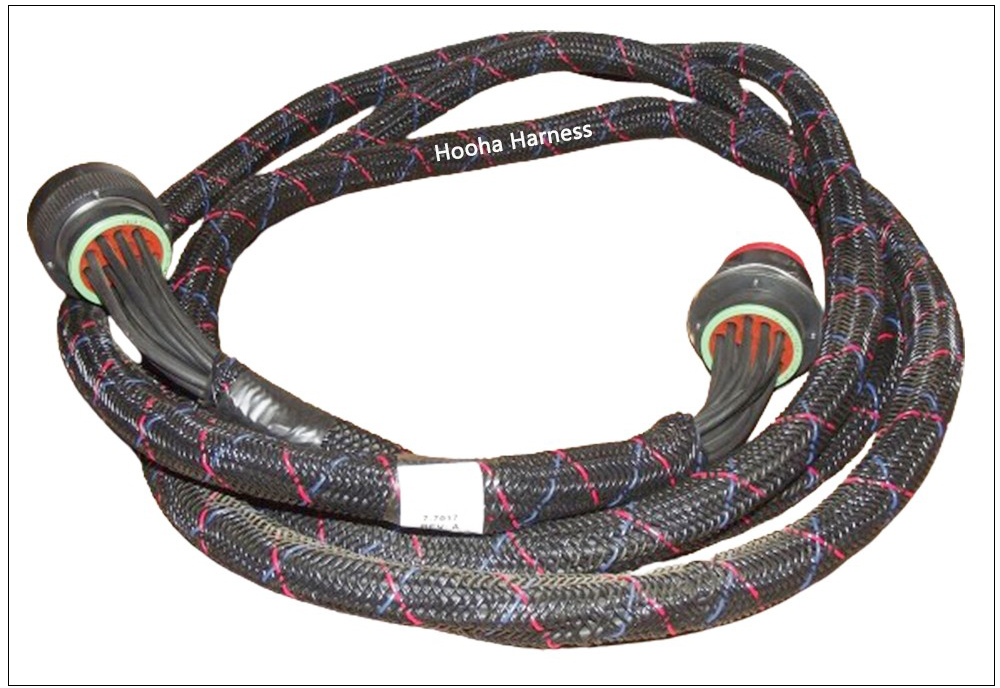

Deutsch HDP20 Connectors, Custom Cable Harness Assembly
Introduction

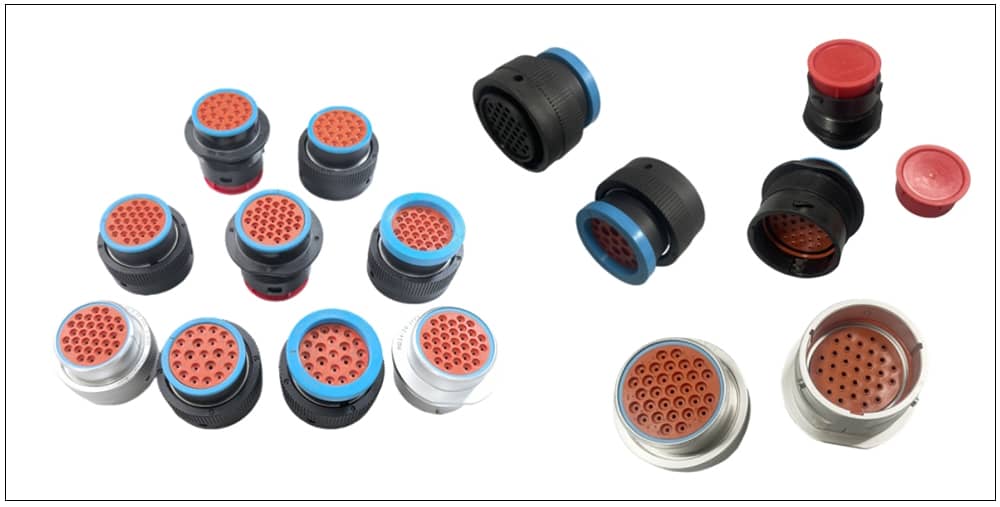

The Deutsch HDP20 Connector series was specifically designed for the heavy-duty on and off-highway industry. Whether you are working on a semi-truck, city bus, sanitation truck, or caterpillar loader, this connector series is perfect for you. The HDP20 series features a thermoplastic shell that allows for quick and easy connect/disconnect coupling. Additionally, the Deutsch contacts can be easily inserted and removed from the rear of the connector. This series is available in various cavity arrangements, including 2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47.
The HDP20 series connectors are heavy-duty-rated, hermetically sealed, and feature a composite shell and multiple pins for enhanced connectivity. The thermoplastic shell is ingeniously designed to withstand corrosive chemicals that may otherwise jeopardize the integrity of the connector housing. HDP20 boasts an effortlessly swift connect-disconnect bayonet coupling mechanism, single-hole bulkhead mounting capability, impeccably crafted silicone seals, and a highly efficient rear-insertion/rear-removal contact system.
Performance Specs
- Temperature: Operating at temperatures-55°Cto+125°C
- Durability: No electrical or mechanical defects after 100 cycles of engagement and disengagement.
- Vibration: No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
- Fluid Resistance: Connectors show no damage when exposed to most industrial fluids.
- Insulation Resistance: 1000 megohms minimum at 25 °C.
- Immersion: IP68 rating
- Moisture Resistance: Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
- Dielectric Withstanding Voltage: Current leakage less than 2 milliamps at 1500 volts AC.
- Thermal Cycle: No cracking, chipping, or leaking after 20 test cycles from -55 °C to +125 °C.

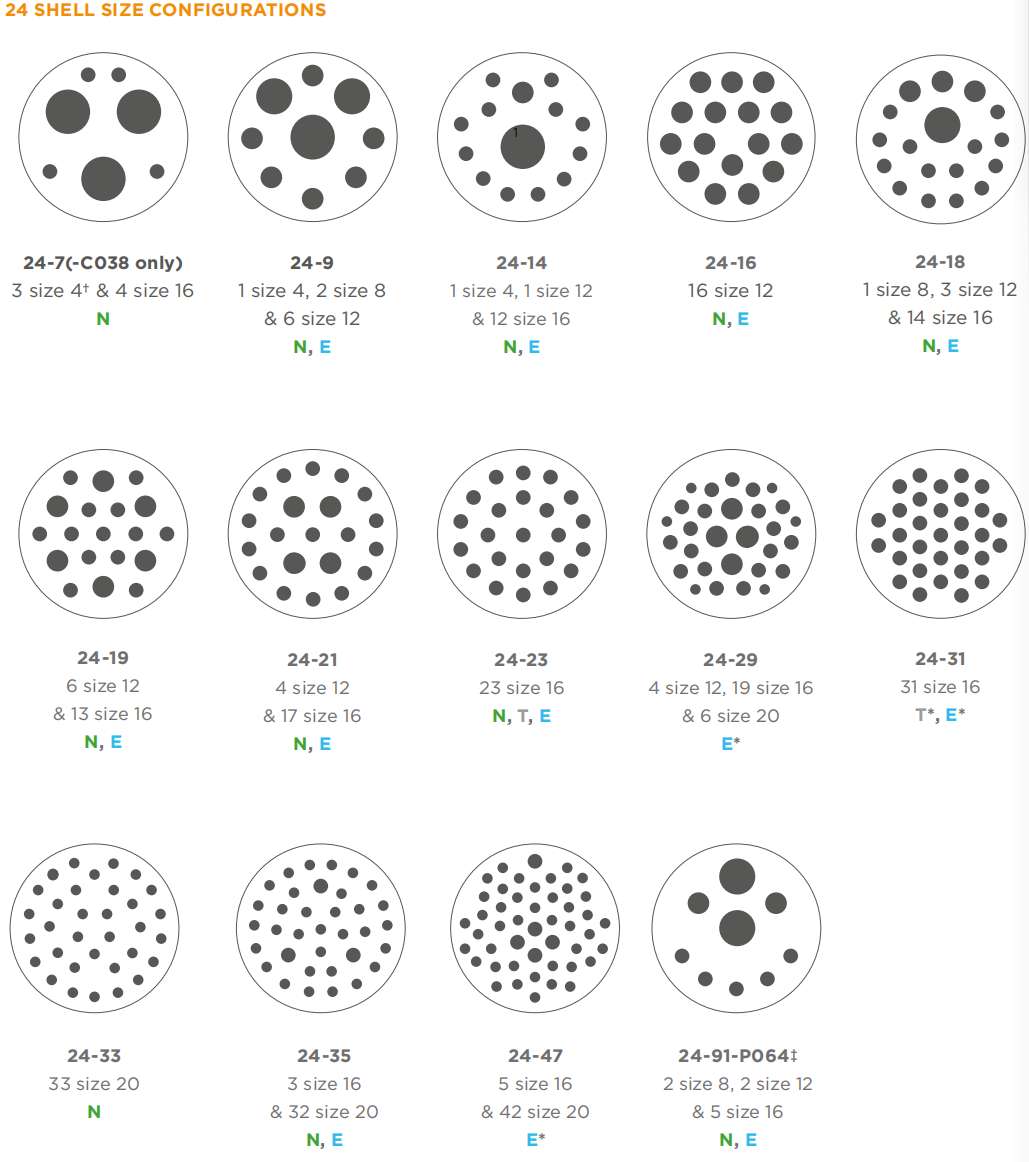

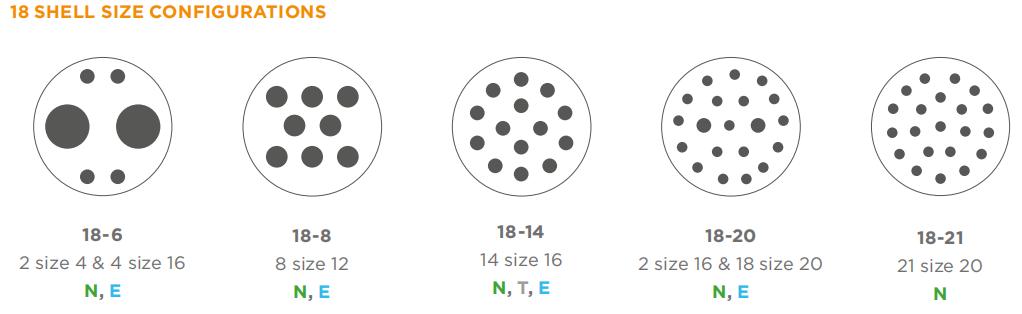

Connector Lists
| No. of Position | P/N | Color | Type | Connection | Links |
| 6 | HDP24-18-6PN-C030 | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-6PN-C030.html | |
| 6 | HDP26-18-6SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-6SN-L017.html |
| 6 | HDP24-18-6PN | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-6PN.html | |
| 6 | HDP26-18-6SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-6SN.html |
| 6 | HDP26-18-6SN-CL21 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-18-6SN-CL21.html |
| 6 | HDP26-18-6SN-C030 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-6SN-C030.html |
| 6 | HDP24-18-6PN-L017 | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-6PN-L017.html | |
| 6 | HDP24-18-6PN-L024 | Black | Receptacle | Wire-to-Panel | https://www.te.com/en/product-2294489-1.html |
| 6 | HDP26-18-6SN-L024 | Black | Plug | Wire-to-Panel | https://www.te.com/en/product-2294490-1.html |
| 6 | HDP24-18-6PE-L024 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-2386144-1.html |
| 6 | HDP26-18-6SE-L024 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-2386145-1.html |
| 7 | HDP26-24-7SN-C038 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-7SN-C038.html |
| 7 | HDP26-24-7SN-CL18 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-7SN-CL18.html |
| 7 | HDP26-24-7SN-CL22 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-7SN-CL22.html |
| 7 | HDP24-24-7PN-C038 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-7PN-C038.html |
| 7 | HDP24-24-7PN-CL22 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-7PN-CL22.html |
| 8 | HDP26-18-8PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-8PN.html |
| 8 | HDP26-18-8SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-8SE.html |
| 8 | HDP24-18-8PN | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-8PN.html |
| 8 | HDP24-18-8SE | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-8SE.html |
| 8 | HDP24-18-8PE-L017 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-8PE-L017.html |
| 8 | HDP26-18-8SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-8SE-L017.html |
| 8 | HDP24-18-8PN-L017 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-8PN-L017.html |
| 8 | HDP26-18-8PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-8PN-L017.html |
| 8 | HDP24-18-8SN-L017 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-8SN-L017.html |
| 8 | HDP24-18-8PE | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-8PE.html |
| 8 | HDP24-18-8SN | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-8SN.html |
| 8 | HDP26-18-8SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-8SN.html |
| 8 | HDP26-18-8SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-8SN-L017.html |
| 8 | HDP26-18-8SE-L024 | Black | Plug | Wire-to-Wire | https://www.te.com/en/product-2293819-1.html |
| 8 | HDP24-18-8PE-L024 | Black | Receptacle | Wire-to-Wire | https://www.te.com/en/product-2293821-1.html |
| 9 | HDP26-24-9SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9SE.html |
| 9 | HDP24-24-9PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-9PE.html |
| 9 | HDP24-24-91PN-P064 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-91PN-P064.html |
| 9 | HDP24-24-9SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-9SN-L015.html |
| 9 | HDP26-24-9SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9SE-L017.html |
| 9 | HDP26-24-9SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9SN-L015.html |
| 9 | HDP26-24-9PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9PN.html |
| 9 | HDP24-24-9PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-9PN.html |
| 9 | HDP26-24-9PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9PN-L015.html |
| 9 | HDP24-24-9SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-9SN.html |
| 9 | HDP24-24-9PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-9PE-L024.html |
| 9 | HDP26-24-91SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-91SEL024.html |
| 9 | HDP26-24-9PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9PE-L015.html |
| 9 | HDP24-24-9PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-9PE-L015.html |
| 9 | HDP24-24-9PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-9PE-L017.html |
| 9 | HDP24-24-9PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-9PN-L015.html |
| 9 | HDP24-24-91PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-91PE-L015.html |
| 9 | HDP24-24-9SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-9SN-L017.html |
| 9 | HDP26-24-9SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9SN.html |
| 9 | HDP24-24-9PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-9PN-L017.html |
| 9 | HDP26-24-9PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9PE.html |
| 9 | HDP26-24-9SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-9SE-L024.html |
| 9 | HDP24-24-91PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-91PEL024.html |
| 9 | HDP26-24-9SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9SE-L015.html |
| 9 | HDP24-24-9SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-9SE.html |
| 9 | HDP26-24-9PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9PE-L017.html |
| 9 | HDP26-24-9PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9PN-L017.html |
| 9 | HDP24-24-9SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-9SE-L015.html |
| 9 | HDP26-24-91SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-91SE-L015.html |
| 9 | HDP26-24-91SN-P064 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-91SN-P064.html |
| 9 | HDP26-24-9SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-9SN-L017.html |
| 9 | 2294488-1 | Black | Plug | Wire-to-Panel | https://www.te.com/en/product-2294488-1.html |
| 9 | HDP24-24-91PE-L017 | Black | Receptacle | Wire-to-Panel | https://www.te.com/en/product-2333725-1.html |
| 14 | HDP24-24-14SE | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-14SE.html |
| 14 | HDP24-18-14PE | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-14PE.html |
| 14 | HDP24-18-14PE-L017 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-14PE-L017.html |
| 14 | HDP24-24-14PN | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-14PN.html |
| 14 | HDP24-24-14PN-L015 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-14PN-L015.html |
| 14 | HDP24-18-14SN | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-14SN.html |
| 14 | HDP26-24-14PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-14PE.html |
| 14 | HDP24-18-14PN | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-14PN.html |
| 14 | HDP26-18-14PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-14PE-L017.html |
| 14 | HDP24-24-14PE | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-14PE.html |
| 14 | HDP24-18-14PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-18-14PE-L015.html |
| 14 | HDP24-18-14PN-L017 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-14PN-L017.html |
| 14 | HDP24-24-14SN | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-14SN.html |
| 14 | HDP24-24-14SN-L017 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-14SN-L017.html |
| 14 | HDP26-18-14PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-14PE.html |
| 14 | HDP24-24-14PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-14PN-L017.html |
| 14 | HDP26-18-14SE-CL20 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-18-14SECL20.html |
| 14 | HDP24-18-14PE-C041 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-18-14PEC041.html |
| 14 | HDP24-24-14PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-14PE-L017.html |
| 14 | HDP26-18-14SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-14SE-L015.html |
| 14 | HDP26-18-14PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-14PN.html |
| 14 | HDP26-18-14SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-14SE.html |
| 14 | HDP26-24-14SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-14SE.html |
| 14 | HDP26-24-14PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-14PN-L017.html |
| 14 | HDP26-24-14SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-14SN-L015.html |
| 14 | HDP26-24-14SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-14SN-L017.html |
| 14 | HDP26-18-14SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-14SN.html |
| 14 | HDP26-18-14SN-L015 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP26-18-14SN-L015.html |
| 14 | HDP26-18-14PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-14PE-L015.html |
| 14 | HDP26-24-14SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-14SE-L017.html |
| 14 | HDP26-24-14SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-14SN.html |
| 14 | HDP26-18-14SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-18-14SEL024.html |
| 14 | HDP24-18-14PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-18-14PEL024.html |
| 14 | HDP24-18-14SE | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-14SE.html |
| 14 | HDP24-18-14SE-L017 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-14SE-L017.html |
| 14 | HDP26-24-14PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-14PN-L015.html |
| 14 | HDP26-18-14SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-14SN-L017.html |
| 14 | HDP26-24-14PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-14PN.html |
| 14 | HDP26-18-14SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-14SE-L017.html |
| 16 | HDP26-24-16SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16SE-L017.html |
| 16 | HDP24-24-16PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-16PE-L017.html |
| 16 | HDP24-24-16SE-L015 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-16SE-L015.html |
| 16 | HDP26-24-16SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16SE-L015.html |
| 16 | HDP26-24-16SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16SN-L015.html |
| 16 | HDP24-24-16SN | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-16SN.html |
| 16 | HDP24-24-16PE | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-16PE.html |
| 16 | HDP24-24-16PN-L017 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-16PN-L017.html |
| 16 | HDP24-24-16SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-16SE-L017.html |
| 16 | HDP26-24-16PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16PE.html |
| 16 | HDP26-24-16PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16PN.html |
| 16 | HDP26-24-16SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16SE.html |
| 16 | HDP26-24-16PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16PE-L015.html |
| 16 | HDP26-24-16SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16SN.html |
| 16 | HDP26-24-16PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16PN-L015.html |
| 16 | HDP26-24-16SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16SN-L017.html |
| 16 | HDP26-24-16PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16PE-L017.html |
| 16 | HDP26-24-16PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-16PN-L017.html |
| 16 | HDP24-24-16PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-16PE-L015.html |
| 16 | HDP24-24-16SE | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-16SE.html |
| 16 | HDP24-24-16PN | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-16PN.html |
| 16 | HDP24-24-16PE-L024 | Black | Receptacle | Wire-to-Wire | https://www.te.com/en/product-2293822-1.html |
| 16 | HDP26-24-16SE-L024 | Black | Plug | Wire-to-Wire | https://www.te.com/en/product-2293823-1.html |
| 18 | HDP24-24-18PN | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-18PN.html |
| 18 | HDP26-24-18PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-18PN-L017.html |
| 18 | HDP24-24-18SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-18SN-L015.html |
| 18 | HDP26-24-18SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-18SN-L017.html |
| 18 | HDP26-24-18SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-18SE-L017.html |
| 18 | HDP24-24-18PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-18PE-L015.html |
| 18 | HDP24-24-18SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-18SE.html |
| 18 | HDP24-24-18PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-18PE-L017.html |
| 18 | HDP26-24-18PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-18PE-L017.html |
| 18 | HDP26-24-18SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-18SE.html |
| 18 | HDP26-24-18PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-18PN.html |
| 18 | HDP26-24-18SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-18SE-L015.html |
| 18 | HDP24-24-18PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-18PEL024.html |
| 18 | HDP24-24-18SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-18SN.html |
| 18 | HDP26-24-18SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-18SN.html |
| 18 | HDP26-24-18PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-18PE.html |
| 18 | HDP26-24-18PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-18PN-L015.html |
| 18 | HDP26-24-18SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-18SN-L015.html |
| 18 | HDP24-24-18PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-18PN-L017.html |
| 18 | HDP24-24-18SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-18SE-L017.html |
| 18 | HDP24-24-18PE | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-24-18PE.html |
| 18 | HDP24-24-18PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-18PN-L015.html |
| 18 | HDP24-24-18SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-18SN-L017.html |
| 18 | HDP26-24-18SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-18SEL024.html |
| 18 | HDP26-24-18PN-L024 | Black | Plug | Wire-to-Wire | https://www.te.com/en/product-2294435-1.html |
| 19 | HDP24-24-19SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19SN-L015.html |
| 19 | HDP26-24-19PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-19PE-L017.html |
| 19 | HDP26-24-19PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-19PN-L017.html |
| 19 | HDP24-24-19SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19SE.html |
| 19 | HDP24-24-19SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19SE-L015.html |
| 19 | HDP26-24-19PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-19PN.html |
| 19 | HDP26-24-19SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-19SN.html |
| 19 | HDP26-24-19PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-19PE-L015.html |
| 19 | HDP26-24-19SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-19SE-L017.html |
| 19 | HDP26-24-19SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-19SN-L015.html |
| 19 | HDP26-24-19SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-19SE.html |
| 19 | HDP26-24-19SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-19SE-L015.html |
| 19 | HDP24-24-19PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19PE-L015.html |
| 19 | HDP24-24-19SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-19SEL024.html |
| 19 | HDP24-24-19PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-19PEL024.html |
| 19 | HDP26-24-19SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-19SEL024.html |
| 19 | HDP24-24-19PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19PN-L017.html |
| 19 | HDP26-24-19SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-19SN-L017.html |
| 19 | HDP24-24-19SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19SN-L017.html |
| 19 | HDP24-24-19PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19PE-L017.html |
| 19 | HDP24-24-19SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19SN.html |
| 19 | HDP24-24-19PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19PE.html |
| 19 | HDP24-24-19PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19PN.html |
| 19 | HDP24-24-19SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19SE-L017.html |
| 19 | HDP26-24-19PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-19PE.html |
| 19 | HDP24-24-19PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-19PN-L015.html |
| 19 | HDP26-24-19PE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-19PEL024.html |
| 20 | HDP24-18-20PN-L017 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-20PN-L017.html |
| 20 | HDP24-18-20SN | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-20SN.html |
| 20 | HDP26-18-20PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-20PN.html |
| 20 | HDP24-18-20PE-L017 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-20PE-L017.html |
| 20 | HDP26-18-20SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-20SE.html |
| 20 | HDP26-18-20SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-20SE-L017.html |
| 20 | HDP26-18-20SN-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-18-20SNL024.html |
| 20 | HDP26-18-20SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-18-20SEL024.html |
| 20 | HDP26-18-20SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-20SN-L017.html |
| 20 | HDP26-18-20SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-20SN.html |
| 20 | HDP24-18-20PE | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-20PE.html |
| 20 | HDP24-18-20PN | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-20PN.html |
| 20 | HDP24-18-20PN-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-18-20PNL024.html |
| 20 | HDP24-18-20PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-18-20PEL024.html |
| 20 | HDP24-18-20SE | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-2338170-1.html | |
| 21 | HDP24-24-21PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21PN-L015.html |
| 21 | HDP24-24-21SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21SN-L017.html |
| 21 | HDP26-24-21PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21PN-L015.html |
| 21 | HDP24-18-21PN-L017 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-21PN-L017.html |
| 21 | HDP24-18-21SN-L017 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-21SN-L017.html |
| 21 | HDP24-18-21PN | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-21PN.html |
| 21 | HDP26-18-21SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-21SN.html |
| 21 | HDP26-24-21PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21PE.html |
| 21 | HDP26-24-21PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21PE-L017.html |
| 21 | HDP24-24-21PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21PN.html |
| 21 | HDP24-18-21SN | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-HDP24-18-21SN.html |
| 21 | HDP24-24-21PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21PE-L015.html |
| 21 | HDP24-24-21SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21SE-L017.html |
| 21 | HDP26-18-21SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-21SN-L017.html |
| 21 | HDP24-24-21PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21PE-L017.html |
| 21 | HDP24-24-21PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21PE.html |
| 21 | HDP24-24-21SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21SE.html |
| 21 | HDP24-24-21PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-21PEL024.html |
| 21 | HDP26-24-21SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21SE-L017.html |
| 21 | HDP26-24-21PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21PE-L015.html |
| 21 | HDP26-18-21PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-21PN.html |
| 21 | HDP26-24-21SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21SN-L015.html |
| 21 | HDP26-24-21SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21SN-L017.html |
| 21 | HDP24-24-21PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21PN-L017.html |
| 21 | HDP26-24-21SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21SE-L015.html |
| 21 | HDP24-24-21SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21SN-L015.html |
| 21 | HDP24-24-21SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21SN.html |
| 21 | HDP24-24-21SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-21SE-L015.html |
| 21 | HDP26-24-21SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-21SEL024.html |
| 21 | HDP26-18-21PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-18-21PN-L017.html |
| 21 | HDP26-24-21PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21PN.html |
| 21 | HDP26-24-21PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21PN-L017.html |
| 21 | HDP26-24-21SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21SE.html |
| 21 | HDP26-24-21SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-21SN.html |
| 21 | HDP24-24-21SN-L024 | Black | Receptacle | Wire-to-Wire | https://www.te.com/en/product-2294432-1.html |
| 21 | HDP26-24-21PN-L024 | Black | Plug | Wire-to-Wire | https://www.te.com/en/product-2294479-1.html |
| 23 | HDP26-24-23PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23PN-L015.html |
| 23 | HDP26-24-23SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23SN.html |
| 23 | HDP24-24-23PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23PE.html |
| 23 | HDP26-24-23SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23SN-L015.html |
| 23 | HDP24-24-23PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23PN-L015.html |
| 23 | HDP26-24-23SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23SE.html |
| 23 | HDP24-24-23PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23PE-L017.html |
| 23 | HDP24-24-23PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23PN.html |
| 23 | HDP24-24-23SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23SE.html |
| 23 | HDP24-24-23PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23PE-L015.html |
| 23 | HDP24-24-23SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23SN.html |
| 23 | HDP26-24-23SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23SE-L015.html |
| 23 | HDP26-24-23SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-23SEL024.html |
| 23 | HDP26-24-23PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23PE-L015.html |
| 23 | HDP26-24-23PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23PE-L017.html |
| 23 | HDP26-24-23SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23SE-L017.html |
| 23 | HDP26-24-23ST-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23ST-L017.html |
| 23 | HDP26-24-23PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23PE.html |
| 23 | HDP26-24-23PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23PN-L017.html |
| 23 | HDP26-24-23SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23SN-L017.html |
| 23 | HDP24-24-23PT-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23PT-L015.html |
| 23 | HDP24-24-23ST | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23ST.html |
| 23 | HDP26-24-23PT | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23PT.html |
| 23 | HDP24-24-23SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23SE-L017.html |
| 23 | HDP24-24-23PT-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23PT-L017.html |
| 23 | HDP24-24-23SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23SE-L015.html |
| 23 | HDP24-24-23PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-23PEL024.html |
| 23 | HDP26-24-23ST | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23ST.html |
| 23 | HDP26-24-23ST-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23ST-L015.html |
| 23 | HDP24-24-23PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23PN-L017.html |
| 23 | HDP24-24-23PT | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23PT.html |
| 23 | HDP24-24-23SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23SN-L017.html |
| 23 | HDP24-24-23SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-23SN-L015.html |
| 23 | HDP26-24-23PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-23PN.html |
| 29 | HDP24-24-29SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-29SE-L015.html |
| 29 | HDP26-24-29SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-29SE-L017.html |
| 29 | HDP24-24-29PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-29PE-L015.html |
| 29 | HDP24-24-29SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-29SE-L017.html |
| 29 | HDP26-24-29PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-29PE.html |
| 29 | HDP26-24-29SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-29SE.html |
| 29 | HDP26-24-29PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-29PE-L017.html |
| 29 | HDP24-24-29PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-29PEL024.html |
| 29 | HDP26-24-29SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-29SEL024.html |
| 29 | HDP24-24-29PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-29PE-L017.html |
| 29 | HDP26-24-29SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-29SE-L015.html |
| 29 | HDP24-24-29SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-29SE.html |
| 29 | HDP26-24-29PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-29PE-L015.html |
| 29 | HDP24-24-29PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-29PE.html |
| 31 | HDP24-24-31PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31PE-L017.html |
| 31 | HDP24-24-31PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31PE-L015.html |
| 31 | HDP26-24-31ST-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31ST-L015.html |
| 31 | HDP26-24-31SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31SE-L017.html |
| 31 | HDP24-24-31PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31PE.html |
| 31 | HDP24-24-31SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31SE-L015.html |
| 31 | HDP26-24-31PT-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31PT-L017.html |
| 31 | HDP26-24-31PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31PE-L017.html |
| 31 | HDP26-24-31SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31SE-L015.html |
| 31 | HDP24-24-31PT | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31PT.html |
| 31 | HDP24-24-31PT-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31PT-L015.html |
| 31 | HDP26-24-31PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31PE-L015.html |
| 31 | HDP24-24-31ST | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31ST.html |
| 31 | HDP24-24-31SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31SE-L017.html |
| 31 | HDP26-24-31PT-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31PT-L015.html |
| 31 | HDP26-24-31PT | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31PT.html |
| 31 | HDP26-24-31SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-31SEL024.html |
| 31 | HDP26-24-31SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31SE.html |
| 31 | HDP26-24-31ST | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31ST.html |
| 31 | HDP24-24-31PT-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31PT-L017.html |
| 31 | HDP26-24-31PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31PE.html |
| 31 | HDP24-24-31ST-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31ST-L015.html |
| 31 | HDP24-24-31PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-31PEL024.html |
| 31 | HDP24-24-31SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31SE.html |
| 31 | HDP24-24-31ST-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-31ST-L017.html |
| 31 | HDP26-24-31ST-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-31ST-L017.html |
| 31 | HDP26-24-31PE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-31PEL024.html |
| 31 | HDP24-24-31PT-L024 | Black | Receptacle | Wire-to-Panel | https://www.te.com/en/product-2294433-1.html |
| 31 | HDP26-24-31PT-L024 | Black | Plug | Wire-to-Panel | https://www.te.com/en/product-2294482-1.html |
| 33 | HDP24-24-33PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-33PN-L017.html |
| 33 | HDP26-24-33PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-33PN-L015.html |
| 33 | HDP24-24-33SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-33SN-L017.html |
| 33 | HDP26-24-33SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-33SN-L015.html |
| 33 | HDP26-24-33PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-33PN-L017.html |
| 33 | HDP26-24-33SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-33SN.html |
| 33 | HDP24-24-33SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-33SN-L015.html |
| 33 | HDP24-24-33PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-33PN-L015.html |
| 33 | HDP24-24-33SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-33SN.html |
| 33 | HDP24-24-33PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-33PN.html |
| 33 | HDP26-24-33SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-33SN-L017.html |
| 33 | HDP26-24-33PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-33PN.html |
| 33 | HDP24-24-33PN-L024 | Black | Receptacle | Wire-to-Wire | https://www.te.com/en/product-2294434-1.html |
| 33 | HDP26-24-33SN-L024 | Black | Plug | Wire-to-Wire | https://www.te.com/en/product-2294487-1.html |
| 35 | HDP26-24-35PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-35PN-L015.html |
| 35 | HDP24-24-35PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-35PE-L015.html |
| 35 | HDP24-24-35PN-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-35PN-L015.html |
| 35 | HDP26-24-35SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-35SN-L017.html |
| 35 | HDP24-24-35PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-35PN.html |
| 35 | HDP24-24-35SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-35SE-L015.html |
| 35 | HDP24-24-35SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-35SN.html |
| 35 | HDP26-24-35SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-35SE-L015.html |
| 35 | HDP24-24-35SN-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-35SN-L017.html |
| 35 | HDP26-24-35PE-L017 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-35PEL017.html |
| 35 | HDP26-24-35SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-35SEL024.html |
| 35 | HDP26-24-35PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-35PN-L017.html |
| 35 | HDP26-24-35SN-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-35SN-L015.html |
| 35 | HDP24-24-35SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-35SE.html |
| 35 | HDP26-24-35SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-35SE.html |
| 35 | HDP26-24-35SN | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-35SN.html |
| 35 | HDP24-24-35PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-35PE-L017.html |
| 35 | HDP24-24-35PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-35PE.html |
| 35 | HDP24-24-35PN-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-35PN-L017.html |
| 35 | HDP26-24-35PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-35PE-L015.html |
| 35 | HDP26-24-35PN | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-35PN.html |
| 35 | HDP24-24-35PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-35PEL024.html |
| 35 | HDP26-24-35SE-L017 | Black | Plug | Wire-to-Wire | https://www.te.com/en/product-2289831-1.html |
| 47 | HDP24-24-47SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-47SE-L015.html |
| 47 | HDP26-24-47PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-47PE-L015.html |
| 47 | HDP24-24-47PE-L015 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-47PE-L015.html |
| 47 | HDP26-24-47SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-47SE.html |
| 47 | HDP24-24-47PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-47PE-L017.html |
| 47 | HDP24-24-47PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-47PE.html |
| 47 | HDP24-24-47SE | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-47SE.html |
| 47 | HDP26-24-47PE-L017 | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-47PE-L017.html |
| 47 | HDP26-24-47SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-47SE-L017.html |
| 47 | HDP26-24-47PE | Black | Housing for Male Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-47PE.html |
| 47 | HDP26-24-47SE-L015 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP26-24-47SE-L015.html |
| 47 | HDP24-24-47SE-L017 | Black | Housing for Female Terminals | Wire-to-Panel | https://www.te.com/en/product-HDP24-24-47SE-L017.html |
| 47 | HDP24-24-47PE-L024 | Black | Housing for Male Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP24-24-47PEL024.html |
| 47 | HDP26-24-47SE-L024 | Black | Housing for Female Terminals | Wire-to-Wire | https://www.te.com/en/product-YHDP26-24-47SEL024.html |
Application
The DEUTSCH HDP20 series is typically deployed wherever equipment lifecycles depend on reliable, environmentally sealed power + signal consolidation, but an all‑metal shell is unnecessary or cost/weight are decisive. Its black thermoplastic (PA66/PA66-GF) circular housings with threaded coupling ring and E/N/T seal options make it well suited to industrial & commercial transportation platforms that see frequent washdowns, dust, salt spray, splashed chemicals, and continuous vibration: medium-/heavy‑duty trucks, vocational chassis, refuse & utility trucks, buses/transit, and specialty work vehicles (fire/ambulance, tow, crane/service bodies). On the machine, it is commonly used for chassis harness breaks, bulkhead feed‑throughs, and inline cable drops on lighting, HVAC blowers, body controllers, liftgate motors, spreader/plow actuators, telematics & sensor bundles, and auxiliary power/signal pods that run at 12/24/48 V nominal and up to 250 VAC/VDC. By supporting 2–47 cavities and contact sizes 4–20 (7.5–100 A) across 4–22 AWG, HDP20 lets teams standardize a single rectangular‑replacement circular interface for mixed loads without switching to heavier aluminum shells. With IP67 sealing intent, –55 °C to +125 °C range, and UL 94 flame considerations, it fits under‑hood edges, frame rails, pump/compressor skids, and enclosed panels where serviceability, seal integrity, and vibration resistance matter more than absolute mil‑spec metal durability.
Support Custom Wire Harness Assembly
- Connectors: All Deutsch HDP20 Series Connectors.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
