Introduction

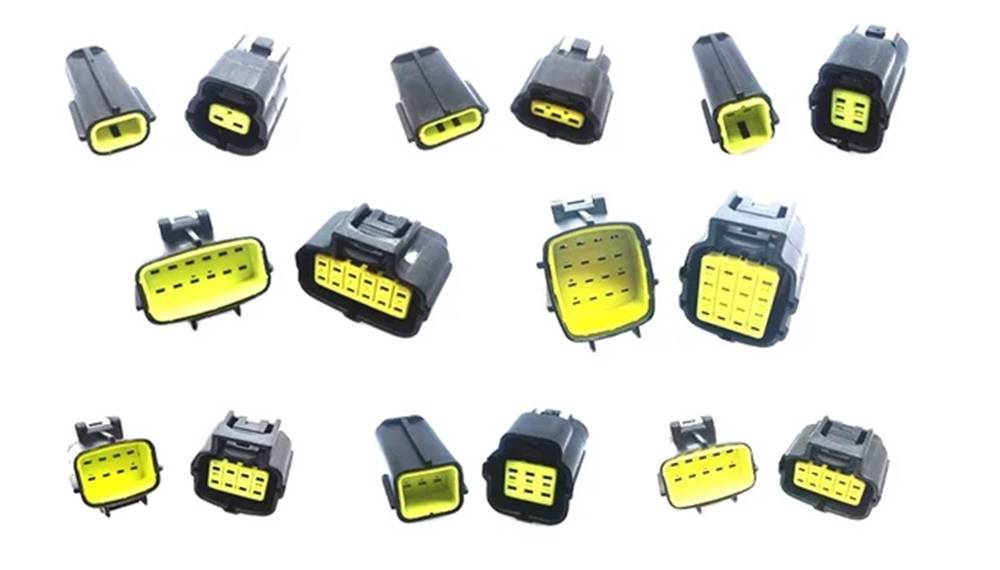

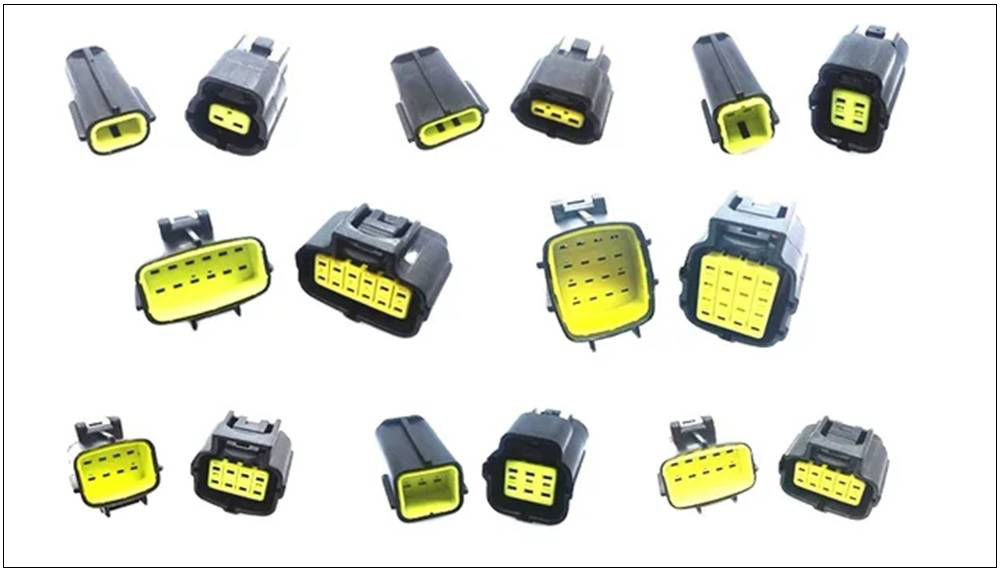

The Econoseal J series connector is a robust, cost-effective solution designed for demanding environments. Engineered for reliability, it features enhanced sealing properties to withstand water, dust, and extreme temperatures (-40°C to +125°C), making it ideal for automotive, aerospace, industrial automation, and marine applications. The Mark II iteration offers a compact, modular design with improved termination options, ensuring secure connections and resistance to vibration. Compliance with ISO, UL, and CSA standards underscores its safety and durability. Its lightweight yet rugged construction reduces installation time and maintenance costs, while corrosion-resistant materials extend lifespan. Perfect for high-reliability systems requiring both performance and economic efficiency, the Econoseal J delivers uncompromising quality in critical operations.
Connector Features
- Connector Shape Circular, Rectangular
- Connector System Wire-to-Board, Wire-to-Device, Wire-to-Panel, Wire-to-Wire
- Connector & Housing Type Housing for Female Terminals, Housing for Male Terminals
- Sealable No, Yes
- Connector & Contact Terminates To Wire & Cable
- Primary Locking Feature Integrated in Housing, On the Terminal
- Mixed & Hybrid Connector No, Yes
Configuration Features
- Number of Positions 1, 2, 3, 4, 6, 8, 10, 12, 13, 15, 16
- Number of Rows 1, 2, 3, 4, 6
Electrical Characteristics
- Operating Voltage (VDC) 12, 13, 24
- Nominal Voltage Architecture (V) 12, 24
Connector Part Number Lists
| Product Description | Part Number | Connector System | Number of Positions | Connector & Housing Type | Sealable | Primary Product Color |
| 1 POS HSG MARK II+ | 174879-2 | Wire-to-Wire | 1 | Housing for Male Terminals | Yes | Black |
| .070 ECONOSEAL-J MARK 2+ PLUG ASSY 1P | 2822388-1 | Wire-to-Wire | 1 | Housing for Female Terminals | Yes | Black |
| E-J MK-2(+) 1P PLUG ASSY | 368513-2 | Wire-to-Wire | 1 | Housing for Female Terminals | Yes | Black |
| KIT ECONOSEAL J 1PO | 881770-1 | Wire-to-Wire | 1 | Housing for Male Terminals | Yes | Black |
| ECONOSEAL-J CONN CAP 2P NATURA | 172199-1 | Wire-to-Wire | 2 | Housing for Male Terminals | Yes | Natural |
| .070 ECONOSEAL 2P CAP HSG | 173063-2 | Wire-to-Wire | 2 | Housing for Male Terminals | No | Black |
| .070 ECONOSEAL PLUG ASSY 2P | 173090-2 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Black |
| 070 ECONOSEAL MARK-2 PLUG 2P | 174352-2 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Black |
| 070 ECONOSEAL MARK-2 CAP 2P | 174354-2 | Wire-to-Board, Wire-to-Device, Wire-to-Wire | 2 | Housing for Male Terminals | Yes | Black |
| EJ-2(+) 2P CAP HSG GRAY | 174354-6 | Wire-to-Wire | 2 | Housing for Male Terminals | Yes | Gray |
| 187 CAP HSG ASSY 2P BLACK | 176143-2 | Wire-to-Wire | 2 | Housing for Male Terminals | Yes | Black |
| 187 PLUG HSG 2P BLACK | 176146-2 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Black |
| 187 PLUG HSG 2P DARK GRAY | 176146-6 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Gray |
| EJ-II DBL LOCK 2POS PLUG ASSY | 178448-1 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Gray |
| EJ-2 DBL L0CK PLUG 2P ASSY B | 178448-2 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Black |
| EJ-2 DBL LOCK PLUG 2P ASSY B | 178448-6 | Wire-to-Board, Wire-to-Device | 2 | Housing for Female Terminals | Yes | Gray |
| EJ-2 DBL LOCK PLUG 2P ASSY D | 178449-4 | Wire-to-Board, Wire-to-Device | 2 | Housing for Female Terminals | Yes | Green |
| EJ-2 DBL LOCK PLUG 2P ASSY D | 178449-6 | Wire-to-Board, Wire-to-Device | 2 | Housing for Female Terminals | Yes | Gray |
| PLUG,2 POSN,ECONOSEAL | 207845-1 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Black |
| RECPT,2 POSN,ECONOSEAL | 207846-1 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Black |
| EJ MK2+ PLUG ASSY 2P BLACK | 2822348-1 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Black |
| 070 EJ MK-2 SENSOR PLUG 2P GRAY | 2822362-3 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Gray |
| 070 EJ MK-2 SENSOR PLUG 2P DARK GREEN | 2822362-4 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Green |
| EJ-2 DBL LOCK PLUG 2P ASSY B | 2822363-1 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Black |
| EJ-2 DBL LOCK PLUG 2P ASSY B GRAY | 2822363-2 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Gray |
| EJ-2 DBL LOCK PLUG 2P ASSY B LIGHT GRAY | 2822363-4 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Gray |
| EJ-2 DBL LOCK PLUG 2P ASSY D DARK GREEN | 2822365-3 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Green |
| 2WAY RECEPTACLE HSG.BLACKECONO | 344275-1 | Wire-to-Wire | 2 | Housing for Female Terminals | No | Black |
| E-S MK-2(+) PLUG 2P ASSY | 368261-2 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Black |
| E-S MK-2(+) PLUG 2P ASSY GRAY | 368261-3 | Wire-to-Wire | 2 | Yes | Gray | |
| 187 CAP HSG ASSY 2P LIGHT GRAY | 6-176143-6 | Wire-to-Wire | 2 | Housing for Male Terminals | Yes | Gray |
| .187 PLUG HSG ASSY 2P GRAY | 6-176146-6 | Wire-to-Wire | 2 | Housing for Female Terminals | Yes | Gray |
| EJ-2 DBL LOCK PLUG 2P ASSY | 6-178449-6 | Wire-to-Board, Wire-to-Device | 2 | Housing for Female Terminals | Yes | Gray |
| KIT ECONOSEAL J SERIES 2P | 881772-1 | Wire-to-Wire | 2 | Housing for Male Terminals | Yes | Black |
| 070 EJ-2(+) PLUG ASSY 3P SIR | 1-174357-2 | Wire-to-Wire | 3 | Housing for Female Terminals | Yes | Black |
| 070 ECONOSEAL MARK-2 CAP 3P | 174359-2 | Wire-to-Wire | 3 | Housing for Male Terminals | Yes | Black |
| 070 EJ-2(2) PLUG ASSY 3P SIR | 2-174357-2 | Wire-to-Wire | 3 | Housing for Female Terminals | Yes | Black |
| .070 ECONOSEAL PLUG ASSY 3P | 2822366-1 | Wire-to-Wire | 3 | Housing for Female Terminals | Yes | Black |
| 070 ECONOSEAL MARK-2 PLUG 3P BLACK | 2822390-1 | Wire-to-Wire | 3 | Housing for Female Terminals | Yes | Black |
| ECONOSEAL J FEM.CONN.ASSY3 WAY | 282703-1 | Wire-to-Wire | 3 | Housing for Female Terminals | Yes | Black |
| 3 WAY TAB HOUSING BLACK ECONO | 344271-1 | Wire-to-Wire | 3 | Housing for Male Terminals | No | Black |
| E-S MK-2(+) 3P PLUG ASS'Y | 368523-1 | Wire-to-Wire | 3 | Housing for Female Terminals | Yes | Black |
| KIT ECONOSEAL J 3PO | 881774-1 | Wire-to-Wire | 3 | Housing for Male Terminals | Yes | Black |
| KIT ECONOSEAL J O P | 881775-1 | Wire-to-Wire | 3 | Housing for Female Terminals | Yes | Black |
| EJII+ 4POS PLUG ASSY | 174257-1 | Wire-to-Wire | 4 | Housing for Female Terminals | Yes | Gray |
| ECONOSEAL-J MK-2 PLUG ASSY 4P | 174257-2 | Wire-to-Wire | 4 | Housing for Female Terminals | Yes | Black |
| E-J MK-2(+) 4P CAP HSG L-GRY | 174259-1 | Wire-to-Wire | 4 | Housing for Male Terminals | Yes | Gray |
| ECONO-J MK-2 CAP HSG 4P | 174259-2 | Wire-to-Wire | 4 | Housing for Male Terminals | Yes | Black |
| EJ II+4POS CAP HSG | 174259-3 | Wire-to-Wire | 4 | Housing for Male Terminals | Yes | Gray |
| EJII+ 4POS PLUG ASSY BLACK | 2013209-2 | Wire-to-Wire | 4 | Housing for Female Terminals | Yes | Black |
| 070 ECONOSEAL MARK-2+ PLUG 4P | 2822391-1 | Wire-to-Wire | 4 | Housing for Female Terminals | Yes | Black |
| EJ-2 DBL LOCK PLUG 4P ASSY A | 2822636-1 | Wire-to-Wire | 4 | Housing for Female Terminals | Yes | Black |
| 4 WAY TAB HOUSING ECONO | 344268-1 | Wire-to-Wire | 4 | Housing for Male Terminals | No | Black |
| 4 WAY REC.HSG. SIL. SEAL ECONO | 344270-1 | Wire-to-Wire | 4 | Housing for Female Terminals | Yes | Black |
| ES MK-II(+) 4P PLUG ASSY(BLK) | 368123-5 | Wire-to-Wire | 4 | Yes | Black | |
| KIT ECONOSEAL J 4PO | 881777-1 | Wire-to-Wire | 4 | Housing for Female Terminals | Yes | Black |
| ECONO-J MK-2 CAP HSG 6P | 174264-2 | Wire-to-Wire | 6 | Housing for Male Terminals | Yes | Black |
| ECONO-J MK-2 PLUG ASSY 6P | 2822346-1 | Wire-to-Wire | 6 | Housing for Female Terminals | Yes | Black |
| 6 WAY TAB HSG.- BLACK ECONO | 344265-1 | Wire-to-Wire | 6 | Housing for Male Terminals | Yes | Black |
| PANEL MT 6W TAB HSG ASSY ECONO | 346030-1 | Wire-to-Panel | 6 | Housing for Male Terminals | Yes | Black |
| E-S MK-2(+) 6P PLUG ASS'Y | 368530-1 | Wire-to-Wire | 6 | Yes | Black | |
| KIT ECONOSEAL J 6PO | 881778-1 | Wire-to-Wire | 6 | Housing for Male Terminals | Yes | Black |
| KIT ECONOSEAL J 6PO | 881779-1 | Wire-to-Wire | 6 | Housing for Female Terminals | Yes | Black |
| FUEL PUMP 6P PLUG ASSY JPT TYP | 936159-1 | Wire-to-Wire | 6 | Housing for Female Terminals | Yes | Brown |
| ECONOSEAL-J CONN PLUG 8P BLACK | 172191-2 | Wire-to-Wire | 8 | Housing for Female Terminals | Yes | Black |
| ECONOSEAL-J CONN CAP 8P BLACK | 172192-2 | Wire-to-Wire | 8 | Housing for Male Terminals | Yes | Black |
| 8 POS. CAP MK II+ | 174984-2 | Wire-to-Wire | 8 | Housing for Male Terminals | Yes | Black |
| 070 ECONOSEAL MARK-2+ PLUG 8P | 2822393-1 | Wire-to-Wire | 8 | Housing for Female Terminals | Yes | Black |
| E-S MK-2(+) 8P PLUG ASS'Y | 368533-1 | Wire-to-Wire | 8 | Housing for Female Terminals | Yes | Black |
| 10 POS. CAP MK II + | 174657-2 | Wire-to-Wire | 10 | Housing for Male Terminals | Yes | Black |
| KIT ECONOSEAL 10P | 444141-1 | Wire-to-Wire | 10 | Housing for Female Terminals | Yes | Black |
| KIT ECONOSEAL J SERIES 10P | 444142-1 | Wire-to-Wire | 10 | Housing for Female Terminals | Yes | Black |
| 12 POS HSG MARK II+ | 174663-2 | Wire-to-Wire | 12 | Housing for Male Terminals | Yes | Black |
| 070 ECONOSEAL MARK-2+ PLUG 12P | 2822638-1 | Wire-to-Wire | 12 | Housing for Female Terminals | Yes | Black |
| E-S MK-2(+) 12P CAP HSG | 368537-1 | Wire-to-Wire | 12 | Housing for Male Terminals | No | Black |
| KIT ECONOSEAL J 12 | 444010-1 | Wire-to-Wire | 12 | Housing for Male Terminals | Yes | Black |
| KIT ECONOSEAL J 12 | 444011-1 | Wire-to-Wire | 12 | Housing for Female Terminals | Yes | Black |
| 13 WAY TAB HOUSING ECONO | 344260-1 | Wire-to-Wire | 13 | Housing for Male Terminals | Yes | Black |
| 13 WAY TAB HOUSING ECONO | 344260-3 | Wire-to-Wire | 13 | Housing for Female Terminals | No | Blue |
| 13 WAY TAB ANTI-BACKOUT | 344261-1 | Wire-to-Board, Wire-to-Wire | 13 | Housing for Male Terminals | Yes | Yellow |
| 13 WAY REC HSG. SIL. SEALECONO | 344263-1 | Wire-to-Wire | 13 | Housing for Female Terminals | Yes | Black |
| 13 WAY REC HSG. SIL. SEALECONO RED | 344263-4 | Wire-to-Wire | 13 | Housing for Female Terminals | Yes | Red |
| 13 WAY RECPT ANTI-BACKOUT | 344264-1 | Wire-to-Wire | 13 | Housing for Female Terminals | No | Yellow |
| E-S MK-2(+) 15P PLUG ASSY | 2-85262-1 | Wire-to-Wire | 15 | Housing for Female Terminals | Yes | Gray |
| ECONOSEAL 15P HYBRID PLUG ASSEMBLY | 2066019-1 | Wire-to-Wire | 15 | Housing for Female Terminals | Yes | Black |
| E-S MK-2(+) 16P PLUG ASSY | 1-368047-1 | Wire-to-Wire | 16 | Housing for Female Terminals | Yes | Black |
| E-J MK-2(+) 16P CAP HSG(GRAY) | 2-368050-3 | Wire-to-Wire | 16 | Housing for Male Terminals | No | Gray |
| E-S MK-2(+) 16P PLUG ASSY | 368047-1 | Wire-to-Wire | 16 | Housing for Female Terminals | Yes | Black |
| E-S MK-2(+) 16P CAP HSG | 368050-1 | Wire-to-Wire | 16 | Housing for Male Terminals | No | Black |
If you want to find these connectors' specs, search TE's official website using the correct part number and download the specs. you will get the exact info.

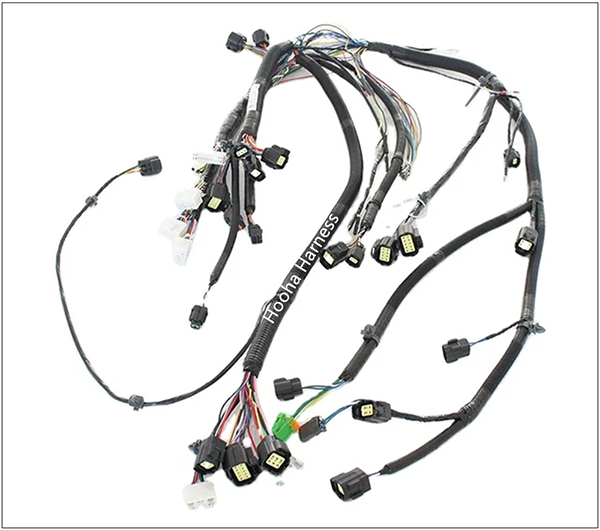

If you want TE Econoseal Series Connectors, why not buy connectors with wires or complete wire harnesses? we provide wire and connector assembly, and wire harness assembly services, contact us for a free quote.

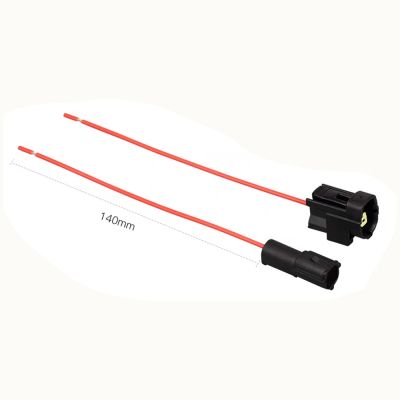

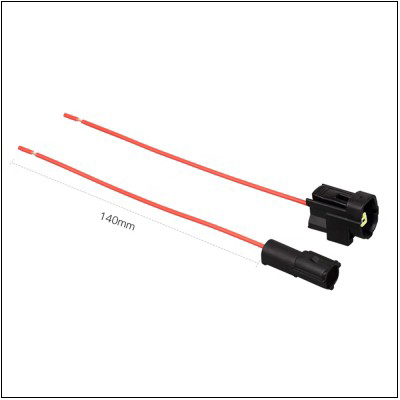

1 Pin male and female wiring

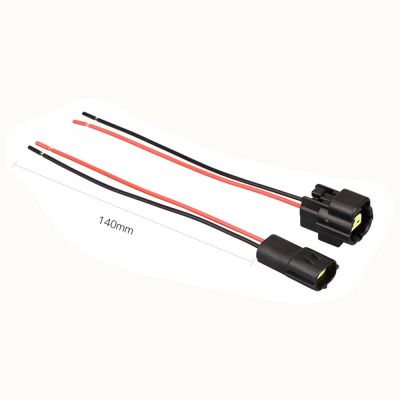

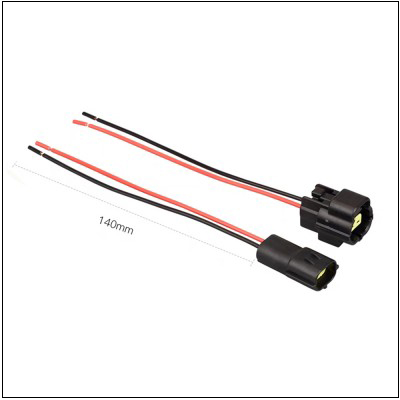

2 Pin male and female wiring

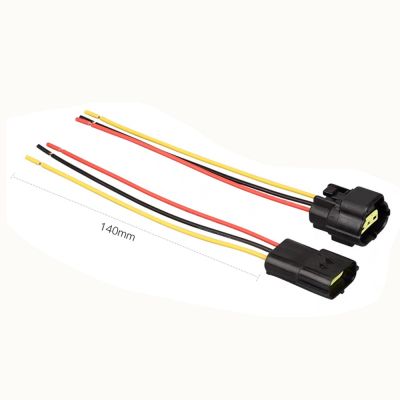

3 Pin male and female wiring

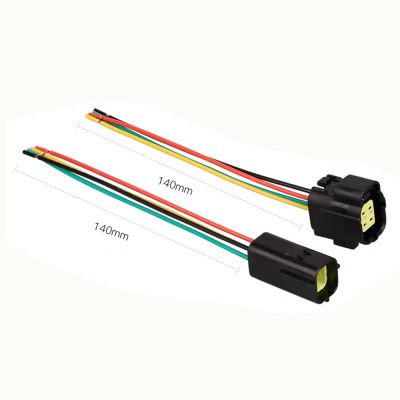

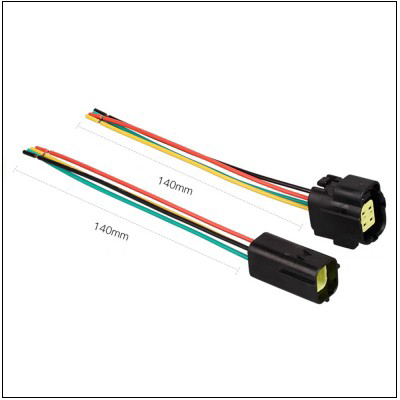

4 Pin male and female wiring

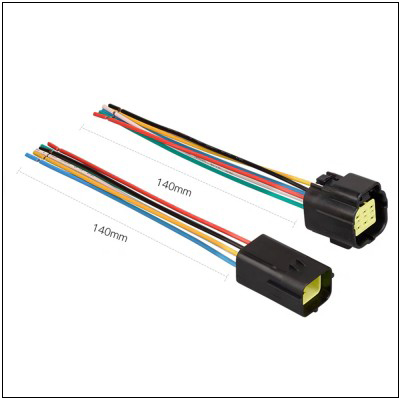

6 Pin male and female wiring

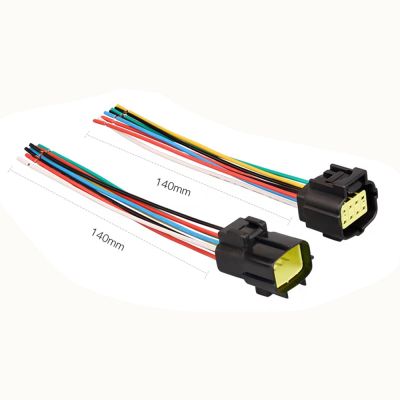

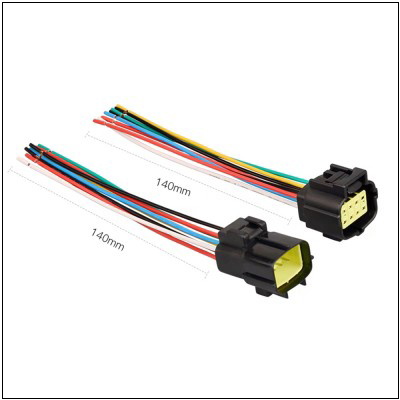

8 Pin male and female wiring

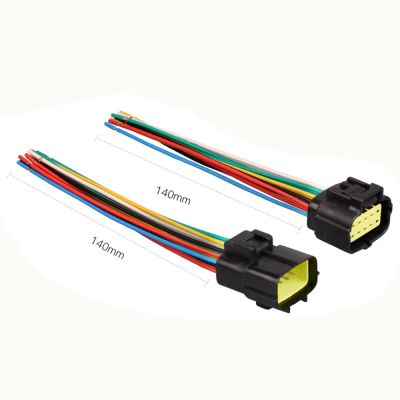

10 Pin male and female wiring

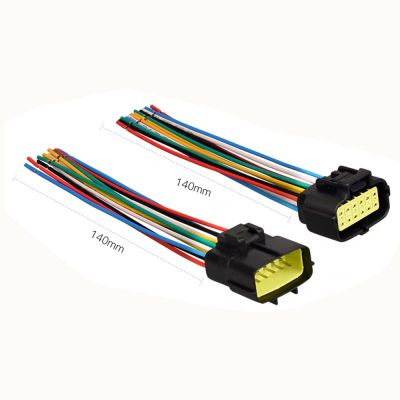

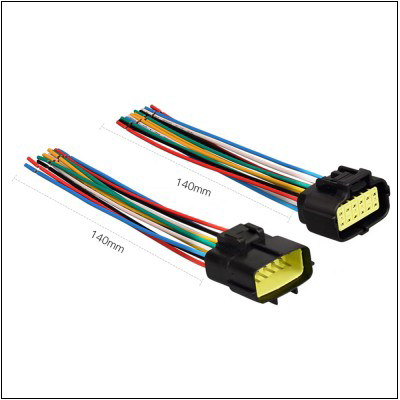

12 Pin male and female wiring

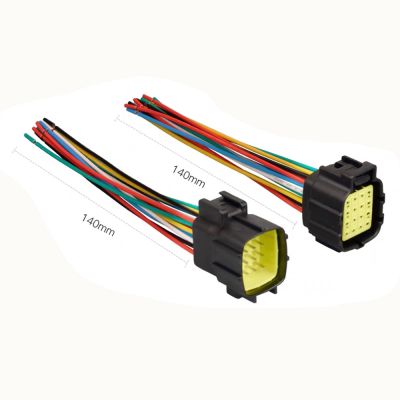

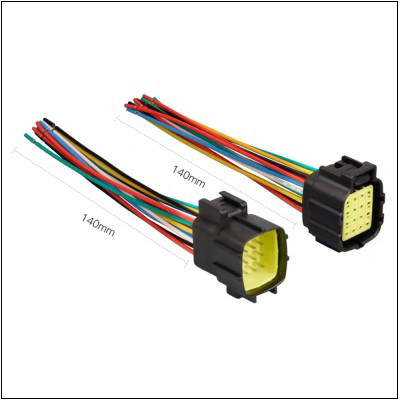

16 Pin male and female wiring
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
