Hirose DF11 Connector, China Wire Harness Manufacturer

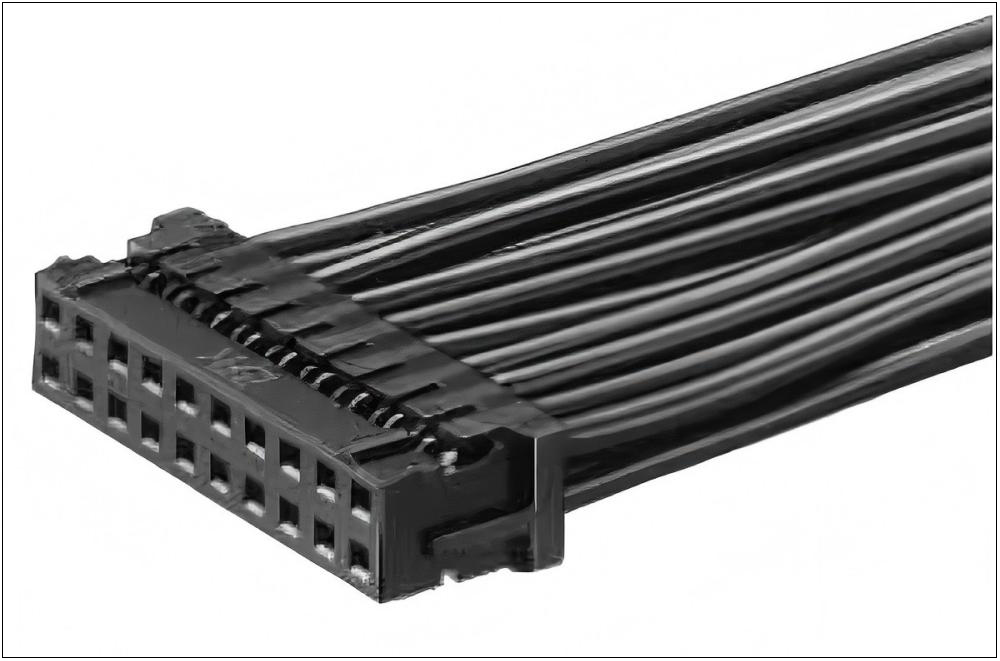

Hirose DF11 Connector



The Hirose DF11 series is a compact, 2.0mm pitch, double-row wire-to-board connector compliant with UL and C-UL/CSA safety standards. Designed for space-saving on-board mounting, the series offers a wide variety of configurations, including headers, plugs, receptacles, and sockets, with positions ranging from 4 to 34. It supports a broad applicable wire range, typically from 22 to 30 AWG, and utilizes crimp or IDC termination. Key specifications from the documents include a rated current of 0.5A to 2.0A, a voltage rating of up to 250V AC/DC, and an operating temperature range of -40°C to 85°C. Available with gold or tin-plated contacts in black or beige housings, it offers straight or right-angle orientations and supports both Surface-Mount Technology (SMT) and Through-Hole Technology (THT) for flexible PCB integration.

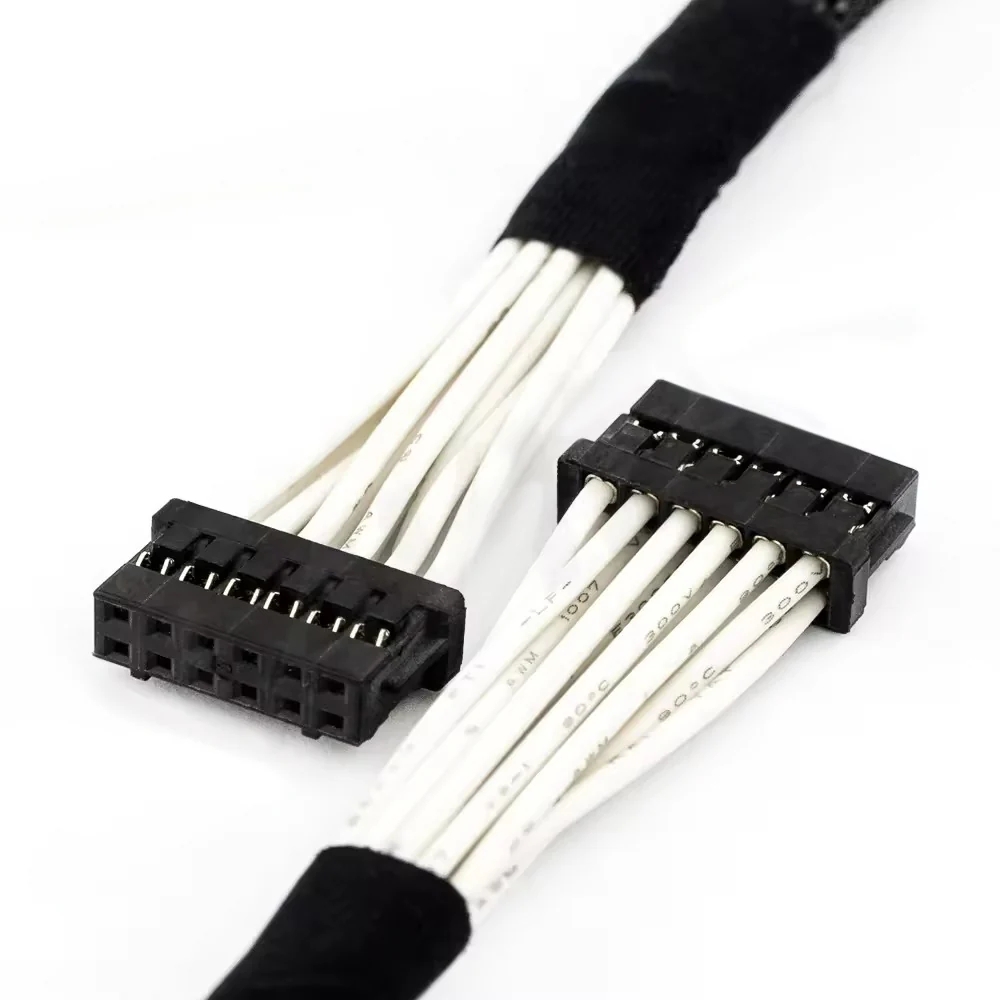

Hirose DF11 Connector





Features



  • 2.0mm Pitch, Double-Row Connector (UL/CSA Compliant)
  • Space-saving on Board
  • Wide Varieties
  • Wide Applicable Wire Range





Specifications



Connector Type Header, Plug, Receptacle, Socket, Adapter, Contact Number of Positions 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34
Safety Standards UL, C-UL/CSA Mounting Pitch 2.0 mm
Rated Current 0.5, 1.0, 2.0A Mounting Side Standard on-Board
Rated Voltage(AC) AC 100.0, 250.0V Staggered Lead No
Rated Voltage(DC) DC250.0V Connector Orientation Straight, Right angle
Number of Rows (Interface) 2 Contact Plating Gold, Tin
Contact Pitch 2.0 mm Housing Color Black, Beige
Mounting Style SMT, THT Recommended Wire Type Discrete wire
Recommended PCB Thickness 1.6mm  Max. Recommended Max.Wire Size (AWG) 22, 24, 26, 30
Mating/Unmating Cycles 30, 50 Recommended Min.Wire Size (AWG) 22, 26, 28, 30
Plating Thickness 0.2, 0.3, 1.0, 2.0 μm Operating Temperature Max 85℃
Wire Termination Method Crimping, IDC Operating Temperature Min -40, -30℃
Connector Type Details In-line plug Panel Mounting Style Snap-in





Connector lists



No. of Position Type P/N Hirose P/N Links
4 Header DF11-4DP-2DSA(01) CL0543-0517-5-01 https://www.hirose.com/en/product/p/CL0543-0517-5-01
4 Header DF11-4DP-2DSA(08) CL0543-0517-5-08 https://www.hirose.com/en/product/p/CL0543-0517-5-08
4 Header DF11-4DP-2DSA(24) CL0543-0517-5-24 https://www.hirose.com/en/product/p/CL0543-0517-5-24
4 Header DF11-4DP-2DS(24) CL0543-0533-1-24 https://www.hirose.com/en/product/p/CL0543-0533-1-24
4 Header DF11-4DP-2DS(52) CL0543-0533-1-52 https://www.hirose.com/en/product/p/CL0543-0533-1-52
4 Plug DF11-4DEP-2C CL0543-0619-5-00 https://www.hirose.com/en/product/p/CL0543-0619-5-00
4 Socket DF11-4DS-2C CL0543-0568-6-00 https://www.hirose.com/en/product/p/CL0543-0568-6-00
4 Socket DF11-4DS-2C(20) CL0543-0568-6-20 https://www.hirose.com/en/product/p/CL0543-0568-6-20
4 Socket DF11-4DS-2R26(05) CL0543-0652-0-05 https://www.hirose.com/en/product/p/CL0543-0652-0-05
4 Header DF11C-4DP-2V(57) CL0543-0682-1-57 https://www.hirose.com/en/product/p/CL0543-0682-1-57
4 Header DF11CZ-4DP-2V(27) CL0543-2047-4-27 https://www.hirose.com/en/product/p/CL0543-2047-4-27
4 Receptacle DF11CZ-4DS-2V(22) CL0543-2063-0-22 https://www.hirose.com/en/product/p/CL0543-2063-0-22
6 Header DF11-6DP-2DSA(01) CL0543-0518-8-01 https://www.hirose.com/en/product/p/CL0543-0518-8-01
6 Header DF11-6DP-2DSA(07) CL0543-0518-8-07 https://www.hirose.com/en/product/p/CL0543-0518-8-07
6 Header DF11-6DP-2DSA(08) CL0543-0518-8-08 https://www.hirose.com/en/product/p/CL0543-0518-8-08
6 Header DF11-6DP-2DSA(24) CL0543-0518-8-24 https://www.hirose.com/en/product/p/CL0543-0518-8-24
6 Socket DF11-6DS-2C CL0543-0502-8-00 https://www.hirose.com/en/product/p/CL0543-0502-8-00
6 Header DF11-6DP-2DS(24) CL0543-0534-4-24 https://www.hirose.com/en/product/p/CL0543-0534-4-24
6 Header DF11-6DP-2DS(52) CL0543-0534-4-52 https://www.hirose.com/en/product/p/CL0543-0534-4-52
6 Receptacle DF11-6DS-2DSA(05) CL0543-0553-9-05 https://www.hirose.com/en/product/p/CL0543-0553-9-05
6 Receptacle DF11-6DS-2DSA(06) CL0543-0553-9-06 https://www.hirose.com/en/product/p/CL0543-0553-9-06
6 Plug DF11-6DEP-2C CL0543-0620-4-00 https://www.hirose.com/en/product/p/CL0543-0620-4-00
6 Header DF11C-6DP-2V(57) CL0543-0683-4-57 https://www.hirose.com/en/product/p/CL0543-0683-4-57
6 Adapter DF11-6DEP-2A CL0543-0699-4-00 https://www.hirose.com/en/product/p/CL0543-0699-4-00
6 Header DF11CZ-6DP-2V(27) CL0543-2048-7-27 https://www.hirose.com/en/product/p/CL0543-2048-7-27
6 Receptacle DF11CZ-6DS-2V(22) CL0543-2064-3-22 https://www.hirose.com/en/product/p/CL0543-2064-3-22
6 Receptacle DF11CZ-6DS-2V(52) CL0543-2064-3-52 https://www.hirose.com/en/product/p/CL0543-2064-3-52
8 Header DF11-8DP-2DSA(01) CL0543-0519-0-01 https://www.hirose.com/en/product/p/CL0543-0519-0-01
8 Header DF11-8DP-2DSA(07) CL0543-0519-0-07 https://www.hirose.com/en/product/p/CL0543-0519-0-07
8 Header DF11-8DP-2DSA(08) CL0543-0519-0-08 https://www.hirose.com/en/product/p/CL0543-0519-0-08
8 Header DF11-8DP-2DSA(24) CL0543-0519-0-24 https://www.hirose.com/en/product/p/CL0543-0519-0-24
8 Socket DF11-8DS-2C CL0543-0503-0-00 https://www.hirose.com/en/product/p/CL0543-0503-0-00
8 Header DF11-8DP-2DS(24) CL0543-0535-7-24 https://www.hirose.com/en/product/p/CL0543-0535-7-24
8 Header DF11-8DP-2DS(52) CL0543-0535-7-52 https://www.hirose.com/en/product/p/CL0543-0535-7-52
8 Receptacle DF11-8DS-2DSA(05) CL0543-0554-1-05 https://www.hirose.com/en/product/p/CL0543-0554-1-05
8 Receptacle DF11-8DS-2DSA(06) CL0543-0554-1-06 https://www.hirose.com/en/product/p/CL0543-0554-1-06
8 Plug DF11-8DEP-2C CL0543-0621-7-00 https://www.hirose.com/en/product/p/CL0543-0621-7-00
8 Socket DF11-8DS-2R26(05) CL0543-0654-6-05 https://www.hirose.com/en/product/p/CL0543-0654-6-05
8 Header DF11C-8DP-2V(57) CL0543-0684-7-57 https://www.hirose.com/en/product/p/CL0543-0684-7-57
8 Header DF11CZ-8DP-2V(27) CL0543-2049-0-27 https://www.hirose.com/en/product/p/CL0543-2049-0-27
8 Receptacle DF11CZ-8DS-2V(22) CL0543-2065-6-22 https://www.hirose.com/en/product/p/CL0543-2065-6-22
8 Receptacle DF11CZ-8DS-2V(52) CL0543-2065-6-52 https://www.hirose.com/en/product/p/CL0543-2065-6-52
10 Header DF11-10DP-2DSA(01) CL0543-0520-0-01 https://www.hirose.com/en/product/p/CL0543-0520-0-01
10 Header DF11-10DP-2DSA(08) CL0543-0520-0-08 https://www.hirose.com/en/product/p/CL0543-0520-0-08
10 Header DF11-10DP-2DSA(24) CL0543-0520-0-24 https://www.hirose.com/en/product/p/CL0543-0520-0-24
10 Socket DF11-10DS-2C CL0543-0504-3-00 https://www.hirose.com/en/product/p/CL0543-0504-3-00
10 Header DF11-10DP-2DS(24) CL0543-0536-0-24 https://www.hirose.com/en/product/p/CL0543-0536-0-24
10 Header DF11-10DP-2DS(52) CL0543-0536-0-52 https://www.hirose.com/en/product/p/CL0543-0536-0-52
10 Receptacle DF11-10DS-2DSA(05) CL0543-0555-4-05 https://www.hirose.com/en/product/p/CL0543-0555-4-05
10 Receptacle DF11-10DS-2DSA(06) CL0543-0555-4-06 https://www.hirose.com/en/product/p/CL0543-0555-4-06
10 Plug DF11-10DEP-2C CL0543-0622-0-00 https://www.hirose.com/en/product/p/CL0543-0622-0-00
10 Header DF11C-10DP-2V(57) CL0543-0685-0-57 https://www.hirose.com/en/product/p/CL0543-0685-0-57
10 Header DF11CZ-10DP-2V(27) CL0543-2050-9-27 https://www.hirose.com/en/product/p/CL0543-2050-9-27
10 Receptacle DF11CZ-10DS-2V(22) CL0543-2066-9-22 https://www.hirose.com/en/product/p/CL0543-2066-9-22
10 Receptacle DF11CZ-10DS-2V(52) CL0543-2066-9-52 https://www.hirose.com/en/product/p/CL0543-2066-9-52
12 Socket DF11-12DS-2C CL0543-0505-6-00 https://www.hirose.com/en/product/p/CL0543-0505-6-00
12 Header DF11-12DP-2DSA(01) CL0543-0521-2-01 https://www.hirose.com/en/product/p/CL0543-0521-2-01
12 Header DF11-12DP-2DSA(07) CL0543-0521-2-07 https://www.hirose.com/en/product/p/CL0543-0521-2-07
12 Header DF11-12DP-2DSA(08) CL0543-0521-2-08 https://www.hirose.com/en/product/p/CL0543-0521-2-08
12 Header DF11-12DP-2DSA(24) CL0543-0521-2-24 https://www.hirose.com/en/product/p/CL0543-0521-2-24
12 Header DF11-12DP-2DS(24) CL0543-0537-2-24 https://www.hirose.com/en/product/p/CL0543-0537-2-24
12 Header DF11-12DP-2DS(52) CL0543-0537-2-52 https://www.hirose.com/en/product/p/CL0543-0537-2-52
12 Receptacle DF11-12DS-2DSA(05) CL0543-0556-7-05 https://www.hirose.com/en/product/p/CL0543-0556-7-05
12 Receptacle DF11-12DS-2DSA(06) CL0543-0556-7-06 https://www.hirose.com/en/product/p/CL0543-0556-7-06
12 Plug DF11-12DEP-2C CL0543-0623-2-00 https://www.hirose.com/en/product/p/CL0543-0623-2-00
12 Header DF11C-12DP-2V(57) CL0543-0686-2-57 https://www.hirose.com/en/product/p/CL0543-0686-2-57
12 Receptacle DF11Z-12DS-2V(52) CL0543-2005-4-52 https://www.hirose.com/en/product/p/CL0543-2005-4-52
12 Header DF11CZ-12DP-2V(27) CL0543-2051-1-27 https://www.hirose.com/en/product/p/CL0543-2051-1-27
12 Receptacle DF11CZ-12DS-2V(22) CL0543-2067-1-22 https://www.hirose.com/en/product/p/CL0543-2067-1-22
12 Receptacle DF11CZ-12DS-2V(52) CL0543-2067-1-52 https://www.hirose.com/en/product/p/CL0543-2067-1-52
14 Socket DF11-14DS-2C CL0543-0506-9-00 https://www.hirose.com/en/product/p/CL0543-0506-9-00
14 Socket DF11-14DS-2C(20) CL0543-0506-9-20 https://www.hirose.com/en/product/p/CL0543-0506-9-20
14 Header DF11-14DP-2DSA(01) CL0543-0522-5-01 https://www.hirose.com/en/product/p/CL0543-0522-5-01
14 Header DF11-14DP-2DSA(08) CL0543-0522-5-08 https://www.hirose.com/en/product/p/CL0543-0522-5-08
14 Header DF11-14DP-2DSA(24) CL0543-0522-5-24 https://www.hirose.com/en/product/p/CL0543-0522-5-24
14 Header DF11-14DP-2DS(24) CL0543-0538-5-24 https://www.hirose.com/en/product/p/CL0543-0538-5-24
14 Header DF11-14DP-2DS(52) CL0543-0538-5-52 https://www.hirose.com/en/product/p/CL0543-0538-5-52
14 Receptacle DF11-14DS-2DSA(05) CL0543-0557-0-05 https://www.hirose.com/en/product/p/CL0543-0557-0-05
14 Receptacle DF11-14DS-2DSA(06) CL0543-0557-0-06 https://www.hirose.com/en/product/p/CL0543-0557-0-06
14 Plug DF11-14DEP-2C CL0543-0624-5-00 https://www.hirose.com/en/product/p/CL0543-0624-5-00
14 Adapter DF11-14DEP-2A CL0543-0703-0-00 https://www.hirose.com/en/product/p/CL0543-0703-0-00
14 Header DF11C-14DP-2V(57) CL0543-0687-5-57 https://www.hirose.com/en/product/p/CL0543-0687-5-57
14 Header DF11Z-14DP-2V(21) CL0543-2022-3-21 https://www.hirose.com/en/product/p/CL0543-2022-3-21
14 Header DF11CZ-14DP-2V(27) CL0543-2052-4-27 https://www.hirose.com/en/product/p/CL0543-2052-4-27
14 Receptacle DF11CZ-14DS-2V(22) CL0543-2068-4-22 https://www.hirose.com/en/product/p/CL0543-2068-4-22
14 Receptacle DF11CZ-14DS-2V(52) CL0543-2068-4-52 https://www.hirose.com/en/product/p/CL0543-2068-4-52
16 Socket DF11-16DS-2C CL0543-0507-1-00 https://www.hirose.com/en/product/p/CL0543-0507-1-00
16 Header DF11-16DP-2DSA(01) CL0543-0523-8-01 https://www.hirose.com/en/product/p/CL0543-0523-8-01
16 Header DF11-16DP-2DSA(08) CL0543-0523-8-08 https://www.hirose.com/en/product/p/CL0543-0523-8-08
16 Header DF11-16DP-2DSA(24) CL0543-0523-8-24 https://www.hirose.com/en/product/p/CL0543-0523-8-24
16 Header DF11-16DP-2DS(24) CL0543-0539-8-24 https://www.hirose.com/en/product/p/CL0543-0539-8-24
16 Header DF11-16DP-2DS(52) CL0543-0539-8-52 https://www.hirose.com/en/product/p/CL0543-0539-8-52
16 Receptacle DF11-16DS-2DSA(05) CL0543-0558-2-05 https://www.hirose.com/en/product/p/CL0543-0558-2-05
16 Receptacle DF11-16DS-2DSA(06) CL0543-0558-2-06 https://www.hirose.com/en/product/p/CL0543-0558-2-06
16 Plug DF11-16DEP-2C CL0543-0625-8-00 https://www.hirose.com/en/product/p/CL0543-0625-8-00
16 Header DF11C-16DP-2V(57) CL0543-0688-8-57 https://www.hirose.com/en/product/p/CL0543-0688-8-57
16 Header DF11CZ-16DP-2V(27) CL0543-2053-7-27 https://www.hirose.com/en/product/p/CL0543-2053-7-27
16 Receptacle DF11CZ-16DS-2V(22) CL0543-2069-7-22 https://www.hirose.com/en/product/p/CL0543-2069-7-22
16 Receptacle DF11CZ-16DS-2V(52) CL0543-2069-7-52 https://www.hirose.com/en/product/p/CL0543-2069-7-52
18 Socket DF11-18DS-2C CL0543-0508-4-00 https://www.hirose.com/en/product/p/CL0543-0508-4-00
18 Header DF11-18DP-2DSA(01) CL0543-0524-0-01 https://www.hirose.com/en/product/p/CL0543-0524-0-01
18 Header DF11-18DP-2DSA(08) CL0543-0524-0-08 https://www.hirose.com/en/product/p/CL0543-0524-0-08
18 Header DF11-18DP-2DSA(24) CL0543-0524-0-24 https://www.hirose.com/en/product/p/CL0543-0524-0-24
18 Header DF11-18DP-2DS(24) CL0543-0540-7-24 https://www.hirose.com/en/product/p/CL0543-0540-7-24
18 Header DF11-18DP-2DS(52) CL0543-0540-7-52 https://www.hirose.com/en/product/p/CL0543-0540-7-52
18 Receptacle DF11-18DS-2DSA(05) CL0543-0559-5-05 https://www.hirose.com/en/product/p/CL0543-0559-5-05
18 Receptacle DF11-18DS-2DSA(06) CL0543-0559-5-06 https://www.hirose.com/en/product/p/CL0543-0559-5-06
18 Plug DF11-18DEP-2C CL0543-0626-0-00 https://www.hirose.com/en/product/p/CL0543-0626-0-00
18 Header DF11C-18DP-2V(57) CL0543-0689-0-57 https://www.hirose.com/en/product/p/CL0543-0689-0-57
18 Receptacle DF11Z-18DS-2V(22) CL0543-2008-2-22 https://www.hirose.com/en/product/p/CL0543-2008-2-22
18 Header DF11CZ-18DP-2V(27) CL0543-2054-0-27 https://www.hirose.com/en/product/p/CL0543-2054-0-27
18 Receptacle DF11CZ-18DS-2V(22) CL0543-2070-6-22 https://www.hirose.com/en/product/p/CL0543-2070-6-22
18 Receptacle DF11CZ-18DS-2V(52) CL0543-2070-6-52 https://www.hirose.com/en/product/p/CL0543-2070-6-52
20 Socket DF11-20DS-2C CL0543-0509-7-00 https://www.hirose.com/en/product/p/CL0543-0509-7-00
20 Header DF11-20DP-2DSA(01) CL0543-0525-3-01 https://www.hirose.com/en/product/p/CL0543-0525-3-01
20 Header DF11-20DP-2DSA(08) CL0543-0525-3-08 https://www.hirose.com/en/product/p/CL0543-0525-3-08
20 Header DF11-20DP-2DSA(24) CL0543-0525-3-24 https://www.hirose.com/en/product/p/CL0543-0525-3-24
20 Header DF11-20DP-2DS(24) CL0543-0541-0-24 https://www.hirose.com/en/product/p/CL0543-0541-0-24
20 Header DF11-20DP-2DS(52) CL0543-0541-0-52 https://www.hirose.com/en/product/p/CL0543-0541-0-52
20 Receptacle DF11-20DS-2DSA(05) CL0543-0560-4-05 https://www.hirose.com/en/product/p/CL0543-0560-4-05
20 Receptacle DF11-20DS-2DSA(06) CL0543-0560-4-06 https://www.hirose.com/en/product/p/CL0543-0560-4-06
20 Plug DF11-20DEP-2C CL0543-0627-3-00 https://www.hirose.com/en/product/p/CL0543-0627-3-00
20 Header DF11C-20DP-2V(57) CL0543-0690-0-57 https://www.hirose.com/en/product/p/CL0543-0690-0-57
20 Header DF11CZ-20DP-2V(27) CL0543-2055-2-27 https://www.hirose.com/en/product/p/CL0543-2055-2-27
20 Receptacle DF11CZ-20DS-2V(22) CL0543-2071-9-22 https://www.hirose.com/en/product/p/CL0543-2071-9-22
20 Receptacle DF11CZ-20DS-2V(52) CL0543-2071-9-52 https://www.hirose.com/en/product/p/CL0543-2071-9-52
22 Socket DF11-22DS-2C CL0543-0510-6-00 https://www.hirose.com/en/product/p/CL0543-0510-6-00
22 Header DF11-22DP-2DSA(01) CL0543-0526-6-01 https://www.hirose.com/en/product/p/CL0543-0526-6-01
22 Header DF11-22DP-2DSA(08) CL0543-0526-6-08 https://www.hirose.com/en/product/p/CL0543-0526-6-08
22 Header DF11-22DP-2DSA(24) CL0543-0526-6-24 https://www.hirose.com/en/product/p/CL0543-0526-6-24
22 Header DF11-22DP-2DS(24) CL0543-0542-2-24 https://www.hirose.com/en/product/p/CL0543-0542-2-24
22 Header DF11-22DP-2DS(52) CL0543-0542-2-52 https://www.hirose.com/en/product/p/CL0543-0542-2-52
22 Receptacle DF11-22DS-2DSA(05) CL0543-0561-7-05 https://www.hirose.com/en/product/p/CL0543-0561-7-05
22 Receptacle DF11-22DS-2DSA(06) CL0543-0561-7-06 https://www.hirose.com/en/product/p/CL0543-0561-7-06
22 Plug DF11-22DEP-2C CL0543-0628-6-00 https://www.hirose.com/en/product/p/CL0543-0628-6-00
22 Header DF11C-22DP-2V(57) CL0543-0691-2-57 https://www.hirose.com/en/product/p/CL0543-0691-2-57
22 Header DF11CZ-22DP-2V(27) CL0543-2056-5-27 https://www.hirose.com/en/product/p/CL0543-2056-5-27
22 Receptacle DF11CZ-22DS-2V(22) CL0543-2072-1-22 https://www.hirose.com/en/product/p/CL0543-2072-1-22
24 Socket DF11-24DS-2C CL0543-0511-9-00 https://www.hirose.com/en/product/p/CL0543-0511-9-00
24 Header DF11-24DP-2DSA(01) CL0543-0527-9-01 https://www.hirose.com/en/product/p/CL0543-0527-9-01
24 Header DF11-24DP-2DSA(08) CL0543-0527-9-08 https://www.hirose.com/en/product/p/CL0543-0527-9-08
24 Header DF11-24DP-2DSA(24) CL0543-0527-9-24 https://www.hirose.com/en/product/p/CL0543-0527-9-24
24 Header DF11-24DP-2DS(24) CL0543-0543-5-24 https://www.hirose.com/en/product/p/CL0543-0543-5-24
24 Header DF11-24DP-2DS(52) CL0543-0543-5-52 https://www.hirose.com/en/product/p/CL0543-0543-5-52
24 Receptacle DF11-24DS-2DSA(05) CL0543-0562-0-05 https://www.hirose.com/en/product/p/CL0543-0562-0-05
24 Receptacle DF11-24DS-2DSA(06) CL0543-0562-0-06 https://www.hirose.com/en/product/p/CL0543-0562-0-06
24 Plug DF11-24DEP-2C CL0543-0629-9-00 https://www.hirose.com/en/product/p/CL0543-0629-9-00
24 Header DF11C-24DP-2V(57) CL0543-0692-5-57 https://www.hirose.com/en/product/p/CL0543-0692-5-57
24 Header DF11CZ-24DP-2V(27) CL0543-2057-8-27 https://www.hirose.com/en/product/p/CL0543-2057-8-27
24 Receptacle DF11CZ-24DS-2V(22) CL0543-2073-4-22 https://www.hirose.com/en/product/p/CL0543-2073-4-22
24 Receptacle DF11CZ-24DS-2V(52) CL0543-2073-4-52 https://www.hirose.com/en/product/p/CL0543-2073-4-52
26 Socket DF11-26DS-2C CL0543-0512-1-00 https://www.hirose.com/en/product/p/CL0543-0512-1-00
26 Header DF11-26DP-2DSA(01) CL0543-0528-1-01 https://www.hirose.com/en/product/p/CL0543-0528-1-01
26 Header DF11-26DP-2DSA(08) CL0543-0528-1-08 https://www.hirose.com/en/product/p/CL0543-0528-1-08
26 Header DF11-26DP-2DSA(24) CL0543-0528-1-24 https://www.hirose.com/en/product/p/CL0543-0528-1-24
26 Header DF11-26DP-2DS(24) CL0543-0544-8-24 https://www.hirose.com/en/product/p/CL0543-0544-8-24
26 Header DF11-26DP-2DS(52) CL0543-0544-8-52 https://www.hirose.com/en/product/p/CL0543-0544-8-52
26 Receptacle DF11-26DS-2DSA(05) CL0543-0563-2-05 https://www.hirose.com/en/product/p/CL0543-0563-2-05
26 Receptacle DF11-26DS-2DSA(06) CL0543-0563-2-06 https://www.hirose.com/en/product/p/CL0543-0563-2-06
26 Plug DF11-26DEP-2C CL0543-0630-8-00 https://www.hirose.com/en/product/p/CL0543-0630-8-00
26 Header DF11C-26DP-2V(57) CL0543-0693-8-57 https://www.hirose.com/en/product/p/CL0543-0693-8-57
26 Header DF11CZ-26DP-2V(27) CL0543-2058-0-27 https://www.hirose.com/en/product/p/CL0543-2058-0-27
26 Receptacle DF11CZ-26DS-2V(22) CL0543-2074-7-22 https://www.hirose.com/en/product/p/CL0543-2074-7-22
28 Socket DF11-28DS-2C CL0543-0513-4-00 https://www.hirose.com/en/product/p/CL0543-0513-4-00
28 Header DF11-28DP-2DSA(01) CL0543-0529-4-01 https://www.hirose.com/en/product/p/CL0543-0529-4-01
28 Header DF11-28DP-2DSA(08) CL0543-0529-4-08 https://www.hirose.com/en/product/p/CL0543-0529-4-08
28 Header DF11-28DP-2DSA(24) CL0543-0529-4-24 https://www.hirose.com/en/product/p/CL0543-0529-4-24
28 Header DF11-28DP-2DS(24) CL0543-0545-0-24 https://www.hirose.com/en/product/p/CL0543-0545-0-24
28 Header DF11-28DP-2DS(52) CL0543-0545-0-52 https://www.hirose.com/en/product/p/CL0543-0545-0-52
28 Receptacle DF11-28DS-2DSA(05) CL0543-0564-5-05 https://www.hirose.com/en/product/p/CL0543-0564-5-05
28 Receptacle DF11-28DS-2DSA(06) CL0543-0564-5-06 https://www.hirose.com/en/product/p/CL0543-0564-5-06
28 Plug DF11-28DEP-2C CL0543-0631-0-00 https://www.hirose.com/en/product/p/CL0543-0631-0-00
28 Socket DF11-28DS-2R26(05) CL0543-0664-0-05 https://www.hirose.com/en/product/p/CL0543-0664-0-05
28 Header DF11C-28DP-2V(57) CL0543-0694-0-57 https://www.hirose.com/en/product/p/CL0543-0694-0-57
28 Header DF11Z-28DP-2V(27) CL0543-2029-2-27 https://www.hirose.com/en/product/p/CL0543-2029-2-27
28 Header DF11CZ-28DP-2V(27) CL0543-2059-3-27 https://www.hirose.com/en/product/p/CL0543-2059-3-27
30 Socket DF11-30DS-2C CL0543-0514-7-00 https://www.hirose.com/en/product/p/CL0543-0514-7-00
30 Header DF11-30DP-2DSA(01) CL0543-0530-3-01 https://www.hirose.com/en/product/p/CL0543-0530-3-01
30 Header DF11-30DP-2DSA(08) CL0543-0530-3-08 https://www.hirose.com/en/product/p/CL0543-0530-3-08
30 Header DF11-30DP-2DSA(24) CL0543-0530-3-24 https://www.hirose.com/en/product/p/CL0543-0530-3-24
30 Header DF11-30DP-2DS(24) CL0543-0546-3-24 https://www.hirose.com/en/product/p/CL0543-0546-3-24
30 Header DF11-30DP-2DS(52) CL0543-0546-3-52 https://www.hirose.com/en/product/p/CL0543-0546-3-52
30 Receptacle DF11-30DS-2DSA(05) CL0543-0565-8-05 https://www.hirose.com/en/product/p/CL0543-0565-8-05
30 Receptacle DF11-30DS-2DSA(06) CL0543-0565-8-06 https://www.hirose.com/en/product/p/CL0543-0565-8-06
30 Plug DF11-30DEP-2C CL0543-0632-3-00 https://www.hirose.com/en/product/p/CL0543-0632-3-00
30 Header DF11C-30DP-2V(57) CL0543-0695-3-57 https://www.hirose.com/en/product/p/CL0543-0695-3-57
30 Receptacle DF11Z-30DS-2V(22) CL0543-2014-5-22 https://www.hirose.com/en/product/p/CL0543-2014-5-22
30 Header DF11CZ-30DP-2V(27) CL0543-2060-2-27 https://www.hirose.com/en/product/p/CL0543-2060-2-27
30 Receptacle DF11CZ-30DS-2V(22) CL0543-2076-2-22 https://www.hirose.com/en/product/p/CL0543-2076-2-22
30 Receptacle DF11CZ-30DS-2V(52) CL0543-2076-2-52 https://www.hirose.com/en/product/p/CL0543-2076-2-52
32 Socket DF11-32DS-2C CL0543-0515-0-00 https://www.hirose.com/en/product/p/CL0543-0515-0-00
32 Header DF11-32DP-2DSA(01) CL0543-0531-6-01 https://www.hirose.com/en/product/p/CL0543-0531-6-01
32 Header DF11-32DP-2DSA(08) CL0543-0531-6-08 https://www.hirose.com/en/product/p/CL0543-0531-6-08
32 Header DF11-32DP-2DSA(24) CL0543-0531-6-24 https://www.hirose.com/en/product/p/CL0543-0531-6-24
32 Header DF11-32DP-2DS(24) CL0543-0547-6-24 https://www.hirose.com/en/product/p/CL0543-0547-6-24
32 Header DF11-32DP-2DS(52) CL0543-0547-6-52 https://www.hirose.com/en/product/p/CL0543-0547-6-52
32 Receptacle DF11-32DS-2DSA(05) CL0543-0566-0-05 https://www.hirose.com/en/product/p/CL0543-0566-0-05
32 Receptacle DF11-32DS-2DSA(06) CL0543-0566-0-06 https://www.hirose.com/en/product/p/CL0543-0566-0-06
32 Plug DF11-32DEP-2C CL0543-0633-6-00 https://www.hirose.com/en/product/p/CL0543-0633-6-00
32 Header DF11C-32DP-2V(57) CL0543-0696-6-57 https://www.hirose.com/en/product/p/CL0543-0696-6-57
32 Header DF11CZ-32DP-2V(27) CL0543-2061-5-27 https://www.hirose.com/en/product/p/CL0543-2061-5-27
34 Header DF11-34DP-2DSA(01) CL0543-0532-9-01 https://www.hirose.com/en/product/p/CL0543-0532-9-01
  Contact DF11-2428SC CL0543-0501-5-00 https://www.hirose.com/en/product/p/CL0543-0501-5-00
  Contact DF11-2428SCF CL0543-0500-2-00 https://www.hirose.com/en/product/p/CL0543-0500-2-00
  Contact DF11-2428SCA CL0543-0551-3-00 https://www.hirose.com/en/product/p/CL0543-0551-3-00
  Contact DF11-2428SCFA(04) CL0543-0550-0-04 https://www.hirose.com/en/product/p/CL0543-0550-0-04
  Contact DF11-22SC CL0543-0602-2-00 https://www.hirose.com/en/product/p/CL0543-0602-2-00
  Contact DF11-22SCA CL0543-0604-8-00 https://www.hirose.com/en/product/p/CL0543-0604-8-00
  Contact DF11-22SCF CL0543-0601-0-00 https://www.hirose.com/en/product/p/CL0543-0601-0-00
  Contact DF11-22SCFA(04) CL0543-0603-5-04 https://www.hirose.com/en/product/p/CL0543-0603-5-04
  Contact DF11-30SC CL0543-0606-3-00 https://www.hirose.com/en/product/p/CL0543-0606-3-00
  Contact DF11-30SCA CL0543-0608-9-00 https://www.hirose.com/en/product/p/CL0543-0608-9-00
  Contact DF11-30SCF CL0543-0605-0-00 https://www.hirose.com/en/product/p/CL0543-0605-0-00
  Contact DF11-30SCFA(04) CL0543-0607-6-04 https://www.hirose.com/en/product/p/CL0543-0607-6-04
  Contact DF11-EP2428PC CL0543-0616-7-00 https://www.hirose.com/en/product/p/CL0543-0616-7-00
  Contact DF11-EP2428PCA CL0543-0618-2-00 https://www.hirose.com/en/product/p/CL0543-0618-2-00
  Contact DF11-EP2428PCF CL0543-0615-4-00 https://www.hirose.com/en/product/p/CL0543-0615-4-00
  Contact DF11-EP2428PCFA CL0543-0617-0-00 https://www.hirose.com/en/product/p/CL0543-0617-0-00
  Contact DF11A-2428SC CL0543-0635-1-00 https://www.hirose.com/en/product/p/CL0543-0635-1-00
  Contact DF11A-2428SCF CL0543-0634-9-00 https://www.hirose.com/en/product/p/CL0543-0634-9-00
  Contact DF11-2428SCFB(03) CL0543-0783-9-03 https://www.hirose.com/en/product/p/CL0543-0783-9-03





Support Custom Wire Harness Assembly



  • Connectors: 4P to 34P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 200 pieces per order.



Hirose DF11 Connector Wire



Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.

Product Tags
custom wire harness (315)car switch (31)Toyota (12)OBD (31)D-sub Cable (33)RJ45 (12)BNC (12)USB cable (28)RCA cable (9)Automotive Wire Harness (145)DIN Cable (6)SAE bullet connector (12)Deutsch Connector Wiring (51)Waterproof Connector (31)GX12/ 16/ 19/ 20/ 25/ 30 connector (6)XT90/ 60/ 30 connector (6)Barrel Jack (20)LED light wire harness (37)Molex Connector Wiring (45)JST Connector Wiring (48)Battery/ Power/ Booster/ Jumper cable (49)Fuse Holder/ Fuse Box (24)Communication/ Telecom cable (29)Computer wire and cable (45)Overmold with cable (30)Motorcycle/ Motorbike/ Electromobile wire harness (12)FFC/ IDC cable (7)Audio/ Video cable (46)Trailer wire harness (11)Terminal Block wires (9)Medical Cable (4)Spring/ Spiral Cable (7)Banana Plug Cable (3)LS Engine Wire Harness (15)OFF-Road (27)Sensor cable (6)
ABOUT US

HooHA wire&cable products were founded in Humen Town, Dongguan city, Guangdong province, China, located in the middle of Guangzhou and Shenzhen city, which is a comprehensive enterprise mainly focused on ......   [ read more>>]

CONTACT US

Hooha Harness

Contact： Deco Yiu

Phone: +86-13532747009

E-mail: sales@hoohawirecable.com

WeChat/WhatsApp: 0086 13532747009

Links
TE Connector
Molex Connector
JST Connector
Aptive Connector
Amphenol Connector
Deutsch Connector
Yazaki Connector
Sumitomo Connector
Lear Connector
KET Connector
Neutrik Connector
Switchcraft Connector
Julet Connector
Higo Connector
XT Connector
Hirose Connector
Yeonho Connector
Anderson Connector
COPYRIGHT 2001-2024 © HOOHA WIRE&CABLE PRODUCTS ALL RIGHTS RESERVED.
