Hirose DF13 Connector, China Wire Harness Manufacturer

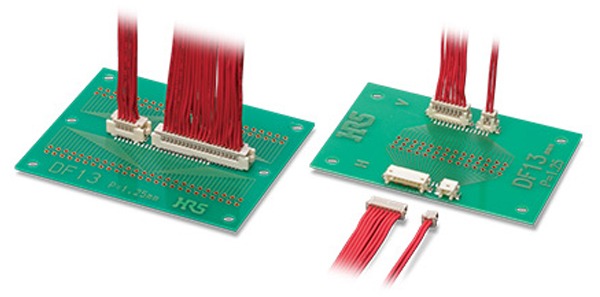

Hirose DF13 Connector



The Hirose DF13 series is a compact, 1.25mm pitch crimp connector compliant with UL standards, designed to deliver essential functionality in a small form factor. The series offers a wide variety of multi-contact configurations, including headers, sockets, and plugs, with contact counts ranging from 2 to 40 and available in both single- and double-row interfaces (1 or 2 rows). Key specifications from the documentation include a rated current of 1.0A to 2.5A, a voltage rating of 150V AC/DC, and an operating temperature range of -35°C to 85°C. It supports both Surface-Mount Technology (SMT) and Through-Hole Technology (THT) for versatile PCB mounting, including pick-and-place compatibility. Available with gold or tin-plated contacts in straight and right-angle orientations, it uses crimp termination for discrete wires (recommended sizes 26-30 AWG) and is recognized for its space-saving design and UL certification.



Hirose DF13 Connector





Features



  • 1.25mm Pitch Compact Crimp Connector
  • Compact Size
  • Multi-contact
  • Pick & Place Mounting
  • Achieve Basic Functionality at a Small Size
  • UL Certified





Specifications



Connector Type Header, Socket, Contact Number of Positions 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 20, 30, 40
Safety Standards UL Mounting Pitch 1.25mm
Rated Current 1.0, 2.5A Mounting Side Standard on-Board
Rated Voltage(AC) AC150.0V Staggered Lead No
Rated Voltage(DC) DC 150.0V Connector Orientation Straight, Right angle
Number of Rows(Interface) 1, 2 Contact Plating Gold, Tin
Contact Pitch 1.25mm Housing Color Beige
Mounting Style SMT, THT Recommended Wire Type Discrete wire
PCB Stabilizing Feature Soldering Recommended Max.Wire Size (AWG) 26, 30
Mating/Unmating Cycles 30, 50 Recommended Min.Wire Size (AWG) 30, 32
Plating Thickness 0.2, 0.76, 1.0μm Operating Temperature Max. 85℃
Wire Termination Method Crimping Operating Temperature Min. -35℃





Connector Lists



No. of Position Type P/N Hirose P/N Links
2 Header DF13-2P-1.25DSA(05) CL0536-0101-9-05 https://www.hirose.com/en/product/p/CL0536-0101-9-05
2 Header DF13-2P-1.25DSA(25) CL0536-0101-9-25 https://www.hirose.com/en/product/p/CL0536-0101-9-25
2 Header DF13-2P-1.25DS(25) CL0536-0151-7-25 https://www.hirose.com/en/product/p/CL0536-0151-7-25
2 Header DF13-2P-1.25V(75) CL0536-0201-3-75 https://www.hirose.com/en/product/p/CL0536-0201-3-75
2 Header DF13-2P-1.25V(76) CL0536-0201-3-76 https://www.hirose.com/en/product/p/CL0536-0201-3-76
2 Socket DF13-2S-1.25C CL0536-0001-4-00 https://www.hirose.com/en/product/p/CL0536-0001-4-00
2 Header DF13A-2P-1.25H(21) CL0536-0301-8-21 https://www.hirose.com/en/product/p/CL0536-0301-8-21
2 Header DF13A-2P-1.25H(51) CL0536-0301-8-51 https://www.hirose.com/en/product/p/CL0536-0301-8-51
2 Header DF13A-2P-1.25V(21) CL0536-0351-6-21 https://www.hirose.com/en/product/p/CL0536-0351-6-21
2 Header DF13C-2P-1.25V(21) CL0536-0401-2-21 https://www.hirose.com/en/product/p/CL0536-0401-2-21
2 Header DF13C-2P-1.25V(51) CL0536-0401-2-51 https://www.hirose.com/en/product/p/CL0536-0401-2-51
3 Header DF13-3P-1.25DSA(05) CL0536-0102-1-05 https://www.hirose.com/en/product/p/CL0536-0102-1-05
3 Header DF13-3P-1.25DSA(25) CL0536-0102-1-25 https://www.hirose.com/en/product/p/CL0536-0102-1-25
3 Header DF13-3P-1.25DS(25) CL0536-0152-0-25 https://www.hirose.com/en/product/p/CL0536-0152-0-25
3 Header DF13C-3P-1.25V(76) CL0536-0402-5-76 https://www.hirose.com/en/product/p/CL0536-0402-5-76
3 Header DF13-3P-1.25H(76) CL0536-0252-4-76 https://www.hirose.com/en/product/p/CL0536-0252-4-76
3 Socket DF13-3S-1.25C CL0536-0002-7-00 https://www.hirose.com/en/product/p/CL0536-0002-7-00
3 Header DF13A-3P-1.25H(21) CL0536-0302-0-21 https://www.hirose.com/en/product/p/CL0536-0302-0-21
3 Header DF13A-3P-1.25H(51) CL0536-0302-0-51 https://www.hirose.com/en/product/p/CL0536-0302-0-51
3 Header DF13A-3P-1.25H(71) CL0536-0302-0-71 https://www.hirose.com/en/product/p/CL0536-0302-0-71
3 Header DF13C-3P-1.25V(21) CL0536-0402-5-21 https://www.hirose.com/en/product/p/CL0536-0402-5-21
3 Header DF13C-3P-1.25V(51) CL0536-0402-5-51 https://www.hirose.com/en/product/p/CL0536-0402-5-51
4 Header DF13-4P-1.25DSA(05) CL0536-0103-4-05 https://www.hirose.com/en/product/p/CL0536-0103-4-05
4 Header DF13-4P-1.25DSA(25) CL0536-0103-4-25 https://www.hirose.com/en/product/p/CL0536-0103-4-25
4 Header DF13-4P-1.25DS(25) CL0536-0153-2-25 https://www.hirose.com/en/product/p/CL0536-0153-2-25
4 Header DF13-4P-1.25V(75) CL0536-0203-9-75 https://www.hirose.com/en/product/p/CL0536-0203-9-75
4 Header DF13-4P-1.25H(76) CL0536-0253-7-76 https://www.hirose.com/en/product/p/CL0536-0253-7-76
4 Header DF13-4P-1.25V(76) CL0536-0203-9-76 https://www.hirose.com/en/product/p/CL0536-0203-9-76
4 Socket DF13-4S-1.25C CL0536-0003-0-00 https://www.hirose.com/en/product/p/CL0536-0003-0-00
4 Header DF13A-4P-1.25H(21) CL0536-0303-3-21 https://www.hirose.com/en/product/p/CL0536-0303-3-21
4 Header DF13A-4P-1.25H(51) CL0536-0303-3-51 https://www.hirose.com/en/product/p/CL0536-0303-3-51
4 Header DF13C-4P-1.25V(21) CL0536-0403-8-21 https://www.hirose.com/en/product/p/CL0536-0403-8-21
4 Header DF13C-4P-1.25V(51) CL0536-0403-8-51 https://www.hirose.com/en/product/p/CL0536-0403-8-51
5 Header DF13-5P-1.25DSA(05) CL0536-0104-7-05 https://www.hirose.com/en/product/p/CL0536-0104-7-05
5 Header DF13-5P-1.25DSA(25) CL0536-0104-7-25 https://www.hirose.com/en/product/p/CL0536-0104-7-25
5 Header DF13-5P-1.25DS(25) CL0536-0154-5-25 https://www.hirose.com/en/product/p/CL0536-0154-5-25
5 Header DF13-5P-1.25V(76) CL0536-0204-1-76 https://www.hirose.com/en/product/p/CL0536-0204-1-76
5 Header DF13-5P-1.25H(76) CL0536-0254-0-76 https://www.hirose.com/en/product/p/CL0536-0254-0-76
5 Socket DF13-5S-1.25C CL0536-0004-2-00 https://www.hirose.com/en/product/p/CL0536-0004-2-00
5 Header DF13A-5P-1.25H(21) CL0536-0304-6-21 https://www.hirose.com/en/product/p/CL0536-0304-6-21
5 Header DF13A-5P-1.25H(51) CL0536-0304-6-51 https://www.hirose.com/en/product/p/CL0536-0304-6-51
5 Header DF13C-5P-1.25V(21) CL0536-0404-0-21 https://www.hirose.com/en/product/p/CL0536-0404-0-21
5 Header DF13C-5P-1.25V(51) CL0536-0404-0-51 https://www.hirose.com/en/product/p/CL0536-0404-0-51
6 Header DF13-6P-1.25DSA(05) CL0536-0105-0-05 https://www.hirose.com/en/product/p/CL0536-0105-0-05
6 Header DF13-6P-1.25DSA(25) CL0536-0105-0-25 https://www.hirose.com/en/product/p/CL0536-0105-0-25
6 Header DF13-6P-1.25DS(25) CL0536-0155-8-25 https://www.hirose.com/en/product/p/CL0536-0155-8-25
6 Header DF13-6P-1.25H(76) CL0536-0255-2-76 https://www.hirose.com/en/product/p/CL0536-0255-2-76
6 Header DF13-6P-1.25V(76) CL0536-0205-4-76 https://www.hirose.com/en/product/p/CL0536-0205-4-76
6 Socket DF13-6S-1.25C CL0536-0005-5-00 https://www.hirose.com/en/product/p/CL0536-0005-5-00
6 Header DF13A-6P-1.25H(21) CL0536-0305-9-21 https://www.hirose.com/en/product/p/CL0536-0305-9-21
6 Header DF13A-6P-1.25H(51) CL0536-0305-9-51 https://www.hirose.com/en/product/p/CL0536-0305-9-51
6 Header DF13C-6P-1.25V(21) CL0536-0405-3-21 https://www.hirose.com/en/product/p/CL0536-0405-3-21
6 Header DF13C-6P-1.25V(51) CL0536-0405-3-51 https://www.hirose.com/en/product/p/CL0536-0405-3-51
7 Header DF13-7P-1.25DSA(05) CL0536-0106-2-05 https://www.hirose.com/en/product/p/CL0536-0106-2-05
7 Header DF13-7P-1.25DSA(25) CL0536-0106-2-25 https://www.hirose.com/en/product/p/CL0536-0106-2-25
7 Header DF13-7P-1.25DS(25) CL0536-0156-0-25 https://www.hirose.com/en/product/p/CL0536-0156-0-25
7 Header DF13-7P-1.25V(76) CL0536-0206-7-76 https://www.hirose.com/en/product/p/CL0536-0206-7-76
7 Socket DF13-7S-1.25C CL0536-0006-8-00 https://www.hirose.com/en/product/p/CL0536-0006-8-00
7 Header DF13A-7P-1.25H(21) CL0536-0306-1-21 https://www.hirose.com/en/product/p/CL0536-0306-1-21
7 Header DF13A-7P-1.25H(51) CL0536-0306-1-51 https://www.hirose.com/en/product/p/CL0536-0306-1-51
7 Header DF13C-7P-1.25V(21) CL0536-0406-6-21 https://www.hirose.com/en/product/p/CL0536-0406-6-21
7 Header DF13C-7P-1.25V(51) CL0536-0406-6-51 https://www.hirose.com/en/product/p/CL0536-0406-6-51
8 Header DF13-8P-1.25DSA(05) CL0536-0107-5-05 https://www.hirose.com/en/product/p/CL0536-0107-5-05
8 Header DF13-8P-1.25DSA(25) CL0536-0107-5-25 https://www.hirose.com/en/product/p/CL0536-0107-5-25
8 Header DF13-8P-1.25DS(25) CL0536-0157-3-25 https://www.hirose.com/en/product/p/CL0536-0157-3-25
8 Header DF13-8P-1.25V(76) CL0536-0207-0-76 https://www.hirose.com/en/product/p/CL0536-0207-0-76
8 Header DF13-8P-1.25H(76) CL0536-0257-8-76 https://www.hirose.com/en/product/p/CL0536-0257-8-76
8 Socket DF13-8S-1.25C CL0536-0007-0-00 https://www.hirose.com/en/product/p/CL0536-0007-0-00
8 Header DF13A-8P-1.25H(21) CL0536-0307-4-21 https://www.hirose.com/en/product/p/CL0536-0307-4-21
8 Header DF13A-8P-1.25H(51) CL0536-0307-4-51 https://www.hirose.com/en/product/p/CL0536-0307-4-51
8 Header DF13C-8P-1.25V(21) CL0536-0407-9-21 https://www.hirose.com/en/product/p/CL0536-0407-9-21
8 Header DF13C-8P-1.25V(51) CL0536-0407-9-51 https://www.hirose.com/en/product/p/CL0536-0407-9-51
9 Header DF13-9P-1.25DSA(05) CL0536-0108-8-05 https://www.hirose.com/en/product/p/CL0536-0108-8-05
9 Header DF13-9P-1.25DSA(25) CL0536-0108-8-25 https://www.hirose.com/en/product/p/CL0536-0108-8-25
9 Header DF13-9P-1.25DS(25) CL0536-0158-6-25 https://www.hirose.com/en/product/p/CL0536-0158-6-25
9 Socket DF13-9S-1.25C CL0536-0008-3-00 https://www.hirose.com/en/product/p/CL0536-0008-3-00
9 Header DF13A-9P-1.25H(21) CL0536-0308-7-21 https://www.hirose.com/en/product/p/CL0536-0308-7-21
9 Header DF13A-9P-1.25H(51) CL0536-0308-7-51 https://www.hirose.com/en/product/p/CL0536-0308-7-51
9 Header DF13C-9P-1.25V(21) CL0536-0408-1-21 https://www.hirose.com/en/product/p/CL0536-0408-1-21
9 Header DF13C-9P-1.25V(51) CL0536-0408-1-51 https://www.hirose.com/en/product/p/CL0536-0408-1-51
10 Header DF13-10P-1.25DSA(05) CL0536-0109-0-05 https://www.hirose.com/en/product/p/CL0536-0109-0-05
10 Header DF13-10P-1.25DSA(25) CL0536-0109-0-25 https://www.hirose.com/en/product/p/CL0536-0109-0-25
10 Header DF13-10P-1.25DS(25) CL0536-0159-9-25 https://www.hirose.com/en/product/p/CL0536-0159-9-25
10 Header DF13EA-10DP-1.25V(52) CL0536-0570-0-52 https://www.hirose.com/en/product/p/CL0536-0570-0-52
10 Header DF13EA-10DP-1.25V(22) CL0536-0570-0-22 https://www.hirose.com/en/product/p/CL0536-0570-0-22
10 Header DF13-10P-1.25V(76) CL0536-0209-5-76 https://www.hirose.com/en/product/p/CL0536-0209-5-76
10 Header DF13A-10P-1.25H(76) CL0536-0309-0-76 https://www.hirose.com/en/product/p/CL0536-0309-0-76
10 Socket DF13-10S-1.25C CL0536-0009-6-00 https://www.hirose.com/en/product/p/CL0536-0009-6-00
10 Header DF13A-10P-1.25H(21) CL0536-0309-0-21 https://www.hirose.com/en/product/p/CL0536-0309-0-21
10 Header DF13A-10P-1.25H(51) CL0536-0309-0-51 https://www.hirose.com/en/product/p/CL0536-0309-0-51
10 Header DF13C-10P-1.25V(21) CL0536-0409-4-21 https://www.hirose.com/en/product/p/CL0536-0409-4-21
10 Socket DF13-10DS-1.25C CL0536-0550-2-00 https://www.hirose.com/en/product/p/CL0536-0550-2-00
10 Header DF13C-10P-1.25V(51) CL0536-0409-4-51 https://www.hirose.com/en/product/p/CL0536-0409-4-51
11 Header DF13-11P-1.25DSA(05) CL0536-0110-0-05 https://www.hirose.com/en/product/p/CL0536-0110-0-05
11 Header DF13-11P-1.25DSA(25) CL0536-0110-0-25 https://www.hirose.com/en/product/p/CL0536-0110-0-25
11 Header DF13-11P-1.25DS(25) CL0536-0160-8-25 https://www.hirose.com/en/product/p/CL0536-0160-8-25
11 Socket DF13-11S-1.25C CL0536-0010-5-00 https://www.hirose.com/en/product/p/CL0536-0010-5-00
11 Header DF13A-11P-1.25H(21) CL0536-0310-9-21 https://www.hirose.com/en/product/p/CL0536-0310-9-21
11 Header DF13A-11P-1.25H(51) CL0536-0310-9-51 https://www.hirose.com/en/product/p/CL0536-0310-9-51
11 Header DF13A-11P-1.25H(90) CL0536-0310-9-90 https://www.hirose.com/en/product/p/CL0536-0310-9-90
11 Header DF13C-11P-1.25V(21) CL0536-0410-3-21 https://www.hirose.com/en/product/p/CL0536-0410-3-21
11 Header DF13C-11P-1.25V(51) CL0536-0410-3-51 https://www.hirose.com/en/product/p/CL0536-0410-3-51
12 Header DF13-12P-1.25DSA(05) CL0536-0111-2-05 https://www.hirose.com/en/product/p/CL0536-0111-2-05
12 Header DF13-12P-1.25DSA(25) CL0536-0111-2-25 https://www.hirose.com/en/product/p/CL0536-0111-2-25
12 Header DF13-12P-1.25DS(25) CL0536-0161-0-25 https://www.hirose.com/en/product/p/CL0536-0161-0-25
12 Header DF13-12P-1.25H(76) CL0536-0261-5-76 https://www.hirose.com/en/product/p/CL0536-0261-5-76
12 Socket DF13-12S-1.25C CL0536-0011-8-00 https://www.hirose.com/en/product/p/CL0536-0011-8-00
12 Header DF13A-12P-1.25H(21) CL0536-0311-1-21 https://www.hirose.com/en/product/p/CL0536-0311-1-21
12 Header DF13A-12P-1.25H(51) CL0536-0311-1-51 https://www.hirose.com/en/product/p/CL0536-0311-1-51
12 Header DF13C-12P-1.25V(21) CL0536-0411-6-21 https://www.hirose.com/en/product/p/CL0536-0411-6-21
12 Header DF13C-12P-1.25V(51) CL0536-0411-6-51 https://www.hirose.com/en/product/p/CL0536-0411-6-51
13 Header DF13-13P-1.25DSA(05) CL0536-0112-5-05 https://www.hirose.com/en/product/p/CL0536-0112-5-05
13 Header DF13-13P-1.25DSA(25) CL0536-0112-5-25 https://www.hirose.com/en/product/p/CL0536-0112-5-25
13 Socket DF13-13S-1.25C CL0536-0012-0-00 https://www.hirose.com/en/product/p/CL0536-0012-0-00
14 Header DF13-14P-1.25DSA(05) CL0536-0113-8-05 https://www.hirose.com/en/product/p/CL0536-0113-8-05
14 Header DF13-14P-1.25DSA(25) CL0536-0113-8-25 https://www.hirose.com/en/product/p/CL0536-0113-8-25
14 Header DF13-14P-1.25DS(25) CL0536-0163-6-25 https://www.hirose.com/en/product/p/CL0536-0163-6-25
14 Socket DF13-14S-1.25C CL0536-0013-3-00 https://www.hirose.com/en/product/p/CL0536-0013-3-00
14 Header DF13A-14P-1.25H(21) CL0536-0313-7-21 https://www.hirose.com/en/product/p/CL0536-0313-7-21
14 Header DF13A-14P-1.25H(51) CL0536-0313-7-51 https://www.hirose.com/en/product/p/CL0536-0313-7-51
14 Header DF13C-14P-1.25V(21) CL0536-0413-1-21 https://www.hirose.com/en/product/p/CL0536-0413-1-21
14 Header DF13C-14P-1.25V(51) CL0536-0413-1-51 https://www.hirose.com/en/product/p/CL0536-0413-1-51
15 Header DF13-15P-1.25DSA(05) CL0536-0114-0-05 https://www.hirose.com/en/product/p/CL0536-0114-0-05
15 Header DF13-15P-1.25DSA(25) CL0536-0114-0-25 https://www.hirose.com/en/product/p/CL0536-0114-0-25
15 Header DF13-15P-1.25DS(25) CL0536-0164-9-25 https://www.hirose.com/en/product/p/CL0536-0164-9-25
15 Socket DF13-15S-1.25C CL0536-0014-6-00 https://www.hirose.com/en/product/p/CL0536-0014-6-00
15 Header DF13A-15P-1.25H(21) CL0536-0314-0-21 https://www.hirose.com/en/product/p/CL0536-0314-0-21
15 Header DF13A-15P-1.25H(51) CL0536-0314-0-51 https://www.hirose.com/en/product/p/CL0536-0314-0-51
15 Header DF13C-15P-1.25V(21) CL0536-0414-4-21 https://www.hirose.com/en/product/p/CL0536-0414-4-21
15 Header DF13C-15P-1.25V(51) CL0536-0414-4-51 https://www.hirose.com/en/product/p/CL0536-0414-4-51
20 Header DF13EA-20DP-1.25V(22) CL0536-0571-0-22 https://www.hirose.com/en/product/p/CL0536-0571-0-22
20 Header DF13EA-20DP-1.25V(52) CL0536-0571-0-52 https://www.hirose.com/en/product/p/CL0536-0571-0-52
20 Socket DF13-20DS-1.25C CL0536-0555-6-00 https://www.hirose.com/en/product/p/CL0536-0555-6-00
30 Socket DF13-30DS-1.25C(10) CL0536-0560-6-10 https://www.hirose.com/en/product/p/CL0536-0560-6-10
30 Header DF13EA-30DP-1.25V(52) CL0536-0572-0-52 https://www.hirose.com/en/product/p/CL0536-0572-0-52
30 Header DF13EA-30DP-1.25V(22) CL0536-0572-0-22 https://www.hirose.com/en/product/p/CL0536-0572-0-22
40 Socket DF13-40DS-1.25C(10) CL0536-0565-0-10 https://www.hirose.com/en/product/p/CL0536-0565-0-10
40 Header DF13EA-40DP-1.25V(22) CL0536-0573-0-22 https://www.hirose.com/en/product/p/CL0536-0573-0-22
40 Header DF13EA-40DP-1.25V(52) CL0536-0573-0-52 https://www.hirose.com/en/product/p/CL0536-0573-0-52
40 Header DF13-40DS-1.25DSA(55) CL0536-0635-3-55 https://www.hirose.com/en/product/p/CL0536-0635-3-55
  Contact DF13-2630SCFA(08) CL0536-0298-5-08 https://www.hirose.com/en/product/p/CL0536-0298-5-08
  Contact DF13-2630SCFA CL0536-0298-5-00 https://www.hirose.com/en/product/p/CL0536-0298-5-00
  Contact DF13-2630SCFA(04) CL0536-0298-5-04 https://www.hirose.com/en/product/p/CL0536-0298-5-04
  Contact DF13-2630SCFA(05) CL0536-0298-5-05 https://www.hirose.com/en/product/p/CL0536-0298-5-05
  Contact DF13-2630SCFA(41) CL0536-0298-5-41 https://www.hirose.com/en/product/p/CL0536-0298-5-41
  Contact DF13-2630SCF CL0536-0300-5-00 https://www.hirose.com/en/product/p/CL0536-0300-5-00
  Contact DF13-2630SCF(41) CL0536-0300-5-41 https://www.hirose.com/en/product/p/CL0536-0300-5-41
  Contact DF13-3032SCF CL0536-0299-8-00 https://www.hirose.com/en/product/p/CL0536-0299-8-00
  Contact DF13-3032SCFA CL0536-0641-6-00 https://www.hirose.com/en/product/p/CL0536-0641-6-00
  Contact DF13G-2630SCF CL0536-0643-1-00 https://www.hirose.com/en/product/p/CL0536-0643-1-00
  Contact DF13G-2630SCFA CL0536-0642-9-00 https://www.hirose.com/en/product/p/CL0536-0642-9-00





Wire Harness Assembly Cases

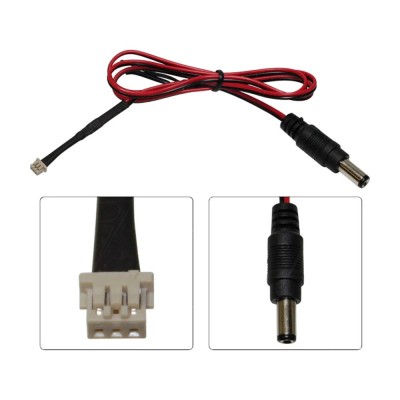

DC5521 to DF13 2P Wire

DC5521 to DF13 2P Wire

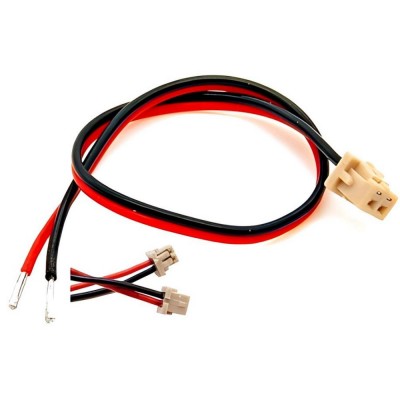

DF13 2P Wire

DF13 2P Wire

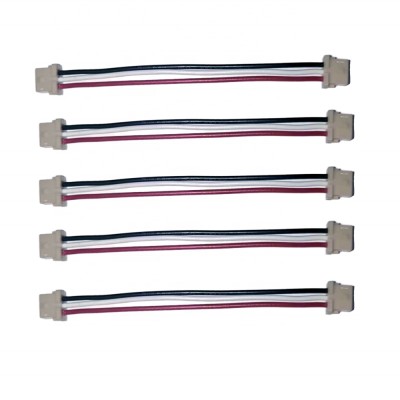

DF13 3P Wire

DF13 3P Wire

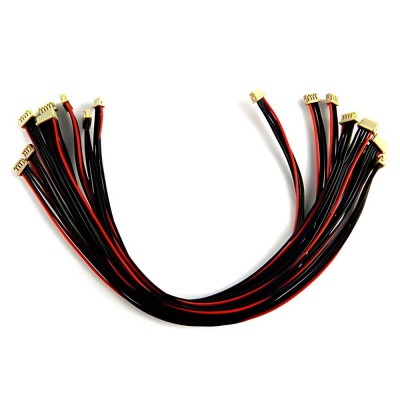

DF13 4P Wire

DF13 4P Wire

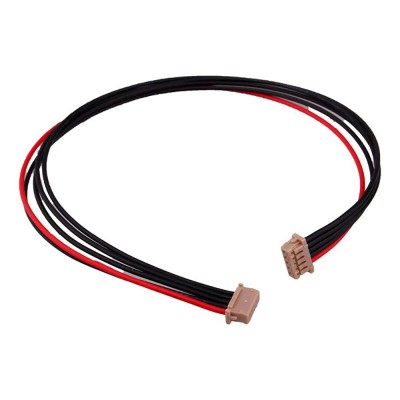

DF13 5P Wire

DF13 5P Wire

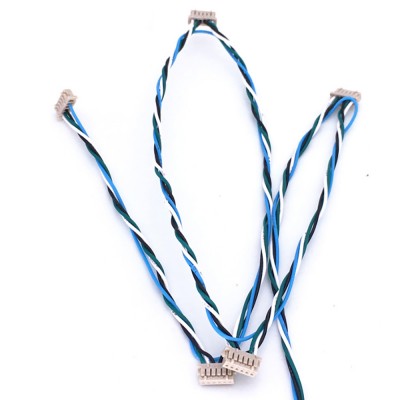

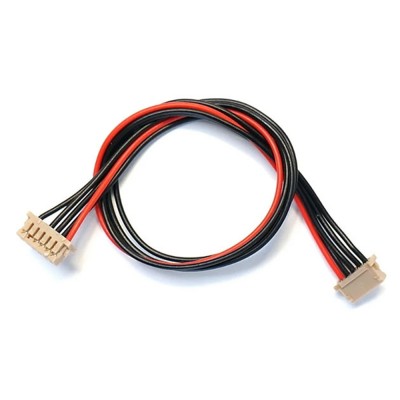

DF13 6P Wire

DF13 6P Wire

DF13 6P Wire

DF13 6P 5 Wire

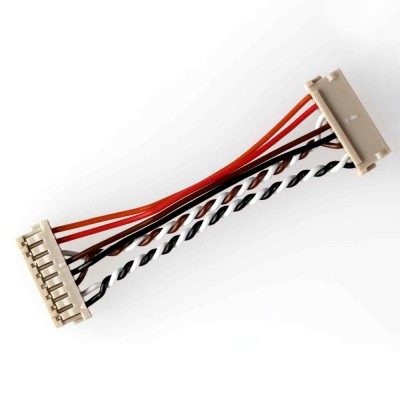

DF13 8P Wire

DF13 8P Wire

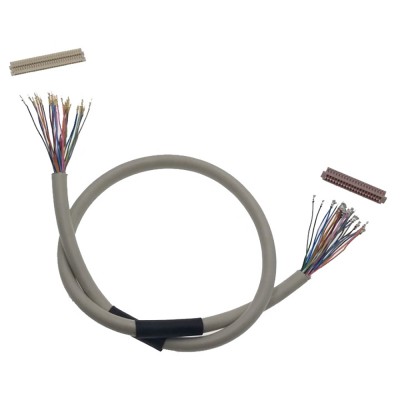

Df13- 40 Pin to Jae Fi-X30

DF13- 40 Pin to JAE Fi-X30 Cable

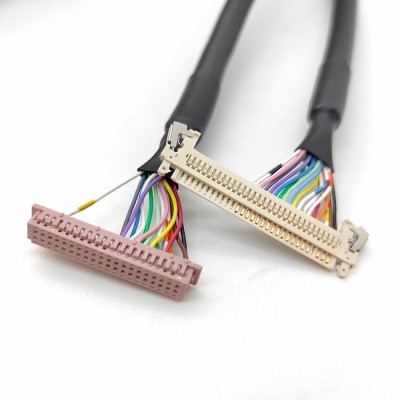

DF13 40P to JAE FI-X30H

DF13 40P to JAE FI-X30H Wire Harness

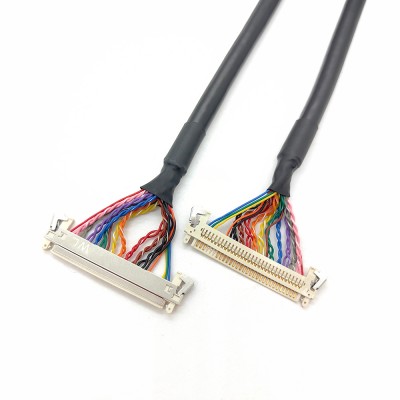

DF13 40P Wire

DF13 40P Wire

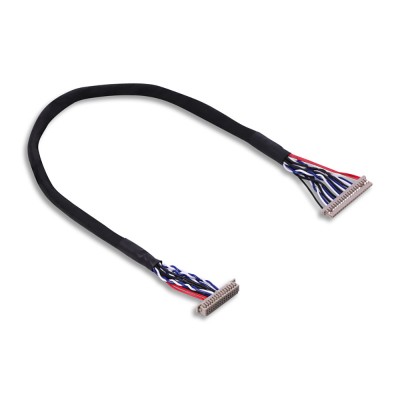

DF13 to DF14 Wire

DF13 to DF14 Wire





Support Custom Wire Harness Assembly



  • Connectors: 2P to 40P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 200 pieces per order.





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.

Product Tags
custom wire harness (315)car switch (31)Toyota (12)OBD (31)D-sub Cable (33)RJ45 (12)BNC (12)USB cable (28)RCA cable (9)Automotive Wire Harness (145)DIN Cable (6)SAE bullet connector (12)Deutsch Connector Wiring (51)Waterproof Connector (31)GX12/ 16/ 19/ 20/ 25/ 30 connector (6)XT90/ 60/ 30 connector (6)Barrel Jack (20)LED light wire harness (37)Molex Connector Wiring (45)JST Connector Wiring (48)Battery/ Power/ Booster/ Jumper cable (49)Fuse Holder/ Fuse Box (24)Communication/ Telecom cable (29)Computer wire and cable (45)Overmold with cable (30)Motorcycle/ Motorbike/ Electromobile wire harness (12)FFC/ IDC cable (7)Audio/ Video cable (46)Trailer wire harness (11)Terminal Block wires (9)Medical Cable (4)Spring/ Spiral Cable (7)Banana Plug Cable (3)LS Engine Wire Harness (15)OFF-Road (27)Sensor cable (6)
ABOUT US

HooHA wire&cable products were founded in Humen Town, Dongguan city, Guangdong province, China, located in the middle of Guangzhou and Shenzhen city, which is a comprehensive enterprise mainly focused on ......   [ read more>>]

CONTACT US

Hooha Harness

Contact： Deco Yiu

Phone: +86-13532747009

E-mail: sales@hoohawirecable.com

WeChat/WhatsApp: 0086 13532747009

Links
TE Connector
Molex Connector
JST Connector
Aptive Connector
Amphenol Connector
Deutsch Connector
Yazaki Connector
Sumitomo Connector
Lear Connector
KET Connector
Neutrik Connector
Switchcraft Connector
Julet Connector
Higo Connector
XT Connector
Hirose Connector
Yeonho Connector
Anderson Connector
COPYRIGHT 2001-2024 © HOOHA WIRE&CABLE PRODUCTS ALL RIGHTS RESERVED.
