Hirose DF14 Connector, China Wire Harness Manufacturer

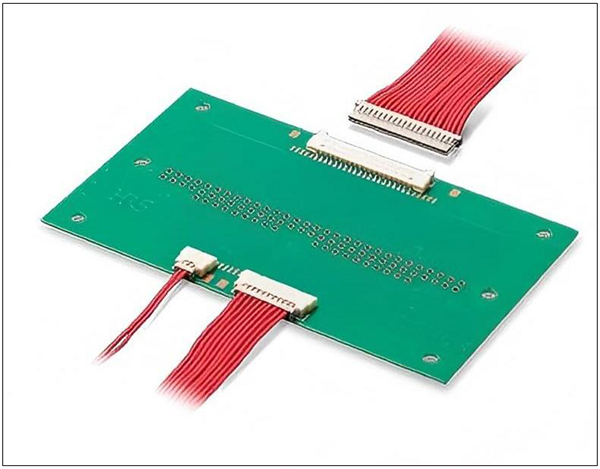

Hirose DF14 Connector



The Hirose DF14 series is a compact, 1.25mm pitch, low-profile crimp connector family designed for high-density PCB applications. A key feature is its low board-mounting height, specified at 2.5mm. The series offers a wide variety of configurations, including headers (P) and sockets (S) in positions 2-30, as detailed in the extensive product list. The connectors are designed for efficient assembly using pick-and-place SMT (Surface-Mount Technology) and feature a robust four-wall housing for improved durability. Key electrical specifications from the documents include a rated current of 1.0A, a voltage rating of 150V AC/DC, and an operating temperature range of -35°C to 85°C. They utilize crimp termination for discrete wires (26-30 AWG), are available with gold or tin contact plating, and come in a standard right-angle orientation. The series, including standard DF14, DF14A, and DF14H variants, provides a reliable solution for space-constrained interconnections.



Hirose DF14 Connector





Featuers



  • 1.25mm Pitch, Low Profile Crimp Connector
  • Low Profile (Board mounting height: 2.5mm)
  • Pick & Place Mounting
  • Four-wall Design





Specifications



Connector Type Header, Socket, Contact Number of Positions 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 25, 30
Rated Current 1.0 A Mounting Pitch 1.25mm
Rated Voltage(AC) AC 150.0V Mounting Side Standard on-Board, Standard off-set
Rated Voltage(DC) DC 150.0V Connector Orientation Right angle
Number of Rows(Interface) 1 Contact Plating Gold, Tin
Contact Pitch 1.25mm Housing Color Beige
Mounting Style SMT Recommended Wire Type Discrete wire
PCB Stabilizing Feature Soldering Recommended Max.Wire Size (AWG) 26, 30
Mating/Unmating Cycles 30, 50 Recommended Min.Wire Size (AWG) 28, 32
Plating Thickness 0.1, 0.76μm Operating Temperature Max. 85℃
Wire Termination Method Crimping Operating Temperature Min. -35℃





Connector Lists



No. of Position Type P/N Hirose P/N Links
2 Socket DF14-2S-1.25C(10) CL0538-0005-8-10 https://www.hirose.com/en/product/p/CL0538-0005-8-10
2 Header DF14-2P-1.25H(22) CL0538-0021-4-22 https://www.hirose.com/en/product/p/CL0538-0021-4-22
2 Header DF14-2P-1.25H(35) CL0538-0021-4-35 https://www.hirose.com/en/product/p/CL0538-0021-4-35
2 Header DF14-2P-1.25H(52) CL0538-0021-4-52 https://www.hirose.com/en/product/p/CL0538-0021-4-52
2 Header DF14-2P-1.25H(65) CL0538-0021-4-65 https://www.hirose.com/en/product/p/CL0538-0021-4-65
2 Header DF14A-2P-1.25H(22) CL0538-0033-3-22 https://www.hirose.com/en/product/p/CL0538-0033-3-22
2 Header DF14A-2P-1.25H(52) CL0538-0033-3-52 https://www.hirose.com/en/product/p/CL0538-0033-3-52
3 Socket DF14-3S-1.25C(10) CL0538-0006-0-10 https://www.hirose.com/en/product/p/CL0538-0006-0-10
3 Header DF14-3P-1.25H(22) CL0538-0022-7-22 https://www.hirose.com/en/product/p/CL0538-0022-7-22
3 Header DF14-3P-1.25H(35) CL0538-0022-7-35 https://www.hirose.com/en/product/p/CL0538-0022-7-35
3 Header DF14-3P-1.25H(52) CL0538-0022-7-52 https://www.hirose.com/en/product/p/CL0538-0022-7-52
3 Header DF14A-3P-1.25H(22) CL0538-0034-6-22 https://www.hirose.com/en/product/p/CL0538-0034-6-22
3 Header DF14A-3P-1.25H(52) CL0538-0034-6-52 https://www.hirose.com/en/product/p/CL0538-0034-6-52
4 Socket DF14-4S-1.25C(10) CL0538-0007-3-10 https://www.hirose.com/en/product/p/CL0538-0007-3-10
4 Header DF14-4P-1.25H(22) CL0538-0023-0-22 https://www.hirose.com/en/product/p/CL0538-0023-0-22
4 Header DF14-4P-1.25H(35) CL0538-0023-0-35 https://www.hirose.com/en/product/p/CL0538-0023-0-35
4 Header DF14-4P-1.25H(52) CL0538-0023-0-52 https://www.hirose.com/en/product/p/CL0538-0023-0-52
4 Header DF14-4P-1.25H(65) CL0538-0023-0-65 https://www.hirose.com/en/product/p/CL0538-0023-0-65
4 Header DF14A-4P-1.25H(22) CL0538-0035-9-22 https://www.hirose.com/en/product/p/CL0538-0035-9-22
4 Header DF14A-4P-1.25H(35) CL0538-0035-9-35 https://www.hirose.com/en/product/p/CL0538-0035-9-35
4 Header DF14A-4P-1.25H(52) CL0538-0035-9-52 https://www.hirose.com/en/product/p/CL0538-0035-9-52
4 Header DF14A-4P-1.25H(65) CL0538-0035-9-65 https://www.hirose.com/en/product/p/CL0538-0035-9-65
5 Socket DF14-5S-1.25C(10) CL0538-0008-6-10 https://www.hirose.com/en/product/p/CL0538-0008-6-10
5 Header DF14A-5P-1.25H(22) CL0538-0036-1-22 https://www.hirose.com/en/product/p/CL0538-0036-1-22
5 Header DF14A-5P-1.25H(52) CL0538-0036-1-52 https://www.hirose.com/en/product/p/CL0538-0036-1-52
5 Header DF14A-5P-1.25H(65) CL0538-0036-1-65 https://www.hirose.com/en/product/p/CL0538-0036-1-65
5 Header DF14-5P-1.25H(22) CL0538-0024-2-22 https://www.hirose.com/en/product/p/CL0538-0024-2-22
5 Header DF14-5P-1.25H(35) CL0538-0024-2-35 https://www.hirose.com/en/product/p/CL0538-0024-2-35
5 Header DF14-5P-1.25H(52) CL0538-0024-2-52 https://www.hirose.com/en/product/p/CL0538-0024-2-52
5 Header DF14-5P-1.25H(65) CL0538-0024-2-65 https://www.hirose.com/en/product/p/CL0538-0024-2-65
6 Socket DF14-6S-1.25C(10) CL0538-0009-9-10 https://www.hirose.com/en/product/p/CL0538-0009-9-10
6 Header DF14A-6P-1.25H(22) CL0538-0037-4-22 https://www.hirose.com/en/product/p/CL0538-0037-4-22
6 Header DF14A-6P-1.25H(35) CL0538-0037-4-35 https://www.hirose.com/en/product/p/CL0538-0037-4-35
6 Header DF14A-6P-1.25H(52) CL0538-0037-4-52 https://www.hirose.com/en/product/p/CL0538-0037-4-52
6 Header DF14-6P-1.25H(22) CL0538-0025-5-22 https://www.hirose.com/en/product/p/CL0538-0025-5-22
6 Header DF14-6P-1.25H(35) CL0538-0025-5-35 https://www.hirose.com/en/product/p/CL0538-0025-5-35
6 Header DF14-6P-1.25H(52) CL0538-0025-5-52 https://www.hirose.com/en/product/p/CL0538-0025-5-52
6 Header DF14-6P-1.25H(65) CL0538-0025-5-65 https://www.hirose.com/en/product/p/CL0538-0025-5-65
7 Socket DF14-7S-1.25C(10) CL0538-0010-8-10 https://www.hirose.com/en/product/p/CL0538-0010-8-10
7 Header DF14A-7P-1.25H(22) CL0538-0038-7-22 https://www.hirose.com/en/product/p/CL0538-0038-7-22
7 Header DF14A-7P-1.25H(52) CL0538-0038-7-52 https://www.hirose.com/en/product/p/CL0538-0038-7-52
7 Header DF14-7P-1.25H(35) CL0538-0026-8-35 https://www.hirose.com/en/product/p/CL0538-0026-8-35
7 Header DF14-7P-1.25H(52) CL0538-0026-8-52 https://www.hirose.com/en/product/p/CL0538-0026-8-52
8 Socket DF14-8S-1.25C(10) CL0538-0011-0-10 https://www.hirose.com/en/product/p/CL0538-0011-0-10
8 Header DF14A-8P-1.25H(22) CL0538-0039-0-22 https://www.hirose.com/en/product/p/CL0538-0039-0-22
8 Header DF14A-8P-1.25H(52) CL0538-0039-0-52 https://www.hirose.com/en/product/p/CL0538-0039-0-52
8 Header DF14-8P-1.25H(22) CL0538-0027-0-22 https://www.hirose.com/en/product/p/CL0538-0027-0-22
8 Header DF14-8P-1.25H(35) CL0538-0027-0-35 https://www.hirose.com/en/product/p/CL0538-0027-0-35
8 Header DF14-8P-1.25H(52) CL0538-0027-0-52 https://www.hirose.com/en/product/p/CL0538-0027-0-52
8 Header DF14-8P-1.25H(65) CL0538-0027-0-65 https://www.hirose.com/en/product/p/CL0538-0027-0-65
9 Socket DF14-9S-1.25C(10) CL0538-0013-6-10 https://www.hirose.com/en/product/p/CL0538-0013-6-10
9 Header DF14A-9P-1.25H(22) CL0538-0040-9-22 https://www.hirose.com/en/product/p/CL0538-0040-9-22
9 Header DF14A-9P-1.25H(52) CL0538-0040-9-52 https://www.hirose.com/en/product/p/CL0538-0040-9-52
9 Header DF14-9P-1.25H(52) CL0538-0028-3-52 https://www.hirose.com/en/product/p/CL0538-0028-3-52
9 Header DF14-9P-1.25H(65) CL0538-0028-3-65 https://www.hirose.com/en/product/p/CL0538-0028-3-65
10 Socket DF14-10S-1.25C(10) CL0538-0014-9-10 https://www.hirose.com/en/product/p/CL0538-0014-9-10
10 Header DF14A-10P-1.25H(22) CL0538-0041-1-22 https://www.hirose.com/en/product/p/CL0538-0041-1-22
10 Header DF14A-10P-1.25H(35) CL0538-0041-1-35 https://www.hirose.com/en/product/p/CL0538-0041-1-35
10 Header DF14A-10P-1.25H(52) CL0538-0041-1-52 https://www.hirose.com/en/product/p/CL0538-0041-1-52
10 Header DF14A-10P-1.25H(65) CL0538-0041-1-65 https://www.hirose.com/en/product/p/CL0538-0041-1-65
10 Header DF14-10P-1.25H(22) CL0538-0029-6-22 https://www.hirose.com/en/product/p/CL0538-0029-6-22
10 Header DF14-10P-1.25H(35) CL0538-0029-6-35 https://www.hirose.com/en/product/p/CL0538-0029-6-35
10 Header DF14-10P-1.25H(52) CL0538-0029-6-52 https://www.hirose.com/en/product/p/CL0538-0029-6-52
10 Header DF14-10P-1.25H(65) CL0538-0029-6-65 https://www.hirose.com/en/product/p/CL0538-0029-6-65
15 Socket DF14-15S-1.25C(10) CL0538-0054-3-10 https://www.hirose.com/en/product/p/CL0538-0054-3-10
15 Header DF14-15P-1.25H(22) CL0538-0084-4-22 https://www.hirose.com/en/product/p/CL0538-0084-4-22
15 Header DF14-15P-1.25H(35) CL0538-0084-4-35 https://www.hirose.com/en/product/p/CL0538-0084-4-35
15 Header DF14-15P-1.25H(52) CL0538-0084-4-52 https://www.hirose.com/en/product/p/CL0538-0084-4-52
15 Header DF14-15P-1.25H(65) CL0538-0084-4-65 https://www.hirose.com/en/product/p/CL0538-0084-4-65
15 Header DF14A-15P-1.25H(22) CL0538-0114-3-22 https://www.hirose.com/en/product/p/CL0538-0114-3-22
15 Header DF14A-15P-1.25H(35) CL0538-0114-3-35 https://www.hirose.com/en/product/p/CL0538-0114-3-35
15 Header DF14A-15P-1.25H(52) CL0538-0114-3-52 https://www.hirose.com/en/product/p/CL0538-0114-3-52
15 Header DF14A-15P-1.25H(65) CL0538-0114-3-65 https://www.hirose.com/en/product/p/CL0538-0114-3-65
20 Socket DF14-20S-1.25C(10) CL0538-0059-7-10 https://www.hirose.com/en/product/p/CL0538-0059-7-10
20 Header DF14-20P-1.25H(22) CL0538-0089-8-22 https://www.hirose.com/en/product/p/CL0538-0089-8-22
20 Header DF14-20P-1.25H(35) CL0538-0089-8-35 https://www.hirose.com/en/product/p/CL0538-0089-8-35
20 Header DF14-20P-1.25H(52) CL0538-0089-8-52 https://www.hirose.com/en/product/p/CL0538-0089-8-52
20 Header DF14-20P-1.25H(65) CL0538-0089-8-65 https://www.hirose.com/en/product/p/CL0538-0089-8-65
20 Header DF14A-20P-1.25H(22) CL0538-0119-7-22 https://www.hirose.com/en/product/p/CL0538-0119-7-22
20 Header DF14A-20P-1.25H(35) CL0538-0119-7-35 https://www.hirose.com/en/product/p/CL0538-0119-7-35
20 Header DF14A-20P-1.25H(52) CL0538-0119-7-52 https://www.hirose.com/en/product/p/CL0538-0119-7-52
20 Header DF14A-20P-1.25H(65) CL0538-0119-7-65 https://www.hirose.com/en/product/p/CL0538-0119-7-65
20 Header DF14H-20P-1.25H(52) CL0538-0167-0-52 https://www.hirose.com/en/product/p/CL0538-0167-0-52
25 Socket DF14-25S-1.25C(10) CL0538-0064-7-10 https://www.hirose.com/en/product/p/CL0538-0064-7-10
25 Header DF14-25P-1.25H(22) CL0538-0094-8-22 https://www.hirose.com/en/product/p/CL0538-0094-8-22
25 Header DF14-25P-1.25H(35) CL0538-0094-8-35 https://www.hirose.com/en/product/p/CL0538-0094-8-35
25 Header DF14-25P-1.25H(52) CL0538-0094-8-52 https://www.hirose.com/en/product/p/CL0538-0094-8-52
25 Header DF14-25P-1.25H(65) CL0538-0094-8-65 https://www.hirose.com/en/product/p/CL0538-0094-8-65
25 Header DF14A-25P-1.25H(22) CL0538-0124-7-22 https://www.hirose.com/en/product/p/CL0538-0124-7-22
25 Header DF14A-25P-1.25H(35) CL0538-0124-7-35 https://www.hirose.com/en/product/p/CL0538-0124-7-35
25 Header DF14A-25P-1.25H(52) CL0538-0124-7-52 https://www.hirose.com/en/product/p/CL0538-0124-7-52
30 Socket DF14-30S-1.25C(10) CL0538-0012-3-10 https://www.hirose.com/en/product/p/CL0538-0012-3-10
30 Header DF14A-30P-1.25H(35) CL0538-0045-2-35 https://www.hirose.com/en/product/p/CL0538-0045-2-35
30 Header DF14A-30P-1.25H(52) CL0538-0045-2-52 https://www.hirose.com/en/product/p/CL0538-0045-2-52
30 Header DF14A-30P-1.25H(65) CL0538-0045-2-65 https://www.hirose.com/en/product/p/CL0538-0045-2-65
30 Header DF14-30P-1.25H(22) CL0538-0020-1-22 https://www.hirose.com/en/product/p/CL0538-0020-1-22
30 Header DF14-30P-1.25H(35) CL0538-0020-1-35 https://www.hirose.com/en/product/p/CL0538-0020-1-35
30 Header DF14-30P-1.25H(52) CL0538-0020-1-52 https://www.hirose.com/en/product/p/CL0538-0020-1-52
30 Header DF14-30P-1.25H(65) CL0538-0020-1-65 https://www.hirose.com/en/product/p/CL0538-0020-1-65
30 Header DF14H-30P-1.25H(52) CL0538-0188-0-52 https://www.hirose.com/en/product/p/CL0538-0188-0-52
30 Header DF14A-30P-1.25H(22) CL0538-0045-2-22 https://www.hirose.com/en/product/p/CL0538-0045-2-22
  Contact DF14-2628SCF CL0538-0001-7-00 https://www.hirose.com/en/product/p/CL0538-0001-7-00
  Contact DF14-2628SCFA CL0538-0002-0-00 https://www.hirose.com/en/product/p/CL0538-0002-0-00
  Contact DF14-3032SCF CL0538-0003-2-00 https://www.hirose.com/en/product/p/CL0538-0003-2-00
  Contact DF14-3032SCFA CL0538-0004-5-00 https://www.hirose.com/en/product/p/CL0538-0004-5-00
  Contact DF14-2628SCFA(07) CL0538-0002-0-07 https://www.hirose.com/en/product/p/CL0538-0002-0-07
  Contact DF14-2628SCFA(90) CL0538-0002-0-90 https://www.hirose.com/en/product/p/CL0538-0002-0-90





Custom Wire Harness Assembly Case

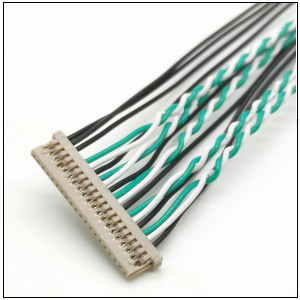

DF14 18p Wire

DF14 18p Wire

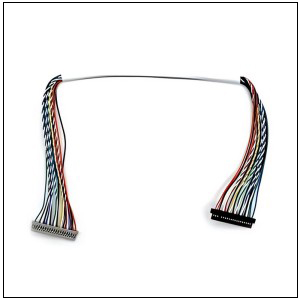

DF14 20P to JAE FI-S20S

DF14 20P to JAE FI-S20S

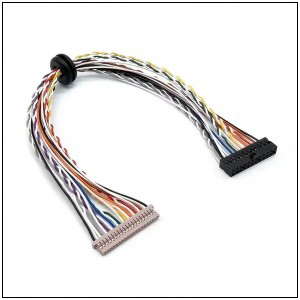

DF14 20P Wire Harness

DF14 20P Wire Harness

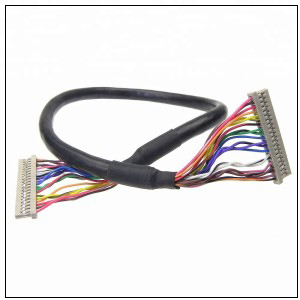

DF14 20P Wire

DF14 20P Wire

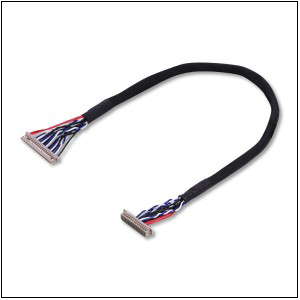

DF14 to DF13 Wire

DF14 to DF13 Wire

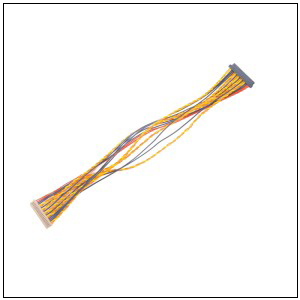

DF14-20S-1.25C To FI-S20S

DF14-20S-1.25C To FI-S20S

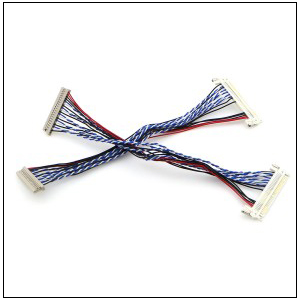

DF14-20S-1.25C to JAE FI-X Wire

DF14-20S-1.25C to JAE FI-X Wire

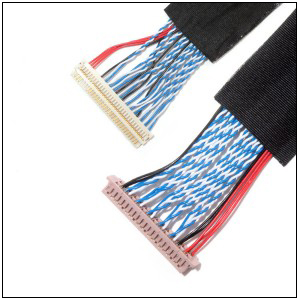

DF14-20S-1.25C

DF14-20S-1.25C

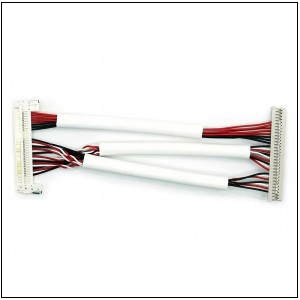

DF14-30S-1.25C (10) to FI-X30HL

DF14-30S-1.25C (10) to FI-X30HL

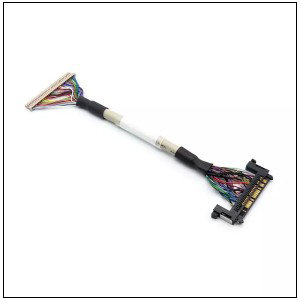

DF14-30S-1.25C to JAE FI-RE51HL

DF14-30S-1.25C to JAE FI-RE51HL

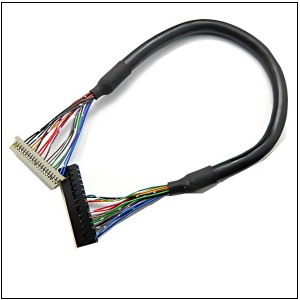

Hirose DF13 40p to DF14 Lvds Wiring Harness

Hirose DF13 40p to DF14 Lvds Wiring Harness

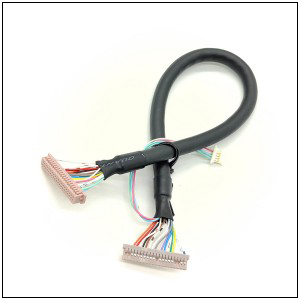

Hirose DF14 20Pin to DF13 40Pin, Molex 51146-0500 Wire

Hirose DF14 20Pin to DF13 40Pin, Molex 51146-0500 Wire





Support Custom Wire Harness Assembly



  • Connectors: 2P to 30P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 200 pieces per order.





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
