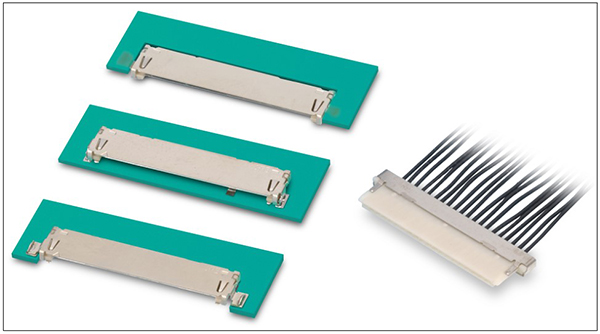

Hirose DF19 Connector
The Hirose DF19 series is a 1.0mm pitch, low-profile wire-to-board connector family that has been established as a de facto standard for LCD panel connections. The specifications confirm a compact design with a rated current of 1.0A, a 100V AC/DC voltage, and an operating temperature range of -35°C to 85°C, utilizing SMT mounting and gold-plated contacts. The product list demonstrates a wide variety, including headers, sockets, and contacts in 8, 14, 20, and 30 positions, with straight and right-angle (vertical) orientations, available in black and beige housings. A key feature is the option for a reliable ground connection via dedicated outer shell grounding plates (e.g., DF19G-**S-1F-GND). It supports various terminations, including soldering, crimping, and FPC termination, compatible with discrete wires (28-30 AWG) and micro-coaxial cables. As noted in the provided details, select variants are also glow-wire compatible per the IEC 60695-2-11 standard.
Features
- 1.0mm Pitch, Low Profile Wire-to-Board Connectors
- De Facto Standard for LCD Panel Connection
- Low Profile Design
- Wide Varieties
- Ground Connection with Outer Shell
- Glow Wire Compatible ( IEC60695-2-11 Standard)
Specifications
| Connector Type | Header, Socket, Contact, Others | Parts | Grounding Plate for Micro-coaxial Cable, Ground Plate for FPC |
| Rated Current | 1.0A | Number of Positions | 8, 14, 20, 30 |
| Rated Voltage(AC) | AC 100.0V | Mounting Pitch | 1.0 mm |
| Rated Voltage(DC) | DC 100.0V | Mounting Side | Standard on-Board, Standard off-set, Reverse off-set |
| Number of Rows(Interface) | 1 | Staggered Lead | No |
| Contact Pitch | 1.0 mm | Connector Orientation | Straight, Right angle |
| Mounting Style | SMT | Contact Plating | Gold |
| PCB Stabilizing Feature | Soldering | Housing Color | Black, Beige |
| Mating/Unmating Cycles | 30 | Recommended Wire Type | FPC, Discrete wire, Micro-coaxial cable |
| Plating Thickness | 0.2 μm | Recommended Max.Wire Size (AWG) | 28, 30, 40 |
| Wire Termination Method | Soldering, Crimping, FPC termination | Operating Temperature Max. | 85℃ |
| Recommended Min.Wire Size (AWG) |
30, 32, 40 | Operating Temperature Min. | -35℃ |
Connector Lists
Custom Wire Harness Assembly Cases

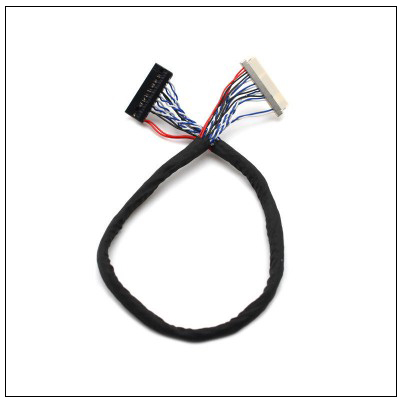

DF19 20P to DuPont 8P Wire

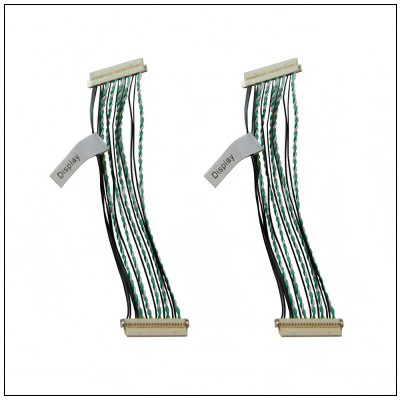

DF19 20P Wire

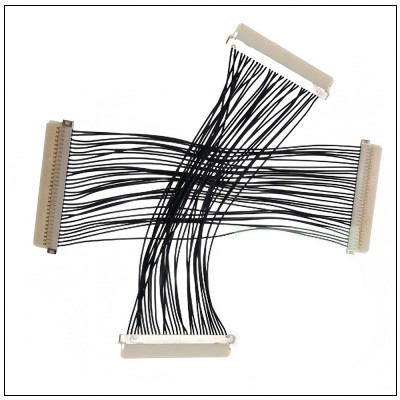

DF19 30P Wire

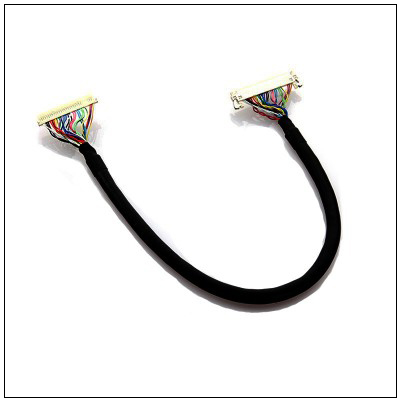

FI-X30HL to DF19 20P

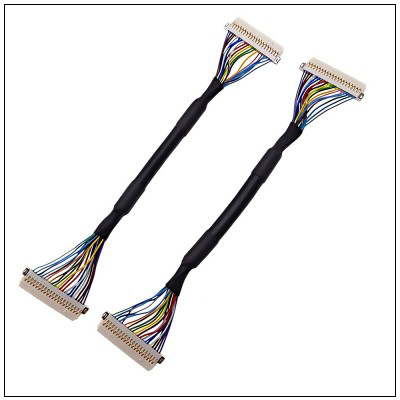

DF19 20-pin Cable Assembly for LCD Panel

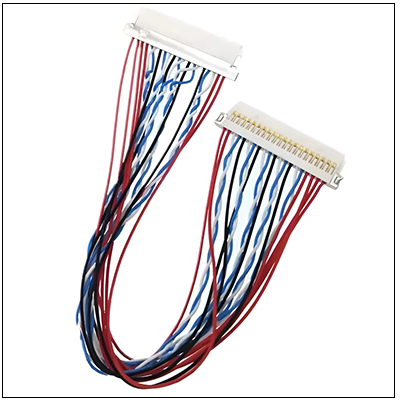

DF19 20P Wire Harness
Support Custom Wire Harness Assembly
- Connectors: 8P to 30P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
