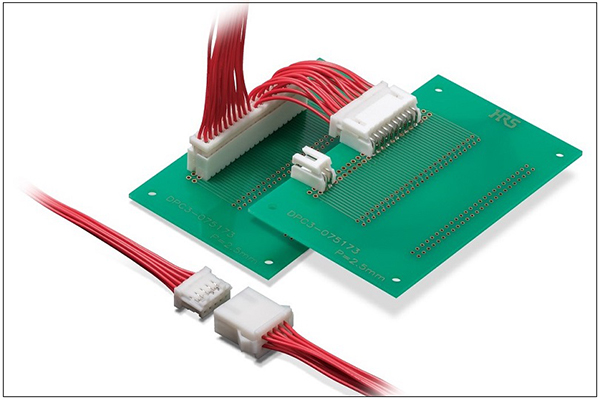

Hirose DF1B Connector

The Hirose DF1B series, part of the SignalBee™ lineup, is a versatile 2.5mm pitch connector family certified to UL/CSA standards and designed for discrete wire connections. The product list confirms a wide variety of configurations, including headers, plugs, sockets, and contacts, with positions ranging from 2 to 40 in both single and double-row (DP suffix) interfaces. Key specifications from the documentation include a rated current of 0.5A, 3.0A, or 5.0A, a voltage rating of 250V AC/DC, and an operating temperature range of -35°C to 85°C. The connectors offer straight and right-angle orientations, use crimp termination for wires from 20 to 30 AWG, and feature gold or tin-plated contacts in a white housing with Through-Hole Technology (THT) mounting. This combination of variety, reliable electrical performance, and safety certification makes it a suitable solution for a broad range of board-to-wire interconnection needs.

Specifications

Connector Lists

Support Custom Wire Harness Assembly

• Connectors: 2P to 40P.
• Wire Gauge:
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
