Hirose DF1E Connector



The Hirose DF1E series is a 2.5mm-pitch connector family certified to UL and C-UL/CSA standards, designed for reliable discrete wire connections with a positive locking function. The product list confirms a wide variety, including headers, plugs, and sockets in 2 to 15 positions, with straight and right-angle orientations, and contacts for crimp termination supporting 20-28 AWG wire. Key specifications from the documentation include a rated current of 3.0A, a voltage rating of 250V AC/DC, an operating temperature range of -35°C to 85°C, and Through-Hole Technology (THT) mounting. The series enhances reliability with features such as increased crimping contact retention force, molded-in contact retention tabs, and designs that prevent incomplete insertion, mis-insertion, and solder cracks. Available with gold or tin plating in black, beige, or white housings, it is engineered for production efficiency and is suitable for various applications requiring a secure connection.



Hirose DF1E Connector





Features



  • 2.5mm Pitch Connectors
  • Positive Lock Function Added
  • Increase in Crimping Contact Retention Force and Incomplete Insertion Prevention
  • Molded- in Contact Retention Tabs
  • Mis-insertion Prevention
  • Solder Crack Prevention
  • Production Facility Cost Reduction
  • Various Applications
  • UL, C- UL Certified





Speficications



Connector Type Header, Plug, Socket, Contact Parts Retainer
Safety Standards UL, C-UL/CSA Industry Standard JIS, IEC
Rated Current 3.0 A Number of Positions 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 15
Rated Voltage (AC) AC 250.0V Mounting Pitch 2.5 mm
Rated Voltage(DC) DC 250.0V Mounting Side Standard on-Board
Number of Rows(Interface) 1 Connector Orientation Straight, Right angle
Contact Pitch 2.5 mm Contact Plating Gold, Tin
Mounting Style THT Housing Color Black, Beige, White
PCB Stabilizing Feature Soldering Recommended Wire Type Discrete wire
Recommended PCB Thickness 1.6 mm Max. Recommended Max.Wire Size (AWG) 20, 24
Mating/Unmating Cycles 30, 50 Recommended Min.Wire Size (AWG) 22, 28
Plating Thickness 0.2, 1.0μm Operating Temperature Max. 85℃
Wire Termination Method Crimping Operating Temperature Min. -35℃
Panel Mounting Style Snap-in Connector Type Details In-line plug, Retainer





Connector Lists



No. of Position Type P/N Hirose P/N Links
2 Header DF1E-2P-2.5DS(35) CL0541-0985-0-35 https://www.hirose.com/en/product/p/CL0541-0985-0-35
2 Header DF1E-2P-2.5DS(36) CL0541-0985-0-36 https://www.hirose.com/en/product/p/CL0541-0985-0-36
2 Header DF1EG-2P-2.5DSA(35) CL0541-0923-3-35 https://www.hirose.com/en/product/p/CL0541-0923-3-35
2 Header DF1EC-2P-2.5DSA(35) CL0541-0867-4-35 https://www.hirose.com/en/product/p/CL0541-0867-4-35
2 Header DF1EC-2P-2.5DSA(36) CL0541-0867-4-36 https://www.hirose.com/en/product/p/CL0541-0867-4-36
2 Plug DF1E-2EP-2.5C CL0541-0943-0-00 https://www.hirose.com/en/product/p/CL0541-0943-0-00
2 Plug DF1E-2RS/P-2.5 CL0541-0971-6-00 https://www.hirose.com/en/product/p/CL0541-0971-6-00
2 Socket DF1E-2S-2.5C CL0541-0811-0-00 https://www.hirose.com/en/product/p/CL0541-0811-0-00
2 Plug DF1EA-2EP-2.5C CL0541-0957-5-00 https://www.hirose.com/en/product/p/CL0541-0957-5-00
3 Header DF1E-3P-2.5DS(35) CL0541-0986-3-35 https://www.hirose.com/en/product/p/CL0541-0986-3-35
3 Header DF1E-3P-2.5DS(36) CL0541-0986-3-36 https://www.hirose.com/en/product/p/CL0541-0986-3-36
3 Header DF1EG-3P-2.5DSA(35) CL0541-0924-6-35 https://www.hirose.com/en/product/p/CL0541-0924-6-35
3 Header DF1EC-3P-2.5DSA(35) CL0541-0868-7-35 https://www.hirose.com/en/product/p/CL0541-0868-7-35
3 Header DF1EC-3P-2.5DSA(36) CL0541-0868-7-36 https://www.hirose.com/en/product/p/CL0541-0868-7-36
3 Plug DF1E-3EP-2.5C CL0541-0944-3-00 https://www.hirose.com/en/product/p/CL0541-0944-3-00
3 Plug DF1E-3RS/P-2.5 CL0541-0972-9-00 https://www.hirose.com/en/product/p/CL0541-0972-9-00
3 Socket DF1E-3S-2.5C CL0541-0812-2-00 https://www.hirose.com/en/product/p/CL0541-0812-2-00
3 Plug DF1EA-3EP-2.5C CL0541-0958-8-00 https://www.hirose.com/en/product/p/CL0541-0958-8-00
4 Header DF1E-4P-2.5DS(35) CL0541-0987-6-35 https://www.hirose.com/en/product/p/CL0541-0987-6-35
4 Header DF1E-4P-2.5DS(36) CL0541-0987-6-36 https://www.hirose.com/en/product/p/CL0541-0987-6-36
4 Header DF1EC-4P-2.5DSA(36) CL0541-0869-0-36 https://www.hirose.com/en/product/p/CL0541-0869-0-36
4 Header DF1EG-4P-2.5DSA(35) CL0541-0925-9-35 https://www.hirose.com/en/product/p/CL0541-0925-9-35
4 Plug DF1E-4EP-2.5C CL0541-0945-6-00 https://www.hirose.com/en/product/p/CL0541-0945-6-00
4 Plug DF1E-4RS/P-2.5 CL0541-0973-1-00 https://www.hirose.com/en/product/p/CL0541-0973-1-00
4 Socket DF1E-4S-2.5C CL0541-0813-5-00 https://www.hirose.com/en/product/p/CL0541-0813-5-00
4 Plug DF1EA-4EP-2.5C CL0541-0959-0-00 https://www.hirose.com/en/product/p/CL0541-0959-0-00
5 Header DF1E-5P-2.5DS(35) CL0541-0988-9-35 https://www.hirose.com/en/product/p/CL0541-0988-9-35
5 Header DF1EC-5P-2.5DSA(35) CL0541-0870-9-35 https://www.hirose.com/en/product/p/CL0541-0870-9-35
5 Header DF1EC-5P-2.5DSA(36) CL0541-0870-9-36 https://www.hirose.com/en/product/p/CL0541-0870-9-36
5 Header DF1EG-5P-2.5DSA(35) CL0541-0926-1-35 https://www.hirose.com/en/product/p/CL0541-0926-1-35
5 Plug DF1E-5EP-2.5C CL0541-0946-9-00 https://www.hirose.com/en/product/p/CL0541-0946-9-00
5 Plug DF1E-5RS/P-2.5 CL0541-0974-4-00 https://www.hirose.com/en/product/p/CL0541-0974-4-00
5 Socket DF1E-5S-2.5C CL0541-0814-8-00 https://www.hirose.com/en/product/p/CL0541-0814-8-00
5 Plug DF1EA-5EP-2.5C CL0541-0960-0-00 https://www.hirose.com/en/product/p/CL0541-0960-0-00
6 Header DF1EC-6P-2.5DSA(35) CL0541-0871-1-35 https://www.hirose.com/en/product/p/CL0541-0871-1-35
6 Header DF1E-6P-2.5DS(35) CL0541-0989-1-35 https://www.hirose.com/en/product/p/CL0541-0989-1-35
6 Header DF1EC-6P-2.5DSA(36) CL0541-0871-1-36 https://www.hirose.com/en/product/p/CL0541-0871-1-36
6 Header DF1EG-6P-2.5DSA(35) CL0541-0927-4-35 https://www.hirose.com/en/product/p/CL0541-0927-4-35
6 Plug DF1E-6EP-2.5C CL0541-0947-1-00 https://www.hirose.com/en/product/p/CL0541-0947-1-00
6 Plug DF1E-6RS/P-2.5 CL0541-0975-7-00 https://www.hirose.com/en/product/p/CL0541-0975-7-00
6 Socket DF1E-6S-2.5C CL0541-0815-0-00 https://www.hirose.com/en/product/p/CL0541-0815-0-00
6 Plug DF1EA-6EP-2.5C CL0541-0961-2-00 https://www.hirose.com/en/product/p/CL0541-0961-2-00
7 Header DF1E-7P-2.5DS(36) CL0541-0990-0-36 https://www.hirose.com/en/product/p/CL0541-0990-0-36
7 Header DF1EC-7P-2.5DSA(35) CL0541-0872-4-35 https://www.hirose.com/en/product/p/CL0541-0872-4-35
7 Header DF1EC-7P-2.5DSA(36) CL0541-0872-4-36 https://www.hirose.com/en/product/p/CL0541-0872-4-36
7 Header DF1EG-7P-2.5DSA(35) CL0541-0928-7-35 https://www.hirose.com/en/product/p/CL0541-0928-7-35
7 Socket DF1E-7S-2.5C CL0541-0816-3-00 https://www.hirose.com/en/product/p/CL0541-0816-3-00
8 Header DF1E-8P-2.5DS(35) CL0541-0991-3-35 https://www.hirose.com/en/product/p/CL0541-0991-3-35
8 Header DF1E-8P-2.5DS(36) CL0541-0991-3-36 https://www.hirose.com/en/product/p/CL0541-0991-3-36
8 Header DF1EC-8P-2.5DSA(35) CL0541-0873-7-35 https://www.hirose.com/en/product/p/CL0541-0873-7-35
8 Header DF1EC-8P-2.5DSA(36) CL0541-0873-7-36 https://www.hirose.com/en/product/p/CL0541-0873-7-36
8 Header DF1EG-8P-2.5DSA(35) CL0541-0929-0-35 https://www.hirose.com/en/product/p/CL0541-0929-0-35
8 Plug DF1E-8EP-2.5C CL0541-0949-7-00 https://www.hirose.com/en/product/p/CL0541-0949-7-00
8 Plug DF1E-8RS/P-2.5 CL0541-0977-2-00 https://www.hirose.com/en/product/p/CL0541-0977-2-00
8 Socket DF1E-8S-2.5C CL0541-0817-6-00 https://www.hirose.com/en/product/p/CL0541-0817-6-00
9 Header DF1E-9P-2.5DS(35) CL0541-0992-6-35 https://www.hirose.com/en/product/p/CL0541-0992-6-35
9 Header DF1EC-9P-2.5DSA(35) CL0541-0874-0-35 https://www.hirose.com/en/product/p/CL0541-0874-0-35
9 Header DF1EC-9P-2.5DSA(36) CL0541-0874-0-36 https://www.hirose.com/en/product/p/CL0541-0874-0-36
9 Header DF1EG-9P-2.5DSA(35) CL0541-0930-9-35 https://www.hirose.com/en/product/p/CL0541-0930-9-35
9 Socket DF1E-9S-2.5C CL0541-0818-9-00 https://www.hirose.com/en/product/p/CL0541-0818-9-00
9 Plug DF1EA-9EP-2.5C CL0541-0964-0-00 https://www.hirose.com/en/product/p/CL0541-0964-0-00
10 Header DF1E-10P-2.5DS(35) CL0541-0993-9-35 https://www.hirose.com/en/product/p/CL0541-0993-9-35
10 Header DF1E-10P-2.5DS(36) CL0541-0993-9-36 https://www.hirose.com/en/product/p/CL0541-0993-9-36
10 Header DF1EG-10P-2.5DSA(35) CL0541-0931-1-35 https://www.hirose.com/en/product/p/CL0541-0931-1-35
10 Header DF1EC-10P-2.5DSA(35) CL0541-0875-2-35 https://www.hirose.com/en/product/p/CL0541-0875-2-35
10 Header DF1EC-10P-2.5DSA(36) CL0541-0875-2-36 https://www.hirose.com/en/product/p/CL0541-0875-2-36
10 Plug DF1E-10EP-2.5C CL0541-0951-9-00 https://www.hirose.com/en/product/p/CL0541-0951-9-00
10 Plug DF1E-10RS/P-2.5 CL0541-0979-8-00 https://www.hirose.com/en/product/p/CL0541-0979-8-00
10 Socket DF1E-10S-2.5C CL0541-0819-1-00 https://www.hirose.com/en/product/p/CL0541-0819-1-00
10 Plug DF1EA-10EP-2.5C CL0541-0965-3-00 https://www.hirose.com/en/product/p/CL0541-0965-3-00
11 Header DF1E-11P-2.5DS(36) CL0541-0994-1-36 https://www.hirose.com/en/product/p/CL0541-0994-1-36
11 Header DF1EC-11P-2.5DSA(35) CL0541-0876-5-35 https://www.hirose.com/en/product/p/CL0541-0876-5-35
11 Header DF1EG-11P-2.5DSA(35) CL0541-0932-4-35 https://www.hirose.com/en/product/p/CL0541-0932-4-35
11 Socket DF1E-11S-2.5C CL0541-0820-0-00 https://www.hirose.com/en/product/p/CL0541-0820-0-00
12 Header DF1E-12P-2.5DS(35) CL0541-0995-4-35 https://www.hirose.com/en/product/p/CL0541-0995-4-35
12 Header DF1EC-12P-2.5DSA(35) CL0541-0877-8-35 https://www.hirose.com/en/product/p/CL0541-0877-8-35
12 Header DF1EC-12P-2.5DSA(36) CL0541-0877-8-36 https://www.hirose.com/en/product/p/CL0541-0877-8-36
12 Socket DF1E-12S-2.5C CL0541-0821-3-00 https://www.hirose.com/en/product/p/CL0541-0821-3-00
14 Header DF1E-14P-2.5DS(35) CL0541-0997-0-35 https://www.hirose.com/en/product/p/CL0541-0997-0-35
14 Header DF1EC-14P-2.5DSA(35) CL0541-0879-3-35 https://www.hirose.com/en/product/p/CL0541-0879-3-35
14 Socket DF1E-14S-2.5C CL0541-0823-9-00 https://www.hirose.com/en/product/p/CL0541-0823-9-00
15 Header DF1E-15P-2.5DS(35) CL0541-0998-2-35 https://www.hirose.com/en/product/p/CL0541-0998-2-35
15 Header DF1EC-15P-2.5DSA(35) CL0541-0880-2-35 https://www.hirose.com/en/product/p/CL0541-0880-2-35
15 Socket DF1E-15S-2.5C CL0541-0824-1-00 https://www.hirose.com/en/product/p/CL0541-0824-1-00
  Contact DF1E-2022PCA CL0541-1004-3-00 https://www.hirose.com/en/product/p/CL0541-1004-3-00
  Contact DF1E-2022PCF CL0541-0937-8-00 https://www.hirose.com/en/product/p/CL0541-0937-8-00
  Contact DF1E-2022PCFA CL0541-1003-0-00 https://www.hirose.com/en/product/p/CL0541-1003-0-00
  Contact DF1E-2022SC CL0541-1000-2-00 https://www.hirose.com/en/product/p/CL0541-1000-2-00
  Contact DF1E-2022SCA CL0541-1002-8-00 https://www.hirose.com/en/product/p/CL0541-1002-8-00
  Contact DF1E-2022SCF CL0541-0999-5-00 https://www.hirose.com/en/product/p/CL0541-0999-5-00
  Contact DF1E-2022SCFA CL0541-1001-5-00 https://www.hirose.com/en/product/p/CL0541-1001-5-00
  Contact DF1E-2428PC CL0541-0940-2-00 https://www.hirose.com/en/product/p/CL0541-0940-2-00
  Contact DF1E-2428PCF CL0541-0939-3-00 https://www.hirose.com/en/product/p/CL0541-0939-3-00
  Contact DF1E-2428PCFA CL0541-1005-6-00 https://www.hirose.com/en/product/p/CL0541-1005-6-00





Support Custom Wire Harness Assembly



  • Connectors: 2P to 15P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 200 pieces per order.

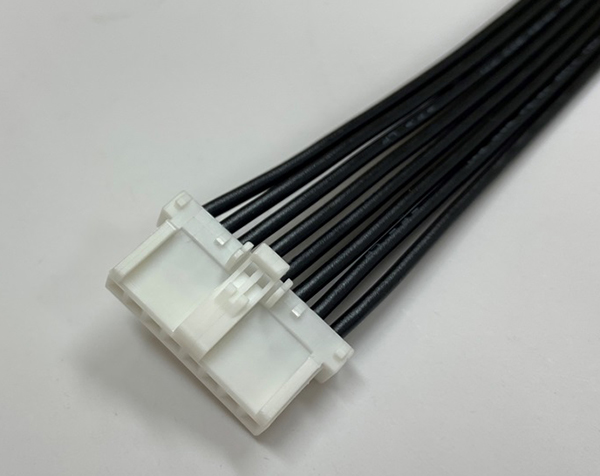

DF1E Connector 8P Wire





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.

Product Tags
custom wire harness (315)car switch (31)Toyota (12)OBD (31)D-sub Cable (33)RJ45 (12)BNC (12)USB cable (28)RCA cable (9)Automotive Wire Harness (145)DIN Cable (6)SAE bullet connector (12)Deutsch Connector Wiring (51)Waterproof Connector (31)GX12/ 16/ 19/ 20/ 25/ 30 connector (6)XT90/ 60/ 30 connector (6)Barrel Jack (20)LED light wire harness (37)Molex Connector Wiring (45)JST Connector Wiring (48)Battery/ Power/ Booster/ Jumper cable (49)Fuse Holder/ Fuse Box (24)Communication/ Telecom cable (29)Computer wire and cable (45)Overmold with cable (30)Motorcycle/ Motorbike/ Electromobile wire harness (12)FFC/ IDC cable (7)Audio/ Video cable (46)Trailer wire harness (11)Terminal Block wires (9)Medical Cable (4)Spring/ Spiral Cable (7)Banana Plug Cable (3)LS Engine Wire Harness (15)OFF-Road (27)Sensor cable (6)
