Hirose DF22 Connector

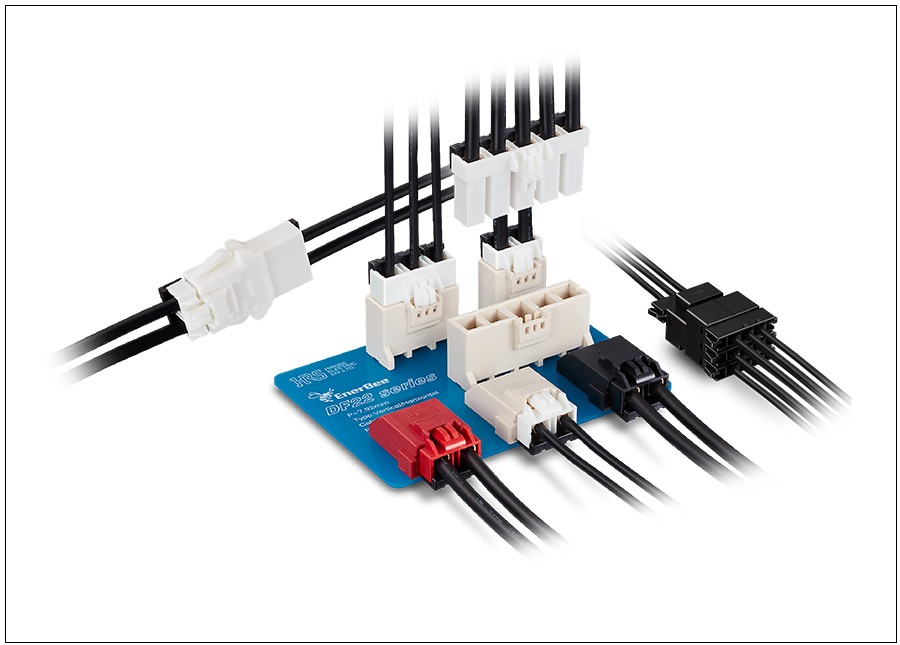

The Hirose DF22 series is a 7.92mm contact pitch, high-current connector family designed for internal power supplies and is certified to UL, C-UL/CSA, and TÜV standards. The product list confirms a wide variety of products, including headers, plugs, sockets, adapters, and contacts, with configurations ranging from 1 to 5 positions. Key specifications from the documents include a rated current of up to 30.0A, a voltage rating of 1000V AC/DC, an operating temperature range of -55°C to 85°C, and Through-Hole Technology (THT) mounting. The series supports discrete wire crimp termination for 10-16 AWG wire. It incorporates critical reliability features such as a positive locking function, molded-in contact retention tabs, and designs that prevent incorrect connections, short circuits, and incorrect board placement. Additional attributes from the provided details include support for resin sealing, increased crimp contact retention force, availability of in-line and branch in-line types, and compliance with the Glow Wire standard (IEC 60695-2-11), making it a robust and safe solution for high-power automotive and industrial applications.

Features

• 7.92mm Contact Pitch High Current Connectors
• Rated up to 30A
• Positive Locking Function
• Prevention of Incorrect Connections
• Molded-in contact retention tabs
• Prevention of incorrect board placement
• Supports resin sealing
• Prevention of Short Circuits between Adjacent Contacts
• Increased Retention Force of Crimped Contacts
• Full Line of Crimp Socket Contacts

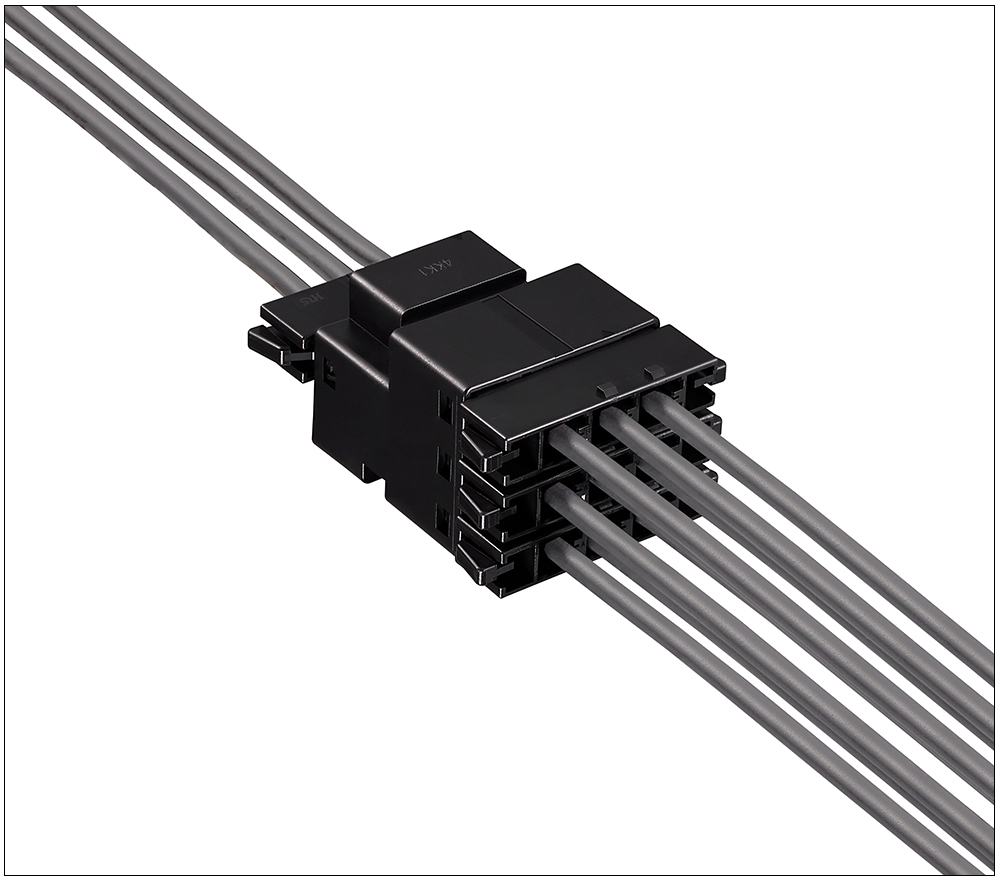

• In-line Connections
• Branch In-line Type
• UL, C-UL, and TÜV Certified.
• Glow Wire compliance (Compliant with IEC 60695-2-11)

Specifications

Connector Lists

Support Custom Wire Harness Assembly

• Connectors: 1P to 5P.
• Wire Gauge:
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
