Hirose DF3 Connector, China Wire Harness Manufacturer

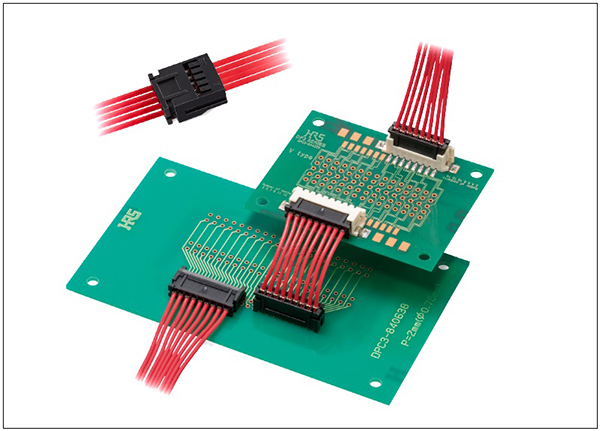

Hirose DF3 Connector



The Hirose DF3 series, part of the SignalBee™ product line, is a versatile 2.0mm pitch connector family designed for discrete wire connection and is certified to UL and C-UL/CSA standards. The product list confirms a wide range of products corresponding to diverse board designs, including headers, plugs, sockets, and crimp contacts, with positions ranging from 2 to 15 and sub-series such as DF3, DF3A, DF3E, and DF3EA. Key specifications from the documentation include a rated current of 3.0A, a voltage rating of 250V AC/DC, an operating temperature range of -55°C to 85°C (or 105°C), and both Surface-Mount (SMT) and Through-Hole (THT) mounting options. Available with gold or tin-plated contacts in various housing colors and straight or right-angle orientations, it supports crimp termination for 22-28 AWG wire. This combination of certification, design flexibility, and reliable performance makes it a suitable solution for a broad range of interconnection applications.



Hirose DF3 Connector





Features



  • 2mm Pitch Connector for Discrete Wire Connection
  • Correspond to Board Design in Wide Variation
  • UL, CSA Certified





Specifications



Connector Type Header, Plug, Socket, Contact Industry Standard JIS, IEC
Safety Standards UL, C-UL/CSA Number of Positions 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
Rated Current 3.0A Mounting Pitch 2.0mm
Rated Voltage(AC) AC 250.0V Mounting Side Standard on-Board
Rated Voltage(DC) DC 250.0V Staggered Lead No
Number of Rows(Interface) 1 Connector Orientation Straight, Right angle
Contact Pitch 2.0mm Contact Plating Gold, Tin
Mounting Style SMT, THT Housing Color Red, Black, Beige, White, Blue, Brown
Mating/Unmating Cycles 30, 50 Recommended Wire Type Discrete wire
Plating Thickness 0.2, 0.76, 1.0, 2.0μm Recommended Max.Wire Size (AWG) 22, 24, 28
Wire Termination Method Crimping Recommended Min.Wire Size (AWG) 22, 24, 28
Panel Mounting Style Snap-in Operating Temperature Max 85, 105℃
Connector Type Details In-line plug Operating Temperature Min -55, -30℃





Connector Lists



No. of Position Type P/N Hirose P/N Links
2 Header DF3E-2P-2H(24) CL0543-0343-0-24 https://www.hirose.com/en/product/p/CL0543-0343-0-24
2 Header DF3E-2P-2V(24) CL0543-0357-0-24 https://www.hirose.com/en/product/p/CL0543-0357-0-24
2 Header DF3A-2P-2DS(20) CL0543-0179-4-20 https://www.hirose.com/en/product/p/CL0543-0179-4-20
2 Header DF3EA-2P-2H(21) CL0543-0329-0-21 https://www.hirose.com/en/product/p/CL0543-0329-0-21
2 Header DF3EA-2P-2V(21) CL0543-0315-0-21 https://www.hirose.com/en/product/p/CL0543-0315-0-21
2 Header DF3EA-2P-2H(51) CL0543-0329-0-51 https://www.hirose.com/en/product/p/CL0543-0329-0-51
2 Header DF3EA-2P-2V(51) CL0543-0315-0-51 https://www.hirose.com/en/product/p/CL0543-0315-0-51
2 Header DF3E-2P-2H(21) CL0543-0343-0-21 https://www.hirose.com/en/product/p/CL0543-0343-0-21
2 Header DF3E-2P-2H(51) CL0543-0343-0-51 https://www.hirose.com/en/product/p/CL0543-0343-0-51
2 Header DF3E-2P-2V(21) CL0543-0357-0-21 https://www.hirose.com/en/product/p/CL0543-0357-0-21
2 Header DF3E-2P-2V(51) CL0543-0357-0-51 https://www.hirose.com/en/product/p/CL0543-0357-0-51
2 Header DF3-2P-2DSA(01) CL0543-0017-2-01 https://www.hirose.com/en/product/p/CL0543-0017-2-01
2 Socket DF3-2S-2C CL0543-0003-8-00 https://www.hirose.com/en/product/p/CL0543-0003-8-00
2 Socket DF3-2S-2C(10) CL0543-0003-8-10 https://www.hirose.com/en/product/p/CL0543-0003-8-10
2 Header DF3-2P-2DS(01) CL0543-0031-3-01 https://www.hirose.com/en/product/p/CL0543-0031-3-01
2 Header DF3-2P-2DS(22) CL0543-0031-3-22 https://www.hirose.com/en/product/p/CL0543-0031-3-22
2 Header DF3-2S-2DSA(25) CL0543-0048-6-25 https://www.hirose.com/en/product/p/CL0543-0048-6-25
2 Plug DF3-2EP-2C CL0543-0064-2-00 https://www.hirose.com/en/product/p/CL0543-0064-2-00
2 Header DF3A-2P-2DSA CL0543-0165-0-00 https://www.hirose.com/en/product/p/CL0543-0165-0-00
2 Header DF3A-2P-2DSA(16) CL0543-0165-0-16 https://www.hirose.com/en/product/p/CL0543-0165-0-16
2 Header DF3A-2P-2DSA(18) CL0543-0165-0-18 https://www.hirose.com/en/product/p/CL0543-0165-0-18
2 Header DF3A-2P-2DSA(19) CL0543-0165-0-19 https://www.hirose.com/en/product/p/CL0543-0165-0-19
2 Plug DF3AA-2EP-2C CL0543-0151-5-00 https://www.hirose.com/en/product/p/CL0543-0151-5-00
2 Header DF3A-2P-2DS CL0543-0179-4-00 https://www.hirose.com/en/product/p/CL0543-0179-4-00
3 Header DF3E-3P-2H(54) CL0543-0344-0-54 https://www.hirose.com/en/product/p/CL0543-0344-0-54
3 Header DF3E-3P-2V(51) CL0543-0358-0-51 https://www.hirose.com/en/product/p/CL0543-0358-0-51
3 Header DF3EA-3P-2H(21) CL0543-0330-0-21 https://www.hirose.com/en/product/p/CL0543-0330-0-21
3 Header DF3EA-3P-2V(21) CL0543-0316-0-21 https://www.hirose.com/en/product/p/CL0543-0316-0-21
3 Header DF3EA-3P-2H(51) CL0543-0330-0-51 https://www.hirose.com/en/product/p/CL0543-0330-0-51
3 Header DF3EA-3P-2V(51) CL0543-0316-0-51 https://www.hirose.com/en/product/p/CL0543-0316-0-51
3 Header DF3E-3P-2H(21) CL0543-0344-0-21 https://www.hirose.com/en/product/p/CL0543-0344-0-21
3 Header DF3E-3P-2V(21) CL0543-0358-0-21 https://www.hirose.com/en/product/p/CL0543-0358-0-21
3 Header DF3-3P-2DSA(01) CL0543-0018-5-01 https://www.hirose.com/en/product/p/CL0543-0018-5-01
3 Socket DF3-3S-2C CL0543-0004-0-00 https://www.hirose.com/en/product/p/CL0543-0004-0-00
3 Socket DF3-3S-2C(10) CL0543-0004-0-10 https://www.hirose.com/en/product/p/CL0543-0004-0-10
3 Header DF3-3P-2DS(01) CL0543-0032-6-01 https://www.hirose.com/en/product/p/CL0543-0032-6-01
3 Header DF3-3S-2DSA(25) CL0543-0049-9-25 https://www.hirose.com/en/product/p/CL0543-0049-9-25
3 Plug DF3-3EP-2C CL0543-0065-5-00 https://www.hirose.com/en/product/p/CL0543-0065-5-00
3 Header DF3A-3P-2DSA CL0543-0166-2-00 https://www.hirose.com/en/product/p/CL0543-0166-2-00
3 Header DF3A-3P-2DSA(10) CL0543-0166-2-10 https://www.hirose.com/en/product/p/CL0543-0166-2-10
3 Plug DF3AA-3EP-2C CL0543-0152-8-00 https://www.hirose.com/en/product/p/CL0543-0152-8-00
3 Header DF3A-3P-2DS CL0543-0180-3-00 https://www.hirose.com/en/product/p/CL0543-0180-3-00
4 Header DF3EA-4P-2H(21) CL0543-0331-0-21 https://www.hirose.com/en/product/p/CL0543-0331-0-21
4 Header DF3EA-4P-2V(21) CL0543-0317-0-21 https://www.hirose.com/en/product/p/CL0543-0317-0-21
4 Header DF3EA-4P-2H(51) CL0543-0331-0-51 https://www.hirose.com/en/product/p/CL0543-0331-0-51
4 Header DF3EA-4P-2V(51) CL0543-0317-0-51 https://www.hirose.com/en/product/p/CL0543-0317-0-51
4 Header DF3E-4P-2H(21) CL0543-0345-0-21 https://www.hirose.com/en/product/p/CL0543-0345-0-21
4 Header DF3E-4P-2H(51) CL0543-0345-0-51 https://www.hirose.com/en/product/p/CL0543-0345-0-51
4 Header DF3E-4P-2V(21) CL0543-0359-0-21 https://www.hirose.com/en/product/p/CL0543-0359-0-21
4 Header DF3E-4P-2V(51) CL0543-0359-0-51 https://www.hirose.com/en/product/p/CL0543-0359-0-51
4 Header DF3-4P-2DSA(01) CL0543-0019-8-01 https://www.hirose.com/en/product/p/CL0543-0019-8-01

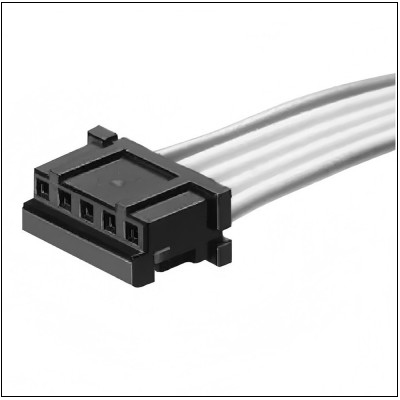

4 Socket DF3-4S-2C CL0543-0005-3-00 https://www.hirose.com/en/product/p/CL0543-0005-3-00
4 Socket DF3-4S-2C(10) CL0543-0005-3-10 https://www.hirose.com/en/product/p/CL0543-0005-3-10
4 Header DF3-4P-2DS(01) CL0543-0033-9-01 https://www.hirose.com/en/product/p/CL0543-0033-9-01
4 Header DF3-4S-2DSA(25) CL0543-0050-8-25 https://www.hirose.com/en/product/p/CL0543-0050-8-25
4 Header DF3-4S-2DSA(55) CL0543-0050-8-55 https://www.hirose.com/en/product/p/CL0543-0050-8-55
4 Plug DF3-4EP-2C CL0543-0066-8-00 https://www.hirose.com/en/product/p/CL0543-0066-8-00
4 Header DF3A-4P-2DSA CL0543-0167-5-00 https://www.hirose.com/en/product/p/CL0543-0167-5-00
4 Header DF3A-4P-2DSA(10) CL0543-0167-5-10 https://www.hirose.com/en/product/p/CL0543-0167-5-10
4 Plug DF3AA-4EP-2C CL0543-0153-0-00 https://www.hirose.com/en/product/p/CL0543-0153-0-00
4 Header DF3A-4P-2DS CL0543-0181-6-00 https://www.hirose.com/en/product/p/CL0543-0181-6-00
5 Header DF3E-5P-2V(24) CL0543-0360-0-24 https://www.hirose.com/en/product/p/CL0543-0360-0-24
5 Header DF3EA-5P-2H(21) CL0543-0332-0-21 https://www.hirose.com/en/product/p/CL0543-0332-0-21
5 Header DF3EA-5P-2V(21) CL0543-0318-0-21 https://www.hirose.com/en/product/p/CL0543-0318-0-21
5 Header DF3EA-5P-2H(51) CL0543-0332-0-51 https://www.hirose.com/en/product/p/CL0543-0332-0-51
5 Header DF3EA-5P-2V(51) CL0543-0318-0-51 https://www.hirose.com/en/product/p/CL0543-0318-0-51
5 Header DF3E-5P-2V(21) CL0543-0360-0-21 https://www.hirose.com/en/product/p/CL0543-0360-0-21
5 Socket DF3-5S-2C CL0543-0006-6-00 https://www.hirose.com/en/product/p/CL0543-0006-6-00
5 Header DF3-5P-2DS(01) CL0543-0034-1-01 https://www.hirose.com/en/product/p/CL0543-0034-1-01
5 Header DF3-5P-2DSA(01) CL0543-0020-7-01 https://www.hirose.com/en/product/p/CL0543-0020-7-01
5 Plug DF3-5EP-2C CL0543-0067-0-00 https://www.hirose.com/en/product/p/CL0543-0067-0-00
5 Header DF3A-5P-2DSA CL0543-0168-8-00 https://www.hirose.com/en/product/p/CL0543-0168-8-00
5 Plug DF3AA-5EP-2C CL0543-0154-3-00 https://www.hirose.com/en/product/p/CL0543-0154-3-00
5 Header DF3A-5P-2DS CL0543-0182-9-00 https://www.hirose.com/en/product/p/CL0543-0182-9-00
6 Header DF3EA-6P-2H(21) CL0543-0333-0-21 https://www.hirose.com/en/product/p/CL0543-0333-0-21
6 Header DF3EA-6P-2V(21) CL0543-0319-0-21 https://www.hirose.com/en/product/p/CL0543-0319-0-21
6 Header DF3EA-6P-2H(51) CL0543-0333-0-51 https://www.hirose.com/en/product/p/CL0543-0333-0-51
6 Header DF3EA-6P-2V(51) CL0543-0319-0-51 https://www.hirose.com/en/product/p/CL0543-0319-0-51
6 Header DF3E-6P-2H(21) CL0543-0347-0-21 https://www.hirose.com/en/product/p/CL0543-0347-0-21
6 Header DF3E-6P-2H(51) CL0543-0347-0-51 https://www.hirose.com/en/product/p/CL0543-0347-0-51
6 Header DF3E-6P-2V(21) CL0543-0361-0-21 https://www.hirose.com/en/product/p/CL0543-0361-0-21
6 Socket DF3-6S-2C CL0543-0007-9-00 https://www.hirose.com/en/product/p/CL0543-0007-9-00
6 Header DF3-6P-2DS(01) CL0543-0035-4-01 https://www.hirose.com/en/product/p/CL0543-0035-4-01
6 Header DF3-6P-2DSA(01) CL0543-0021-0-01 https://www.hirose.com/en/product/p/CL0543-0021-0-01
6 Header DF3-6S-2DSA(25) CL0543-0052-3-25 https://www.hirose.com/en/product/p/CL0543-0052-3-25
6 Header DF3-6S-2DSA(55) CL0543-0052-3-55 https://www.hirose.com/en/product/p/CL0543-0052-3-55
6 Plug DF3-6EP-2C CL0543-0068-3-00 https://www.hirose.com/en/product/p/CL0543-0068-3-00
6 Plug DF3AA-6EP-2C CL0543-0155-6-00 https://www.hirose.com/en/product/p/CL0543-0155-6-00
6 Header DF3A-6P-2DS CL0543-0183-1-00 https://www.hirose.com/en/product/p/CL0543-0183-1-00
6 Header DF3A-6P-2DSA CL0543-0169-0-00 https://www.hirose.com/en/product/p/CL0543-0169-0-00
7 Header DF3EA-7P-2H(21) CL0543-0334-0-21 https://www.hirose.com/en/product/p/CL0543-0334-0-21
7 Header DF3EA-7P-2V(21) CL0543-0320-0-21 https://www.hirose.com/en/product/p/CL0543-0320-0-21
7 Header DF3EA-7P-2H(51) CL0543-0334-0-51 https://www.hirose.com/en/product/p/CL0543-0334-0-51
7 Header DF3EA-7P-2V(51) CL0543-0320-0-51 https://www.hirose.com/en/product/p/CL0543-0320-0-51
7 Header DF3E-7P-2V(51) CL0543-0362-0-51 https://www.hirose.com/en/product/p/CL0543-0362-0-51
7 Socket DF3-7S-2C CL0543-0008-1-00 https://www.hirose.com/en/product/p/CL0543-0008-1-00
7 Header DF3-7P-2DS(01) CL0543-0036-7-01 https://www.hirose.com/en/product/p/CL0543-0036-7-01
7 Header DF3-7P-2DSA(01) CL0543-0022-2-01 https://www.hirose.com/en/product/p/CL0543-0022-2-01
7 Plug DF3-7EP-2C CL0543-0069-6-00 https://www.hirose.com/en/product/p/CL0543-0069-6-00
7 Plug DF3AA-7EP-2C CL0543-0156-9-00 https://www.hirose.com/en/product/p/CL0543-0156-9-00
7 Header DF3A-7P-2DS CL0543-0184-4-00 https://www.hirose.com/en/product/p/CL0543-0184-4-00
7 Header DF3A-7P-2DSA CL0543-0170-0-00 https://www.hirose.com/en/product/p/CL0543-0170-0-00
8 Header DF3EA-8P-2H(21) CL0543-0335-0-21 https://www.hirose.com/en/product/p/CL0543-0335-0-21
8 Header DF3EA-8P-2V(21) CL0543-0321-0-21 https://www.hirose.com/en/product/p/CL0543-0321-0-21
8 Header DF3EA-8P-2H(51) CL0543-0335-0-51 https://www.hirose.com/en/product/p/CL0543-0335-0-51
8 Header DF3EA-8P-2V(51) CL0543-0321-0-51 https://www.hirose.com/en/product/p/CL0543-0321-0-51
8 Header DF3E-8P-2V(21) CL0543-0363-0-21 https://www.hirose.com/en/product/p/CL0543-0363-0-21
8 Header DF3E-8P-2V(51) CL0543-0363-0-51 https://www.hirose.com/en/product/p/CL0543-0363-0-51
8 Socket DF3-8S-2C CL0543-0009-4-00 https://www.hirose.com/en/product/p/CL0543-0009-4-00
8 Header DF3-8P-2DS(01) CL0543-0037-0-01 https://www.hirose.com/en/product/p/CL0543-0037-0-01
8 Header DF3-8P-2DSA(01) CL0543-0023-5-01 https://www.hirose.com/en/product/p/CL0543-0023-5-01
8 Header DF3-8S-2DSA(25) CL0543-0054-9-25 https://www.hirose.com/en/product/p/CL0543-0054-9-25
8 Header DF3-8S-2DSA(55) CL0543-0054-9-55 https://www.hirose.com/en/product/p/CL0543-0054-9-55
8 Plug DF3-8EP-2C CL0543-0070-5-00 https://www.hirose.com/en/product/p/CL0543-0070-5-00
8 Plug DF3AA-8EP-2C CL0543-0157-1-00 https://www.hirose.com/en/product/p/CL0543-0157-1-00
8 Header DF3A-8P-2DS CL0543-0185-7-00 https://www.hirose.com/en/product/p/CL0543-0185-7-00
8 Header DF3A-8P-2DSA CL0543-0171-2-00 https://www.hirose.com/en/product/p/CL0543-0171-2-00
9 Header DF3EA-9P-2H(21) CL0543-0336-0-21 https://www.hirose.com/en/product/p/CL0543-0336-0-21
9 Header DF3EA-9P-2V(21) CL0543-0322-0-21 https://www.hirose.com/en/product/p/CL0543-0322-0-21
9 Header DF3EA-9P-2H(51) CL0543-0336-0-51 https://www.hirose.com/en/product/p/CL0543-0336-0-51
9 Header DF3EA-9P-2V(51) CL0543-0322-0-51 https://www.hirose.com/en/product/p/CL0543-0322-0-51
9 Socket DF3-9S-2C CL0543-0010-3-00 https://www.hirose.com/en/product/p/CL0543-0010-3-00
9 Header DF3-9P-2DS(01) CL0543-0038-2-01 https://www.hirose.com/en/product/p/CL0543-0038-2-01
9 Header DF3-9P-2DSA(01) CL0543-0024-8-01 https://www.hirose.com/en/product/p/CL0543-0024-8-01
9 Header DF3-9S-2DSA(55) CL0543-0055-1-55 https://www.hirose.com/en/product/p/CL0543-0055-1-55
9 Plug DF3-9EP-2C CL0543-0071-8-00 https://www.hirose.com/en/product/p/CL0543-0071-8-00
9 Plug DF3AA-9EP-2C CL0543-0158-4-00 https://www.hirose.com/en/product/p/CL0543-0158-4-00
9 Header DF3A-9P-2DS CL0543-0186-0-00 https://www.hirose.com/en/product/p/CL0543-0186-0-00
9 Header DF3A-9P-2DSA CL0543-0172-5-00 https://www.hirose.com/en/product/p/CL0543-0172-5-00
10 Header DF3EA-10P-2H(21) CL0543-0337-0-21 https://www.hirose.com/en/product/p/CL0543-0337-0-21
10 Header DF3EA-10P-2V(21) CL0543-0323-0-21 https://www.hirose.com/en/product/p/CL0543-0323-0-21
10 Header DF3EA-10P-2H(51) CL0543-0337-0-51 https://www.hirose.com/en/product/p/CL0543-0337-0-51
10 Header DF3EA-10P-2V(51) CL0543-0323-0-51 https://www.hirose.com/en/product/p/CL0543-0323-0-51
10 Header DF3E-10P-2H(21) CL0543-0351-0-21 https://www.hirose.com/en/product/p/CL0543-0351-0-21

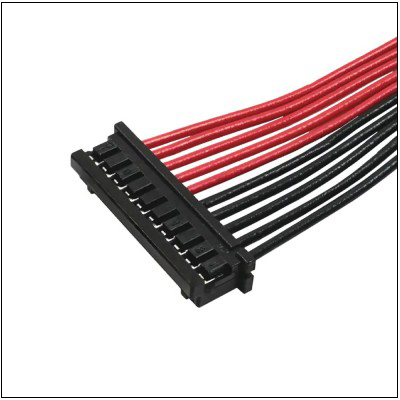

10 Socket DF3-10S-2C CL0543-0011-6-00 https://www.hirose.com/en/product/p/CL0543-0011-6-00
10 Header DF3-10P-2DS(01) CL0543-0039-5-01 https://www.hirose.com/en/product/p/CL0543-0039-5-01
10 Header DF3-10P-2DSA(01) CL0543-0025-0-01 https://www.hirose.com/en/product/p/CL0543-0025-0-01
10 Header DF3-10S-2DSA(25) CL0543-0056-4-25 https://www.hirose.com/en/product/p/CL0543-0056-4-25
10 Plug DF3-10EP-2C CL0543-0072-0-00 https://www.hirose.com/en/product/p/CL0543-0072-0-00
10 Header DF3-10S-2DSA(55) CL0543-0056-4-55 https://www.hirose.com/en/product/p/CL0543-0056-4-55
10 Plug DF3AA-10EP-2C CL0543-0159-7-00 https://www.hirose.com/en/product/p/CL0543-0159-7-00
10 Header DF3A-10P-2DS CL0543-0187-2-00 https://www.hirose.com/en/product/p/CL0543-0187-2-00
10 Header DF3A-10P-2DSA CL0543-0173-8-00 https://www.hirose.com/en/product/p/CL0543-0173-8-00
11 Header DF3EA-11P-2H(21) CL0543-0338-0-21 https://www.hirose.com/en/product/p/CL0543-0338-0-21
11 Header DF3EA-11P-2V(21) CL0543-0324-0-21 https://www.hirose.com/en/product/p/CL0543-0324-0-21
11 Header DF3EA-11P-2H(51) CL0543-0338-0-51 https://www.hirose.com/en/product/p/CL0543-0338-0-51
11 Header DF3EA-11P-2V(51) CL0543-0324-0-51 https://www.hirose.com/en/product/p/CL0543-0324-0-51
11 Socket DF3-11S-2C CL0543-0012-9-00 https://www.hirose.com/en/product/p/CL0543-0012-9-00
11 Header DF3-11P-2DS(01) CL0543-0040-4-01 https://www.hirose.com/en/product/p/CL0543-0040-4-01
11 Header DF3-11P-2DSA(01) CL0543-0026-3-01 https://www.hirose.com/en/product/p/CL0543-0026-3-01
11 Plug DF3-11EP-2C CL0543-0073-3-00 https://www.hirose.com/en/product/p/CL0543-0073-3-00
11 Plug DF3AA-11EP-2C CL0543-0160-6-00 https://www.hirose.com/en/product/p/CL0543-0160-6-00
11 Header DF3A-11P-2DS CL0543-0188-5-00 https://www.hirose.com/en/product/p/CL0543-0188-5-00
11 Header DF3A-11P-2DSA CL0543-0174-0-00 https://www.hirose.com/en/product/p/CL0543-0174-0-00
12 Header DF3A-12P-2DSA(26) CL0543-0175-3-26 https://www.hirose.com/en/product/p/CL0543-0175-3-26
12 Header DF3EA-12P-2H(21) CL0543-0339-0-21 https://www.hirose.com/en/product/p/CL0543-0339-0-21
12 Header DF3EA-12P-2V(21) CL0543-0325-0-21 https://www.hirose.com/en/product/p/CL0543-0325-0-21
12 Header DF3EA-12P-2H(51) CL0543-0339-0-51 https://www.hirose.com/en/product/p/CL0543-0339-0-51
12 Header DF3EA-12P-2V(51) CL0543-0325-0-51 https://www.hirose.com/en/product/p/CL0543-0325-0-51
12 Socket DF3-12S-2C CL0543-0013-1-00 https://www.hirose.com/en/product/p/CL0543-0013-1-00
12 Header DF3-12P-2DS(01) CL0543-0041-7-01 https://www.hirose.com/en/product/p/CL0543-0041-7-01
12 Header DF3-12P-2DSA(01) CL0543-0027-6-01 https://www.hirose.com/en/product/p/CL0543-0027-6-01
12 Plug DF3-12EP-2C CL0543-0074-6-00 https://www.hirose.com/en/product/p/CL0543-0074-6-00
12 Header DF3-12S-2DSA(25) CL0543-0058-0-25 https://www.hirose.com/en/product/p/CL0543-0058-0-25
12 Header DF3-12S-2DSA(55) CL0543-0058-0-55 https://www.hirose.com/en/product/p/CL0543-0058-0-55
12 Plug DF3AA-12EP-2C CL0543-0161-9-00 https://www.hirose.com/en/product/p/CL0543-0161-9-00
12 Header DF3A-12P-2DS CL0543-0189-8-00 https://www.hirose.com/en/product/p/CL0543-0189-8-00
12 Header DF3A-12P-2DSA CL0543-0175-3-00 https://www.hirose.com/en/product/p/CL0543-0175-3-00
13 Header DF3EA-13P-2H(21) CL0543-0340-0-21 https://www.hirose.com/en/product/p/CL0543-0340-0-21
13 Header DF3EA-13P-2V(21) CL0543-0326-0-21 https://www.hirose.com/en/product/p/CL0543-0326-0-21
13 Header DF3EA-13P-2H(51) CL0543-0340-0-51 https://www.hirose.com/en/product/p/CL0543-0340-0-51
13 Header DF3EA-13P-2V(51) CL0543-0326-0-51 https://www.hirose.com/en/product/p/CL0543-0326-0-51
13 Socket DF3-13S-2C CL0543-0014-4-00 https://www.hirose.com/en/product/p/CL0543-0014-4-00
13 Header DF3-13P-2DS(01) CL0543-0042-0-01 https://www.hirose.com/en/product/p/CL0543-0042-0-01
13 Header DF3-13P-2DSA(01) CL0543-0028-9-01 https://www.hirose.com/en/product/p/CL0543-0028-9-01
13 Plug DF3-13EP-2C CL0543-0075-9-00 https://www.hirose.com/en/product/p/CL0543-0075-9-00
13 Header DF3-13S-2DSA(55) CL0543-0059-2-55 https://www.hirose.com/en/product/p/CL0543-0059-2-55
13 Plug DF3AA-13EP-2C CL0543-0162-1-00 https://www.hirose.com/en/product/p/CL0543-0162-1-00
13 Header DF3A-13P-2DS CL0543-0190-7-00 https://www.hirose.com/en/product/p/CL0543-0190-7-00
13 Header DF3A-13P-2DSA CL0543-0176-6-00 https://www.hirose.com/en/product/p/CL0543-0176-6-00
14 Header DF3EA-14P-2H(21) CL0543-0341-0-21 https://www.hirose.com/en/product/p/CL0543-0341-0-21
14 Header DF3EA-14P-2V(21) CL0543-0327-0-21 https://www.hirose.com/en/product/p/CL0543-0327-0-21
14 Header DF3EA-14P-2H(51) CL0543-0341-0-51 https://www.hirose.com/en/product/p/CL0543-0341-0-51
14 Header DF3EA-14P-2V(51) CL0543-0327-0-51 https://www.hirose.com/en/product/p/CL0543-0327-0-51
14 Socket DF3-14S-2C CL0543-0015-7-00 https://www.hirose.com/en/product/p/CL0543-0015-7-00
14 Header DF3-14P-2DS(01) CL0543-0043-2-01 https://www.hirose.com/en/product/p/CL0543-0043-2-01
14 Header DF3-14P-2DSA(01) CL0543-0029-1-01 https://www.hirose.com/en/product/p/CL0543-0029-1-01
14 Plug DF3-14EP-2C CL0543-0076-1-00 https://www.hirose.com/en/product/p/CL0543-0076-1-00
14 Plug DF3AA-14EP-2C CL0543-0163-4-00 https://www.hirose.com/en/product/p/CL0543-0163-4-00
14 Header DF3A-14P-2DS CL0543-0191-0-00 https://www.hirose.com/en/product/p/CL0543-0191-0-00
14 Header DF3A-14P-2DSA CL0543-0177-9-00 https://www.hirose.com/en/product/p/CL0543-0177-9-00
15 Header DF3EA-15P-2H(21) CL0543-0342-0-21 https://www.hirose.com/en/product/p/CL0543-0342-0-21
15 Header DF3EA-15P-2V(21) CL0543-0328-0-21 https://www.hirose.com/en/product/p/CL0543-0328-0-21
15 Header DF3EA-15P-2H(51) CL0543-0342-0-51 https://www.hirose.com/en/product/p/CL0543-0342-0-51
15 Header DF3EA-15P-2V(51) CL0543-0328-0-51 https://www.hirose.com/en/product/p/CL0543-0328-0-51
15 Socket DF3-15S-2C CL0543-0016-0-00 https://www.hirose.com/en/product/p/CL0543-0016-0-00
15 Header DF3-15P-2DS(01) CL0543-0044-5-01 https://www.hirose.com/en/product/p/CL0543-0044-5-01
15 Header DF3-15P-2DSA(01) CL0543-0030-0-01 https://www.hirose.com/en/product/p/CL0543-0030-0-01
15 Plug DF3-15EP-2C CL0543-0077-4-00 https://www.hirose.com/en/product/p/CL0543-0077-4-00
15 Header DF3-15S-2DSA(55) CL0543-0061-4-55 https://www.hirose.com/en/product/p/CL0543-0061-4-55
15 Plug DF3AA-15EP-2C CL0543-0164-7-00 https://www.hirose.com/en/product/p/CL0543-0164-7-00
15 Header DF3A-15P-2DS CL0543-0192-2-00 https://www.hirose.com/en/product/p/CL0543-0192-2-00
15 Header DF3A-15P-2DSA CL0543-0178-1-00 https://www.hirose.com/en/product/p/CL0543-0178-1-00
  Contact DF3-22SC CL0543-0236-6-00 https://www.hirose.com/en/product/p/CL0543-0236-6-00
  Contact DF3-22SCF CL0543-0235-3-00 https://www.hirose.com/en/product/p/CL0543-0235-3-00
  Contact DF3-22SCC CL0543-0862-3-00 https://www.hirose.com/en/product/p/CL0543-0862-3-00
  Contact DF3-22SCFC CL0543-0861-0-00 https://www.hirose.com/en/product/p/CL0543-0861-0-00
  Contact DF3-2428SCC CL0543-0047-3-00 https://www.hirose.com/en/product/p/CL0543-0047-3-00
  Contact DF3-2428SCFC CL0543-0046-0-00 https://www.hirose.com/en/product/p/CL0543-0046-0-00
  Contact DF3-2428SCFC(07) CL0543-0046-0-07 https://www.hirose.com/en/product/p/CL0543-0046-0-07
  Contact DF3-EP2428PC CL0543-0063-0-00 https://www.hirose.com/en/product/p/CL0543-0063-0-00
  Contact DF3-EP2428PCF CL0543-0062-7-00 https://www.hirose.com/en/product/p/CL0543-0062-7-00
  Contact DF3-EP2428PCA CL0543-0150-2-00 https://www.hirose.com/en/product/p/CL0543-0150-2-00
  Contact DF3-EP2428PCFA CL0543-0149-3-00 https://www.hirose.com/en/product/p/CL0543-0149-3-00
  Contact DF3E-2428SCF CL0543-0265-4-00 https://www.hirose.com/en/product/p/CL0543-0265-4-00
  Contact DF3E-2428SCFC CL0543-0283-6-00 https://www.hirose.com/en/product/p/CL0543-0283-6-00
  Contact DF3-2428SC CL0543-0002-5-00 https://www.hirose.com/en/product/p/CL0543-0002-5-00
  Contact DF3-2428SCF CL0543-0001-2-00 https://www.hirose.com/en/product/p/CL0543-0001-2-00





Wire Harness Assembly Case

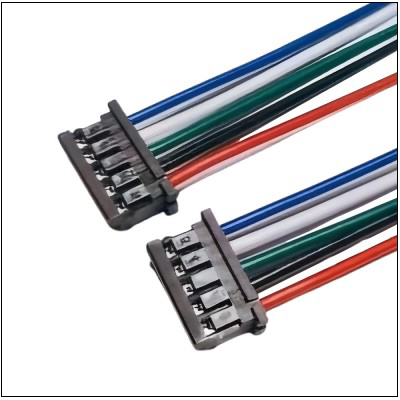

Hirose DF3 5P Wire

DF3 5P Wire

Hirose DF3 5P Wire

DF3 5P Wire

Hirose DF3 10P Wire

DF3 10P Wire





Support Custom Wire Harness Assembly



  • Connectors: 2P to 15P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 200 pieces per order.





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.

Product Tags
custom wire harness (315)car switch (31)Toyota (12)OBD (31)D-sub Cable (33)RJ45 (12)BNC (12)USB cable (28)RCA cable (9)Automotive Wire Harness (145)DIN Cable (6)SAE bullet connector (12)Deutsch Connector Wiring (51)Waterproof Connector (31)GX12/ 16/ 19/ 20/ 25/ 30 connector (6)XT90/ 60/ 30 connector (6)Barrel Jack (20)LED light wire harness (37)Molex Connector Wiring (45)JST Connector Wiring (48)Battery/ Power/ Booster/ Jumper cable (49)Fuse Holder/ Fuse Box (24)Communication/ Telecom cable (29)Computer wire and cable (45)Overmold with cable (30)Motorcycle/ Motorbike/ Electromobile wire harness (12)FFC/ IDC cable (7)Audio/ Video cable (46)Trailer wire harness (11)Terminal Block wires (9)Medical Cable (4)Spring/ Spiral Cable (7)Banana Plug Cable (3)LS Engine Wire Harness (15)OFF-Road (27)Sensor cable (6)
ABOUT US

HooHA wire&cable products were founded in Humen Town, Dongguan city, Guangdong province, China, located in the middle of Guangzhou and Shenzhen city, which is a comprehensive enterprise mainly focused on ......   [ read more>>]

CONTACT US

Hooha Harness

Contact： Deco Yiu

Phone: +86-13532747009

E-mail: sales@hoohawirecable.com

WeChat/WhatsApp: 0086 13532747009

Links
TE Connector
Molex Connector
JST Connector
Aptive Connector
Amphenol Connector
Deutsch Connector
Yazaki Connector
Sumitomo Connector
Lear Connector
KET Connector
Neutrik Connector
Switchcraft Connector
Julet Connector
Higo Connector
XT Connector
Hirose Connector
Yeonho Connector
Anderson Connector
COPYRIGHT 2001-2024 © HOOHA WIRE&CABLE PRODUCTS ALL RIGHTS RESERVED.
