Hirose DF33C Connector

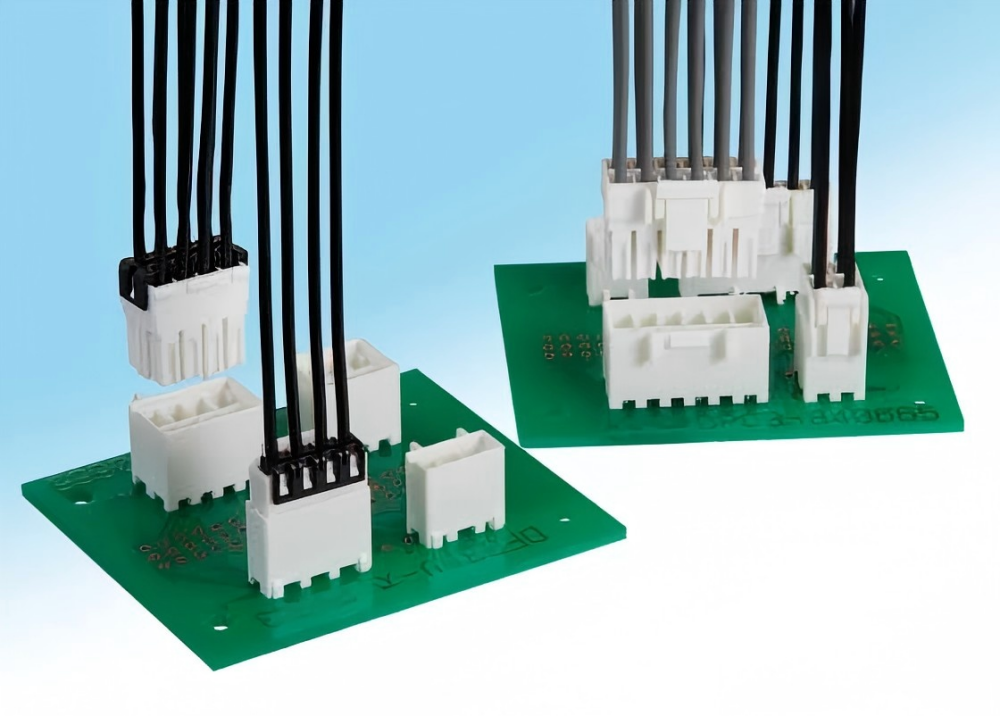

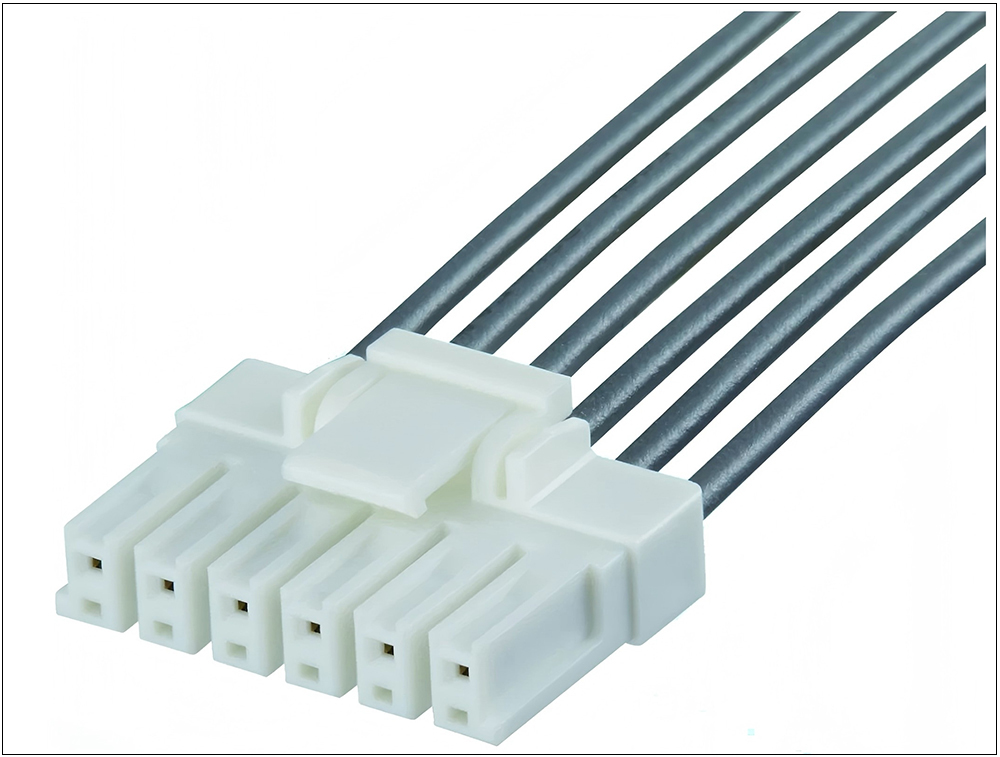

The Hirose DF33C series is a 3.3mm-pitch, compact connector family designed for internal power-source connections. The product list confirms a wide variety, including headers and sockets in 2 to 12 positions, with both single-row (e.g., 2P-6P) and double-row (e.g., 4DP-12DP) interfaces, as well as right-angle types (RS, RDS). Key specifications from the documentation include a rated current and voltage of 5.0A and 500V AC/DC respectively, an operating temperature range of -35°C to 85°C, Through-Hole Technology (THT) mounting, and crimp termination for 20-22 AWG wire. As per the provided details, the series is engineered for reliability and safety, featuring a secure lock mechanism, excellent contact retention, and designs that support accurate board placement, resin sealing, and prevention of short circuits and solder cracking, all while ensuring an easy mating operation, making it a robust solution for power distribution within electronic assemblies.
Features
- 3.3mm Pitch Small Size Connectors for Internal Power Source
- 5A capacity
- Secure lock mechanism
- Accurate board placement
- Supports resin sealing
- Short circuit prevention
- Excellent contact retention
- Prevents solder cracking
- Easy mating operation
Specification
| Connector Type | Header, Socket, Contact, Others | Parts | Retainer |
| Rated Current | 5.0A | Number of Positions | 2, 3, 4, 5, 6, 8, 10, 12 |
| Rated Voltage(AC) | AC 500.0V | Mounting Pitch | 3.3mm |
| Rated Voltage(DC) | DC 500.0V | Mounting Side | Standard on-Board |
| Number of Rows(Interface) | 1, 2 | Connector Orientation | Straight |
| Contact Pitch | 3.3mm | Contact Plating | Tin |
| Mounting Style | THT | Housing Color | Black, White |
| Recommended PCB Thickness | 1.6mm Max. | Recommended Max.Wire Size (AWG) | 20 |
| Mating/Unmating Cycles | 30 | Recommended Min.Wire Size (AWG) | 22 |
| Wire Termination Method | Crimping | Operating Temperature Max. | 85℃ |
| Connector Type Details | Accessory | Operating Temperature Min. | -35℃ |
Connector Lists
Support Custom Wire Harness Assembly
- Connectors: 2P to 12P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
