Hirose DF5 Connector

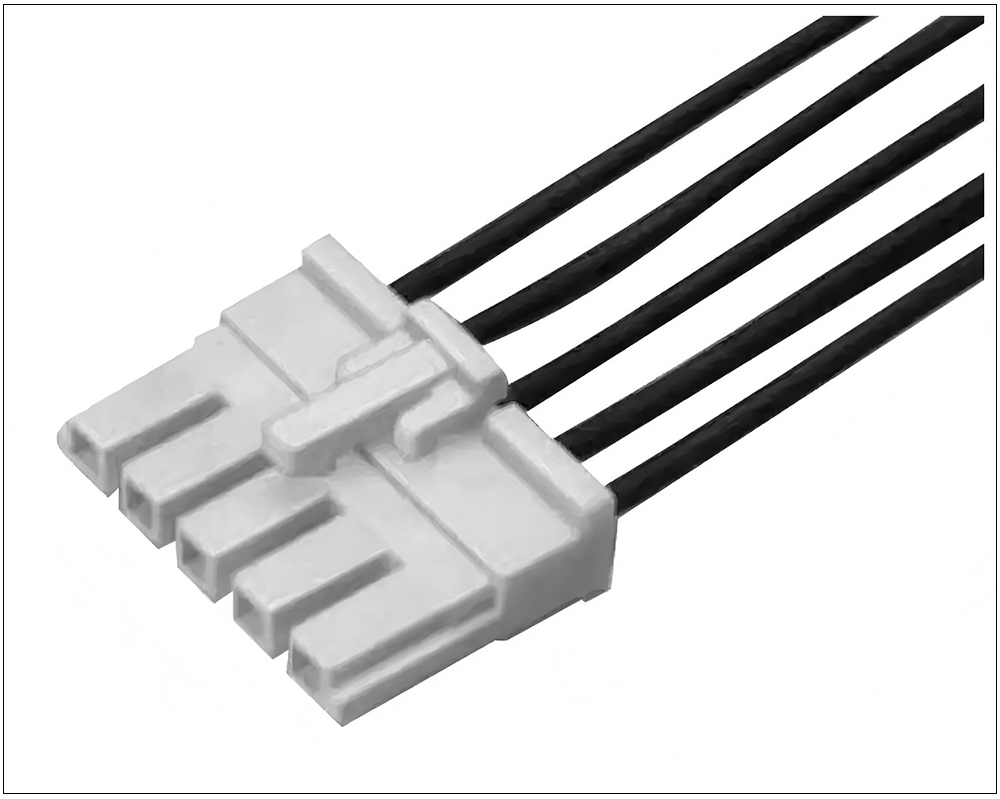

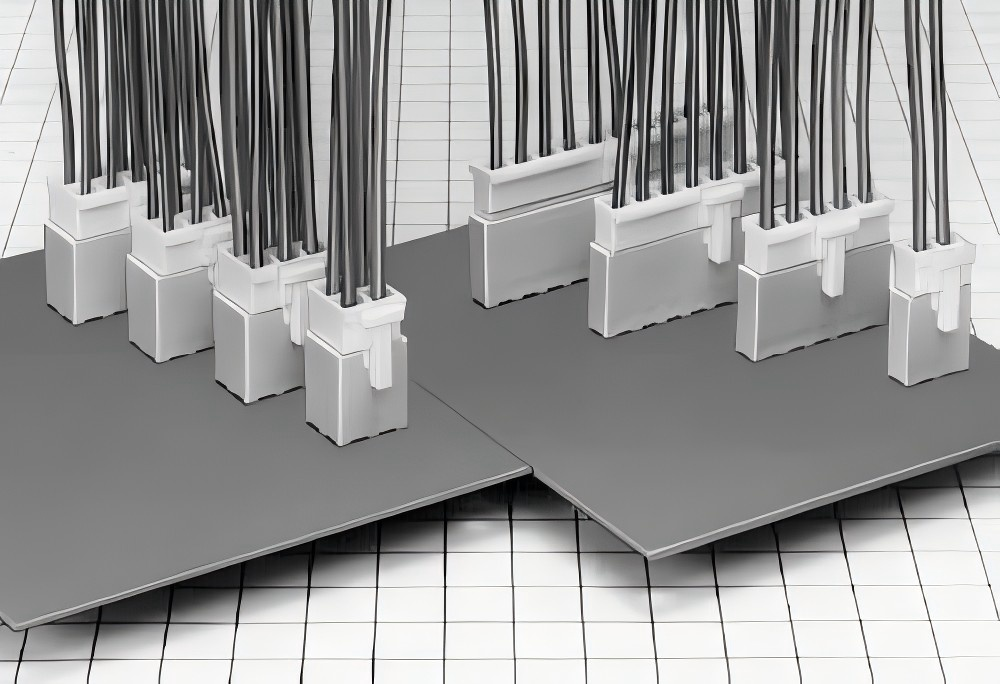

The Hirose DF5 series is a 5.0mm-pitch miniature connector family designed for secondary power supply applications, notably for potting applications. The product list confirms a wide variety, including headers (P/DP) and sockets (S/DS) in positions from 2 to 12, as well as crimp contacts. Key specifications from the documentation include a rated current of 7.0A or 8.0A, a voltage rating of 500V AC/DC, an operating temperature range of -35°C to 85°C, and Through-Hole Technology (THT) mounting for use on a standard 1.6mm PCB. It supports crimp termination for 18-22 AWG discrete wire and features tin-plated contacts. As per the provided details, the series ensures high reliability with a full-lock mechanism and designs that prevent mis-insertion, reverse insertion into the printed board, and solder cracks. It is UL and C-UL/CSA certified and complies with the Glow Wire standard (IEC 60695-2-11).
Features
- 5mm Pitch Miniature Potting Connector for Secondary Power Supply
- Potting Product
- Prevent Mis-insertion
- Means to Prevent Solder Cracks
- Prevent Reverse Insertion in Printed Board
- Full Lock Mechanism
- Current Capacity of 8A
- UL and C-UL Certified
- Glow Wire Compliance (Compliant with IEC 60695-2-11)
Specifications
| Connector Type | Header, Socket, Contact | Number of Positions | 2, 3, 4, 5, 6, 7, 8, 10, 12 |
| Safety Standards | UL, C-UL/CSA | Mounting Pitch | 5.0 mm |
| Rated Current | 7.0, 8.0A | Mounting Side | Standard on-Board |
| Rated Voltage(AC) | AC 500.0V | Connector Orientation | Straight |
| Rated Voltage(DC) | DC500.0V | Contact Plating | Tin |
| Number of Rows (Interface | 12 | Housing Color | Beige, White |
| Contact Pitch | 5.0 mm | Recommended Wire Type | Discrete wire |
| Mounting Style | THT | Recommended Max.Wire Size (AWG) | 18 |
| Recommended PCB Thickness | 1.6 mm Max. | Recommended Min.Wire Size (AWG) | 22 |
| Mating/Unmating Cycles | 30 | Operating Temperature Max. | 85℃ |
| Wire Termination Method | Crimping | Operating Temperature Min. | -35℃ |
Connector Lists
Support Custom Wire Harness Assembly
- Connectors: 2P to 12P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
