Hirose DF50 Connector

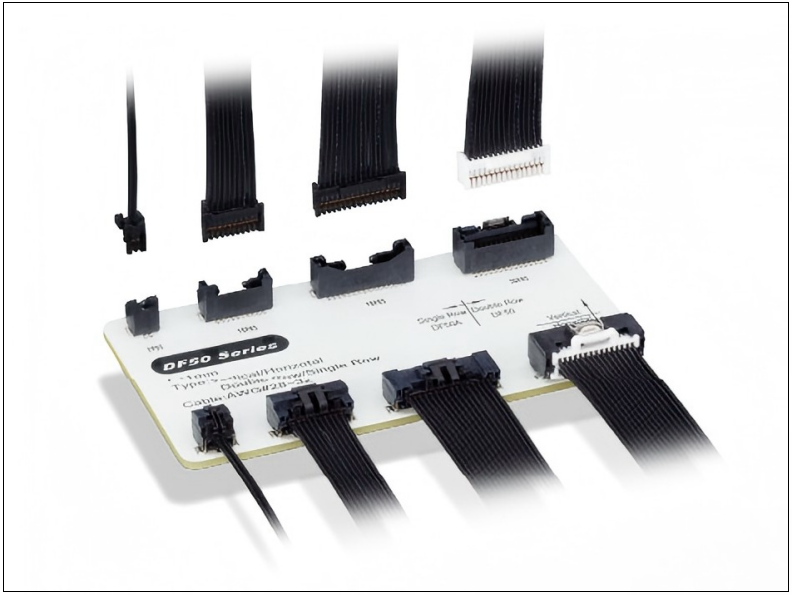

The Hirose DF50 series, part of the SignalBee™ product line, is a 1.0mm-pitch, double-row, wire-to-board connector featuring a secure positive-lock mechanism. The product list confirms a wide variety, including headers and sockets in 20, 30, 40, and 50 positions, with both straight (H) and right-angle (V) orientations, as well as crimp contacts. Key specifications from the documentation include a rated current of 1.0A or 2.0A, a voltage rating of 100V AC/DC, an operating temperature range of -35°C to 85°C, and Surface-Mount Technology (SMT) installation with a provided vacuum pick-up area. It utilizes gold-plated contacts (0.05μm or 0.38μm thick) in black, beige, or white housings and supports crimp termination for discrete wires from 26 to 32 AWG. As per the provided details, its design ensures reliability with a secure lock offering a clear tactile click, a robust structure that resists prying, and a reliable lance design, making it suitable for compact, high-density applications requiring a dependable connection.
Features
- 1mm Pitch, Positive Lock, Wire-to-Board Connector
- Secure lock with clear tactile click
- Robust design resists prying
- Robust and reliable lance design
- Vacuum pick up area is provided, no suction cap needed
- Compatible with 26 to 32 AWG
Specifications
| Connector Type | Header, Socket, Contact | Number of Positions | 20, 30, 40, 50 |
| Rated Current | 1.0, 2.0A | Mounting Pitch | 1.0mm |
| Rated Voltage(AC) | AC100.0V | Mounting Side | Standard on-Board |
| Rated Voltage(DC) | DC100.0V | Connector Orientation | Straight, Right angle |
| Number of Rows(Interface) | 2 | Contact Plating | Gold |
| Contact Pitch | 1.0 mm | Housing Color | Black, Beige, White |
| Mounting Style | SMT | Recommended Wire Type | Discrete wire |
| PCB Stabilizing Feature | Soldering | Recommended Max.Wire Size (AWG) | 26, 28, 30 |
| Mating/Unmating Cycles | 30 | Recommended Min.Wire Size (AWG) | 26, 30, 32 |
| Plating Thickness | 0.05, 0.38μm | Operating Temperature Max. | 85℃ |
| Wire Termination Method | Crimping | Operating Temperature Min. | -35℃ |
Connector Lists
Support Custom Wire Harness Assembly

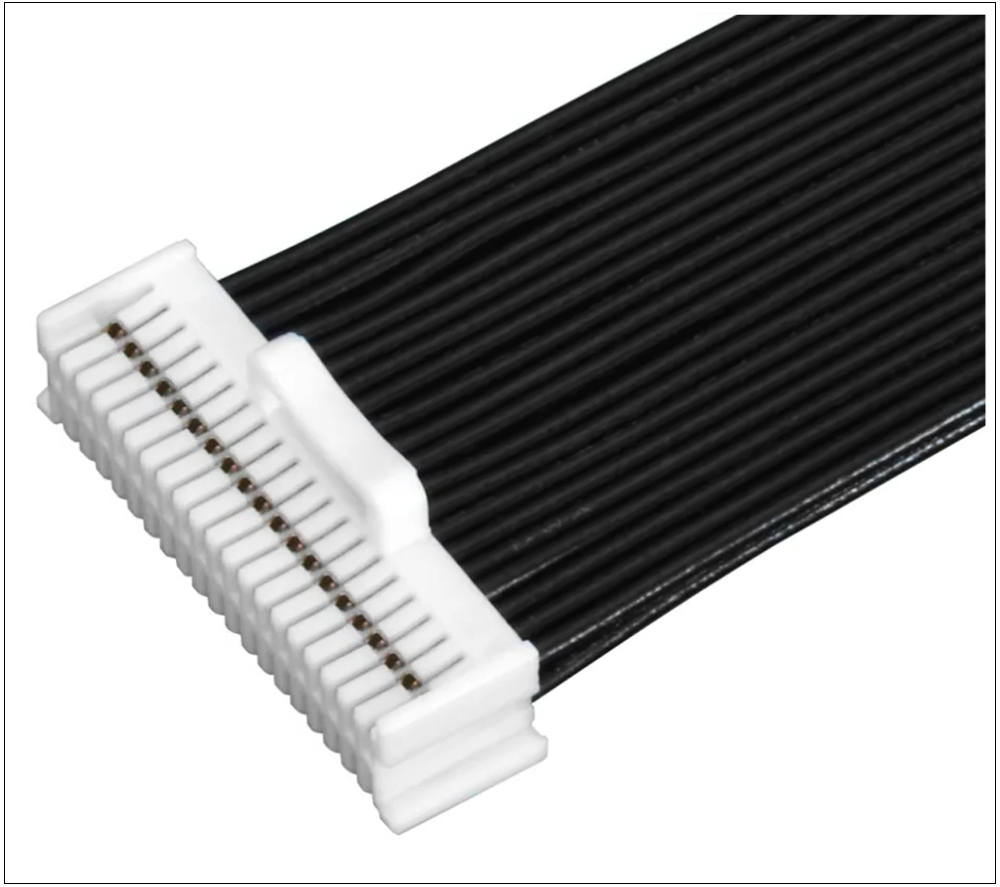

- Connectors: 20P, 30P, 40P, and 50P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
