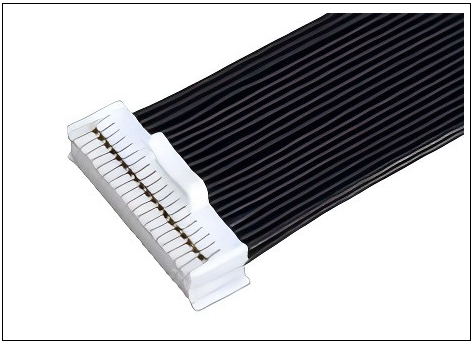

Hirose DF50A Connector

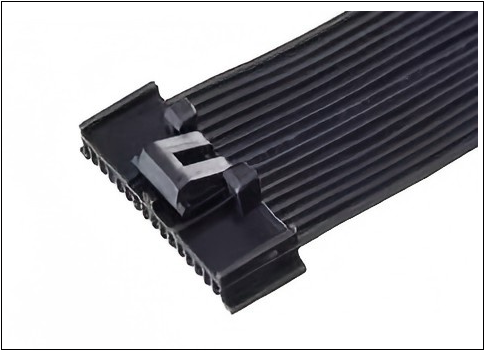

The Hirose DF50A series, part of the SignalBee™ product line, is a compact 1.0mm-pitch, single-row, wire-to-board connector featuring a secure positive-lock mechanism. The product list confirms a wide variety, including headers and sockets in positions from 2 to 16, with both straight (H) and right-angle (V) orientations. Key specifications from the documentation include a rated current of 1.0A or 2.0A, a voltage rating of 100V AC/DC, an operating temperature range of -35°C to 85°C, and Surface-Mount Technology (SMT) installation. It uses gold-plated contacts (0.76 μm thick) in a black housing and supports crimp termination for discrete wires from 26 to 32 AWG. As per the provided details, its design ensures high reliability with a secure lock offering a clear tactile click, a robust structure that resists prying, and a reliable lance design. It is designed for efficient assembly with a vacuum pickup area that requires no suction cap.
Features
- 1mm Pitch, Positive Lock, Wire-to-Board Connector
- Single row connectors.
- Secure lock with clear tactile click
- Robust design resists prying
- Robust and reliable lance design
- Vacuum pick up area is provided, no suction cap is needed
- Compatible with 26 to 32 AWG
Specifications
| Connector Type | Header, Socket | Number of Positions | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 |
| Rated Current | 1.0, 2.0A | Mounting Pitch | 1.0 mm |
| Rated Voltage(AC) | AC100.0V | Mounting Side | Standard on-Board |
| Rated Voltage(DC) | DC100.0V | Connector Orientation | Straight, Right angle |
| Number of Rows (Interface) | 1 | Contact Plating | Gold |
| Contact Pitch | 1.0 mm | Housing Color | Black |
| Mounting Style | SMT | Recommended Wire Type | Discrete wire |
| PCB Stabilizing Feature | Soldering | Recommended Max.Wire Size (AWG) |
26 |
| Mating/Unmating Cycles | 30 | Recommended Min.Wire Size (AWG) |
32 |
| Plating Thickness | 0.76μm | Operating Temperature Max. | 85℃ |
| Wire Termination Method | Crimping | Operating Temperature Min. | -35℃ |
Connector Lists
Support Custom Wire Harness Assembly
- Connectors: 2 to 16P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
