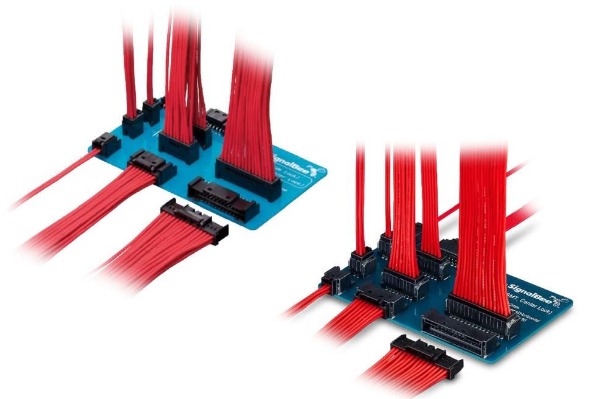

Hirose DF51K Connector, Custom Wire Harness Assembly
Hirose DF51K Series Connector
The DF51K Series is a compact 2mm pitch wire-to-board connector designed for high-density, reliable connections in demanding environments. Featuring a secure center lock mechanism for tactile mating confirmation, it offers THT/SMT mounting, straight/right-angle orientations, and single/double-row configurations (2–30 positions). Tin or gold plating options enhance conductivity, while polarization prevents incorrect mating. UL/C-UL certified and compatible with DF11 crimping tools, it supports 22–30 AWG wires and potting (up to 3mm for THT headers). Ideal for industrial automation, medical devices, robotics, and office equipment, its robust design ensures durability in high-vibration and harsh conditions. Combining versatility, ease of assembly, and high contact reliability, the DF51K Series streamlines connectivity solutions for space-constrained, mission-critical applications.
Features
- 2mm Pitch, Wire-to-Board Connector
- Wide-Ranging Options to Meet Diverse Customer Needs
- Center Lock Design for High-Density Mounting and Easy Operation
- Secure Mating with Clear Tactile Click
- High contact reliability with long effective mating length and 2-point contact design
- Prevents Incorrect Mating
- Suitable for Potting
- Compatible Crimping Tools
- UL, C-UL certified
Specifications
| Connector Type | Header, Socket, Contact | Number of Positions | 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 |
| Safety Standards | UL, C-UL/CSA | Number of Rows(Interface) | 1, 2 |
| Rated Current | 0.5, 2.0, 3.0A | Mounting Pitch | 2.0 mm |
| Rated Voltage(AC) | AC100.0, 250.0V | Rated Voltage(DC) | DC100.0, 250.0V |
| Rated Voltage(DC) | DC100.0, 250.0V | Mounting Side | Standard on-Board |
| Contact Pitch | 2.0 mm | Mounting Style | SMT, THT |
| PCB Stabilizing Feature | Soldering | Connector Orientation | Straight, Right angle |
| Recommended PCB Thickness | 1.6mm Max. | Contact Plating | Gold, Tin |
| Mating/Unmating Cycles | 30, 50 | Housing Color | Black |
| Plating Thickness | 0.1, 0.2, 1.0μm | Recommended Wire Type | Discrete wire |
| Wire Termination Method | Crimping | Recommended Max.Wire Size (AWG) | 22, 24, 30 |
| Recommended Min.Wire Size (AWG) | 22, 28, 30 | Recommended Max.Wire Size (mm²) | 0.055, 0.221, 0.342mm² |
| Recommended Min.Wire Size ( mm²) | 0.055, 0.089, 0.342mm² | Operating Temperature Max. | 105℃ |
| Operating Temperature Min. | -55℃ |
Crimp Socket - Single Row
| Part No. | HRS No. | No.of Pos. |
| DF51K-2S-2C(800) | CL0480-0561-0-00 | 2 |
| DF51K-3S-2C(800) | CL0480-0562-0-00 | 3 |
| DF51K-4S-2C(800) | CL0480-0563-0-00 | 4 |
| DF51K-5S-2C(800) | CL0480-0564-0-00 | 5 |
| DF51K-6S-2C(800) | CL0480-0565-0-00 | 6 |
Crimp Socket - Dual Row
| Part No. | HRS No. | No.of Pos. |
| DF51K-4DS-2C(800) | CL0480-0567-0-00 | 4 |
| DF51K-6DS-2C(800) | CL0480-0568-0-00 | 6 |
| DF51K-8DS-2C(800) | CL0480-0569-0-00 | 8 |
| DF51K-10DS-2C(800) | CL0480-0570-0-00 | 10 |
| DF51K-12DS-2C(800) | CL0480-0571-0-00 | 12 |
| DF51K-14DS-2C(800) | CL0480-0572-0-00 | 14 |
| DF51K-16DS-2C(800) | CL0480-0573-0-00 | 16 |
| DF51K-18DS-2C(800) | CL0480-0574-0-00 | 18 |
| DF51K-20DS-2C(800) | CL0480-0575-0-00 | 20 |
| DF51K-22DS-2C(800) | CL0480-0576-0-00 | 22 |
| DF51K-24DS-2C(800) | CL0480-0577-0-00 | 24 |
| DF51K-26DS-2C(800) | CL0480-0578-0-00 | 26 |
| DF51K-28DS-2C(800) | CL0480-0579-0-00 | 28 |
| DF51K-30DS-2C(800) | CL0480-0580-0-00 | 30 |
Applications
The DF51K Series is ideal for:
- Industrial Machinery & Robotics: High-vibration environments requiring secure connections.
- Medical Devices: Reliable signal transmission in critical systems.
- Office/Amusement Equipment: Space-constrained, high-density PCB layouts.
- Automation & Control Systems: Compatibility with potting for harsh conditions.
Support Custom Wire Harness Assembly
- Connectors: 2P to 30P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
