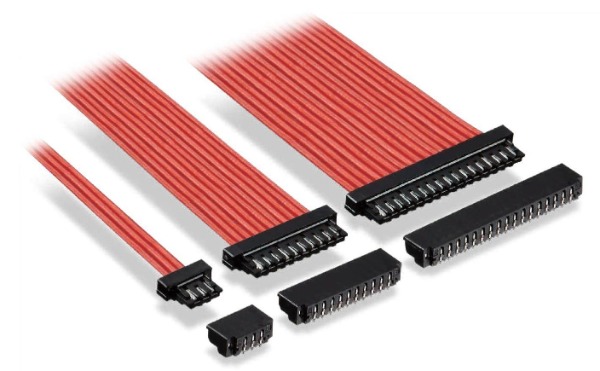

Hirose DF52 Connector, Custom Wire Harness Assembly

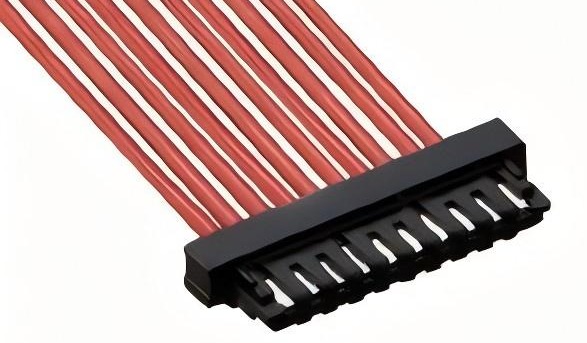

Hirose DF52 Connector
The DF52 series is a 0.8mm-pitch wire-to-board connector designed for small, high-density applications. Featuring a robust design with thickened housing walls and box-shaped crimp contacts, it ensures durability and prevents deformation during assembly. It supports high-current applications (up to 2.5A/pin for 28 AWG) using conductive materials and optimized contact resistance. The open-side housing allows visual confirmation of mating, enhancing reliability. Halogen-free and compliant with environmental standards, it operates in temperatures from -40°C to +85°C and offers insulation resistance (100MΩ min) and withstanding voltage (300V AC). Available in 2-20 positions, it includes SMT receptacles and crimp plugs, ideal for consumer electronics, industrial equipment, and compact devices requiring reliable connectivity in limited spaces.
Features
- 0.8mm Pitch Wire-to-Board Connectors
- Small-Sized Connector
- Compact yet Robust Design
- Suitable for High Current Applications. (2.5A Max.: using 2pos. and 28AWG)
- Box shaped contact prevents deformation.
- Visual check insures fully mated Plug and Receptacle
- Halogen-free
Specifications
| Connector Type | Plug, Receptacle, Contact | Number of Positions | 2, 3, 4, 5, 6, 8, 10, 12, 14, 15, 16, 17, 20 |
| Safety Standards | UL, C-UL/CSA | Contact Pitch | 0.8mm |
| Rated Current | 1.2, 1.5, 2.0, 2.5, 3.0A | Mounting Pitch | 0.8 mm |
| Rated Voltage(AC) | AC 100.0V | Mounting Side | Standard on-Board |
| Rated Voltage(DC) | DC100.0V | Staggered Lead | No |
| Number of Rows(Interface) | 1 | Connector Orientation | Straight, Right angle |
| Mating/Unmating Cycles | 20 | Contact Plating | Tin |
| Plating Thickness | 1.0μm | Housing Color | Black |
| Wire Termination Method | Crimping | Recommended Wire Type | Discrete wire |
| Recommended Min.Wire Size (AWG) | 30, 32 | Recommended Max.Wire Size (AWG) | 28 |
| Operating Temperature Min. | -40℃ | Operating Temperature Max. | 85℃ |
Crimp Plug
| Part No. | HRS No. | No.of Pos. |
| DF52-2P-0.8C | CL0668-0013-6-00 | 2 |
| DF52-3P-0.8C | CL0668-0026-8-00 | 3 |
| DF52-4P-0.8C | CL0668-0014-9-00 | 4 |
| DF52-5P-0.8C | CL0668-0027-0-00 | 5 |
| DF52-6P-0.8C | CL0668-0015-1-00 | 6 |
| DF52-8P-0.8C | CL0668-0016-4-00 | 8 |
| DF52-10P-0.8C | CL0668-0017-7-00 | 10 |
| DF52-12P-0.8C | CL0668-0018-0-00 | 12 |
| DF52-14P-0.8C | CL0668-0028-3-00 | 14 |
| DF52-15P-0.8C | CL0668-0019-2-00 | 15 |
| DF52-16P-0.8C | CL0668-0029-6-00 | 16 |
| DF52-17P-0.8C | CL0668-0002-0-00 | 17 |
| DF52-20P-0.8C | CL0668-0020-1-00 | 20 |
Applications
- Consumer electronics for internal board-to-wire connections.
- Industrial equipment (sensors, PLCs, robotics) where vibration resistance and durability are critical.
- Medical devices (portable monitors, diagnostic tools) due to its robust design and halogen-free compliance.
- IoT devices, drones, and automotive subsystems (non-safety-critical) needing high-density, high-current (up to 2.5A) power/signal transmission.
- Advanced Robotics: Micro-motors, servo controls, or modular sensor arrays requiring compact, high-current connections in robotic arms or drones.
- Edge Computing Devices: Miniature servers, edge AI modules, or IoT gateways where space-efficient power/signal links are critical.
- Renewable Energy Systems: Solar micro-inverters, portable power banks, or energy-harvesting sensors in harsh outdoor environments (-40°C to +85°C tolerance).
- Military/Defense Gear: Non-critical subsystems in ruggedized communication devices or wearable tech (pending custom approvals from Hirose).
- Smart Agriculture: Soil sensors, weather stations, or automated irrigation controllers exposed to moisture and temperature fluctuations.
- AR/VR Hardware: Ultra-compact headsets or motion-tracking peripherals needing reliable, lightweight interconnects.
- Modular Electronics: DIY kits, prototyping boards, or educational tools benefiting from easy visual mating confirmation during assembly.
- Telecom Infrastructure: Low-power 5G small cells, fiber-optic transceivers, or network switches requiring dense, vibration-resistant cabling.
- Aerospace (Non-Critical): Avionics test equipment or cabin entertainment systems where weight and space savings are prioritized.
Support Custom Wire Harness Assembly
- Connectors: 2P to 20P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
