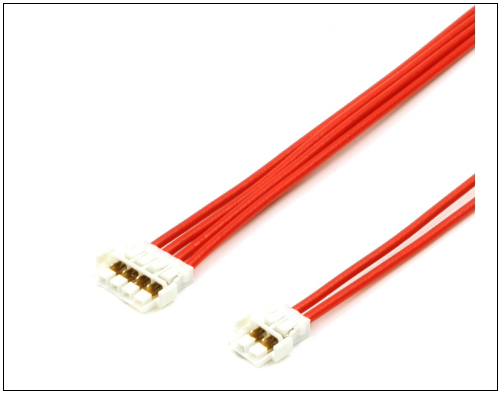

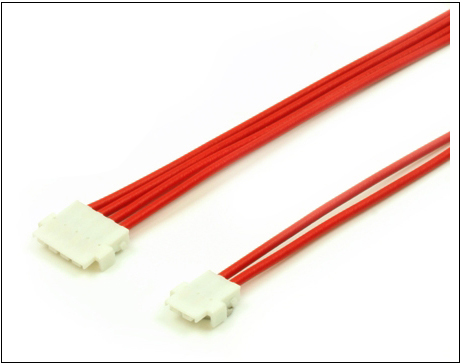

Hirose DF59 Connector
The Hirose DF59 series, part of the SnapBee™ lineup, is a versatile 2.0mm pitch connector system certified to UL and C-UL/CSA standards. The specifications confirm that it is a multi-functional design offering both floating (board-to-board) and swing-lock (wire-to-board) connection types, with a short-pin (short-circuit pin connector) variant available. Key electrical ratings from the documents include a rated current of 3.0A, a voltage rating of 230V AC/DC, and a high operating temperature range of -40°C to 105°C. The series includes plugs, receptacles, sockets, and contacts in 2, 3, and 4 positions, featuring a single-row interface, straight orientation, gold-plated contacts, SMT mounting, and crimp termination for 22 AWG discrete wire, with housing colors in beige and white. Its design emphasizes reliability and assembly efficiency, featuring a robust locking structure (especially on the DF59M for wire-to-board), a standardized PCB layout for space savings, and a common applicator for the contacts. This combination of a floating structure for board alignment, a secure swing-lock, and safety features like the short pin makes it a flexible solution for various interconnection needs.
Features
- 2.0mm Pitch
- High Operating Temperature
- Swing Lock Structure (Wire-to-Board)
- Short-Circuit Pin Connector
- Multi-Function Design
- Contact Design
- Common Applicator
- Floating Structure (Board-to-Board)
- Space Savings
- Robust locking structure on DF59M (W-to-B Connection)
- Standardization of PCB layout
Specifications
| Connector Type | Plug, Receptacle, Socket, Contact, Others, Floating plug | Number of Positions | 2, 3, 4 |
| Safety Standards | UL, C-UL/CSA | Mounting Pitch | 2.0 mm |
| Rated Current | 3.0A | Mounting Side | Standard on-Board |
| Rated Voltage(AC) | AC 230.0V | Connector Orientation | Straightt |
| Rated Voltage(DC) | DC 230.0V | Contact Plating | Gold |
| Number of Rows(Interface) | 1 | Housing Color | Beige, White |
| Contact Pitch | 2.0mm | Recommended Wire Type | Discrete wire |
| Mounting Style | SMT | Recommended Max.Wire Size (AWG) | 22 |
| Mating/Unmating Cycles | 10, 30 | Recommended Min.Wire Size (AWG) | 22 |
| Wire Termination Method | Crimping | Operating Temperature Max. | 105℃ |
| Connector Type Details | Floating plug, Short pin | Operating Temperature Min. | -40℃ |
Connector Lists
Support Custom Wire Harness Assembly
- Connectors: 2P, 3P, and 4P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
