Hirose DF60 Connector, Custom Wire Harness Manufacturer
Introduction
Features
- Rated for up to 65A (Derating curve, ambient temperature of 25℃)
- Secure Lock Design Ensures Complete Mating
- Highly Reliable 5-Point Contact Design
- Molded Lance Design
- Reverse Mounting Prevention on PCB
- Short-Circuit Prevention
- Solder Crack Prevention
- Finger-Safe (Electric Shock Prevention)
- Right Angle Crimp Socket Type
- UL, C-UL, and TÜV Specifications Certified Type Available
- Glow Wire Compliant (Compliant with IEC 60695- 2-11)
Specifications
| Connector Type | Header, Plug, Socket, Contact, In-line plug | Parts | Cover case |
| Safety Standards | UL, C-UL/CSA, TÜV | Number of Positions | 1, 2, 3, 4, 5, 6 |
| Rated Current | 42.0, 45.0, 50.0A | Mounting Pitch | 10.16 mm |
| Rated Voltage(AC) | AC 1000.0V | Contact Pitch | 10.16 mm |
| Rated Voltage(DC) | DC 1000.0V | Mounting Side | Standard on-Board |
| Number of Rows(Interface) | 1 | Staggered Lead | No |
| Mounting Style | THT | Connector Orientation | Straight, Right angle |
| PCB Stabilizing Feature | Screw | Contact Plating | Gold |
| Recommended PCB Thickness | 1.6 mm Max | Housing Color | Red, Black, Gray |
| Mating/Unmating Cycles | 30 | Recommended Wire Type | Discrete wire |
| Plating Thickness | 0.2μm | Recommended Max.Wire Size (AWG) | 8, 10 |
| Wire Termination Method | Crimping | Operating Temperature Min. | -55℃ |
| Recommended Min.Wire Size (AWG) | 8, 12 | Operating Temperature Max. | 105℃ |
| Connector Type Details | In-line plug | Panel Mounting Style | Screw |

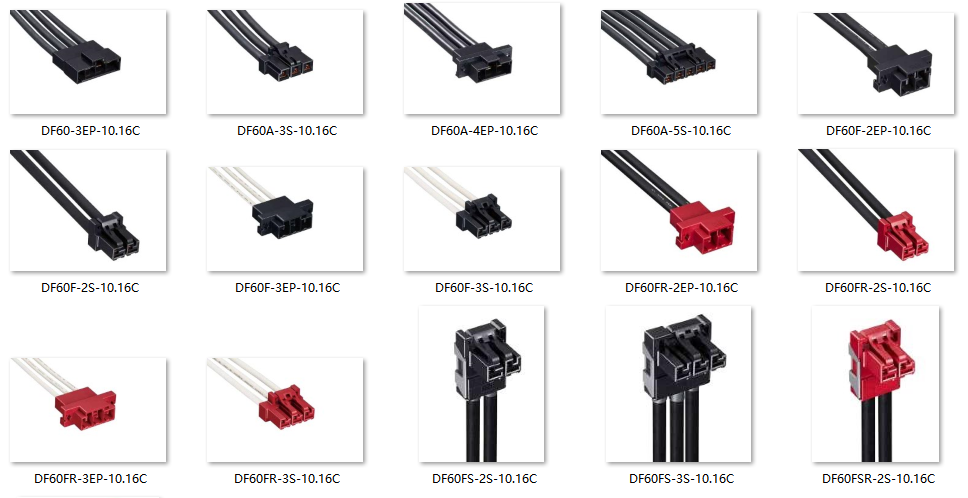

In-Line Plug Connector
| Type | Part No. | HRS No. | No.of Pos. | Color |
| Standard | DF60-1EP-10.16C(15) | CL0680-3050-2-15 | 1 | Red |
| DF60-2EP-10.16C(15) | CL0680-3025-5-15 | 2 | ||
| DF60-3EP-10.16C(15) | CL0680-3026-8-15 | 3 | ||
| DF60-1EP-10.16C | CL0680-3050-2-00 | 1 | Black | |
| DF60-2EP-10.16C | CL0680-3025-5-00 | 2 | ||
| DF60-3EP-10.16C | CL0680-3026-8-00 | 3 | ||
| DF60-4EP-10.16C | CL0680-3027-0-00 | 4 | ||
| DF60-5EP-10.16C | CL0680-3028-3-00 | 5 | ||
| R type | DF60R-2EP-10.16C | CL0680-3053-0-00 | 2 | Grey |
| DF60R-3EP-10.16C | CL0680-3054-0-00 | 3 | ||
| Without Flange Type | DF60A-4EP-10.16C | CL0680-3069-0-00 | 4 | Black |
| Standard (Finger-Safe Type) | DF60F-2EP-10.16C | CL0680-4009-0-00 | 2 | Black |
| DF60F-3EP-10.16C | CL0680-4003-0-00 | 3 | ||
| R type (Finger-Safe Type) | DF60FR-2EP-10.16C | CL0680-4012-0-00 | 2 | Red |
| DF60FR-3EP-10.16C | CL0680-4006-0-00 | 3 |
Crimp Socket Connector
| Type | Part No. | HRS No. | No.of Pos. | Color |
| Standard (Finger-Safe Type) | DF60F-2S-10.16C | CL0680-4008-0-00 | 2 | Black |
| DF60F-3S-10.16C | CL0680-4002-0-00 | 3 | ||
| R type (Finger-Safe Type) | DF60FR-2S-10.16C | CL0680-4011-0-00 | 2 | Red |
| DF60FR-3S-10.16C | CL0680-4005-0-00 | 3 | ||
| Standard | DF60A-1S-10.16C | CL0680-3058-0-00 | 1 | Black |
| DF60A-2S-10.16C | CL0680-3059-0-00 | 2 | ||
| DF60A-3S-10.16C | CL0680-3060-0-00 | 3 | ||
| DF60A-4S-10.16C | CLO680-3061-0-00 | 4 | ||
| DF60A-5S-10.16C | CL0680-3076-0-00 | 5 | ||
| DF60A-6S-10.16C | CL0680-3077-0-00 | 6 | ||
| DF60A-1S-10.16C(15) | CL0680-3058-0-15 | 1 | Red | |
| DF60A-2S-10.16C(15) | CLO680-3059-0-15 | 2 | ||
| DF60A-3S-10.16C(15) | CLO680-3060-0-15 | 3 | ||
| R type | DF60AR-2S-10.16C | CL0680-3063-0-00 | 2 | Gray |
| DF60AR-3S-10.16C | CL0680-3064-0-00 | 3 | ||
| Right Angle - Standard (Finger-Safe Type) | DF60FS-2S-10.16C | CL0680-4013-0-00 | 2 | Black |
| DF60FS-3S-10.16C | CL0680-4015-0-00 | 3 | ||
| R type (Finger-Safe Type) | DF60FSR-2S-10.16C | CL0680-4017-0-00 | 2 | Red |
| DF60FSR-3S-10.16C | CL0680-4018-0-00 | 3 |
Applications
- Industrial Power Supplies: Connecting internal wiring to PCBs in high-wattage AC-DC and DC-DC power supplies for industrial machinery.
- Telecommunications Base Stations: Distributing power within the power shelves and amplifier units of telecom infrastructure equipment.
- Server & Data Center PSUs: Managing high-current power distribution inside server power supply units and power distribution boards.
- Renewable Energy Systems: Used in inverters for solar power and wind energy systems to handle significant power flows.
- Industrial Automation Controllers: Providing robust power connections within Programmable Logic Controllers (PLCs) and motor drives.
- Uninterruptible Power Supplies (UPS): Interconnecting battery packs and power conversion circuits in high-capacity UPS systems.
- Electric Vehicle Charging Stations: Managing internal power routing in AC Level 2 and DC fast charging stations.
- Test & Measurement Equipment: Powering high-performance instruments and RF amplifiers that require substantial internal current.
- Railway Transportation Systems: For power distribution and control in rolling stock and signaling equipment, benefiting from their secure lock.
- High-Power LED Lighting: Connecting drivers to LED arrays in industrial, stadium, and architectural lighting systems.
Support Custom Wire Harness Assembly
- Connectors: 1P to 6P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
