Hirose DF61 Connector, Custom Wire Harness Manufacturer
Introduction
Wire-to-Board Swing-Lock Connector for Low-Profile Power Source
- Reinforced Swing Lock Structure
- Header Lock Improves Plug Retention
- Compact Size- High Voltage
- Solder Wicking Prevention
- High Current of MAX 5 Amps(22AWG)
Specifications
| Connector Type | Header, Socket, Contact | Number of Positions | 2 |
| Safety Standards | UL, C-UL/CSA | Mounting Pitch | 2.2 mm |
| Rated Current | 3.2,5.0 A | Connector Length | 3.68, 5.1mm |
| Rated Voltage(AC) | AC 350.0V | Connector Height | 2.18, 2.26mm |
| Rated Voltage(DC) | DC 350.0V | Mounting Side | Standard on-Board |
| Number of Rows(Interface) | 1 | Connector Orientation | Straight |
| Contact Pitch | 2.2 mm | Contact Plating | Tin |
| Connector Width | 6.29, 7.35mm | Housing Color | Red, Beige, White, Yellow |
| Mounting Style | SMT | Recommended Wire Type | Discrete wire |
| Wire Termination Method | Crimping | Recommended Max.Wire Size (AWG) | 22, 26 |
| Recommended PCB Thickness | 1.0 mm Max. | Recommended Min.Wire Size (AWG) | 26, 28 |
| Operating Temperature Max. | 105℃ | Operating Temperature Min. | -55℃ |

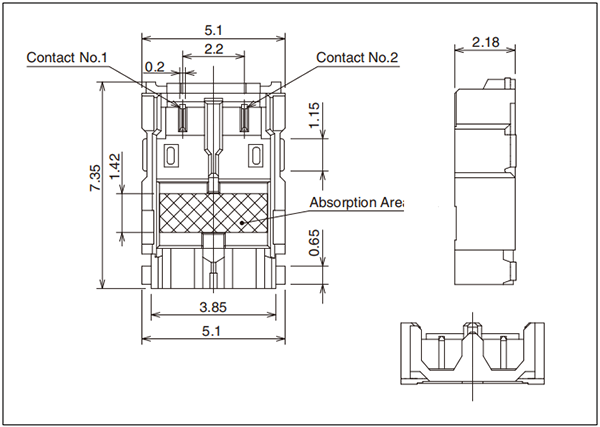

Straight Header (SMT) Connector
| Part No. | HRS No. | No.of contacts | Color |
| DF61-2P-2.2V(21) | 666-5001-121 | 2 | Red |
| DF61-2P-2.2V(22) | 666-5001-122 | 2 | Yellow |
| DF61-2P-2.2V(23) | 666-5001-123 | 2 | Beige |

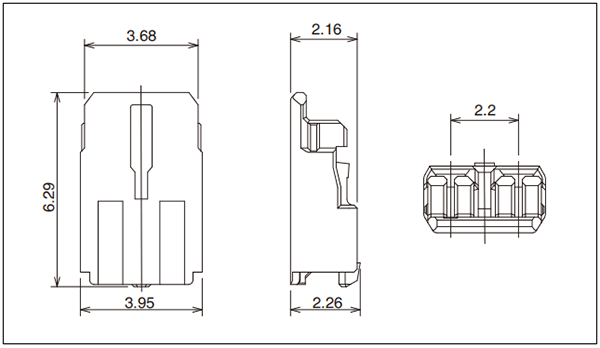

Socket Connector
| Part No. | HRS No. | No.of contacts | Color |
| DF61-2S-2.2C(11) | 666-5002-411 | 2 | Red |
| DF61-2S-2.2C(12) | 666-5002-412 | 2 | Yellow |
| DF61-2S-2.2C(13) | 666-5002-413 | 2 | White |

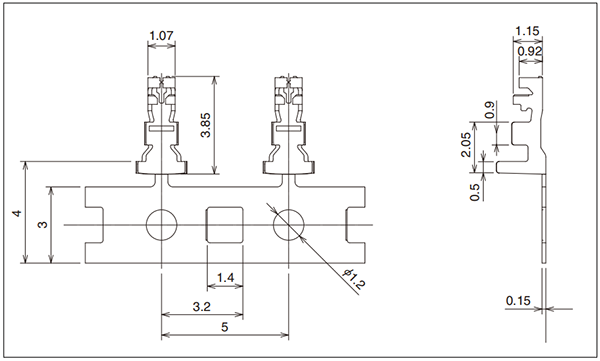

Terminal
| Part No. | HRS No. | Finish | Applicable Wire (Tin Plated Annealing Copper Wire) (Note 1) | ||||
| UL Style | AWG | Wire Construction | Sectional Area | Jacket Diameter (Note 2) | |||
| DF61-2226SCF(41) | 666-5004-041 | Tin plated | 10368 | 22 AWG 24 AWG 26 AWG |
17cores/0.16mm 11cores/0.16mm 7cores/0.16mm |
0.342mm² 0.221mm² 0.141mm² |
0.98～1.3mm(1.26mm) 0.98～1.3mm(1.11mm) 0.98～1.3mm(0.98mm) |
| DF61-2628SCF | 666-5005-200 | Tin plated | 10368 | 26 AWG 28 AWG |
7cores/0.16mm 7cores/0.127mm |
0.141mm² 0.089mm² |
0.88～0.98mm(0.98mm) 0.88～0.98mm(0.88mm) |
- Note 1: For applicable cables other than those listed above, refer to the Crimp Condition Table. Crimp Condition Table is available on the product web page.
- Note 2: The wire with jacket diameter in parentheses is only suitable for crimping with a hand tool.
Applications
- Digital Cameras
- Digital Video Cameras
- LED Lighting Modules
- Laptop Computers
- Tablet Computers
- Portable Medical Monitors
- Internal Power Supply Boards
- Drones and UAVs
- Portable Audio/Video Equipment
- Handheld Gaming Devices

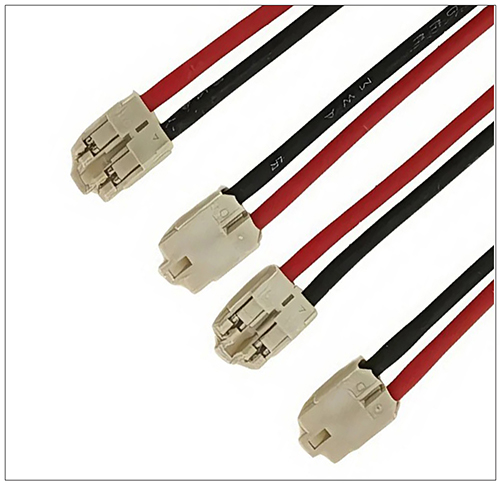

Support Custom Wire Harness Assembly
- Connectors: 2P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
