Hirose DF61Y Connector, Custom Wire Harness Assembly

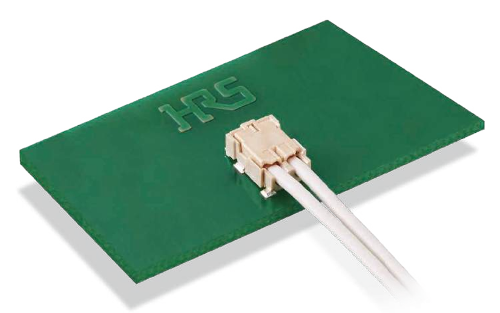

Hirose DF61Y Connector Introduction
Features
- Proprietary ViSe Lock design
- Improved operation through vertical mating
- Small-sized and low profile, with high withstanding voltage and current (H=2mm, 24AWG: 4A Max)
- High heat-resistance
- Halogen-free
Specifications
| Connector Type | Header, Socket | Number of Positions | 2, 3 |
| Safety Standards | UL, C-UL/CSA | Mounting Pitch | 2.2 mm |
| Rated Current | 4.0 A | Connector Length | 3.84, 5.1, 6.04, 7.3mm |
| Rated Voltage(AC) | AC 350.0V | Connector Height | 1.9, 2.0 mm |
| Rated Voltage(DC) | DC 350.0V | Mounting Side | Standard on-Board |
| Number of Rows(Interface) | 1 | Connector Orientation | Straight |
| Contact Pitch | 2.2mm | Contact Plating | Tin |
| Connector Width | 6.06, 7.35, 8.03mm | Housing Color | Black, Beige |
| Mounting Style | SMT | Recommended Wire Type | Discrete wire |
| Recommended PCB Thickness | 1.0mm Max. | Recommended Max.Wire Size(AWG) | 24 |
| Mating/Unmating Cycles | 30 | Recommended Min.Wire Size(AWG) | 28 |
| Plating Thickness | 1.0μm | Operating Temperature Max. | 105℃ |
| Wire Termination Method | Crimping | Operating Temperature Min. | -40℃ |
Connector Lists
| P/N | Hirose P/N | Type | No. of Positions | Links |
| DF61Y-3P-2.2V | CL0666-5103-0-00 | Header | 3 | https://www.hirose.com/en/product/p/CL0666-5103-0-00 |
| DF61Y-3S-2.2C | CL0666-5102-0-00 | Socket | 3 | https://www.hirose.com/en/product/p/CL0666-5102-0-00 |
| DF61Y-2P-2.2V(23) | CL0666-5100-3-23 | Header | 2 | https://www.hirose.com/en/product/p/CL0666-5100-3-23 |
| DF61Y-2S-2.2C(13) | CL0666-5101-6-13 | Socket | 2 | https://www.hirose.com/en/product/p/CL0666-5101-6-13 |

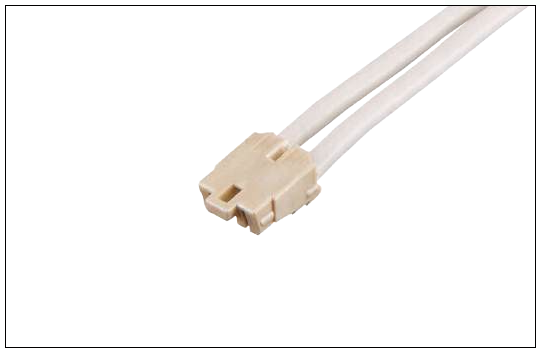

Support Custom Wire Harness Assembly
- Connectors: 2P, 3P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
