Hirose DF62 Connector, Custom Wire Harness Manufacturer

Hirose DF62 Connector Introduction



The DF62 Series represents a family of slim in-line and through-hole (THT) connectors engineered by Hirose to address the challenges of modern, compact electronic designs. Their primary advantage is an exceptionally sleek profile with smooth contours, made possible by a 2.2mm contact grid layout that allows for efficient connections in tight, narrow spaces, saving valuable real estate on PCBs and within devices. Beyond their compact form factor, these connectors are built for reliability. They feature a secure lock mechanism that provides a clear tactile click upon mating, preventing incomplete connections and accidental disconnections. The contact design ensures reliability with a two-point contact system, while a robust construction protects the contacts and lance areas from damage during assembly and use. The series offers extensive versatility with a wide range of positions (from 2 to 24 poles), various connector types, including standard and protected lock sockets, in-line plugs, panel-mount plugs, and pin headers (both straight and right-angle), as well as multiple plating and color options. A significant practical benefit is the ability to share applicators across the existing DF11 and DF59 series, which can reduce tooling costs for manufacturers. With a rated voltage of 250V AC/DC and a current rating of up to 4A per pin, depending on the configuration, the DF62 Series is a comprehensive solution for wire-to-wire and wire-to-board applications demanding a reliable, space-saving connection.

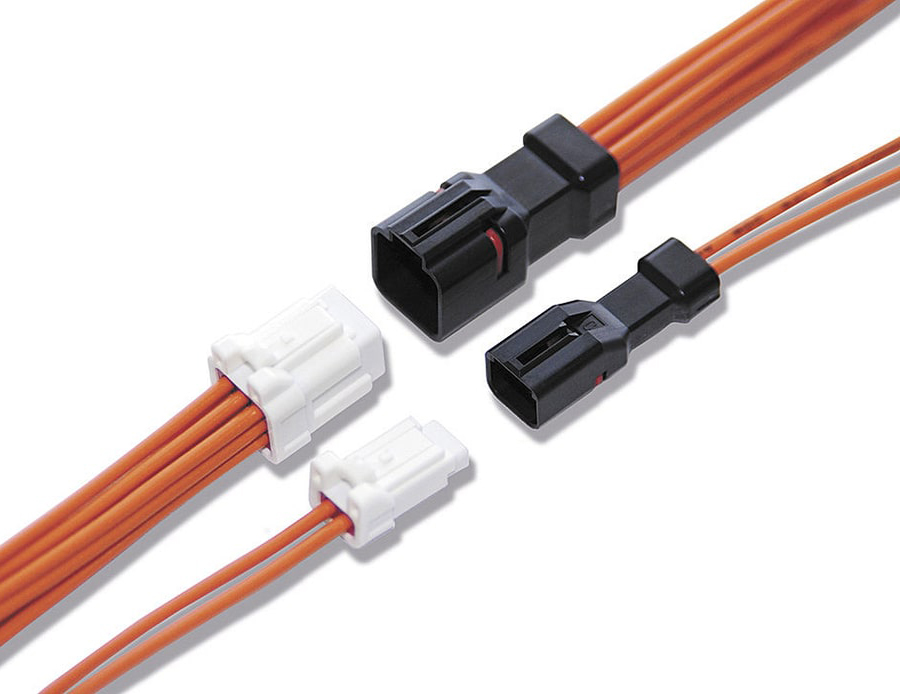

DF62 cable





Features



  • The slim, sleek design and smooth contours combine to make connections in tight spaces easier.
  • Secure Lock Mechanism
  • Reliable Contact Design
  • Robust Contact Design
  • Multiple Variations Available
  • Applicator Sharing





Sepcifications



Connector Type Header, Plug, Socket, Contact, In-line plug Number of Positions 2, 3, 4, 5, 6, 7, 9, 13, 24
Safety Standards UL, C-UL/CSA, TÜV Mounting Pitch 2.2mm
Rated Current 1.0, 2.0, 2.5, 3.0, 4.0A Connector Orientation Straight, Right angle
Rated Voltage(AC) AC 250.0V Contact Plating Gold, Tin
Rated Voltage(DC) DC 250.0V Housing Color Red, Black, White
Number of Rows(Interface) 1, 2, 3, 4, 5 Recommended Wire Type Discrete wire
Contact Pitch 2.2mm Recommended Max.Wire Size(AWG) 22, 24, 30
Mounting Style THT Recommended Min.Wire Size(AWG) 22, 28, 30
Recommended PCB Thickness 1.6mm Max. Operating Temperature Max. 105℃
Mating/Unmating Cycles 30 Operating Temperature Min. -40, -35℃
Plating Thickness 0.2, 0.76, 1.0μm Wire Termination Method Crimping
Connector Type Details In-line plug





Connector Lists



No. of Positions Connector Type P/N Hirose P/N Links
2 In-line plug DF62P-2EP-2.2C(18) CL0544-0543-1-18 https://www.hirose.com/en/product/p/CL0544-0543-1-18
2 Plug DF62B-2EP-2.2C CL0544-0558-9-00 https://www.hirose.com/en/product/p/CL0544-0558-9-00
2 Plug DF62B-2EP-2.2C(10) CL0544-0558-9-10 https://www.hirose.com/en/product/p/CL0544-0558-9-10
2 In-line plug DF62B-2EP-2.2C(18) CL0544-0558-9-18 https://www.hirose.com/en/product/p/CL0544-0558-9-18
2 Socket DF62C-2S-2.2C CL0544-0565-4-00 https://www.hirose.com/en/product/p/CL0544-0565-4-00
2 Socket DF62C-2S-2.2C(11) CL0544-0565-4-11 https://www.hirose.com/en/product/p/CL0544-0565-4-11
2 Socket DF62C-2S-2.2C(18) CL0544-0565-4-18 https://www.hirose.com/en/product/p/CL0544-0565-4-18
2 Socket DF62B-2S-2.2C CL0544-0551-0-00 https://www.hirose.com/en/product/p/CL0544-0551-0-00
2 Socket DF62B-2S-2.2C(11) CL0544-0551-0-11 https://www.hirose.com/en/product/p/CL0544-0551-0-11
2 Socket DF62B-2S-2.2C(18) CL0544-0551-0-18 https://www.hirose.com/en/product/p/CL0544-0551-0-18
2 Plug DF62P-2EP-2.2C CL0544-0543-1-00 https://www.hirose.com/en/product/p/CL0544-0543-1-00
2 In-line plug DF62P-2EP-2.2C(10) CL0544-0543-1-10 https://www.hirose.com/en/product/p/CL0544-0543-1-10
3 Plug DF62B-3EP-2.2C CL0544-0559-1-00 https://www.hirose.com/en/product/p/CL0544-0559-1-00
3 Plug DF62B-3EP-2.2C(10) CL0544-0559-1-10 https://www.hirose.com/en/product/p/CL0544-0559-1-10
3 In-line plug DF62B-3EP-2.2C(18) CL0544-0559-1-18 https://www.hirose.com/en/product/p/CL0544-0559-1-18
3 Socket DF62C-3S-2.2C CL0544-0566-7-00 https://www.hirose.com/en/product/p/CL0544-0566-7-00
3 Socket DF62C-3S-2.2C(11) CL0544-0566-7-11 https://www.hirose.com/en/product/p/CL0544-0566-7-11
3 Socket DF62C-3S-2.2C(18) CL0544-0566-7-18 https://www.hirose.com/en/product/p/CL0544-0566-7-18
3 Socket DF62B-3S-2.2C CL0544-0552-2-00 https://www.hirose.com/en/product/p/CL0544-0552-2-00
3 Socket DF62B-3S-2.2C(11) CL0544-0552-2-11 https://www.hirose.com/en/product/p/CL0544-0552-2-11
3 Socket DF62B-3S-2.2C(18) CL0544-0552-2-18 https://www.hirose.com/en/product/p/CL0544-0552-2-18
3 Plug DF62P-3EP-2.2C CL0544-0544-4-00 https://www.hirose.com/en/product/p/CL0544-0544-4-00
3 In-line plug DF62P-3EP-2.2C(10) CL0544-0544-4-10 https://www.hirose.com/en/product/p/CL0544-0544-4-10
4 In-line plug DF62P-4EP-2.2C(18) CL0544-0545-7-18 https://www.hirose.com/en/product/p/CL0544-0545-7-18
4 In-line plug DF62B-4EP-2.2C(18) CL0544-0560-0-18 https://www.hirose.com/en/product/p/CL0544-0560-0-18
4 Socket DF62B-4S-2.2C(18) CL0544-0553-5-18 https://www.hirose.com/en/product/p/CL0544-0553-5-18
4 Socket DF62C-4S-2.2C(18) CL0544-0567-0-18 https://www.hirose.com/en/product/p/CL0544-0567-0-18
4 Plug DF62B-4EP-2.2C CL0544-0560-0-00 https://www.hirose.com/en/product/p/CL0544-0560-0-00
4 Plug DF62B-4EP-2.2C(10) CL0544-0560-0-10 https://www.hirose.com/en/product/p/CL0544-0560-0-10
4 Socket DF62C-4S-2.2C CL0544-0567-0-00 https://www.hirose.com/en/product/p/CL0544-0567-0-00
4 Socket DF62C-4S-2.2C(11) CL0544-0567-0-11 https://www.hirose.com/en/product/p/CL0544-0567-0-11
4 Socket DF62B-4S-2.2C CL0544-0553-5-00 https://www.hirose.com/en/product/p/CL0544-0553-5-00
4 Socket DF62B-4S-2.2C(11) CL0544-0553-5-11 https://www.hirose.com/en/product/p/CL0544-0553-5-11
4 Plug DF62P-4EP-2.2C CL0544-0545-7-00 https://www.hirose.com/en/product/p/CL0544-0545-7-00
4 In-line plug DF62P-4EP-2.2C(10) CL0544-0545-7-10 https://www.hirose.com/en/product/p/CL0544-0545-7-10
5 Plug DF62B-5EP-2.2C CL0544-0561-3-00 https://www.hirose.com/en/product/p/CL0544-0561-3-00
5 Plug DF62B-5EP-2.2C(10) CL0544-0561-3-10 https://www.hirose.com/en/product/p/CL0544-0561-3-10
5 In-line plug DF62B-5EP-2.2C(18) CL0544-0561-3-18 https://www.hirose.com/en/product/p/CL0544-0561-3-18
5 Socket DF62C-5S-2.2C CL0544-0568-2-00 https://www.hirose.com/en/product/p/CL0544-0568-2-00
5 Socket DF62C-5S-2.2C(11) CL0544-0568-2-11 https://www.hirose.com/en/product/p/CL0544-0568-2-11
5 Socket DF62C-5S-2.2C(18) CL0544-0568-2-18 https://www.hirose.com/en/product/p/CL0544-0568-2-18
5 Socket DF62B-5S-2.2C CL0544-0554-8-00 https://www.hirose.com/en/product/p/CL0544-0554-8-00
5 Socket DF62B-5S-2.2C(11) CL0544-0554-8-11 https://www.hirose.com/en/product/p/CL0544-0554-8-11
5 Socket DF62B-5S-2.2C(18) CL0544-0554-8-18 https://www.hirose.com/en/product/p/CL0544-0554-8-18
5 Plug DF62P-5EP-2.2C CL0544-0546-0-00 https://www.hirose.com/en/product/p/CL0544-0546-0-00
5 In-line plug DF62P-5EP-2.2C(10) CL0544-0546-0-10 https://www.hirose.com/en/product/p/CL0544-0546-0-10
6 Socket DF62B-6S-2.2C(18) CL0544-0555-0-18 https://www.hirose.com/en/product/p/CL0544-0555-0-18
6 Plug DF62B-6EP-2.2C CL0544-0562-6-00 https://www.hirose.com/en/product/p/CL0544-0562-6-00
6 Plug DF62B-6EP-2.2C(10) CL0544-0562-6-10 https://www.hirose.com/en/product/p/CL0544-0562-6-10
6 In-line plug DF62B-6EP-2.2C(18) CL0544-0562-6-18 https://www.hirose.com/en/product/p/CL0544-0562-6-18
6 Socket DF62C-6S-2.2C CL0544-0569-5-00 https://www.hirose.com/en/product/p/CL0544-0569-5-00
6 Socket DF62C-6S-2.2C(11) CL0544-0569-5-11 https://www.hirose.com/en/product/p/CL0544-0569-5-11
6 Socket DF62C-6S-2.2C(18) CL0544-0569-5-18 https://www.hirose.com/en/product/p/CL0544-0569-5-18
6 Socket DF62B-6S-2.2C CL0544-0555-0-00 https://www.hirose.com/en/product/p/CL0544-0555-0-00
6 Socket DF62B-6S-2.2C(11) CL0544-0555-0-11 https://www.hirose.com/en/product/p/CL0544-0555-0-11
6 Plug DF62P-6EP-2.2C CL0544-0547-2-00 https://www.hirose.com/en/product/p/CL0544-0547-2-00
6 In-line plug DF62P-6EP-2.2C(10) CL0544-0547-2-10 https://www.hirose.com/en/product/p/CL0544-0547-2-10
7 Plug DF62B-7EP-2.2C CL0544-0563-9-00 https://www.hirose.com/en/product/p/CL0544-0563-9-00
7 Plug DF62B-7EP-2.2C(10) CL0544-0563-9-10 https://www.hirose.com/en/product/p/CL0544-0563-9-10
7 Socket DF62B-7S-2.2C(11) CL0544-0556-3-11 https://www.hirose.com/en/product/p/CL0544-0556-3-11
7 Socket DF62C-7S-2.2C CL0544-0570-4-00 https://www.hirose.com/en/product/p/CL0544-0570-4-00
7 Socket DF62C-7S-2.2C(11) CL0544-0570-4-11 https://www.hirose.com/en/product/p/CL0544-0570-4-11
7 Socket DF62B-7S-2.2C CL0544-0556-3-00 https://www.hirose.com/en/product/p/CL0544-0556-3-00
7 In-line plug DF62P-7EP-2.2C CL0544-0548-5-00 https://www.hirose.com/en/product/p/CL0544-0548-5-00
7 In-line plug DF62P-7EP-2.2C(10) CL0544-0548-5-10 https://www.hirose.com/en/product/p/CL0544-0548-5-10
9 Plug DF62B-9EP-2.2C CL0544-0623-0-00 https://www.hirose.com/en/product/p/CL0544-0623-0-00
9 Socket DF62C-9S-2.2C CL0544-0622-0-00 https://www.hirose.com/en/product/p/CL0544-0622-0-00
13 Header DF62-13P-2.2DS(01) CL0544-0581-0-01 https://www.hirose.com/en/product/p/CL0544-0581-0-01
13 Header DF62-13P-2.2DSA(01) CL0544-0582-0-01 https://www.hirose.com/en/product/p/CL0544-0582-0-01
13 In-line plug DF62P-13EP-2.2C(18) CL0544-0549-8-18 https://www.hirose.com/en/product/p/CL0544-0549-8-18
13 Socket DF62B-13S-2.2C(18) CL0544-0557-6-18 https://www.hirose.com/en/product/p/CL0544-0557-6-18
13 Header DF62-13P-2.2DS CL0544-0581-0-00 https://www.hirose.com/en/product/p/CL0544-0581-0-00
13 Header DF62-13P-2.2DSA CL0544-0582-0-00 https://www.hirose.com/en/product/p/CL0544-0582-0-00
13 Plug DF62B-13EP-2.2C CL0544-0564-1-00 https://www.hirose.com/en/product/p/CL0544-0564-1-00
13 Plug DF62B-13EP-2.2C(10) CL0544-0564-1-10 https://www.hirose.com/en/product/p/CL0544-0564-1-10
13 Plug DF62B-13EP-2.2C(18) CL0544-0564-1-18 https://www.hirose.com/en/product/p/CL0544-0564-1-18
13 Socket DF62B-13S-2.2C CL0544-0557-6-00 https://www.hirose.com/en/product/p/CL0544-0557-6-00
13 Socket DF62B-13S-2.2C(11) CL0544-0557-6-11 https://www.hirose.com/en/product/p/CL0544-0557-6-11
13 Socket DF62C-13S-2.2C CL0544-0571-7-00 https://www.hirose.com/en/product/p/CL0544-0571-7-00
13 Socket DF62C-13S-2.2C(11) CL0544-0571-7-11 https://www.hirose.com/en/product/p/CL0544-0571-7-11
13 Socket DF62C-13S-2.2C(18) CL0544-0571-7-18 https://www.hirose.com/en/product/p/CL0544-0571-7-18
13 In-line plug DF62P-13EP-2.2C CL0544-0549-8-00 https://www.hirose.com/en/product/p/CL0544-0549-8-00
13 In-line plug DF62P-13EP-2.2C(10) CL0544-0549-8-10 https://www.hirose.com/en/product/p/CL0544-0549-8-10
22 Contact DF62-22SC CL0544-0572-0-00 https://www.hirose.com/en/product/p/CL0544-0572-0-00
22 Contact DF62-EP22PC CL0544-0575-8-00 https://www.hirose.com/en/product/p/CL0544-0575-8-00
22 Contact DF62-22SCA CL0544-0526-2-00 https://www.hirose.com/en/product/p/CL0544-0526-2-00
22 Contact DF62-22SCF CL0544-0520-6-00 https://www.hirose.com/en/product/p/CL0544-0520-6-00
22 Contact DF62-22SCFA CL0544-0506-5-00 https://www.hirose.com/en/product/p/CL0544-0506-5-00
22 Contact DF62-EP22PCA CL0544-0529-0-00 https://www.hirose.com/en/product/p/CL0544-0529-0-00
22 Contact DF62-EP22PCF CL0544-0523-4-00 https://www.hirose.com/en/product/p/CL0544-0523-4-00
22 Contact DF62-EP22PCFA CL0544-0507-8-00 https://www.hirose.com/en/product/p/CL0544-0507-8-00
24 Header DF62-24P-2.2DSA(01) CL0544-0584-0-01 https://www.hirose.com/en/product/p/CL0544-0584-0-01
24 Header DF62-24P-2.2DS(01) CL0544-0583-0-01 https://www.hirose.com/en/product/p/CL0544-0583-0-01
24 Contact DF62-EP2428PCFA(05) CL0544-0501-1-05 https://www.hirose.com/en/product/p/CL0544-0501-1-05
24 Header DF62-24P-2.2DS CL0544-0583-0-00 https://www.hirose.com/en/product/p/CL0544-0583-0-00
24 Header DF62-24P-2.2DSA CL0544-0584-0-00 https://www.hirose.com/en/product/p/CL0544-0584-0-00
24 Contact DF62-2428SC CL0544-0573-2-00 https://www.hirose.com/en/product/p/CL0544-0573-2-00
24 Contact DF62-EP2428PC CL0544-0576-0-00 https://www.hirose.com/en/product/p/CL0544-0576-0-00
24 Contact DF62-2428SCA CL0544-0527-5-00 https://www.hirose.com/en/product/p/CL0544-0527-5-00
24 Contact DF62-2428SCF CL0544-0521-9-00 https://www.hirose.com/en/product/p/CL0544-0521-9-00
24 Contact DF62-2428SCFA CL0544-0500-9-00 https://www.hirose.com/en/product/p/CL0544-0500-9-00
24 Contact DF62-2428SCFA(05) CL0544-0500-9-05 https://www.hirose.com/en/product/p/CL0544-0500-9-05
24 Contact DF62-EP2428PCA CL0544-0530-0-00 https://www.hirose.com/en/product/p/CL0544-0530-0-00
24 Contact DF62-EP2428PCF CL0544-0524-7-00 https://www.hirose.com/en/product/p/CL0544-0524-7-00
24 Contact DF62-EP2428PCFA CL0544-0501-1-00 https://www.hirose.com/en/product/p/CL0544-0501-1-00
24 Plug DF62B-24EP-2.2C CL0544-0540-3-00 https://www.hirose.com/en/product/p/CL0544-0540-3-00
24 Plug DF62B-24EP-2.2C(10) CL0544-0540-3-10 https://www.hirose.com/en/product/p/CL0544-0540-3-10
24 In-line plug DF62B-24EP-2.2C(18) CL0544-0540-3-18 https://www.hirose.com/en/product/p/CL0544-0540-3-18
24 Socket DF62B-24S-2.2C CL0544-0539-4-00 https://www.hirose.com/en/product/p/CL0544-0539-4-00
24 Socket DF62B-24S-2.2C(11) CL0544-0539-4-11 https://www.hirose.com/en/product/p/CL0544-0539-4-11
24 Socket DF62B-24S-2.2C(18) CL0544-0539-4-18 https://www.hirose.com/en/product/p/CL0544-0539-4-18
24 Socket DF62C-24S-2.2C CL0544-0541-6-00 https://www.hirose.com/en/product/p/CL0544-0541-6-00
24 Socket DF62C-24S-2.2C(11) CL0544-0541-6-11 https://www.hirose.com/en/product/p/CL0544-0541-6-11
24 Socket DF62C-24S-2.2C(18) CL0544-0541-6-18 https://www.hirose.com/en/product/p/CL0544-0541-6-18
24 Plug DF62P-24EP-2.2C CL0544-0550-7-00 https://www.hirose.com/en/product/p/CL0544-0550-7-00
24 In-line plug DF62P-24EP-2.2C(10) CL0544-0550-7-10 https://www.hirose.com/en/product/p/CL0544-0550-7-10
30 Contact DF62-30SC CL0544-0574-5-00 https://www.hirose.com/en/product/p/CL0544-0574-5-00
30 Contact DF62-EP30PC CL0544-0577-3-00 https://www.hirose.com/en/product/p/CL0544-0577-3-00
30 Contact DF62-30SCA CL0544-0528-8-00 https://www.hirose.com/en/product/p/CL0544-0528-8-00
30 Contact DF62-30SCF CL0544-0522-1-00 https://www.hirose.com/en/product/p/CL0544-0522-1-00
30 Contact DF62-30SCFA CL0544-0508-0-00 https://www.hirose.com/en/product/p/CL0544-0508-0-00
30 Contact DF62-EP30PCA CL0544-0531-2-00 https://www.hirose.com/en/product/p/CL0544-0531-2-00
30 Contact DF62-EP30PCF CL0544-0525-0-00 https://www.hirose.com/en/product/p/CL0544-0525-0-00
30 Contact DF62-EP30PCFA CL0544-0509-3-00 https://www.hirose.com/en/product/p/CL0544-0509-3-00





Support Custom Wire Harness Assembly



  • Connectors: 2-24P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 200 pieces per order.

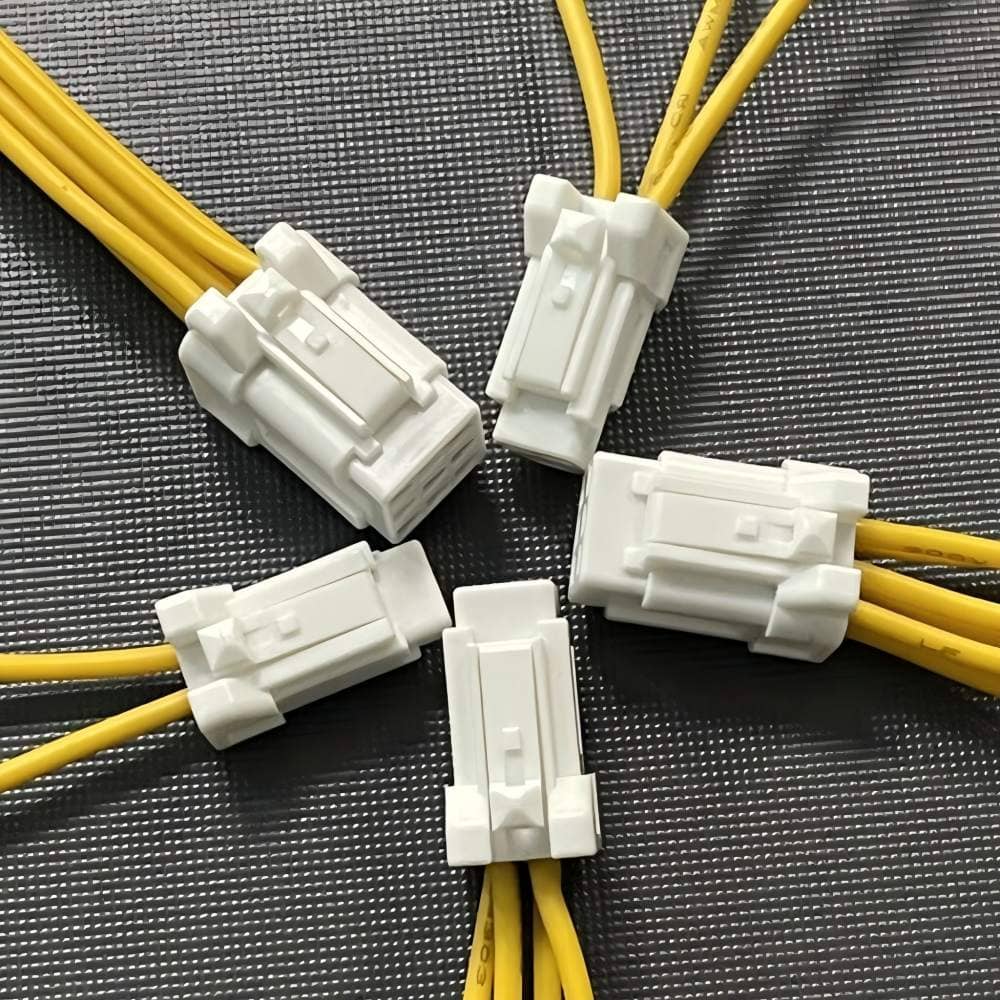

DF62 Wire Assembly





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
