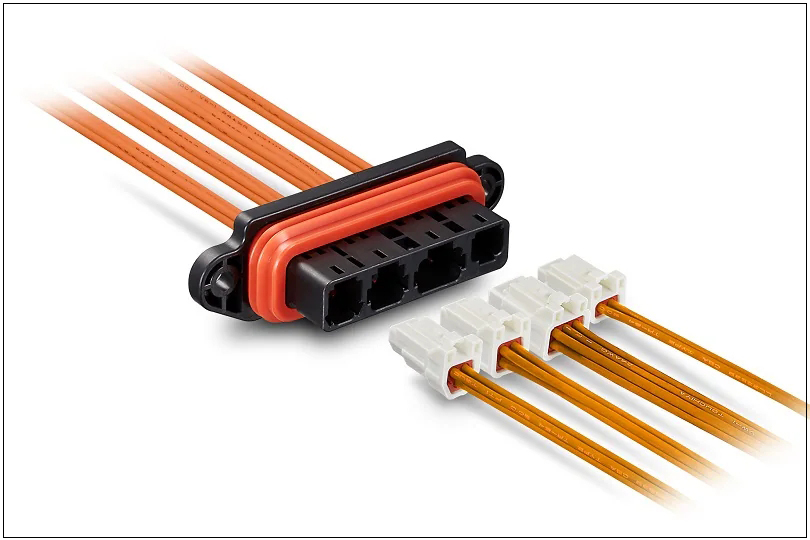

Hirose DF62W Connector



The Hirose DF62W series, part of the SignalBee™ product line, is a 2.2mm pitch, water-resistant (IP65/IP67), slim in-line connector designed for internal wiring applications. The specifications confirm a wide variety, including headers, plugs, and sockets in 2, 3, 4, 6, and 9 positions, with interface rows from 1 to 3, straight orientation, and crimp termination for discrete wires from 20 to 30 AWG. It is certified to UL and C-UL/CSA standards with a rated voltage of 250V AC/DC and a current rating from 2.5A to 5.0A, operating from -55°C to 105°C. The series features a slim, sleek design with smooth contours for connections in tight spaces, a secure lock mechanism, and a robust, reliable contact design. It offers various product variations, supports sharing of applicators for assembly efficiency, complies with the Glow Wire standard (IEC 60695-2-11), and uses Through-Hole Technology (THT) mounting.

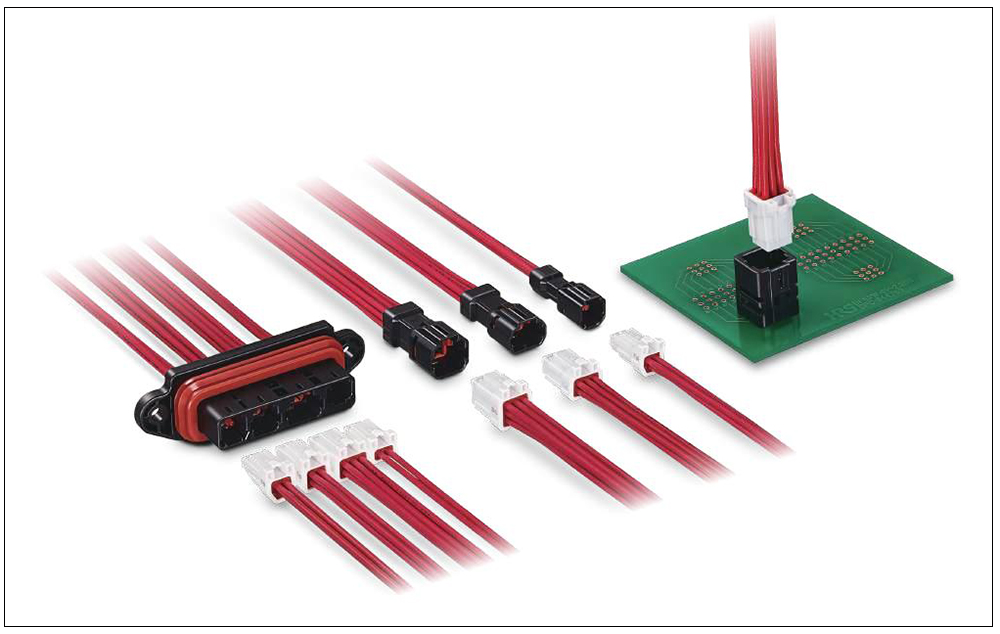

Hirose DF62W Connector





Features



  • Water Resistant, Slim In-line Connector for Internal Wiring
  • IP65/IP67
  • The slim, sleek design and smooth contour combine to create connections in tight spaces.
  • Secure Lock Mechanism
  • Reliable Contact Design
  • Robust Contact Design
  • Various Variations
  • Applicator Sharing
  • Glow Wire Compliance (Compliant with IEC 60695-2-11)
  • UL, C-UL Certified (Rated voltage 250V AC/DC)





Specifications



Connector Type Header, Plug, Socket, Contact, Others Parts Contact cavity sealing
Safety Standards UL, C-UL/CSA Number of Positions 2, 3, 4, 5, 6, 9
Rated Current 2.5, 3.5, 4.0, 5.0A Mounting Pitch 2.2 mm
Rated Voltage(AC) AC 250.0V Mounting Side Standard on-Board
Rated Voltage(DC) DC 250.0V Staggered Lead No
Number of Rows(Interface) 1, 2, 3 Connector Orientation Straight
Contact Pitch 2.2 mm Contact Plating Gold, Tin
Mounting Style THT Housing Color Black, White
PCB Stabilizing Feature Soldering Recommended Wire Type Discrete wire
Recommended PCB Thickness 1.6mm Max. Recommended Max.Wire Size  (AWG) 20, 22, 24, 28
Mating/Unmating Cycles 30, 50 Recommended Min.Wire Size  (AWG) 22, 26, 30
Wire Termination Method Crimping Operating Temperature Max. 105℃
Connector Type Details In-line plug, Accessory Operating Temperature Min. -55, -40℃





Connector Lists



No. of Position Type P/N Hirose P/N Links
2 Plug DF62WZC-2EP-2.2C CL0544-1125-0-00 https://www.hirose.com/en/product/p/CL0544-1125-0-00
2 Plug DF62WZD-2EP-2.2C CL0544-1133-0-00 https://www.hirose.com/en/product/p/CL0544-1133-0-00
2 Socket DF62WZC-2S-2.2C CL0544-1107-0-00 https://www.hirose.com/en/product/p/CL0544-1107-0-00
2 Socket DF62WZ-2S-2.2C CL0544-1102-0-00 https://www.hirose.com/en/product/p/CL0544-1102-0-00
2 Socket DF62WZ-2S-2.2C(11) CL0544-1102-0-11 https://www.hirose.com/en/product/p/CL0544-1102-0-11
2 Plug DF62WZ-2EP-2.2C CL0544-1060-0-00 https://www.hirose.com/en/product/p/CL0544-1060-0-00
2 Socket DF62W-2S-2.2C(11) CL0544-1002-7-11 https://www.hirose.com/en/product/p/CL0544-1002-7-11
2 Plug DF62WC-2EP-2.2C CL0544-1047-0-00 https://www.hirose.com/en/product/p/CL0544-1047-0-00
2 Socket DF62WC-2S-2.2C CL0544-1046-0-00 https://www.hirose.com/en/product/p/CL0544-1046-0-00
2 Plug DF62W-2EP-2.2C CL0544-1003-0-00 https://www.hirose.com/en/product/p/CL0544-1003-0-00
2 Socket DF62W-2S-2.2C CL0544-1002-7-00 https://www.hirose.com/en/product/p/CL0544-1002-7-00
3 Header DF62WZ-3P-2.2DSA(50) CL0544-1055-0-50 https://www.hirose.com/en/product/p/CL0544-1055-0-50
3 Header DF62WZ-3P-2.2DSA(20) CL0544-1055-0-20 https://www.hirose.com/en/product/p/CL0544-1055-0-20
3 Plug DF62WZC-3EP-2.2C CL0544-1126-0-00 https://www.hirose.com/en/product/p/CL0544-1126-0-00
3 Plug DF62WZD-3EP-2.2C CL0544-1134-0-00 https://www.hirose.com/en/product/p/CL0544-1134-0-00
3 Socket DF62WZC-3S-2.2C CL0544-1108-0-00 https://www.hirose.com/en/product/p/CL0544-1108-0-00
3 Plug DF62WZ-3EP-2.2C CL0544-1061-0-00 https://www.hirose.com/en/product/p/CL0544-1061-0-00
3 Socket DF62WZ-3S-2.2C CL0544-1103-0-00 https://www.hirose.com/en/product/p/CL0544-1103-0-00
3 Socket DF62WZ-3S-2.2C(11) CL0544-1103-0-11 https://www.hirose.com/en/product/p/CL0544-1103-0-11
3 Header DF62W-3P-2.2DSA(20) CL0544-1021-0-20 https://www.hirose.com/en/product/p/CL0544-1021-0-20
3 Plug DF62WC-3EP-2.2C CL0544-1053-0-00 https://www.hirose.com/en/product/p/CL0544-1053-0-00
3 Socket DF62WC-3S-2.2C CL0544-1054-0-00 https://www.hirose.com/en/product/p/CL0544-1054-0-00
3 Socket DF62W-3S-2.2C(11) CL0544-1004-2-11 https://www.hirose.com/en/product/p/CL0544-1004-2-11
3 Plug DF62W-3EP-2.2C CL0544-1005-5-00 https://www.hirose.com/en/product/p/CL0544-1005-5-00
3 Socket DF62W-3S-2.2C CL0544-1004-2-00 https://www.hirose.com/en/product/p/CL0544-1004-2-00
4 Plug DF62WZC-4EP-2.2C CL0544-1127-0-00 https://www.hirose.com/en/product/p/CL0544-1127-0-00
4 Socket DF62WZC-4S-2.2C CL0544-1109-0-00 https://www.hirose.com/en/product/p/CL0544-1109-0-00
4 Plug DF62WZ-4EP-2.2C CL0544-1062-0-00 https://www.hirose.com/en/product/p/CL0544-1062-0-00
4 Socket DF62WZ-4S-2.2C CL0544-1104-0-00 https://www.hirose.com/en/product/p/CL0544-1104-0-00
4 Socket DF62WZ-4S-2.2C(11) CL0544-1104-0-11 https://www.hirose.com/en/product/p/CL0544-1104-0-11
4 Plug DF62WC-4EP-2.2C CL0544-1052-0-00 https://www.hirose.com/en/product/p/CL0544-1052-0-00
4 Socket DF62WC-4S-2.2C CL0544-1051-0-00 https://www.hirose.com/en/product/p/CL0544-1051-0-00
4 Socket DF62W-4S-2.2C(11) CL0544-1006-8-11 https://www.hirose.com/en/product/p/CL0544-1006-8-11
4 Plug DF62W-4EP-2.2C CL0544-1007-0-00 https://www.hirose.com/en/product/p/CL0544-1007-0-00
4 Socket DF62W-4S-2.2C CL0544-1006-8-00 https://www.hirose.com/en/product/p/CL0544-1006-8-00
5 Plug DF62WZA-6EP-2.2C CL0544-1131-0-00 https://www.hirose.com/en/product/p/CL0544-1131-0-00
5 Socket DF62WZCA-6S-2.2C CL0544-1123-0-00 https://www.hirose.com/en/product/p/CL0544-1123-0-00
5 Socket DF62WZA-6S-2.2C(11) CL0544-1112-0-11 https://www.hirose.com/en/product/p/CL0544-1112-0-11
6 Header DF62WZ-6P-2.2DSA(50) CL0544-1059-0-50 https://www.hirose.com/en/product/p/CL0544-1059-0-50
6 Plug DF62WZC-6EP-2.2C CL0544-1128-0-00 https://www.hirose.com/en/product/p/CL0544-1128-0-00
6 Socket DF62WZC-6S-2.2C CL0544-1110-0-00 https://www.hirose.com/en/product/p/CL0544-1110-0-00
6 Plug DF62WZ-6EP-2.2C CL0544-1063-0-00 https://www.hirose.com/en/product/p/CL0544-1063-0-00
6 Socket DF62WZ-6S-2.2C CL0544-1105-0-00 https://www.hirose.com/en/product/p/CL0544-1105-0-00
6 Socket DF62WZ-6S-2.2C(11) CL0544-1105-0-11 https://www.hirose.com/en/product/p/CL0544-1105-0-11
6 Socket DF62WDA-6S-2.2C CL0544-1099-0-00 https://www.hirose.com/en/product/p/CL0544-1099-0-00
6 Header DF62WZ-6P-2.2DSA(20) CL0544-1059-0-20 https://www.hirose.com/en/product/p/CL0544-1059-0-20
6 Plug DF62WC-6EP-2.2C CL0544-1058-0-00 https://www.hirose.com/en/product/p/CL0544-1058-0-00
6 Socket DF62WC-6S-2.2C CL0544-1057-0-00 https://www.hirose.com/en/product/p/CL0544-1057-0-00
6 Socket DF62W-6S-2.2C(11) CL0544-1008-3-11 https://www.hirose.com/en/product/p/CL0544-1008-3-11
6 Plug DF62W-6EP-2.2C CL0544-1009-6-00 https://www.hirose.com/en/product/p/CL0544-1009-6-00
6 Socket DF62W-6S-2.2C CL0544-1008-3-00 https://www.hirose.com/en/product/p/CL0544-1008-3-00
9 Plug DF62WZC-9EP-2.2C CL0544-1129-0-00 https://www.hirose.com/en/product/p/CL0544-1129-0-00
9 Socket DF62WZD-9S-2.2C CL0544-1122-0-00 https://www.hirose.com/en/product/p/CL0544-1122-0-00
9 Socket DF62WZC-9S-2.2C CL0544-1111-0-00 https://www.hirose.com/en/product/p/CL0544-1111-0-00
9 Plug DF62WZ-9EP-2.2C CL0544-1064-0-00 https://www.hirose.com/en/product/p/CL0544-1064-0-00
9 Socket DF62WZ-9S-2.2C(11) CL0544-1106-0-11 https://www.hirose.com/en/product/p/CL0544-1106-0-11
9 Socket DF62WZ-9S-2.2C CL0544-1106-0-00 https://www.hirose.com/en/product/p/CL0544-1106-0-00
9 Header DF62WZ-9P-2.2DSA(50) CL0544-1050-0-50 https://www.hirose.com/en/product/p/CL0544-1050-0-50
9 Header DF62WZ-9P-2.2DSA(20) CL0544-1050-0-20 https://www.hirose.com/en/product/p/CL0544-1050-0-20
9 Plug DF62WC-9EP-2.2C CL0544-1037-0-00 https://www.hirose.com/en/product/p/CL0544-1037-0-00
9 Socket DF62WC-9S-2.2C CL0544-1032-0-00 https://www.hirose.com/en/product/p/CL0544-1032-0-00
9 Socket DF62W-9S-2.2C(11) CL0544-1010-5-11 https://www.hirose.com/en/product/p/CL0544-1010-5-11
9 Plug DF62W-9EP-2.2C CL0544-1011-8-00 https://www.hirose.com/en/product/p/CL0544-1011-8-00
9 Socket DF62W-9S-2.2C CL0544-1010-5-00 https://www.hirose.com/en/product/p/CL0544-1010-5-00
  Plug DF62WP-3/4/6/2EP-2.2C(10) CL0544-1056-0-10 https://www.hirose.com/en/product/p/CL0544-1056-0-10
  Plug DF62WP-3/4/6/2EP-2.2C CL0544-1056-0-00 https://www.hirose.com/en/product/p/CL0544-1056-0-00
  Contact DF62W-EP2022PC CL0544-1018-7-00 https://www.hirose.com/en/product/p/CL0544-1018-7-00
  Contact DF62W-2022SCA CL0544-1045-0-00 https://www.hirose.com/en/product/p/CL0544-1045-0-00
  Contact DF62W-EP2226PCA CL0544-1042-0-00 https://www.hirose.com/en/product/p/CL0544-1042-0-00
  Contact DF62W-2226SCA CL0544-1044-0-00 https://www.hirose.com/en/product/p/CL0544-1044-0-00
  Contact DF62W-EP2022PCA CL0544-1043-0-00 https://www.hirose.com/en/product/p/CL0544-1043-0-00
  Contact DF62W-2022SC CL0544-1017-4-00 https://www.hirose.com/en/product/p/CL0544-1017-4-00
  Contact DF62W-EP2830PCFA CL0544-1039-0-00 https://www.hirose.com/en/product/p/CL0544-1039-0-00
  Contact DF62W-2830SCFA CL0544-1038-0-00 https://www.hirose.com/en/product/p/CL0544-1038-0-00
  Contact DF62W-2226SC CL0544-1012-0-00 https://www.hirose.com/en/product/p/CL0544-1012-0-00
  Contact DF62W-EP2226PC CL0544-1013-3-00 https://www.hirose.com/en/product/p/CL0544-1013-3-00
  Contact DF62W-2226SCFA CL0544-1025-0-00 https://www.hirose.com/en/product/p/CL0544-1025-0-00
  Contact DF62W-EP2226PCFA CL0544-1026-0-00 https://www.hirose.com/en/product/p/CL0544-1026-0-00
  Contact DF62W-2022SCFA CL0544-1027-0-00 https://www.hirose.com/en/product/p/CL0544-1027-0-00
  Contact DF62W-EP2022PCFA CL0544-1028-0-00 https://www.hirose.com/en/product/p/CL0544-1028-0-00
  Contact DF62W-2022SCF CL0544-1015-9-00 https://www.hirose.com/en/product/p/CL0544-1015-9-00
  Contact DF62W-EP2022PCF CL0544-1016-1-00 https://www.hirose.com/en/product/p/CL0544-1016-1-00
  Contact DF62W-2226SCF CL0544-1000-1-00 https://www.hirose.com/en/product/p/CL0544-1000-1-00
  Contact DF62W-EP2226PCF CL0544-1001-4-00 https://www.hirose.com/en/product/p/CL0544-1001-4-00
  Others DF62W-WP CL0544-1014-6-00 https://www.hirose.com/en/product/p/CL0544-1014-6-00





Support Custom Wire Harness Assembly



  • Connectors: 2P to 9P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 200 pieces per order.



Hirose DF62W Connector Wire





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
