Hirose DF63 Connector

The Hirose DF63 Series is a comprehensive line of 15A, 3.96mm-pitch wire-to-board connectors designed for internal power supply applications and certified to UL, C-UL, and TÜV standards. Engineered for reliability, these connectors support a high current rating of up to 15A with 16 AWG wire. They are available in 1 to 6 positions, with select models also offering a 7.92mm pitch for 2 and 3-position configurations without pins. Key features include a secure locking mechanism that provides clear tactile feedback to prevent incomplete mating, a structure that prevents incomplete crimp contact insertion, and a guide post on pin headers to avoid reverse PCB mounting. The design also incorporates short-circuit prevention through isolated contacts, a molded lance to reduce wire tangling, and compatibility with potting up to 5mm. Constructed with glass-reinforced PBT insulation and available in straight or right-angle headers, crimp sockets, and in-line plugs, the DF63 Series is suitable for demanding environments, operating from -55°C to +105°C, and offers robust performance for power connections in various electronic equipment.

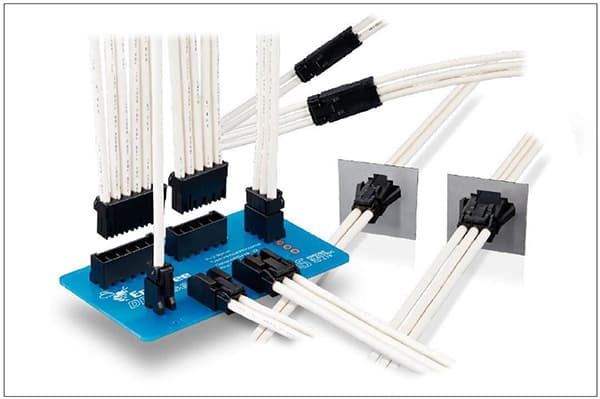

DF63 Connector

Features

15A 3.96mm pitch Wire-to-Board Connectors for Internal Power Supply
Rated for up to 15A
Secure mating and clear tactile click
Prevents incomplete insertion of the crimp contact
Reverse mounting prevention on the PCB
Short-circuit prevention
Molded lance design
Suitable for potting
Solder crack prevention

Specifications

Connector Type	Header, Plug, Socket, Contact	Number of Positions	1, 2, 3, 4, 5, 6
Safety Standards	UL, C-UL/CSA, TÜV	Mounting Pitch	3.96, 7.92mm
Rated Current	10.0, 11.0, 12.0, 14.0, 15.0A	Contact Pitch	3.96, 7.92mm
Rated Voltage(AC)	AC630.0V	Mounting Side	Standard on-Board
Rated Voltage(DC)	DC630.0V	Staggered Lead	No
Number of Rows(Interface)	1	Connector Orientation	Straight, Right angle
Mounting Style	THT	Contact Plating	Gold, Tin
PCB Stabilizing Feature	Soldering	Housing Color	Black, White
Recommended PCB Thickness	1.6mm Max.	Recommended Wire Type	Discrete wire
Mating/Unmating Cycles	30, 50	Recommended Max.Wire Size (AWG)	16, 20
Wire Termination Method	Crimping	Recommended Min.Wire Size (AWG)	18, 22
Panel Mounting Style	Snap-in	Operating Temperature Max.	105℃
Connector Type Details	In-line plug	Operating Temperature Min.	-55℃

Connector Lists

No. of Position	Types	P/N	Hirose P/N	Links
1	Header	DF63M-1P-3.96DSA(01)	CL0680-0566-0-01	https://www.hirose.com/en/product/p/CL0680-0566-0-01
1	Header	DF63M-1P-3.96DS	CL0680-0570-0-00	https://www.hirose.com/en/product/p/CL0680-0570-0-00
1	Header	DF63M-1P-3.96DSA	CL0680-0566-0-00	https://www.hirose.com/en/product/p/CL0680-0566-0-00
1	Plug	DF63A-1EP-3.96C	CL0680-0555-0-00	https://www.hirose.com/en/product/p/CL0680-0555-0-00
1	Plug	DF63-1EP-3.96C	CL0680-0551-0-00	https://www.hirose.com/en/product/p/CL0680-0551-0-00
1	Socket	DF63-1S-3.96C	CL0680-0508-2-00	https://www.hirose.com/en/product/p/CL0680-0508-2-00
2	Header	DF63M-2P-7.92DSA(01)	CL0680-0581-0-01	https://www.hirose.com/en/product/p/CL0680-0581-0-01
2	Header	DF63M-2P-3.96DSA(01)	CL0680-0567-0-01	https://www.hirose.com/en/product/p/CL0680-0567-0-01
2	Header	DF63M-2P-3.96DS(01)	CL0680-0571-0-01	https://www.hirose.com/en/product/p/CL0680-0571-0-01
2	Header	DF63M-2P-7.92DS(01)	CL0680-0583-0-01	https://www.hirose.com/en/product/p/CL0680-0583-0-01
2	Header	DF63M-2P-3.96DS	CL0680-0571-0-00	https://www.hirose.com/en/product/p/CL0680-0571-0-00
2	Header	DF63M-2P-3.96DSA	CL0680-0567-0-00	https://www.hirose.com/en/product/p/CL0680-0567-0-00
2	Header	DF63M-2P-7.92DS	CL0680-0583-0-00	https://www.hirose.com/en/product/p/CL0680-0583-0-00
2	Header	DF63M-2P-7.92DSA	CL0680-0581-0-00	https://www.hirose.com/en/product/p/CL0680-0581-0-00
2	Plug	DF63-2EP-3.96C	CL0680-0533-0-00	https://www.hirose.com/en/product/p/CL0680-0533-0-00
2	Plug	DF63A-2EP-3.96C	CL0680-0535-5-00	https://www.hirose.com/en/product/p/CL0680-0535-5-00
2	Socket	DF63-2S-3.96C	CL0680-0509-5-00	https://www.hirose.com/en/product/p/CL0680-0509-5-00
3	Header	DF63M-3P-3.96DSA(01)	CL0680-0568-0-01	https://www.hirose.com/en/product/p/CL0680-0568-0-01
3	Header	DF63M-3P-3.96DS(01)	CL0680-0572-0-01	https://www.hirose.com/en/product/p/CL0680-0572-0-01
3	Header	DF63M-3P-3.96DS	CL0680-0572-0-00	https://www.hirose.com/en/product/p/CL0680-0572-0-00
3	Header	DF63M-3P-3.96DSA	CL0680-0568-0-00	https://www.hirose.com/en/product/p/CL0680-0568-0-00
3	Header	DF63-3P-7.92DS	CL0680-0559-0-00	https://www.hirose.com/en/product/p/CL0680-0559-0-00
3	Plug	DF63-3EP-3.96C	CL0680-0532-7-00	https://www.hirose.com/en/product/p/CL0680-0532-7-00
3	Plug	DF63A-3EP-3.96C	CL0680-0534-2-00	https://www.hirose.com/en/product/p/CL0680-0534-2-00
3	Header	DF63-3P-7.92DSA	CL0680-0537-0-00	https://www.hirose.com/en/product/p/CL0680-0537-0-00
3	Header	DF63-3P-7.92DSA(01)	CL0680-0537-0-01	https://www.hirose.com/en/product/p/CL0680-0537-0-01
3	Socket	DF63-3S-3.96C	CL0680-0502-6-00	https://www.hirose.com/en/product/p/CL0680-0502-6-00
3	Socket	DF63R-3S-3.96C	CL0680-0516-0-00	https://www.hirose.com/en/product/p/CL0680-0516-0-00
4	Header	DF63M-4P-3.96DSA(01)	CL0680-0569-0-01	https://www.hirose.com/en/product/p/CL0680-0569-0-01
4	Header	DF63M-4P-3.96DSA	CL0680-0569-0-00	https://www.hirose.com/en/product/p/CL0680-0569-0-00
4	Plug	DF63A-4EP-3.96C	CL0680-0556-0-00	https://www.hirose.com/en/product/p/CL0680-0556-0-00
4	Header	DF63-4P-3.96DS(01)	CL0680-0545-0-01	https://www.hirose.com/en/product/p/CL0680-0545-0-01
4	Plug	DF63-4EP-3.96C	CL0680-0552-0-00	https://www.hirose.com/en/product/p/CL0680-0552-0-00
4	Header	DF63-4P-3.96DS	CL0680-0545-0-00	https://www.hirose.com/en/product/p/CL0680-0545-0-00
4	Socket	DF63R-4S-3.96C	CL0680-0524-9-00	https://www.hirose.com/en/product/p/CL0680-0524-9-00
4	Socket	DF63-4S-3.96C	CL0680-0510-4-00	https://www.hirose.com/en/product/p/CL0680-0510-4-00
5	Plug	DF63-5EP-3.96C	CL0680-0553-0-00	https://www.hirose.com/en/product/p/CL0680-0553-0-00
5	Plug	DF63A-5EP-3.96C	CL0680-0557-0-00	https://www.hirose.com/en/product/p/CL0680-0557-0-00
5	Header	DF63R-5P-3.96DSA(01)	CL0680-0520-8-01	https://www.hirose.com/en/product/p/CL0680-0520-8-01
5	Socket	DF63R-5S-3.96C	CL0680-0525-1-00	https://www.hirose.com/en/product/p/CL0680-0525-1-00
5	Header	DF63-5P-3.96DS	CL0680-0546-0-00	https://www.hirose.com/en/product/p/CL0680-0546-0-00
5	Header	DF63-5P-3.96DSA	CL0680-0506-7-00	https://www.hirose.com/en/product/p/CL0680-0506-7-00
5	Socket	DF63-5S-3.96C	CL0680-0511-7-00	https://www.hirose.com/en/product/p/CL0680-0511-7-00
6	Plug	DF63-6EP-3.96C	CL0680-0554-0-00	https://www.hirose.com/en/product/p/CL0680-0554-0-00
6	Plug	DF63A-6EP-3.96C	CL0680-0558-0-00	https://www.hirose.com/en/product/p/CL0680-0558-0-00
6	Header	DF63-6P-3.96DSA(01)	CL0680-0507-0-01	https://www.hirose.com/en/product/p/CL0680-0507-0-01
6	Header	DF63-6P-3.96DS(01)	CL0680-0547-0-01	https://www.hirose.com/en/product/p/CL0680-0547-0-01
6	Header	DF63-6P-3.96DS	CL0680-0547-0-00	https://www.hirose.com/en/product/p/CL0680-0547-0-00
6	Header	DF63-6P-3.96DSA	CL0680-0507-0-00	https://www.hirose.com/en/product/p/CL0680-0507-0-00
6	Socket	DF63-6S-3.96C	CL0680-0512-0-00	https://www.hirose.com/en/product/p/CL0680-0512-0-00
	Contact	DF63A-1618SC	CL0680-0648-0-00	https://www.hirose.com/en/product/p/CL0680-0648-0-00
	Contact	DF63A-1618SCA	CL0680-0650-0-00	https://www.hirose.com/en/product/p/CL0680-0650-0-00
	Contact	DF63A-2022SC	CL0680-0649-0-00	https://www.hirose.com/en/product/p/CL0680-0649-0-00
	Contact	DF63A-2022SCA	CL0680-0651-0-00	https://www.hirose.com/en/product/p/CL0680-0651-0-00
	Contact	DF63A-2022SCFA	CL0680-0647-0-00	https://www.hirose.com/en/product/p/CL0680-0647-0-00
	Contact	DF63A-1618SCFA	CL0680-0646-0-00	https://www.hirose.com/en/product/p/CL0680-0646-0-00
	Contact	DF63-1618PCA	CL0680-0637-0-00	https://www.hirose.com/en/product/p/CL0680-0637-0-00
	Contact	DF63-2022PCA	CL0680-0639-0-00	https://www.hirose.com/en/product/p/CL0680-0639-0-00
	Contact	DF63-2022PCFA	CL0680-0638-0-00	https://www.hirose.com/en/product/p/CL0680-0638-0-00
	Contact	DF63-1618PCFA	CL0680-0636-0-00	https://www.hirose.com/en/product/p/CL0680-0636-0-00
	Contact	DF63A-2022SCF	CL0680-0097-0-00	https://www.hirose.com/en/product/p/CL0680-0097-0-00
	Contact	DF63A-1618SCF	CL0680-0573-0-00	https://www.hirose.com/en/product/p/CL0680-0573-0-00
	Contact	DF63-2022PC	CL0680-0539-6-00	https://www.hirose.com/en/product/p/CL0680-0539-6-00
	Contact	DF63-1618PC	CL0680-0536-8-00	https://www.hirose.com/en/product/p/CL0680-0536-8-00
	Contact	DF63-2022PCF	CL0680-0538-3-00	https://www.hirose.com/en/product/p/CL0680-0538-3-00
	Contact	DF63-1618PCF	CL0680-0529-2-00	https://www.hirose.com/en/product/p/CL0680-0529-2-00

Support Custom Wire Harness Assembly

Connectors: 1P to 6P.
Wire Gauge:
- depends on your needs
- recommend by us
Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
Wire Length: Fully customizable to your specifications.
Wiring Diagram: Tailor-made to meet your project needs.
Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
Minimum Order: 200 pieces per order.

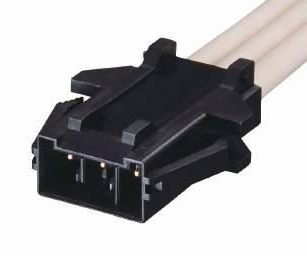

DF63-3EP-3.96C

DF63-3EP-3.96C Wire

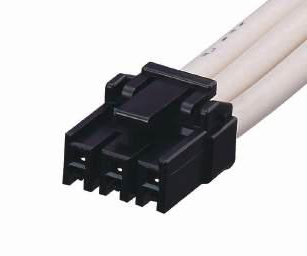

DF63-3S-3.96C

DF63-3S-3.96C Wire

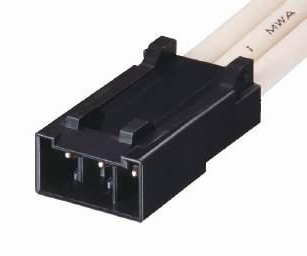

DF63A-3EP-3.96C

DF63A-3EP-3.96C Wire

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
