Hirose DF65 Connector

Based on the provided documentation, it appears you are inquiring about the Hirose DF65 Series connector, not the DF63. The HIROSE DF65 Series is a 1.7mm pitch, low-profile wire-to-board connector family engineered explicitly for power supply applications. It is designed to offer enhanced reliability, featuring a unique locking structure to prevent misalignment, a vertical mating style for efficient assembly and space savings, and a highly reliable two-point contact system. Capable of handling a maximum current of 4A per pin (with 24 AWG wire) and a voltage rating of AC/DC 50V, it is UL and C-UL certified. The series includes header, socket, and crimp contact variants with 3 to 7 positions, using LCP for the housing and brass/copper alloy for the contacts, available with tin or gold plating. It is suitable for demanding environments, including automotive applications, offering robust performance in a compact form factor.

Hirose DF65

Features

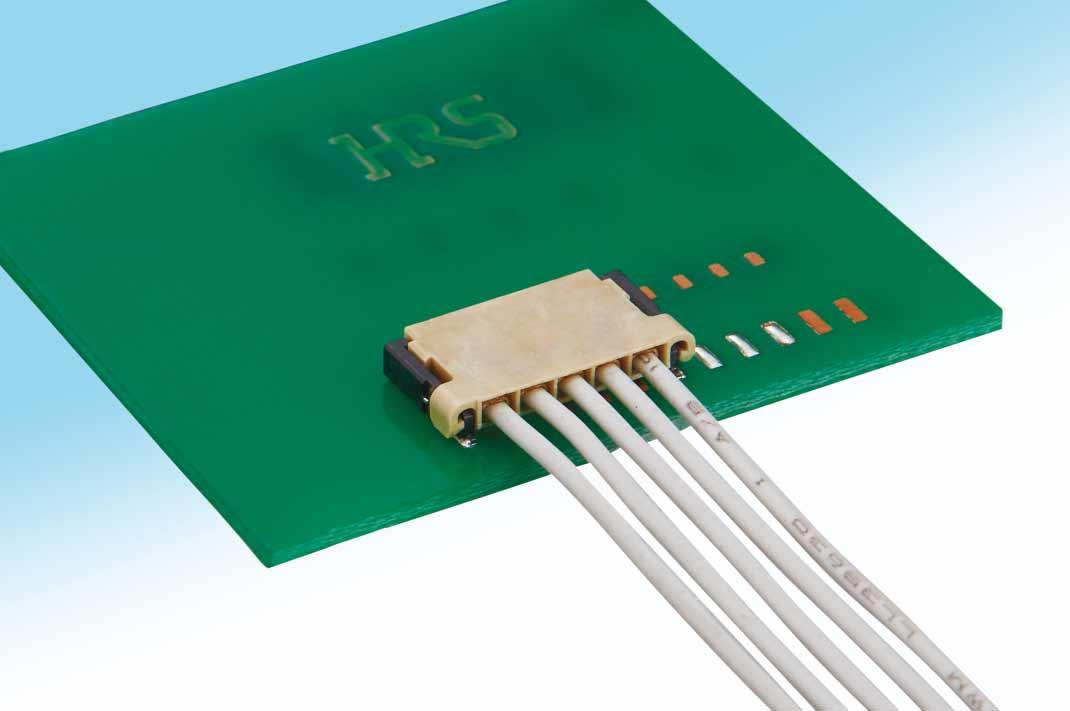

1.7mm pitch, Low Profile Wire-to-Board Connectors for Power Supplies
Enhanced contact reliability and lock structure
Vertical mating provides superior handling
Highly reliable contact structure
Increased cable retention
High current of MAX 4A (24 AWG)
Solder wicking prevention
Prevents Accidental unmating
UL and C-UL Certified

Specifications

Connector Type	Header, Socket, Contact	Number of Positions	3, 4, 5, 6, 7
Safety Standards	UL, C-UL/CSA	Mounting Pitch	1.7 mm
Rated Current	3.5, 4.0A	Mounting Side	Standard on-Board
Rated Voltage(AC)	AC 50.0V	Connector Orientation	Straight
Rated Voltage(DC)	DC 50.0V	Contact Plating	Gold, Tin
Number of Rows (Interface)	1	Housing Color	Black, Beige
Contact Pitch	1.7mm	Recommended Wire Type	Discrete wire
Mounting Style	SMT	Recommended Max.Wire Size (AWG)	24
Mating/Unmating Cycles	30, 50	Recommended Min.Wire Size (AWG)	28
Plating Thickness	0.25, 0.76, 1.0μm	Operating Temperature Max.	105℃
Wire Termination Method	Crimping	Operating Temperature Min.	-40℃

Connector Lists

No. of Position	Type	P/N	Hirose P/N	Links
3	Header	DF65-3P-1.7V(78)	CL0666-6004-5-78	https://www.hirose.com/en/product/p/CL0666-6004-5-78
3	Header	DF65-3P-1.7V(21)	CL0666-6004-5-21	https://www.hirose.com/en/product/p/CL0666-6004-5-21
3	Socket	DF65-3S-1.7C	CL0666-6005-8-00	https://www.hirose.com/en/product/p/CL0666-6005-8-00
4	Header	DF65-4P-1.7V(78)	CL0666-6006-0-78	https://www.hirose.com/en/product/p/CL0666-6006-0-78
4	Header	DF65-4P-1.7V(21)	CL0666-6006-0-21	https://www.hirose.com/en/product/p/CL0666-6006-0-21
4	Socket	DF65-4S-1.7C	CL0666-6007-3-00	https://www.hirose.com/en/product/p/CL0666-6007-3-00
5	Header	DF65-5P-1.7V(78)	CL0666-6001-7-78	https://www.hirose.com/en/product/p/CL0666-6001-7-78
5	Header	DF65-5P-1.7V(21)	CL0666-6001-7-21	https://www.hirose.com/en/product/p/CL0666-6001-7-21
5	Socket	DF65-5S-1.7C	CL0666-6002-0-00	https://www.hirose.com/en/product/p/CL0666-6002-0-00
6	Header	DF65-6P-1.7V(78)	CL0666-6008-6-78	https://www.hirose.com/en/product/p/CL0666-6008-6-78
6	Header	DF65-6P-1.7V(21)	CL0666-6008-6-21	https://www.hirose.com/en/product/p/CL0666-6008-6-21
6	Socket	DF65-6S-1.7C	CL0666-6009-9-00	https://www.hirose.com/en/product/p/CL0666-6009-9-00
7	Header	DF65-7P-1.7V(78)	CL0666-6014-9-78	https://www.hirose.com/en/product/p/CL0666-6014-9-78
7	Header	DF65-7P-1.7V(76)	CL0666-6014-9-76	https://www.hirose.com/en/product/p/CL0666-6014-9-76
7	Header	DF65-7P-1.7V(21)	CL0666-6014-9-21	https://www.hirose.com/en/product/p/CL0666-6014-9-21
7	Socket	DF65-7S-1.7C	CL0666-6015-1-00	https://www.hirose.com/en/product/p/CL0666-6015-1-00
	Contact	DF65-2428SCFA(07)	CL0666-6016-4-07	https://www.hirose.com/en/product/p/CL0666-6016-4-07
	Contact	DF65-2428SCFA(05)	CL0666-6016-4-05	https://www.hirose.com/en/product/p/CL0666-6016-4-05
	Contact	DF65-2428SCF	CL0666-6003-2-00	https://www.hirose.com/en/product/p/CL0666-6003-2-00

Support Custom Wire Harness Assembly

Connectors: 3P to 7P.
Wire Gauge:
- depends on your needs
- recommend by us
Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
Wire Length: Fully customizable to your specifications.
Wiring Diagram: Tailor-made to meet your project needs.
Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
Minimum Order: 200 pieces per order.

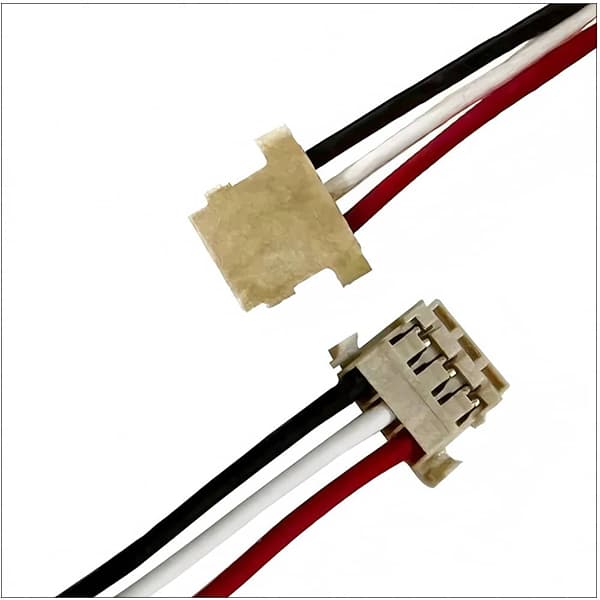

Hirose DF65 Connector Wire
