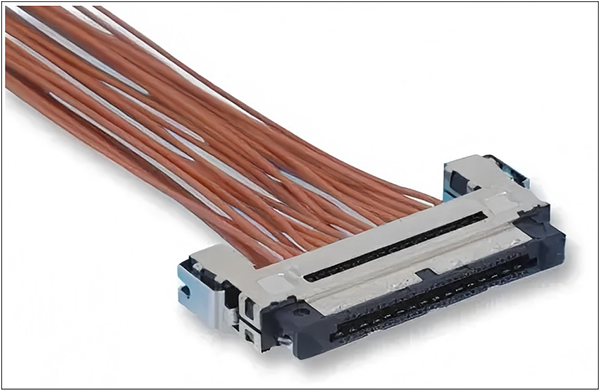

Hirose FX15 Connector
The Hirose FX15 series is a family of compact, 1.0mm pitch, cable-to-board connectors specifically designed to support high-speed differential signals such as LVDS. The core specification from the documents confirms a 1.0mm contact pitch, a 0.5mm mounting pitch, a double-row interface, and a rated current of 0.5A at 100V AC. The extensive product list shows a wide range of variations, including plugs, receptacles, and ground plates, in positions 21 to 51, with both straight and right-angle (vertical) orientations, available in black housing. Key to its signal integrity is the design for equal-length transmission lines. The series offers both shielded (e.g., FX15S variants, which provide enhanced shielding performance) and non-shielded types for design flexibility. It features self-alignment and self-guiding for secure and complete mating/unmating over 50 cycles, supports discrete wire (crimped) and micro-coaxial cable (soldered) terminations for 28-36 AWG, and is compatible with SMT assembly. The connectors are RoHS compliant and operate in a temperature range from -55°C to 85°C, making them a space-saving and reliable solution for high-density, high-speed internal connections.
Features
- 1mm Pitch Cable-to-Board Connectors supporting LVDS signal
- Space-saving
- Equal-length transmission lines
- Variations. Availability of shielded and non-shielded types allows for design flexibility and cost reduction.
- Self alignment and self-guiding
- Secure and complete mating / unmating
- Enhanced shielding performance with FX15S
- RoHS compliant
Specifications
| Connector Type | Plug, Receptacle, Contact, Others | Parts | Ground plate |
| Rated Current | 0.5A | Number of Positions | 21, 31, 41, 51 |
| Rated Voltage(AC) | AC100.0V | Mounting Pitch | 0.5 mm |
| Number of Rows(Interface) | 2 | Mounting Side | Standard on-Board |
| Contact Pitch | 1.0 mm | Staggered Lead | Yes |
| Mounting Style | SMT | Connector Orientation | Straight, Right angle |
| PCB Stabilizing Feature | Soldering | Contact Plating | Gold, Nickel |
| Mating/Unmating Cycles | 50 | Housing Color | Black |
| Plating Thickness | 0.1, 0.3μm | Recommended Wire Type | Discrete wire, Micro-coaxial cable |
| Wire Termination Method | Soldering, Crimping | Recommended Max.Wire Size (AWG) | 28, 30, 36 |
| Operating Temperature Max. | 85℃ | Recommended Min.Wire Size (AWG) | 30, 32, 40 |
| Operating Temperature Min. | -55, -40℃ |
Connector Lists

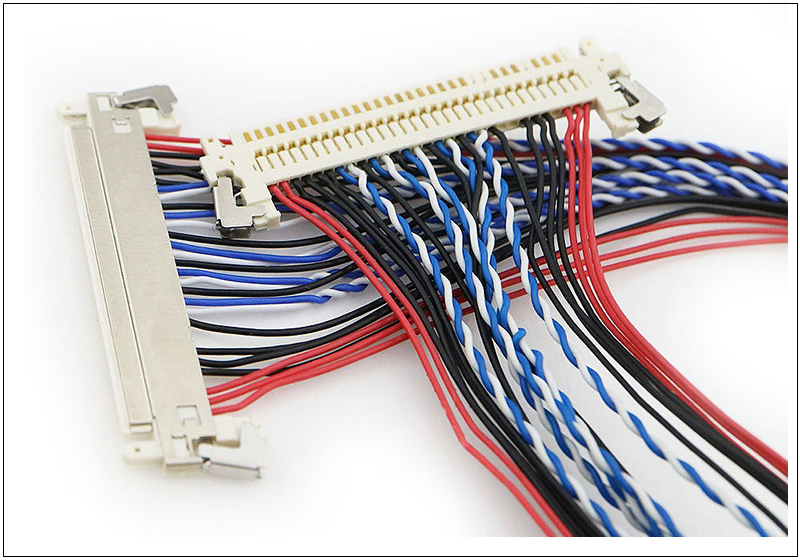

Support Custom Wire Harness Assembly
- Connectors: 21P, 31P, 41P, and 51P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
