Hirose GT25 Connector

The Hirose GT25 Series is a compact wire-to-board connector solution featuring a 0.64mm contact tab size and a 2.2mm pitch, designed to reduce PCB mounting space significantly. This robust connector series offers a wide product lineup, including receptacles (right-angle and straight), plug housings, retainers, and crimp contacts for 8 to 40 positions, catering to diverse application needs. Key features include a high prying force of 98N minimum for secure mating, heat resistance up to 105°C, and a clear tactile click for reliable connection feedback. It is rated for 3A at 250V AC and operates from -40°C to +105°C. The GT25 is compatible with other manufacturers' products and is ideal for applications such as automotive ECUs, ADAS, automated driving equipment, and infotainment systems.

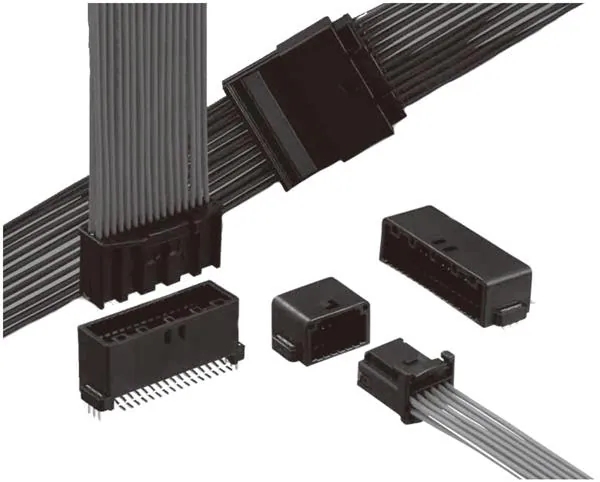

GT25 Wire

Features

0.64mm Contact Tab Size, 2.2mm Pitch, Wire-to-Board Connector
Reduces PCB Mounting Space (0.64mm Contact Tab Size / 2.2mm Pitch)
Wide Product Line-up
Prying Force: 98N Min.
Heat Resistant Up to 105℃
Clear Tactile Click
Can Be Mated with Other Manufacturers' Products

Specifications

Connector Type	Header, Plug, Receptacle, Contact	Parts	Retainer
Rated Current	1.0, 3.0A	Number of Positions	8, 12, 16, 20, 24, 32, 40
Rated Voltage(AC)	AC 250.0V	Mounting Pitch	1.1, 2.2mm
Number of Rows (Interface)	2	Mounting Side	Standard on-Board
Contact Pitch	2.2 mm	Connector Orientation	Straight, Right angle
Mounting Style	THR, SMT	Contact Plating	Gold, Tin
PCB Stabilizing Feature	Lock-pin, Soldering	Housing Color	Black, Dark gray, Light gray
Recommended PCB Thickness	1.6mm Max.	Recommended Wire Type	Discrete wire
Mating/Unmating Cycles	30	Recommended Max.Wire Size (AWG)	20, 24
Plating Thickness	0.2, 0.5, 1.0 μm	Recommended Min.Wire Size (AWG)	22, 24, 26, 28
Operating Temperature Max.	105℃	Wire Termination Method	Crimping
Operating Temperature Min.	-40, -30℃

Connector Lists

No. of Positions	Type	P/N	Hirose P/N	Links
4	Receptacle	GT25H2-4P-2.2H	CL0775-0091-6-00	https://www.hirose.com/en/product/p/CL0775-0091-6-00
8	Receptacle	GT25H2-8DP-2.2H(31)	CL0775-0047-4-31	https://www.hirose.com/en/product/p/CL0775-0047-4-31
8	Plug	GT25-8DS-HU	CL0775-0064-3-00	https://www.hirose.com/en/product/p/CL0775-0064-3-00
8	Plug	GT25-8DS-R	CL0775-0065-6-00	https://www.hirose.com/en/product/p/CL0775-0065-6-00
8	Receptacle	GT25H2-8DP-2.2H(10)	CL0775-0047-4-10	https://www.hirose.com/en/product/p/CL0775-0047-4-10
8	Receptacle	GT25H2-8DP-2.2V	CL0775-0094-0-00	https://www.hirose.com/en/product/p/CL0775-0094-0-00
8	Receptacle	GT25H2-8DP-2.2H	CL0775-0047-4-00	https://www.hirose.com/en/product/p/CL0775-0047-4-00
8	Plug	GT25-8DS-HU/R	CL0775-0059-3-00	https://www.hirose.com/en/product/p/CL0775-0059-3-00
12	Receptacle	GT25H2-12DP-2.2H(31)	CL0775-0092-9-31	https://www.hirose.com/en/product/p/CL0775-0092-9-31
12	Receptacle	GT25H-12DP-2.2V(60)	CL0775-0050-9-60	https://www.hirose.com/en/product/p/CL0775-0050-9-60
12	Receptacle	GT25H2-12DP-2.2H(10)	CL0775-0092-9-10	https://www.hirose.com/en/product/p/CL0775-0092-9-10
12	Header	GT25H-12DP-2.2H(60)	CL0775-0038-3-60	https://www.hirose.com/en/product/p/CL0775-0038-3-60
12	Plug	GT25-12DS-HU(50)	CL0775-0037-0-50	https://www.hirose.com/en/product/p/CL0775-0037-0-50
12	Plug	GT25-12DS-HU/R(50)	CL0775-0062-8-50	https://www.hirose.com/en/product/p/CL0775-0062-8-50
12	Receptacle	GT25H2-12DP-2.2H	CL0775-0092-9-00	https://www.hirose.com/en/product/p/CL0775-0092-9-00
12	Plug	GT25-12DS-R	CL0775-0041-8-00	https://www.hirose.com/en/product/p/CL0775-0041-8-00
16	Receptacle	GT25H2-16DP-2.2H(31)	CL0775-0089-4-31	https://www.hirose.com/en/product/p/CL0775-0089-4-31
16	Receptacle	GT25-16DP-2.2V(56)	CL0775-0020-8-56	https://www.hirose.com/en/product/p/CL0775-0020-8-56
16	Plug	GT25-16DS-HU	CL0775-0066-9-00	https://www.hirose.com/en/product/p/CL0775-0066-9-00
16	Plug	GT25-16DS-R	CL0775-0067-1-00	https://www.hirose.com/en/product/p/CL0775-0067-1-00
16	Receptacle	GT25R-16DP-2.2H	CL0775-0130-0-00	https://www.hirose.com/en/product/p/CL0775-0130-0-00
16	Receptacle	GT25H2-16DP-2.2H(10)	CL0775-0089-4-10	https://www.hirose.com/en/product/p/CL0775-0089-4-10
16	Receptacle	GT25H2-16DP-2.2H	CL0775-0089-4-00	https://www.hirose.com/en/product/p/CL0775-0089-4-00
20	Receptacle	GT25H2-20DP-2.2H(31)	CL0775-0080-0-31	https://www.hirose.com/en/product/p/CL0775-0080-0-31
20	Receptacle	GT25H2-20DP-2.2H(10)	CL0775-0080-0-10	https://www.hirose.com/en/product/p/CL0775-0080-0-10
20	Header	GT25H2-20DP-2.2H(99)	CL0775-0080-0-99	https://www.hirose.com/en/product/p/CL0775-0080-0-99
20	Plug	GT25-20DS-R	CL0775-0076-2-00	https://www.hirose.com/en/product/p/CL0775-0076-2-00
20	Plug	GT25-20DS-HU	CL0775-0075-0-00	https://www.hirose.com/en/product/p/CL0775-0075-0-00
20	Plug	GT25-20DS-HU/R	CL0775-0074-7-00	https://www.hirose.com/en/product/p/CL0775-0074-7-00
24	Receptacle	GT25H2-24DP-2.2H(31)	CL0775-0081-2-31	https://www.hirose.com/en/product/p/CL0775-0081-2-31
24	Header	GT25-24DP-2.2V(56)	CL0775-0021-0-86	https://www.hirose.com/en/product/p/CL0775-0021-0-86
24	Header	GT25H2-24DP-2.2H(99)	CL0775-0081-2-99	https://www.hirose.com/en/product/p/CL0775-0081-2-99
24	Receptacle	GT25H2-24DP-2.2V	CL0775-0083-8-00	https://www.hirose.com/en/product/p/CL0775-0083-8-00
24	Receptacle	GT25H2-24DP-2.2H(10)	CL0775-0081-2-10	https://www.hirose.com/en/product/p/CL0775-0081-2-10
24	Plug	GT25-24DS-HU	CL0775-0068-4-00	https://www.hirose.com/en/product/p/CL0775-0068-4-00
24	Plug	GT25-24DS-R	CL0775-0069-7-00	https://www.hirose.com/en/product/p/CL0775-0069-7-00
24	Plug	GT25-24DS-HU/R	CL0775-0046-1-00	https://www.hirose.com/en/product/p/CL0775-0046-1-00
32	Receptacle	GT25H2-32DP-2.2H(31)	CL0775-0086-6-31	https://www.hirose.com/en/product/p/CL0775-0086-6-31
32	Receptacle	GT25H-32DP-2.2V(60)	CL0775-0053-7-60	https://www.hirose.com/en/product/p/CL0775-0053-7-60
32	Receptacle	GT25H2-32DP-2.2H(10)	CL0775-0086-6-10	https://www.hirose.com/en/product/p/CL0775-0086-6-10
32	Plug	GT25-32DS-HU	CL0775-0042-0-00	https://www.hirose.com/en/product/p/CL0775-0042-0-00
32	Plug	GT25-32DS-R	CL0775-0043-3-00	https://www.hirose.com/en/product/p/CL0775-0043-3-00
32	Plug	GT25-32DS-HU/R	CL0775-0044-6-00	https://www.hirose.com/en/product/p/CL0775-0044-6-00
40	Receptacle	GT25H2-40DP-2.2H(31)	CL0775-0090-3-31	https://www.hirose.com/en/product/p/CL0775-0090-3-31
40	Receptacle	GT25H2-40DP-2.2H(10)	CL0775-0090-3-10	https://www.hirose.com/en/product/p/CL0775-0090-3-10
40	Receptacle	GT25H2-40DP-2.2V	CL0775-0085-3-00	https://www.hirose.com/en/product/p/CL0775-0085-3-00
40	Plug	GT25-40DS-HU	CL0775-0023-0-00	https://www.hirose.com/en/product/p/CL0775-0023-0-00
40	Plug	GT25-40DS-R	CL0775-0028-0-00	https://www.hirose.com/en/product/p/CL0775-0028-0-00
	Contact	GT25-2024SC	CL0775-0034-2-00	https://www.hirose.com/en/product/p/CL0775-0034-2-00
	Contact	GT25-2024SCF	CL0775-0002-6-00	https://www.hirose.com/en/product/p/CL0775-0002-6-00
	Contact	GT25-2428SCF	CL0775-0013-2-00	https://www.hirose.com/en/product/p/CL0775-0013-2-00
	Contact	GT25H-2024SCF	CL0775-0039-6-00	https://www.hirose.com/en/product/p/CL0775-0039-6-00
	Contact	GT25H-2024SCF(01)	CL0775-0039-6-01	https://www.hirose.com/en/product/p/CL0775-0039-6-01
	Contact	GT25H-2024SCF(02)	CL0775-0039-6-02	https://www.hirose.com/en/product/p/CL0775-0039-6-02
	Contact	GT25HB-2428SCF	CL0775-0070-6-00	https://www.hirose.com/en/product/p/CL0775-0070-6-00

Support Custom Wire Harness Assembly

Connectors: 4P to 40P.
Wire Gauge:
- depends on your needs
- recommend by us
Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
Wire Length: Fully customizable to your specifications.
Wiring Diagram: Tailor-made to meet your project needs.
Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
Minimum Order: 200 pieces per order.

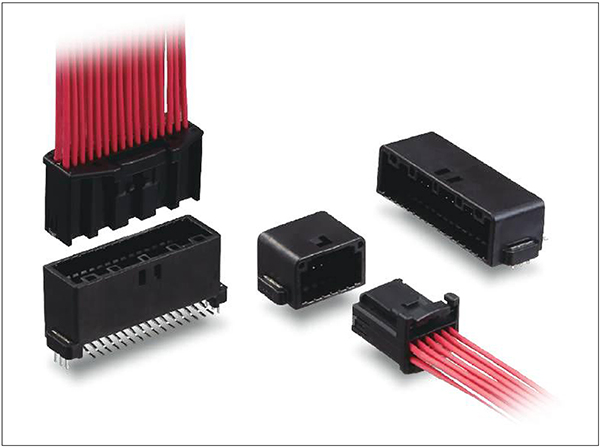

Hirose GT25 Connector Wire

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
