Hirose GT50 Connector

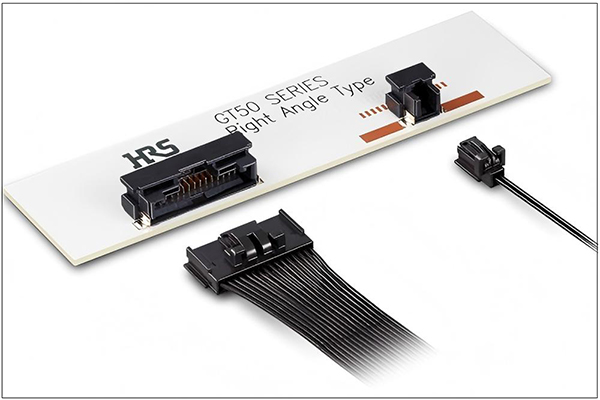

The Hirose GT50 series is a compact, high-reliability wire-to-board connector designed for automotive internal connections. Its key features include a 1mm pitch and a single-row configuration, which contribute to space savings and weight reduction in end products. The connector is engineered for demanding automotive environments, offering high heat resistance up to 125℃. A stabilizer mechanism reduces contact wear, enabling high vibration resistance. It features a robust design for secure cable routing that prevents disconnection and incorporates a user-friendly lock to prevent incomplete mating, enhancing contact reliability. Available in 2 to 16 positions, it supports crimp termination and surface-mount technology (SMT), making it a suitable solution for reliable, compact interconnects within vehicles.
Features
- 1.0mm Pitch
- Single Row
- Small Size/Heat/Vibration Resistant Wire-to-Board Connector
- Contributes to space-saving and weight reduction
- High heat resistance up to 125℃
- Stabilizer reduces contact wear and enables high vibration resistance
- Robust design for cable routing that resists disconnecting
- User-friendly lock design
Specifications
| Connector Type | Plug, Receptacle, Contact | Number of Positions | 2, 4, 6, 8, 12, 16 |
| Rated Current | 1.5, 2.0 A | Mounting Pitch | 1.0 mm |
| Rated Voltage(AC) | AC 60.0V | Connector Orientation | Right angle |
| Rated Voltage(DC) | DC 60.0V | Contact Plating | Gold |
| Number of Rows(Interface) | 1 | Housing Color | Black |
| Contact Pitch | 1.0 mm | Recommended Max.Wire Size (AWG) | 28 |
| Mounting Style | SMT | Recommended Max.Wire Size (mm²) | 0.08mm² |
| PCB Stabilizing Feature | Soldering | Recommended Min.Wire Size (AWG) | 28 |
| Mating/Unmating Cycles | 10 | Recommended Min.Wire Size (mm²) | 0.08mm² |
| Wire Termination Method | Crimping | Operating Temperature Max. | 125℃ |
| Connector Type Details | Housing | Operating Temperature Min. | -40℃ |
Connector Lists

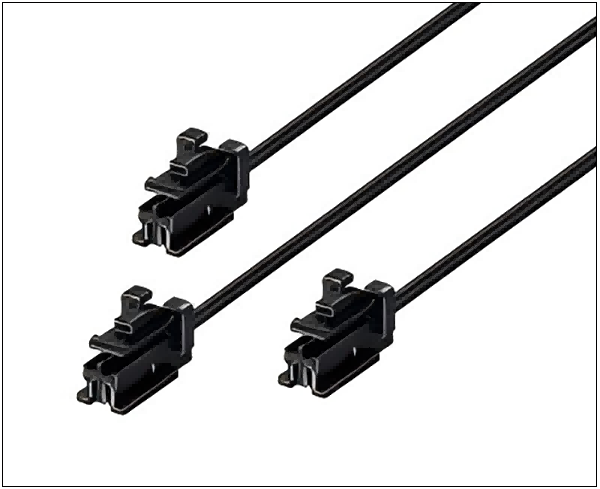

Support Custom Wire Harness Assembly
- Connectors: 2P to 16P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
