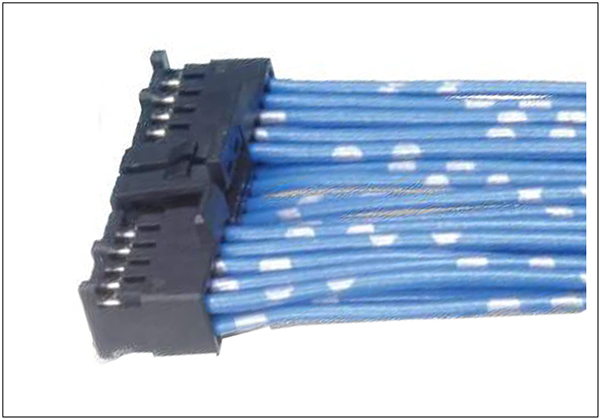

Hirose GT8E Connector

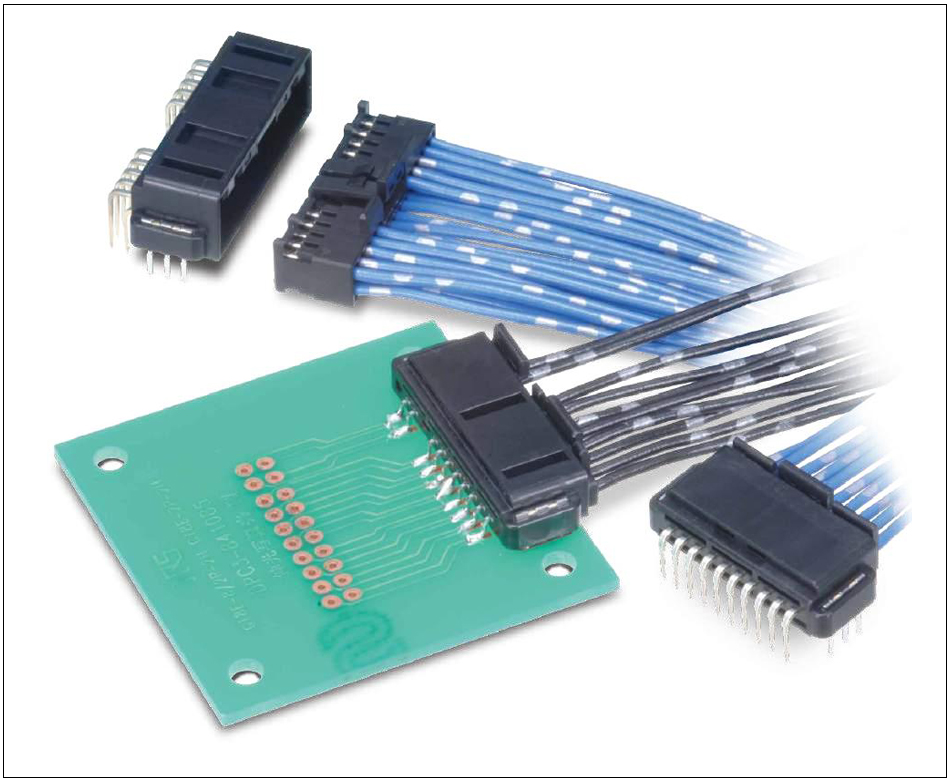

The Hirose GT8E series is a versatile 2.0mm pitch connector system designed for wire-to-board and wire-to-wire applications, offering a wide range of configurations, including headers, plugs, and jacks, in positions from 2 to 24, with both single- and double-row interfaces and straight or right-angle orientations. Key specifications from the document include a rated current of 1.0A, an AC voltage rating of 250V, an operating temperature range of -40°C to 105°C, and support for SMT or THT mounting with crimp termination for 20-28 AWG wire. The series features gold or tin-plated contacts. As per the provided details, its design ensures high reliability with features such as a formed dimple construction at the contact portion to prevent oxidation, a design that prevents misinsertions, stress resistance, and, for SMT headers, pin-in-hole type metal fittings that provide high PCB retention force. This combination of variety, robust electrical specs, and mechanical reliability makes it suitable for demanding interconnection needs.

Features

• 2.0mm Pitch, Wire-to-Board, Wire-to-Wire Connector
• Use of a formed dimple construction at the contact portion helps prevent oxidation.
• Design prevents misinsertions.
• Stress resisting design.
• SMT-type pin header with pin-in-hole type metal fittings improves PCB retention. High PCB retention force.

Specifications

Connector Lists

Support Custom Wire Harness Assembly

• Connectors: 2P to 24P.
• Wire Gauge:
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
