Hirose HIF3B Connector, China Wire Harness Manufacturer

Hirose HIF3B Connector



The Hirose HIF3B series is a comprehensive family of 2.54mm pitch ribbon cable connectors. The specifications confirm a wide variety, including headers, plugs, sockets, and contacts, with positions ranging from 6 to 100, in straight and right-angle orientations. Key electrical parameters from the document include a rated current of 1.0A or 3.0A, a voltage rating of AC 200.0V, and an operating temperature range from -55°C to 85°C. It features Through-Hole Technology (THT) mounting, gold-plated contacts, and supports crimp or IDC termination for discrete wires and flat cables (20-36 AWG). The series is a UL and C-UL/CSA approved product. As per the provided details, it is compliant with the MIL-C-83503 standard and is designed with a polarization key mechanism to prevent mis-insertion. The document-specified compatibility with flat cable aligns with the supplementary detail noting applicable cable as UL2651 AWG#28 flat cable.

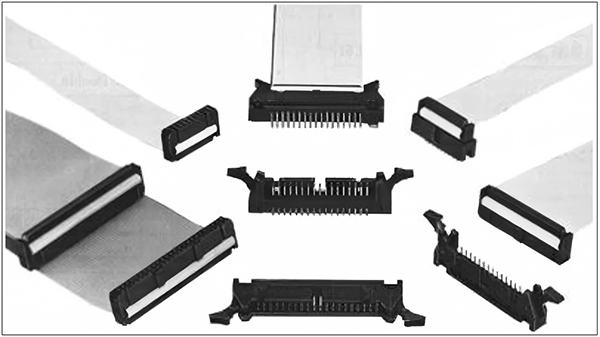

Hirose HIF3B Connector





Features



  • Ribbon Cable Connector Compliant with MIL Standard
  • Compliant with MIL Standard (MIL-C-83503)
  • UL Approval Product
  • Mechanism to Prevent Mis-insertion
  • Applicable Cable UL2651 AWG#28 flat cable





Specification



Connector Type Header, Plug, Socket, Contact, Others, Housing, Accessory Parts Guide Pin, Cover case, Polarization key
Safety Standards UL, C-UL/CSA Industry Standard MIL
Rated Current 1.0, 3.0A Number of Positions 6, 10, 14, 16, 20, 24, 26, 30, 34, 40, 50, 60, 64, 100
Rated Voltage(AC) AC 200.0V Mounting Pitch 2.54 mm
Number of Rows(Interface) 24 Mounting Side Standard on-Board
Contact Pitch 2.54mm Staggered Lead No
Mounting Style THT, Wire wrapping Connector Orientation Straight, Right angle
PCB Stabilizing Feature Soldering Contact Plating Gold
Mating/Unmating Cycles 500 Housing Color Black, White
Plating Thickness 0.2, 0.76μm Recommended Wire Type Discrete wire, Flat cable
Wire Termination Method Crimping, IDC Recommended Max.Wire Size (AWG) 20, 22, 24, 26, 32
Operating Temperature Min. -55, -30℃ Recommended Min.Wire Size (AWG) 22, 26, 28, 30, 36
Operating Temperature Max. 60, 85℃





Connector Lists



No. of Position Type P/N Hirose P/N Links
6 Socket HIF3BA-6D-2.54R(63) CL0610-0032-3-63 https://www.hirose.com/en/product/p/CL0610-0032-3-63
6 Socket HIF3B-6D-2.54R(63) CL0610-0012-6-63 https://www.hirose.com/en/product/p/CL0610-0012-6-63
6 Header HIF3-6PA-2.54DSA(71) CL0562-0503-9-71 https://www.hirose.com/en/product/p/CL0562-0503-9-71
10 Socket HIF3BA-10D-2.54R(63) CL0610-0021-7-63 https://www.hirose.com/en/product/p/CL0610-0021-7-63
10 Socket HIF3B-10D-2.54R(63) CL0610-0001-0-63 https://www.hirose.com/en/product/p/CL0610-0001-0-63
10 Housing HIF3BA-10D-2.54C(63) CL0610-1041-0-63 https://www.hirose.com/en/product/p/CL0610-1041-0-63
10 Header HIF3BDF-10PA-2.54DSA(63) CL0610-0631-8-63 https://www.hirose.com/en/product/p/CL0610-0631-8-63
10 Header HIF3BDG-10PA-2.54DSA(63) CL0610-0611-0-63 https://www.hirose.com/en/product/p/CL0610-0611-0-63
10 Header HIF3CA-10PA-2.54DSA(63) CL0610-0701-1-63 https://www.hirose.com/en/product/p/CL0610-0701-1-63
10 Header HIF3BD-10PA-2.54DS(63) CL0610-0171-0-63 https://www.hirose.com/en/product/p/CL0610-0171-0-63
10 Header HIF3BC-10PA-2.54DS(63) CL0610-0151-2-63 https://www.hirose.com/en/product/p/CL0610-0151-2-63
10 Header HIF3CD-10PA-2.54DSA(63) CL0610-0722-1-63 https://www.hirose.com/en/product/p/CL0610-0722-1-63
10 Header HIF3BA-10PA-2.54DS(63) CL0610-0091-2-63 https://www.hirose.com/en/product/p/CL0610-0091-2-63
10 Header HIF3B-10PA-2.54DS(63) CL0610-0051-8-63 https://www.hirose.com/en/product/p/CL0610-0051-8-63
10 Header HIF3BA-10PA-2.54DSA(63) CL0610-0111-8-63 https://www.hirose.com/en/product/p/CL0610-0111-8-63
10 Header HIF3BAF-10PA-2.54DSA(63) CL0610-0251-7-63 https://www.hirose.com/en/product/p/CL0610-0251-7-63
10 Header HIF3BAG-10PA-2.54DSA(63) CL0610-0291-1-63 https://www.hirose.com/en/product/p/CL0610-0291-1-63
10 Header HIF3BD-10PA-2.54DSA(63) CL0610-0181-3-63 https://www.hirose.com/en/product/p/CL0610-0181-3-63
10 Header HIF3BD-10PA-2.54DS(72) CL0610-0171-0-72 https://www.hirose.com/en/product/p/CL0610-0171-0-72
14 Socket HIF3BA-14D-2.54R(63) CL0610-0022-0-63 https://www.hirose.com/en/product/p/CL0610-0022-0-63
14 Socket HIF3B-14D-2.54R(63) CL0610-0002-2-63 https://www.hirose.com/en/product/p/CL0610-0002-2-63
14 Header HIF3BA-14PA-2.54DSA(63) CL0610-0112-0-63 https://www.hirose.com/en/product/p/CL0610-0112-0-63
14 Header HIF3BAG-14PA-2.54DSA(63) CL0610-0292-4-63 https://www.hirose.com/en/product/p/CL0610-0292-4-63
14 Housing HIF3BA-14D-2.54C(63) CL0610-1051-3-63 https://www.hirose.com/en/product/p/CL0610-1051-3-63
14 Header HIF3BA-14PA-2.54DS(63) CL0610-0092-5-63 https://www.hirose.com/en/product/p/CL0610-0092-5-63
14 Header HIF3BAF-14PA-2.54DSA(63) CL0610-0252-0-63 https://www.hirose.com/en/product/p/CL0610-0252-0-63
16 Socket HIF3BA-16D-2.54R(63) CL0610-0023-2-63 https://www.hirose.com/en/product/p/CL0610-0023-2-63
16 Socket HIF3B-16D-2.54R(63) CL0610-0003-5-63 https://www.hirose.com/en/product/p/CL0610-0003-5-63
16 Housing HIF3BA-16D-2.54C(63) CL0610-1042-2-63 https://www.hirose.com/en/product/p/CL0610-1042-2-63
16 Header HIF3CA-16PA-2.54DSA(63) CL0610-0703-7-63 https://www.hirose.com/en/product/p/CL0610-0703-7-63
16 Header HIF3BA-16PA-2.54DS(63) CL0610-0093-8-63 https://www.hirose.com/en/product/p/CL0610-0093-8-63
16 Header HIF3B-16PA-2.54DS(63) CL0610-0052-0-63 https://www.hirose.com/en/product/p/CL0610-0052-0-63
16 Header HIF3BAF-16PA-2.54DSA(63) CL0610-0253-2-63 https://www.hirose.com/en/product/p/CL0610-0253-2-63
16 Header HIF3BA-16PA-2.54DSA(63) CL0610-0113-3-63 https://www.hirose.com/en/product/p/CL0610-0113-3-63
16 Header HIF3BAG-16PA-2.54DSA(63) CL0610-0293-7-63 https://www.hirose.com/en/product/p/CL0610-0293-7-63
20 Socket HIF3BA-20D-2.54R(63) CL0610-0024-5-63 https://www.hirose.com/en/product/p/CL0610-0024-5-63
20 Socket HIF3B-20D-2.54R(63) CL0610-0004-8-63 https://www.hirose.com/en/product/p/CL0610-0004-8-63
20 Housing HIF3BA-20D-2.54C(63) CL0610-1043-5-63 https://www.hirose.com/en/product/p/CL0610-1043-5-63
20 Header HIF3BA-20PA-2.54DSA(63) CL0610-0114-6-63 https://www.hirose.com/en/product/p/CL0610-0114-6-63
20 Header HIF3BAF-20PA-2.54DSA(63) CL0610-0254-5-63 https://www.hirose.com/en/product/p/CL0610-0254-5-63
20 Header HIF3BAG-20PA-2.54DSA(63) CL0610-0294-0-63 https://www.hirose.com/en/product/p/CL0610-0294-0-63
20 Header HIF3CA-20PA-2.54DSA(63) CL0610-0704-0-63 https://www.hirose.com/en/product/p/CL0610-0704-0-63
20 Header HIF3BA-20PA-2.54DS(63) CL0610-0094-0-63 https://www.hirose.com/en/product/p/CL0610-0094-0-63
20 Header HIF3B-20PA-2.54DS(63) CL0610-0053-3-63 https://www.hirose.com/en/product/p/CL0610-0053-3-63
20 Header HIF3BAE-20PA-2.54DSA(63) CL0610-0374-7-63 https://www.hirose.com/en/product/p/CL0610-0374-7-63
20 Others HIF3-20CV(72) CL0562-0201-0-72 https://www.hirose.com/en/product/p/CL0562-0201-0-72
20 Header HIF3BA-20PA-2.54DSA(72) CL0610-0114-6-72 https://www.hirose.com/en/product/p/CL0610-0114-6-72
24 Socket HIF3BA-24D-2.54R CL0610-0044-2-00 https://www.hirose.com/en/product/p/CL0610-0044-2-00
26 Socket HIF3BA-26D-2.54R(63) CL0610-0025-8-63 https://www.hirose.com/en/product/p/CL0610-0025-8-63
26 Socket HIF3B-26D-2.54R(63) CL0610-0005-0-63 https://www.hirose.com/en/product/p/CL0610-0005-0-63
26 Header HIF3BAG-26PA-2.54DSA(63) CL0610-0295-2-63 https://www.hirose.com/en/product/p/CL0610-0295-2-63
26 Housing HIF3BA-26D-2.54C(63) CL0610-1044-8-63 https://www.hirose.com/en/product/p/CL0610-1044-8-63
26 Header HIF3CA-26PA-2.54DSA(63) CL0610-0705-2-63 https://www.hirose.com/en/product/p/CL0610-0705-2-63
26 Header HIF3BA-26PA-2.54DS(63) CL0610-0095-3-63 https://www.hirose.com/en/product/p/CL0610-0095-3-63
26 Header HIF3B-26PA-2.54DS(63) CL0610-0054-6-63 https://www.hirose.com/en/product/p/CL0610-0054-6-63
26 Header HIF3BAF-26PA-2.54DSA(63) CL0610-0255-8-63 https://www.hirose.com/en/product/p/CL0610-0255-8-63
26 Header HIF3BA-26PA-2.54DSA(63) CL0610-0115-9-63 https://www.hirose.com/en/product/p/CL0610-0115-9-63
26 Others HIF3-26CV(72) CL0562-0202-2-72 https://www.hirose.com/en/product/p/CL0562-0202-2-72
26 Socket HIF3BA-26D-2.54R(11) CL0610-0025-8-11 https://www.hirose.com/en/product/p/CL0610-0025-8-11
30 Socket HIF3BA-30D-2.54R(63) CL0610-0026-0-63 https://www.hirose.com/en/product/p/CL0610-0026-0-63
30 Socket HIF3B-30D-2.54R(63) CL0610-0006-3-63 https://www.hirose.com/en/product/p/CL0610-0006-3-63
30 Header HIF3BAF-30PA-2.54DSA(63) CL0610-0256-0-63 https://www.hirose.com/en/product/p/CL0610-0256-0-63
30 Header HIF3BAG-30PA-2.54DSA(63) CL0610-0296-5-63 https://www.hirose.com/en/product/p/CL0610-0296-5-63
30 Housing HIF3BA-30D-2.54C(63) CL0610-1045-0-63 https://www.hirose.com/en/product/p/CL0610-1045-0-63
30 Header HIF3CA-30PA-2.54DSA(63) CL0610-0706-5-63 https://www.hirose.com/en/product/p/CL0610-0706-5-63
30 Header HIF3BA-30PA-2.54DS(63) CL0610-0096-6-63 https://www.hirose.com/en/product/p/CL0610-0096-6-63
30 Header HIF3B-30PA-2.54DS(63) CL0610-0055-9-63 https://www.hirose.com/en/product/p/CL0610-0055-9-63
30 Header HIF3BA-30PA-2.54DSA(63) CL0610-0116-1-63 https://www.hirose.com/en/product/p/CL0610-0116-1-63
30 Header HIF3BAE-30PA-2.54DSA(63) CL0610-0376-2-63 https://www.hirose.com/en/product/p/CL0610-0376-2-63
30 Others HIF3-30CV(72) CL0562-0203-5-72 https://www.hirose.com/en/product/p/CL0562-0203-5-72
30 Socket HIF3BA-30D-2.54R(11) CL0610-0026-0-11 https://www.hirose.com/en/product/p/CL0610-0026-0-11
34 Socket HIF3BA-34D-2.54R(63) CL0610-0027-3-63 https://www.hirose.com/en/product/p/CL0610-0027-3-63
34 Socket HIF3B-34D-2.54R(63) CL0610-0007-6-63 https://www.hirose.com/en/product/p/CL0610-0007-6-63
34 Housing HIF3BA-34D-2.54C(63) CL0610-1046-3-63 https://www.hirose.com/en/product/p/CL0610-1046-3-63
34 Header HIF3BAF-34PA-2.54DSA(63) CL0610-0257-3-63 https://www.hirose.com/en/product/p/CL0610-0257-3-63
34 Header HIF3BAE-34PA-2.54DSA(63) CL0610-0377-5-63 https://www.hirose.com/en/product/p/CL0610-0377-5-63
34 Header HIF3BA-34PA-2.54DSA(63) CL0610-0117-4-63 https://www.hirose.com/en/product/p/CL0610-0117-4-63
34 Header HIF3CA-34PA-2.54DSA(63) CL0610-0707-8-63 https://www.hirose.com/en/product/p/CL0610-0707-8-63
34 Header HIF3BA-34PA-2.54DS(63) CL0610-0097-9-63 https://www.hirose.com/en/product/p/CL0610-0097-9-63
34 Header HIF3B-34PA-2.54DS(63) CL0610-0056-1-63 https://www.hirose.com/en/product/p/CL0610-0056-1-63
34 Header HIF3BAG-34PA-2.54DSA(63) CL0610-0297-8-63 https://www.hirose.com/en/product/p/CL0610-0297-8-63
34 Others HIF3-34CV(72) CL0562-0204-8-72 https://www.hirose.com/en/product/p/CL0562-0204-8-72
34 Header HIF3BA-34PA-2.54DSA(72) CL0610-0117-4-72 https://www.hirose.com/en/product/p/CL0610-0117-4-72
34 Header HIF3BAE-34P-2.54W CL0610-0527-6-00 https://www.hirose.com/en/product/p/CL0610-0527-6-00
40 Socket HIF3BA-40D-2.54R(63) CL0610-0028-6-63 https://www.hirose.com/en/product/p/CL0610-0028-6-63
40 Socket HIF3B-40D-2.54R(63) CL0610-0008-9-63 https://www.hirose.com/en/product/p/CL0610-0008-9-63
40 Header HIF3BA-40PA-2.54DSA(63) CL0610-0118-7-63 https://www.hirose.com/en/product/p/CL0610-0118-7-63
40 Header HIF3BAG-40PA-2.54DSA(63) CL0610-0298-0-63 https://www.hirose.com/en/product/p/CL0610-0298-0-63
40 Header HIF3BAE-40PA-2.54DSA(63) CL0610-0378-8-63 https://www.hirose.com/en/product/p/CL0610-0378-8-63
40 Header HIF3BAE-40PA-2.54DS(63) CL0610-0358-0-63 https://www.hirose.com/en/product/p/CL0610-0358-0-63
40 Header HIF3CA-40PA-2.54DSA(63) CL0610-0708-0-63 https://www.hirose.com/en/product/p/CL0610-0708-0-63
40 Header HIF3BA-40PA-2.54DS(63) CL0610-0098-1-63 https://www.hirose.com/en/product/p/CL0610-0098-1-63
40 Header HIF3B-40PA-2.54DS(63) CL0610-0057-4-63 https://www.hirose.com/en/product/p/CL0610-0057-4-63
40 Header HIF3BAF-40PA-2.54DSA(63) CL0610-0258-6-63 https://www.hirose.com/en/product/p/CL0610-0258-6-63
40 Housing HIF3BA-40D-2.54C(63) CL0610-1047-6-63 https://www.hirose.com/en/product/p/CL0610-1047-6-63
40 Others HIF3-40CV(72) CL0562-0205-0-72 https://www.hirose.com/en/product/p/CL0562-0205-0-72
40 Plug HIF3BA-20/20PA-2.54DS(71) CL0610-1677-4-71 https://www.hirose.com/en/product/p/CL0610-1677-4-71
50 Socket HIF3BB-50D-2.54R(63) CL0610-0041-4-63 https://www.hirose.com/en/product/p/CL0610-0041-4-63
50 Socket HIF3BA-50D-2.54R(63) CL0610-0029-9-63 https://www.hirose.com/en/product/p/CL0610-0029-9-63
50 Socket HIF3B-50D-2.54R(63) CL0610-0009-1-63 https://www.hirose.com/en/product/p/CL0610-0009-1-63
50 Header HIF3BAG-50PA-2.54DSA(63) CL0610-0299-3-63 https://www.hirose.com/en/product/p/CL0610-0299-3-63
50 Header HIF3BBF-50PA-2.54DSA(63) CL0610-0571-8-63 https://www.hirose.com/en/product/p/CL0610-0571-8-63
50 Header HIF3BB-50PA-2.54DSA(63) CL0610-0141-9-63 https://www.hirose.com/en/product/p/CL0610-0141-9-63
50 Housing HIF3BB-50D-2.54C(63) CL0610-1061-7-63 https://www.hirose.com/en/product/p/CL0610-1061-7-63
50 Housing HIF3BA-50D-2.54C(63) CL0610-1048-9-63 https://www.hirose.com/en/product/p/CL0610-1048-9-63
50 Header HIF3BAE-60PA-2.54DS(63) CL0610-0360-2-63 https://www.hirose.com/en/product/p/CL0610-0360-2-63
50 Header HIF3BAE-50PA-2.54DS(63) CL0610-0359-3-63 https://www.hirose.com/en/product/p/CL0610-0359-3-63
50 Header HIF3CB-50PA-2.54DSA(63) CL0610-0721-9-63 https://www.hirose.com/en/product/p/CL0610-0721-9-63
50 Header HIF3CA-50PA-2.54DSA(63) CL0610-0709-3-63 https://www.hirose.com/en/product/p/CL0610-0709-3-63
50 Header HIF3BB-50PA-2.54DS(63) CL0610-0131-5-63 https://www.hirose.com/en/product/p/CL0610-0131-5-63
50 Header HIF3BA-50PA-2.54DS(63) CL0610-0099-4-63 https://www.hirose.com/en/product/p/CL0610-0099-4-63
50 Header HIF3B-50PA-2.54DS(63) CL0610-0058-7-63 https://www.hirose.com/en/product/p/CL0610-0058-7-63
50 Header HIF3BAE-50PA-2.54DSA(63) CL0610-0379-0-63 https://www.hirose.com/en/product/p/CL0610-0379-0-63
50 Header HIF3BAF-50PA-2.54DSA(63) CL0610-0259-9-63 https://www.hirose.com/en/product/p/CL0610-0259-9-63
50 Header HIF3BA-50PA-2.54DSA(63) CL0610-0119-0-63 https://www.hirose.com/en/product/p/CL0610-0119-0-63
50 Header HIF3BBG-50PA-2.54DSA(63) CL0610-0591-5-63 https://www.hirose.com/en/product/p/CL0610-0591-5-63
50 Others HIF3-50CV(72) CL0562-0206-3-72 https://www.hirose.com/en/product/p/CL0562-0206-3-72
50 Socket HIF3BA-50D-2.54R(11) CL0610-0029-9-11 https://www.hirose.com/en/product/p/CL0610-0029-9-11
50 Header HIF3BA-50PA-2.54DSB(71) CL0610-0856-8-71 https://www.hirose.com/en/product/p/CL0610-0856-8-71
60 Socket HIF3BA-60D-2.54R(63) CL0610-0030-8-63 https://www.hirose.com/en/product/p/CL0610-0030-8-63
60 Socket HIF3BB-60D-2.54R(63) CL0610-0042-7-63 https://www.hirose.com/en/product/p/CL0610-0042-7-63
60 Socket HIF3B-60D-2.54R(63) CL0610-0010-0-63 https://www.hirose.com/en/product/p/CL0610-0010-0-63
60 Housing HIF3BB-60D-2.54C(63) CL0610-1062-0-63 https://www.hirose.com/en/product/p/CL0610-1062-0-63
60 Housing HIF3BA-60D-2.54C(63) CL0610-1049-1-63 https://www.hirose.com/en/product/p/CL0610-1049-1-63
60 Header HIF3BB-60PA-2.54DSA(63) CL0610-0142-1-63 https://www.hirose.com/en/product/p/CL0610-0142-1-63
60 Header HIF3BA-60PA-2.54DSA(63) CL0610-0120-9-63 https://www.hirose.com/en/product/p/CL0610-0120-9-63
60 Header HIF3BAG-60PA-2.54DSA(63) CL0610-0300-0-63 https://www.hirose.com/en/product/p/CL0610-0300-0-63
60 Header HIF3CB-60PA-2.54DSA(63) CL0610-0723-4-63 https://www.hirose.com/en/product/p/CL0610-0723-4-63
60 Header HIF3BB-60PA-2.54DS(63) CL0610-0132-8-63 https://www.hirose.com/en/product/p/CL0610-0132-8-63
60 Header HIF3BA-60PA-2.54DS(63) CL0610-0100-1-63 https://www.hirose.com/en/product/p/CL0610-0100-1-63
60 Header HIF3B-60PA-2.54DS(63) CL0610-0059-0-63 https://www.hirose.com/en/product/p/CL0610-0059-0-63
60 Header HIF3BBG-60PA-2.54DSA(63) CL0610-0592-8-63 https://www.hirose.com/en/product/p/CL0610-0592-8-63
60 Header HIF3BAE-60PA-2.54DSA(63) CL0610-0380-0-63 https://www.hirose.com/en/product/p/CL0610-0380-0-63
60 Header HIF3BAF-60PA-2.54DSA(63) CL0610-0260-8-63 https://www.hirose.com/en/product/p/CL0610-0260-8-63
60 Header HIF3BBF-60PA-2.54DSA(63) CL0610-0572-0-63 https://www.hirose.com/en/product/p/CL0610-0572-0-63
60 Others HIF3-60CV(72) CL0562-0207-6-72 https://www.hirose.com/en/product/p/CL0562-0207-6-72
64 Socket HIF3BA-64D-2.54R(63) CL0610-0031-0-63 https://www.hirose.com/en/product/p/CL0610-0031-0-63
64 Socket HIF3BB-64D-2.54R(63) CL0610-0043-0-63 https://www.hirose.com/en/product/p/CL0610-0043-0-63
64 Socket HIF3B-64D-2.54R(63) CL0610-0011-3-63 https://www.hirose.com/en/product/p/CL0610-0011-3-63
64 Header HIF3BAG-64PA-2.54DSA(63) CL0610-0301-3-63 https://www.hirose.com/en/product/p/CL0610-0301-3-63
64 Header HIF3BB-64PA-2.54DSA(63) CL0610-0143-4-63 https://www.hirose.com/en/product/p/CL0610-0143-4-63
64 Header HIF3BBG-64PA-2.54DSA(63) CL0610-0593-0-63 https://www.hirose.com/en/product/p/CL0610-0593-0-63
64 Header HIF3CB-64PA-2.54DSA(63) CL0610-0724-7-63 https://www.hirose.com/en/product/p/CL0610-0724-7-63
64 Header HIF3BB-64PA-2.54DS(63) CL0610-0133-0-63 https://www.hirose.com/en/product/p/CL0610-0133-0-63
64 Header HIF3BA-64PA-2.54DS(63) CL0610-0101-4-63 https://www.hirose.com/en/product/p/CL0610-0101-4-63
64 Header HIF3B-64PA-2.54DS(63) CL0610-0060-9-63 https://www.hirose.com/en/product/p/CL0610-0060-9-63
64 Header HIF3BA-64PA-2.54DSA(63) CL0610-0121-1-63 https://www.hirose.com/en/product/p/CL0610-0121-1-63
64 Header HIF3BAF-64PA-2.54DSA(63) CL0610-0261-0-63 https://www.hirose.com/en/product/p/CL0610-0261-0-63
64 Housing HIF3BB-64D-2.54C(63) CL0610-1063-2-63 https://www.hirose.com/en/product/p/CL0610-1063-2-63
64 Housing HIF3BA-64D-2.54C(63) CL0610-1064-5-63 https://www.hirose.com/en/product/p/CL0610-1064-5-63
100 Header HIF3BB-50/50PA-2.54DS(71) CL0610-1683-7-71 https://www.hirose.com/en/product/p/CL0610-1683-7-71
  Accessory HIF3-GPIN(A) CL0562-0126-6-00 https://www.hirose.com/en/product/p/CL0562-0126-6-00
  Contact HIF3-2022SC CL0562-0492-4-00 https://www.hirose.com/en/product/p/CL0562-0492-4-00
  Contact HIF3-2022SCF CL0562-0493-7-00 https://www.hirose.com/en/product/p/CL0562-0493-7-00
  Contact HIF3-2022SCF(01) CL0562-0493-7-01 https://www.hirose.com/en/product/p/CL0562-0493-7-01
  Contact HIF3-2226SC CL0562-0079-8-00 https://www.hirose.com/en/product/p/CL0562-0079-8-00
  Contact HIF3-2226SCA CL0562-0244-2-00 https://www.hirose.com/en/product/p/CL0562-0244-2-00
  Contact HIF3-2226SCC CL0613-0004-7-00 https://www.hirose.com/en/product/p/CL0613-0004-7-00
  Contact HIF3-2226SCF CL0562-0080-7-00 https://www.hirose.com/en/product/p/CL0562-0080-7-00
  Contact HIF3-2226SCFA CL0562-0245-5-00 https://www.hirose.com/en/product/p/CL0562-0245-5-00
  Contact HIF3-2226SCFC CL0613-0002-1-00 https://www.hirose.com/en/product/p/CL0613-0002-1-00
  Contact HIF3-2428SC CL0562-0124-0-00 https://www.hirose.com/en/product/p/CL0562-0124-0-00
  Contact HIF3-2428SCA CL0562-0246-8-00 https://www.hirose.com/en/product/p/CL0562-0246-8-00
  Contact HIF3-2428SCF CL0562-0125-3-00 https://www.hirose.com/en/product/p/CL0562-0125-3-00
  Contact HIF3-2428SCFA CL0562-0247-0-00 https://www.hirose.com/en/product/p/CL0562-0247-0-00
  Contact HIF3-2630SCC CL0613-0003-4-00 https://www.hirose.com/en/product/p/CL0613-0003-4-00
  Contact HIF3-2630SCFC CL0613-0001-9-00 https://www.hirose.com/en/product/p/CL0613-0001-9-00
  Contact HIF3A-3236SCFC CL0613-0005-0-00 https://www.hirose.com/en/product/p/CL0613-0005-0-00
  Accessory HIF3B-GK CL0562-0601-8-00 https://www.hirose.com/en/product/p/CL0562-0601-8-00
  Accessory HIF3BA-GPIN CL0612-0500-2-00 https://www.hirose.com/en/product/p/CL0612-0500-2-00





Support Custom Wire Harness Assembly



  • Connectors: 6P to 10P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 200 pieces per order.



Hirose HIF3B Connector Cable





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.

Product Tags
custom wire harness (315)car switch (31)Toyota (12)OBD (31)D-sub Cable (33)RJ45 (12)BNC (12)USB cable (28)RCA cable (9)Automotive Wire Harness (145)DIN Cable (6)SAE bullet connector (12)Deutsch Connector Wiring (51)Waterproof Connector (31)GX12/ 16/ 19/ 20/ 25/ 30 connector (6)XT90/ 60/ 30 connector (6)Barrel Jack (20)LED light wire harness (37)Molex Connector Wiring (45)JST Connector Wiring (48)Battery/ Power/ Booster/ Jumper cable (49)Fuse Holder/ Fuse Box (24)Communication/ Telecom cable (29)Computer wire and cable (45)Overmold with cable (30)Motorcycle/ Motorbike/ Electromobile wire harness (12)FFC/ IDC cable (7)Audio/ Video cable (46)Trailer wire harness (11)Terminal Block wires (9)Medical Cable (4)Spring/ Spiral Cable (7)Banana Plug Cable (3)LS Engine Wire Harness (15)OFF-Road (27)Sensor cable (6)
ABOUT US

HooHA wire&cable products were founded in Humen Town, Dongguan city, Guangdong province, China, located in the middle of Guangzhou and Shenzhen city, which is a comprehensive enterprise mainly focused on ......   [ read more>>]

CONTACT US

Hooha Harness

Contact： Deco Yiu

Phone: +86-13532747009

E-mail: sales@hoohawirecable.com

WeChat/WhatsApp: 0086 13532747009

Links
TE Connector
Molex Connector
JST Connector
Aptive Connector
Amphenol Connector
Deutsch Connector
Yazaki Connector
Sumitomo Connector
Lear Connector
KET Connector
Neutrik Connector
Switchcraft Connector
Julet Connector
Higo Connector
XT Connector
Hirose Connector
Yeonho Connector
Anderson Connector
COPYRIGHT 2001-2024 © HOOHA WIRE&CABLE PRODUCTS ALL RIGHTS RESERVED.
