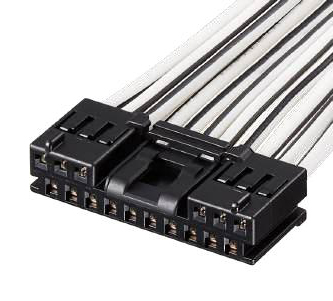

Hirose KM32 Connector

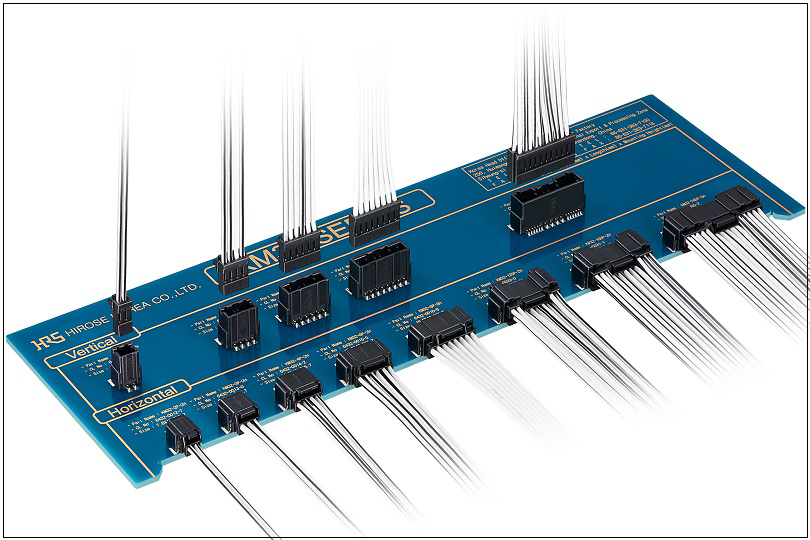

The Hirose KM32 series is a 2.0mm pitch, compact wire-to-board connector designed to meet severe automotive requirements. It offers space-saving benefits and a wide range of variations, including receptacle and plug types in 2 to 24 positions with straight or right-angle orientations. The series ensures high contact reliability through a long effective mating length and a robust 2-point contact design, providing excellent contact retention within its compact form factor. It incorporates a safety-focused center lock that prevents incomplete mating, misinsertion, and lock damage. Key specifications include a 3.0A current rating, 250VDC voltage rating, an operating temperature range of -40°C to 85°C, tin-plated contacts, and SMT mounting. Available in black, it is a reliable solution for automotive internal connections.
Features
- 2.0mm Pitch, 0.5 Size, Wire-to-Board Connector
- Space-saving and Wide Variations
- Meets severe automotive requirements
- Excellent contact retention within a compact size
- High contact reliability with long effective mating length and 2-point contact design
- Safety design with center lock prevents incomplete mating, misinsertion, and lock damage
Specifications
| Connector Type | Plug, Receptacle, Contact | Number of Positions | 2, 3, 4, 6, 8, 12, 16, 24 |
| Rated Current | 3.0A | Mounting Pitch | 1.0, 2.0 mm |
| Rated Voltage(DC) | DC250.0V | Connector Orientation | Straight, Right angle |
| Number of Rows(Interface) | 12 | Contact Plating | Tin |
| Contact Pitch | 2.0 mm | Housing Color | Black |
| Mounting Style | SMT | Recommended Max.Wire Size (AWG) | 22 |
| PCB Stabilizing Feature | Soldering | Recommended Max.Wire Size (mm²) | 0.3mm² |
| Recommended PCB Thickness | 1.6mm Max. | Recommended Min.Wire Size (AWG) | 22 |
| Mating/Unmating Cycles | 10 | Recommended Min.Wire Size (mm²) | 0.3mm² |
| Operating Temperature Min. | -40℃ | Operating Temperature Max. | 85℃ |
Connector Lists
Support Custom Wire Harness Assembly
- Connectors: 2P to 24P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
