Hirose KM32A Connector

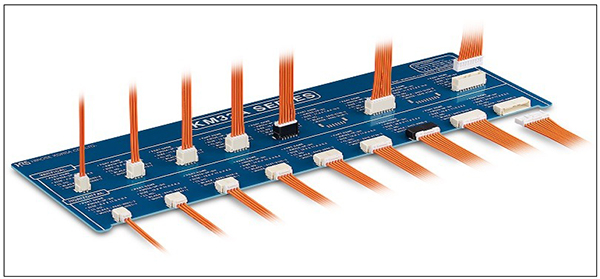

The Hirose KM32A series is a compact 2.0mm-pitch wire-to-board connector with 0.5mm terminal tabs, designed for space-saving automotive internal connections. It offers wide variations, including plug and receptacle types in 2 to 10 positions, with both straight (SH) and right-angle (SV) interface orientations in single-row configurations, available in black or white housing. Key specifications from the documentation include a 5.0A current rating, an operating temperature range of -40°C to 125°C, and SMT mounting. The series meets severe automotive requirements through a safety-focused center lock that prevents incomplete mating, mis-insertion, and lock damage, while ensuring secure terminal retention, audible coupling feedback, and enhanced vibration resistance via its unique contact design.
Features
- 2.0mm Pitch, 0.5 Terminal Tab Size, Wire-to-Board Connector
- Space-saving connector (Contact size 0.5mm / 2.0mm pitch)
- Wide Variations
- - Interface Types: Straight / Right angle
- - Single row
- Meets severe automotive requirements
- Safety design with center lock prevents incomplete mating, mis-insertion and lock damage
- Secure stringent terminal retention and coupling sounds
- Unique contact design enhances vibration resistance.
Specifications
| Connector Type | Plug, Receptacle, Contact | Number of Positions | 2, 3, 4, 5, 6, 8, 10 |
| Rated Current | 5.0A | Mounting Pitch | 2.0 mm |
| Rated Voltage(AC) | AC60.0V | Connector Orientation | Straight, Right angle |
| Rated Voltage(DC) | DC 60.0V | Contact Plating | Tin |
| Number of Rows(Interface) | 1 | Housing Color | Black, White |
| Contact Pitch | 2.0 mm | Recommended Wire Type | Discrete wire |
| Mounting Style | SMT | Recommended Max.Wire Size (AWG) | 20 |
| PCB Stabilizing Feature | Soldering | Recommended Max.Wire Size (mm²) | 0.5mm² |
| Recommended PCB Thickness | 1.6mm Max. | Operating Temperature Max. | 125℃ |
| Mating/Unmating Cycles | 10 | Operating Temperature Min. | -40℃ |
| Wire Termination Method | Crimping | Recommended Min.Wire Size (mm²) | 0.3mm² |
| Recommended Min.Wire Size (AWG) | 22 |
Connector Lists

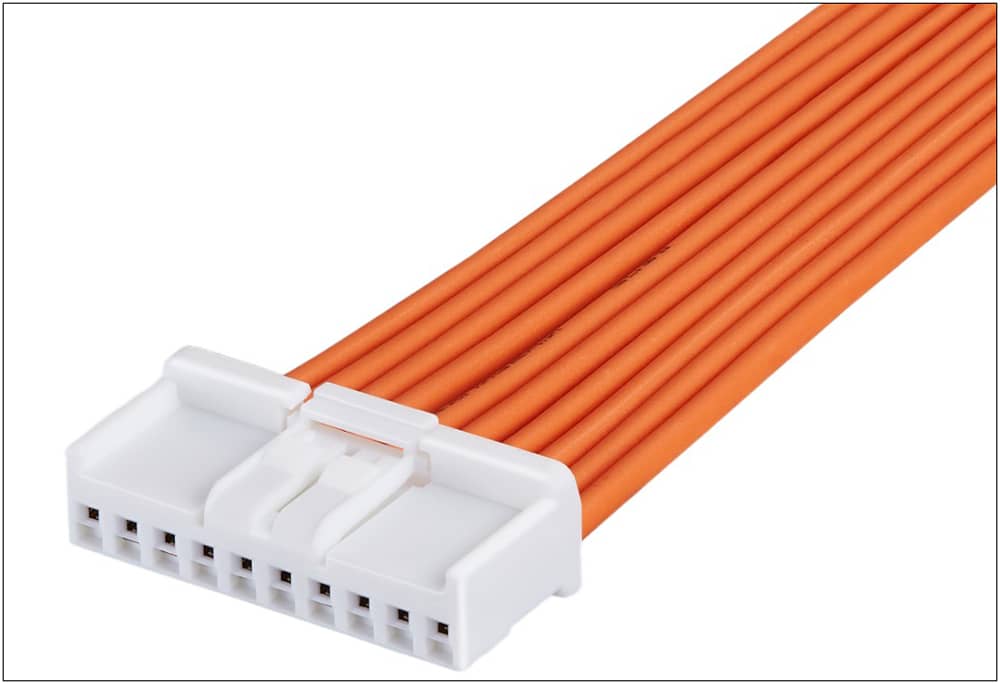

Support Custom Wire Harness Assembly
- Connectors: 2P to 10P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
