Hirose KW30 Connector

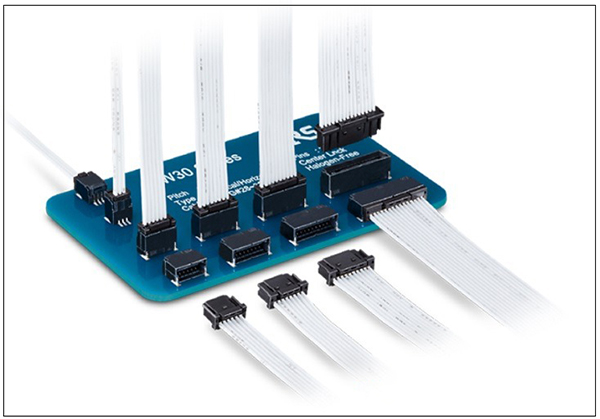

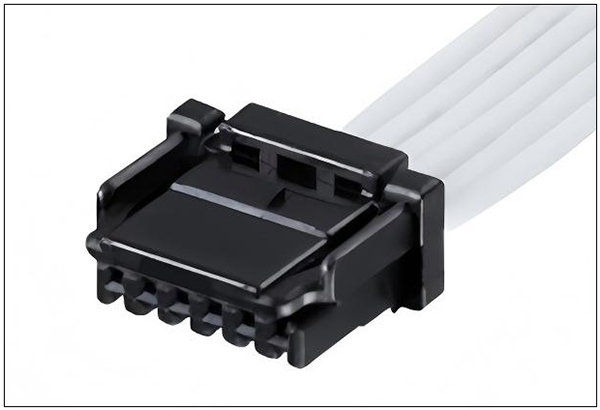

The Hirose KW30 series is a compact, 1mm pitch, single-row, wire-to-board connector featuring a center lock mechanism and is UL/C-UL listed. The product list shows a wide variation with positions ranging from 2 to 15, available in plug (P) and receptacle (S) types, and in both straight (H) and right-angle (V) orientations. Key specifications from the documentation include a rated current of 1.0A or 3.0A, a voltage rating of 100V AC/DC, an operating temperature range of -55°C to 105°C, and Surface-Mount Technology (SMT) termination. The series is designed for high contact reliability and high vibration resistance. Its safety design prevents incomplete mating, mis-insertion, and lock damage. While the documents confirm UL/C-UL compliance and wide variations, features such as halogen-free status are based on the provided details and common industry specifications for this product category.
Features
- 1mm Pitch, Single-row, Center Lock, Wire-to-Board Connector
- Wide Variations
- High Contact Reliability
- High Vibration Resistance
- Safety design prevents incomplete mating, mis-insertion, and lock damage
- Halogen-free
- UL/C-UL Compliant
Specifications
| Connector Type | Plug, Receptacle, Contact | Number of Positions | 2, 3, 4, 5, 6, 7, 8, 9, 10, 15 |
| Safety Standards | UL, C-UL/CSA | Mounting Pitch | 1.0, 2.0 mm |
| Rated Current | 1.0, 3.0A | Mounting Side | Standard on-Board |
| Rated Voltage(AC) | AC 100.0V | Staggered Lead | No |
| Rated Voltage(DC) | DC 100.0V | Connector Orientation | Straight, Right angle |
| Number of Rows(Interface) | 1 | Contact Plating | Gold |
| Contact Pitch | 1.0, 2.0 mm | Housing Color | Black |
| Mounting Style | SMT | Recommended Wire Type | Discrete wire |
| PCB Stabilizing Feature | Soldering | Recommended Max.Wire Size (AWG) | 28, 30 |
| Recommended PCB Thickness | 1.6mm Max. | Recommended Max.Wire Size (mm²) | 0.057, 0.089 mm² |
| Mating/Unmating Cycles | 30 | Operating Temperature Max. | 105℃ |
| Plating Thickness | 0.2 μm | Operating Temperature Min. | -55℃ |
| Recommended Min.Wire Size (AWG) | 28, 30, 32 | Recommended Min.Wire Size (mm²) | 0.035, 0.057, 0.089mm² |
Connector Lists
Support Custom Wire Harness Assembly
- Connectors: 2P to 15P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
