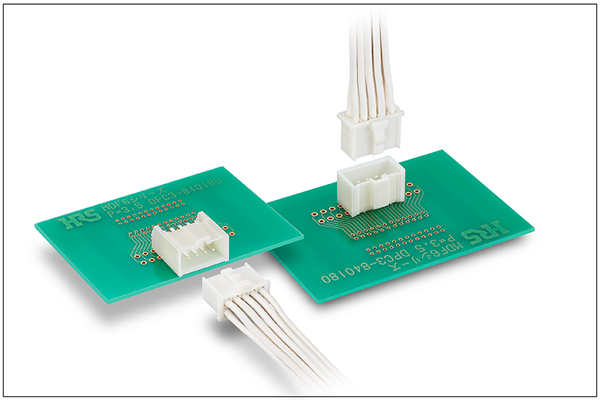

Hirose MDF6 Connector

The Hirose MDF6 series is a 3.5mm pitch, double-row, compact internal power connector certified to UL and C-UL/CSA standards. The product list confirms that it is available in socket types with positions ranging from 4 to 20, along with corresponding crimp contacts (e.g., MDF6-1618SC, MDF6-2022SC) for discrete wires. Key specifications from the documentation include a rated current of 5.0A or 7.0A, aligning with the noted 7A current capacity; a rated AC voltage of 300.0V; an operating temperature range of -30℃ to 85℃; tin-plated contacts with a 1.0μm thickness; a white housing; and a durability rating of 30 mating cycles. As per the provided details, the series features a box-type header for improved mating protection and an internal positive lock mechanism for a secure connection. This combination of compact pitch, certified safety standards, reliable current-carrying capacity, and secure mating design makes it a suitable solution for internal power distribution within electronic assemblies.

Hirose MDF6 Connector

Features

3.5mm Pitch, Double Row, Compact Internal Power Connector
UL/CSA Standard Certified Product
3.5mm pitch compact connector
7A Current Capacity
Box Type Header
Internal Positive Lock

Specifications

Connector Type	Socket, Contact	Number of Positions	4, 6, 8, 10, 12, 14, 16, 18, 20
Safety Standards	UL, C-UL/CSA	Contact Plating	Tin
Rated Current	5.0, 7.0A	Housing Color	White
Rated Voltage(AC)	AC 300.0V	Operating Temperature Max.	85℃
Contact Pitch	3.5 mm	Operating Temperature Min.	-30℃
Mating/Unmating Cycles	30	Plating Thickness	1.0μm

Connector Lists

No. of Position	Type	P/N	Hirose P/N	Links
4	Socket	MDF6-4DS-3.5C	CL0547-0074-1-00	https://www.hirose.com/en/product/p/CL0547-0074-1-00
6	Socket	MDF6-6DS-3.5C	CL0547-0075-4-00	https://www.hirose.com/en/product/p/CL0547-0075-4-00
8	Socket	MDF6-8DS-3.5C	CL0547-0076-7-00	https://www.hirose.com/en/product/p/CL0547-0076-7-00
10	Socket	MDF6-10DS-3.5C	CL0547-0077-0-00	https://www.hirose.com/en/product/p/CL0547-0077-0-00
12	Socket	MDF6-12DS-3.5C	CL0547-0078-2-00	https://www.hirose.com/en/product/p/CL0547-0078-2-00
14	Socket	MDF6-14DS-3.5C	CL0547-0079-5-00	https://www.hirose.com/en/product/p/CL0547-0079-5-00
16	Socket	MDF6-16DS-3.5C	CL0547-0080-4-00	https://www.hirose.com/en/product/p/CL0547-0080-4-00
18	Socket	MDF6-18DS-3.5C	CL0547-0081-7-00	https://www.hirose.com/en/product/p/CL0547-0081-7-00
20	Socket	MDF6-20DS-3.5C	CL0547-0082-0-00	https://www.hirose.com/en/product/p/CL0547-0082-0-00
	Contact	MDF6-1618SC	CL0547-0071-3-00	https://www.hirose.com/en/product/p/CL0547-0071-3-00
	Contact	MDF6-1618SCF	CL0547-0070-0-00	https://www.hirose.com/en/product/p/CL0547-0070-0-00
	Contact	MDF6-2022SC	CL0547-0073-9-00	https://www.hirose.com/en/product/p/CL0547-0073-9-00
	Contact	MDF6-2022SCF	CL0547-0072-6-00	https://www.hirose.com/en/product/p/CL0547-0072-6-00

Support Custom Wire Harness Assembly

Connectors: 4P to 20P.
Wire Gauge:
- depends on your needs
- recommend by us
Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
Wire Length: Fully customizable to your specifications.
Wiring Diagram: Tailor-made to meet your project needs.
Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
Minimum Order: 200 pieces per order.

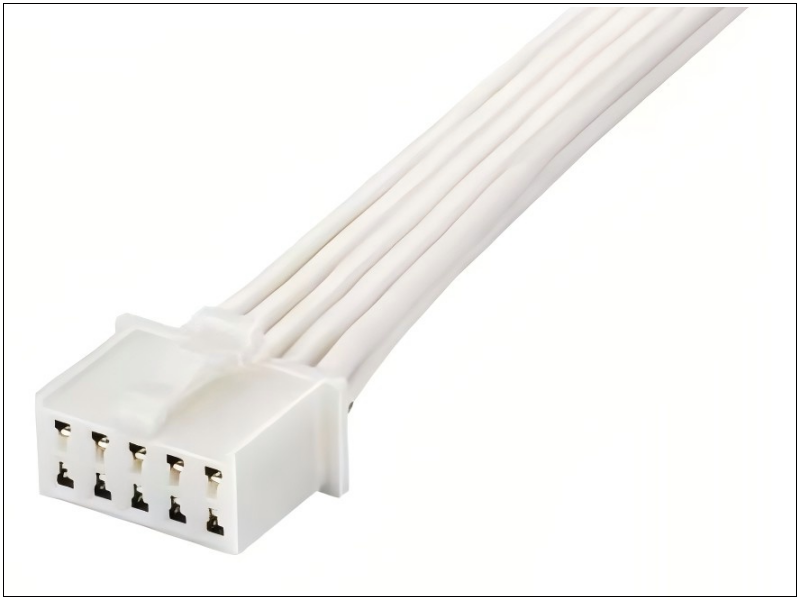

MDF6 10P Wire

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
