Hirose ZE05 Connector

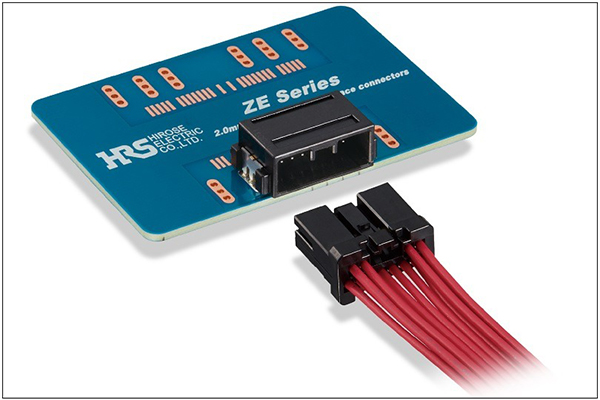

The Hirose ZE05 series is a compact, high-reliability 2.0mm-pitch wire-to-board connector designed for demanding automotive interfaces, featuring a space-saving 0.5mm contact tab. It offers a wide range of position options, from 2 to 24 positions (with details indicating up to 32 or 40 positions), in plug and receptacle types with straight or right-angle orientations. The connector is engineered for harsh environments, providing high-temperature resistance up to 125°C and high vibration resistance. It has a rated current of 5A (single pin) or 2A (all pins), supports wire sizes from 20 to 26 AWG (0.13 to 0.5 mm²), and ensures secure connections with a tensile strength of 40N when used with a retainer. A key safety feature is the CPA (Connector Position Assurance) mechanism, available in the ZE05C variant, which prevents incomplete mating. The series is available in housing colors like black and gray, uses tin-plated contacts, and supports THR (Through-Hole Reflow) and SMT mounting, making it a robust solution for automotive internal connections.
Features
- Space-saving connector(0.5mm contact tab size/2mm pitch)
- High Temperature: 125℃
- High vibration resistance
- Rated current 5A (Single pin power supply) / 2A (All pins power supply)
- Secure tensile strength of 40N with retainer
- Wide position varieties (2, 4, 5, 8, 12, 16, 20, 24, 32, 40pos.)
- Compatible with 20 to 26 AWG (0.13 to 0.5sq)
- Reliable connections with CPA* (ZE05C) integration prevents incomplete mating
Specifications
| Connector Type | Plug, Receptacle, Contact | Number of Positions | 2, 4, 5, 8, 12, 16, 20, 24 |
| Safety Standards | UL, C-UL/CSA | Mounting Pitch | 1.0, 2.0 mm |
| Rated Current | 2.0A | Mounting Side | Standard on-Board |
| Rated Voltage(AC) | AC 60.0, 250.0V | Connector Orientation | Straight, Right angle |
| Rated Voltage(DC) | DC 60.0V | Contact Plating | Tin |
| Number of Rows (Interface) | 12 | Housing Color | Black, Gray, Violet |
| Contact Pitch | 2.0 mm | Recommended Wire Type | Discrete wire |
| Mounting Style | THR, SMT | Recommended Max.Wire Size (AWG) | 20, 22, 24 |
| PCB Stabilizing Feature | Soldering | Recommended Max.Wire Size (mm²) | 0.22, 0.3, 0.35, 0.5mm² |
| Recommended PCB Thickness | 1.6mm Max. | Recommended Min.Wire Size (AWG) | 22, 26 |
| Mating/Unmating Cycles | 30 | Recommended Min.Wire Size (mm²) | 0.13, 0.3, 0.35 mm² |
| Plating Thickness | 1.0μm | Operating Temperature Max. | 125℃ |
| Wire Termination Method | Crimping | Operating Temperature Min. | -40℃ |
Connector Lists
Support Custom Wire Harness Assembly
- Connectors: 2P to 24P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
