Hirose ZE064W Connector

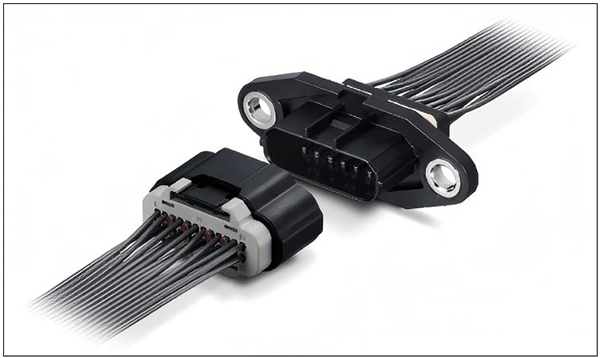

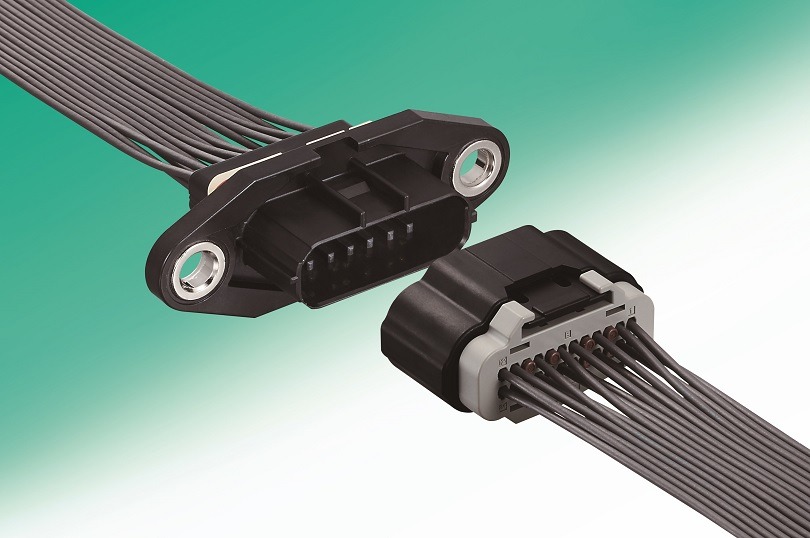

The Hirose ZE064W series is a compact and waterproof connector designed for automotive interface applications in harsh environments. Its space-saving design features a 0.64mm terminal on a 2.2mm pitch. The connector offers high reliability with a vibration-resistant female terminal design incorporating a double-layer spring and 3-point contact. It is rated for high heat resistance up to 125℃ and provides robust waterproofing compliant with IP67 and IP69K standards, making it suitable for high-pressure washdowns. Key electrical ratings are 5A (single pin) and 2A (all pins) at 60V AC/DC. The series includes 8, 14, and 24-position variants in plug and jack types with screw panel mounting. Safety features include mating keys to prevent mis-mating and a retainer to prevent incomplete terminal insertion, ensuring a secure connection. It is compatible with 20-22 AWG wire and uses tin-plated crimp contacts.

Features

1. Small Size (0.64mm terminal, 2.2mm pitch), Space-saving design contributes to device size reduction.
2. High Vibration Resistance. The female crimp terminal design includes a double-layer spring, 3-point contact, and 3 serrations to meet the intense vibration requirements of devices mounted in the engine room.
3. High Heat Resistance; can be used at 125℃.
4. Waterproof (IP67/IP69K). Hirose's original waterproof design is compliant with IP67/IP69K when mated. With waterproof performance that withstands high-pressure washing, ZE064W is suitable as an interface connector for automotive and industrial applications in harsh environments.
5. Rated Current. 5A (Single Pin Power Supply) / 2A (All Pins Power Supply)
6. Mating Keys. Prevents mis-mating when using multiple connectors.
7. Retainer. The retainer prevents incomplete terminal insertion and has high contact reliability during cable routing.

Specifications

Connector Lists

Support Custom Wire Harness Assembly

• Connectors: 8P to 24P.
• Wire Gauge:
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
