ACH Connector Introduction

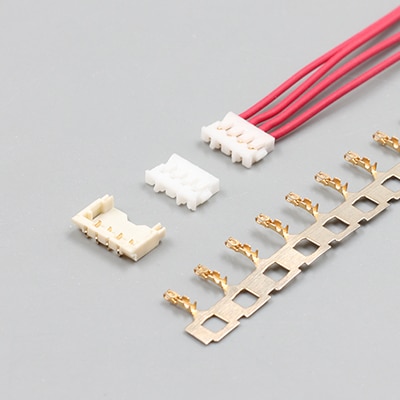

The ACH crimp-style wire-to-board connector series is available in 1, 2, 3, 4, and 5 circuits and will accept a wire range of 28AWG to 32AWG. The 2 and 3 circuit connectors are rated at 2.0 amp AC/DC using a 28AWG wire, have a rating of 50 volts AC/DC, and operate in a temperature range of -25 degrees centigrade to +85 degrees centigrade. The 4 circuit connector is rated at 1.5 amp AC/DC using a 28AWG wire, has a rating of 50 volts AC/DC, and operates in a temperature range of -25 degrees centigrade to +85 degrees centigrade.
Specifications
- Current rating: 2 A/ 1 to 3 circuits AC/DC (AWG #28), 1.5 A/ 4, 5 circuits AC/DC (AWG #28)
- Voltage rating: 50 V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #32 to #28, Insulation O.D./ 0.38 to 0.63 mm
Contact Size
Contact Size
Terminal Part Number
Housing Size
| No.of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 1 | ACHR-01V-A-S | — | 1.6 | 2,000 |
| 2 | ACHR-02V-S | 1.2 | 2.6 | 1,000 |
| 3 | ACHR-03V-S | 2.4 | 3.8 | 1,000 |
| 4 | ACHR-04V-A-S | 3.6 | 5.0 | 1,000 |
| 5 | ACHR-05V-A-S | 4.8 | 6.2 | 1,000 |
Support Custom Wiring Assembly
- Connector: 1 pin to 5 pin
- Wire gauge: 32AWG to 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type: wire to wire, wire to tinned end, wire to open end, wire to any suitable connectors.
Customize Your Wire Harness?
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
