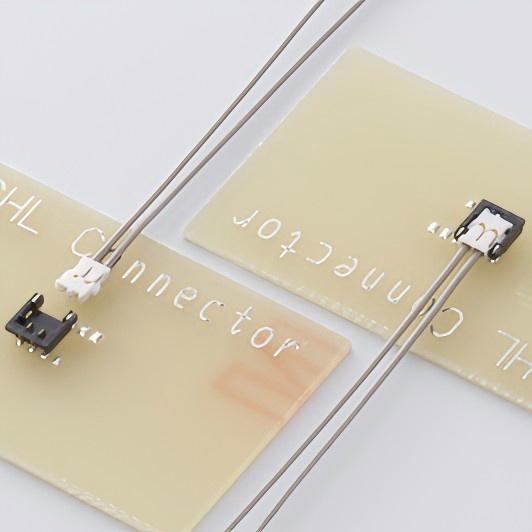

JST ACHL Connector

The JST ACHL Connector is a compact and efficient solution designed for power supply applications, boasting a stacking height of just 1.2mm and a 1.2mm pitch. Despite its small size, it supports a robust current rating of 2A when used with AWG#28 wire. The connector offers a top-entry, side-feed design, making it versatile for various assembly configurations. Additionally, it is compatible with crimping tools, including the applicator for the ACH connector series, ensuring convenient and reliable wire termination. Designed with automation in mind, it is compatible with pick-and-place machine suction nozzles, streamlining assembly processes and enhancing manufacturing efficiency.

ACHL Connector Specifications

• Connector Type: Wire to Board, disconnectable crimp style
• Connector Pitch: 1.2mm
• Current rating: 2.0A AC, DC (AWG #28)
• Voltage rating: 50V AC, DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/10mΩ max, After environmental testing/20mΩ max.
• Insulation resistance: 100MΩ min.
• Withstanding voltage: 500V AC/minute
• Applicable wire: Conductor size/AWG #30 to #28, Insulation O.D./0.50 to 0.63mm

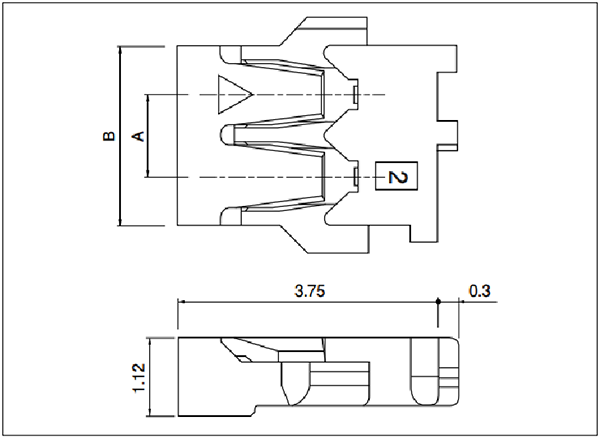

ACHL Connector Housing Size

Notes:

• No. of circuits: 2
• Model Number: ACHLR-02V-S
• Dimensions(mm): A(1.2), B(2.6)
• Q'ty/bag: 1000pcs
• Material: PBT, UL94V-0, natural
• RoHS Compliance

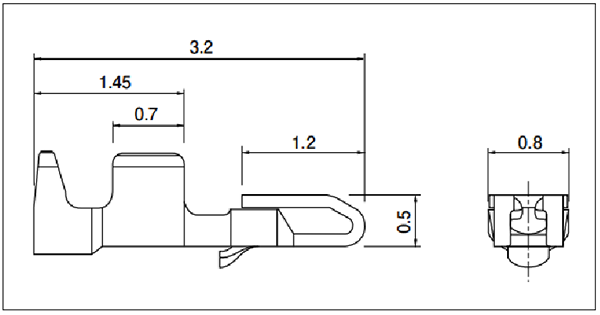

JST ACHL Terminal Size

Notes:

• Model Number: SACHL-003G-P0.2
• Suitable Wire Gauge: 0.05 - 0.08mm² (30 - 28AWG)
• Insulation O.D. (mm):  0.5 - 0.63
• Qty/Reel: 30000pcs
• Material and Finish: Copper alloy, nickel-undercoated, gold-plated
• RoHS compliance

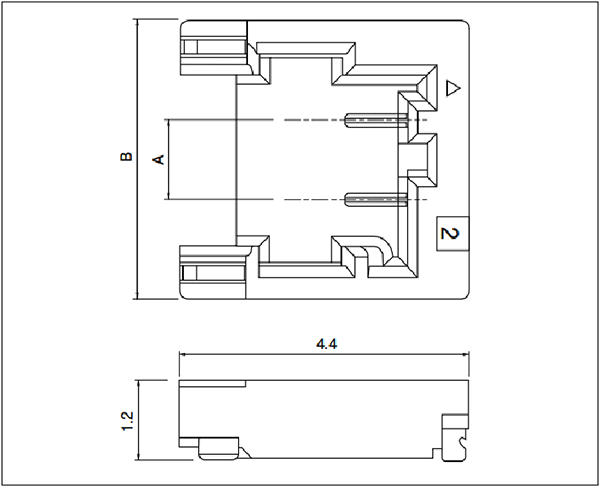

JST ACHL Header Size

Notes:

• No. of circuits: 2
• Model Number: BM02B-ACHLKS-GAN-ETF
• Dimensions (mm): A(1.2); B(4.2).
• Q'ty/bag: 5000pcs
• Material and Finish:
  • Contact: Copper alloy, nickel-undercoated, gold-plated (nickel-stripe)
  • Housing: Heat resisting resin, UL94V-0, black
  • Reinforcement: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
• RoHS Compliance
• This product displays (LF)(SN) on a label.

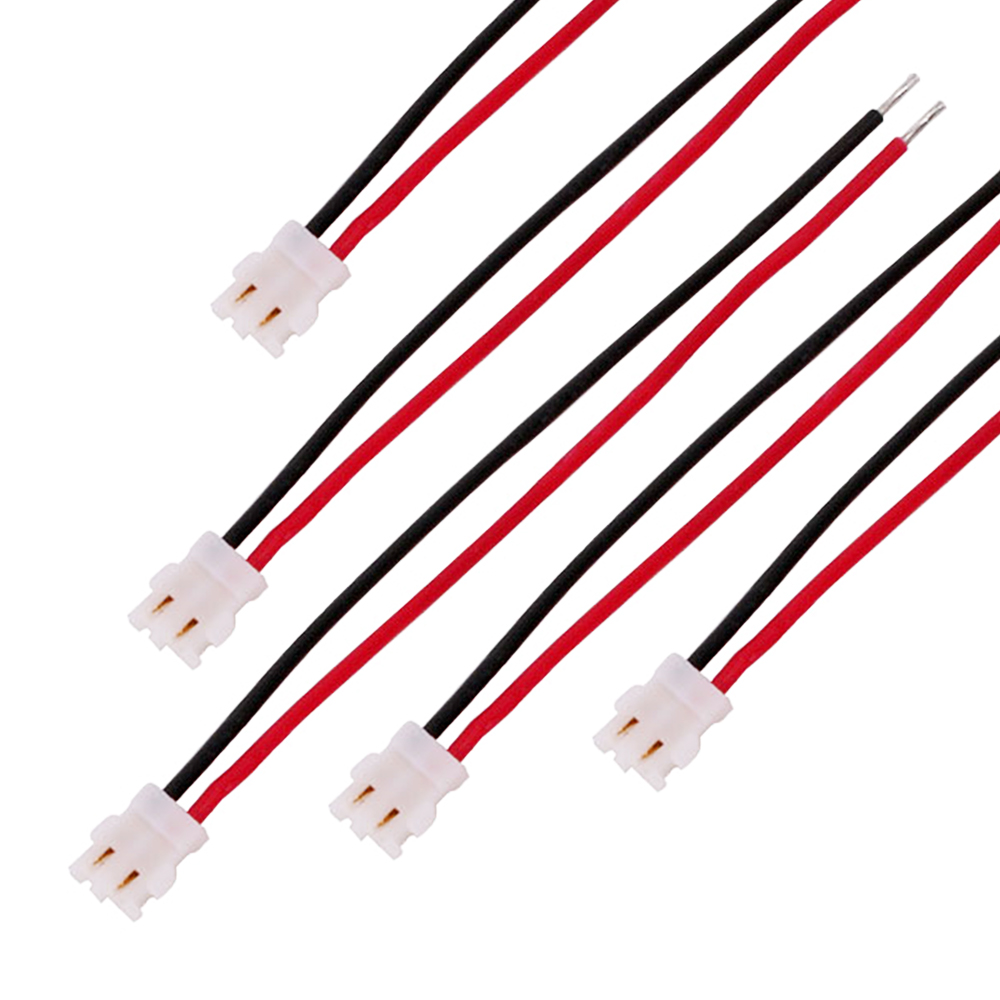

Support Custom Wiring Harness Assembly

• Connector: 2pin
• Wire gauge: 28 - 30AWG
• Wire length: as long as your needs
• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
• Custom type:
  • wire to wire
  • wire to tinned end
  • wire to open end
  • wire to any suitable connectors
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness
