JST ADH Connector
The JST GVH Connector is a compact, low-profile wire-to-board connector designed for applications requiring efficient space utilization and reliable power delivery. With a height of only 1.9 mm, a width of 4.3 mm, and a 1.3 mm pitch, this connector offers a space-saving solution suitable for densely packed electronic devices. Featuring a top-entry design combined with a side-feed configuration, the GVH Connector is optimized for streamlined assembly and versatile mounting options. Capable of handling a power supply current of up to 3A, it is ideal for applications demanding both high performance and compact dimensions.
ADH Connector Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector Pitch: 1.3mm
- Current rating: 3 A AC, DC (Apply 1 for the 3rd circuit of 5-circuit.) (AWG #26)
- Voltage rating: 30 V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20 mΩ max. After environmental tests/ 30 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #28 to #26, Insulation O.D./ 0.63 mm, 0.98 mm

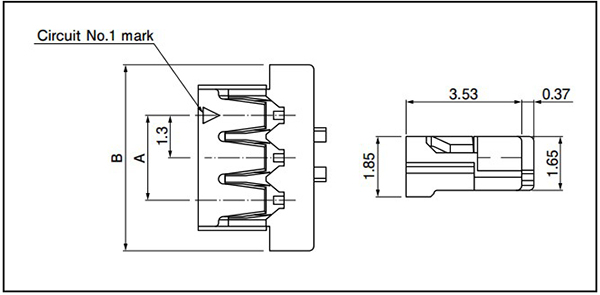

ADH Connector Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 3 | ADHR-03V-H | 2.6 | 5.7 | 1000 |
| 5 | ADHR-05V-S(HF) | 5.2 | 8.3 | 1000 |
Material: PBT・UL94V-0

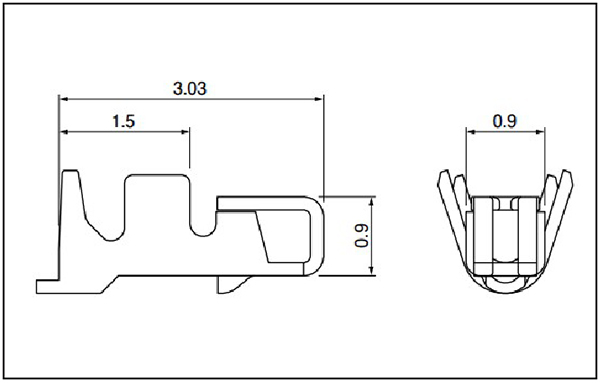

ADH Connector Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty /reel | |
| mm² | AWG# | |||
| SADH-002G-P0.2 | 0.14 | 26 | 0.98 | 25000 |
| SADH-003G-P0.2 | 0.08 | 28 | 0.63 | 25000 |
Material and Finish: Copper alloy, nickel-undercoated, gold-plated

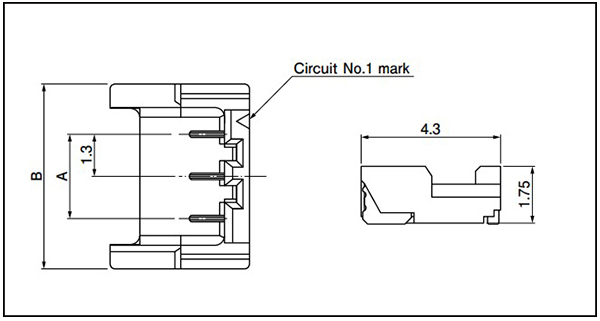

ADH Connector Header
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/reel | |
| A | B | |||
| *2 | BM02(3)B-ADHSS-GAN-ETB | 2.6 | 5.7 | 5000 |
| 3 | BM03B-ADHKS-GAN-ETB | 2.6 | 5.7 | 5000 |
| 5 | BM05B-ADHKS-GAN-ETB(HF) | 5.2 | 8.3 | 5000 |
Notes:
- Material and Finish
- Contact: Copper alloy, nickel-undercoated, gold-plated (nickel-stripe)
- Housing: Heat resisting resin, UL94V-0
- Reinforcement: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- RoHS compliance
- This product displays (LF)(SN) on a label. (2, 3 circuits)
- The products listed above are supplied on embossed-tape.
- *2-circuit product: Removing center pin from 3-circuit product.

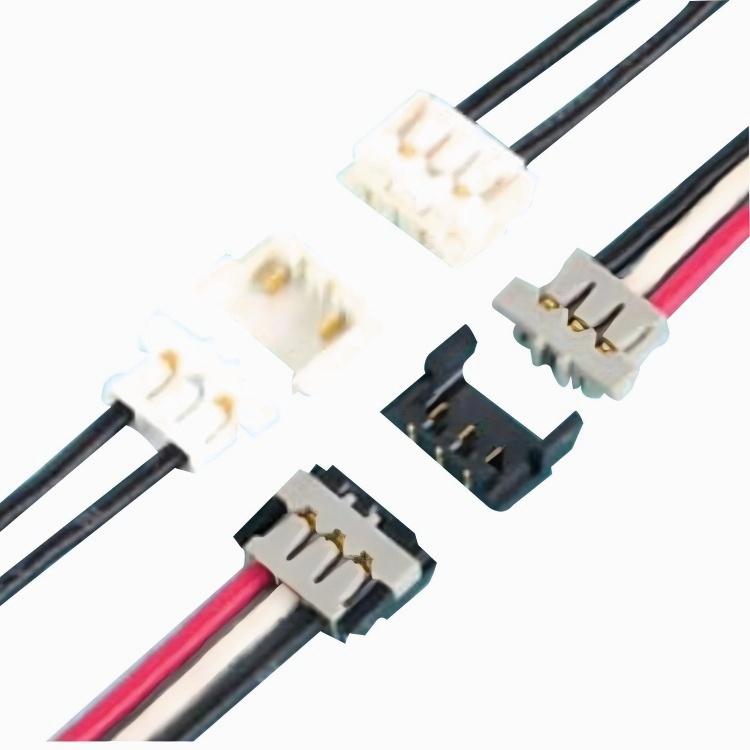

Support Custom Wiring Harness Assembly
- Connector: 3, 5pin
- Wire gauge: 26 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
