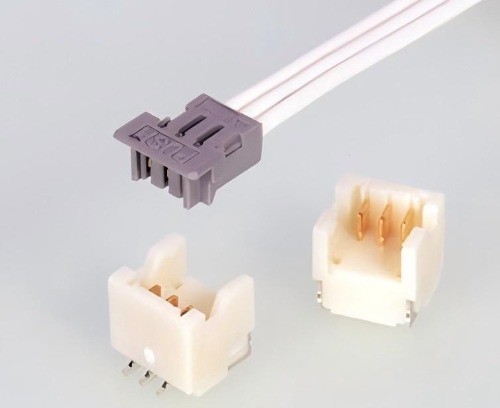

JST AGH Connector
The JST AGH Connector is a 1.25 mm pitch crimp-type connector designed to deliver superior performance and compact versatility. Engineered with a top-entry style, it offers outstanding operational benefits while maintaining a low-profile design akin to side-entry configurations, thanks to the side placement of wires. Specifically developed for mobile phone battery connections, it achieves impressive miniaturization with a mounting height of just 6.1 mm, which can be further reduced to 4.4 mm with a low-profile header design. The connector's housing features a unique rib structure that enhances its resistance to distortion during extraction, ensuring reliable operation. Additionally, its header is optimized for surface mounting technology, providing ample suction area to support automated assembly systems efficiently.
AGH Connector Specifications
- Connector type: Wire to Board, disconnectable crimp style
- Connector Pitch: 1.25mm
- Current rating: 1.0 A AC/DC (AWG #26)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20 mΩ max, After environmental tests/ 30 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: AWG #30 to #26, Insulation O.D./ 0.7 to 1.0 mm

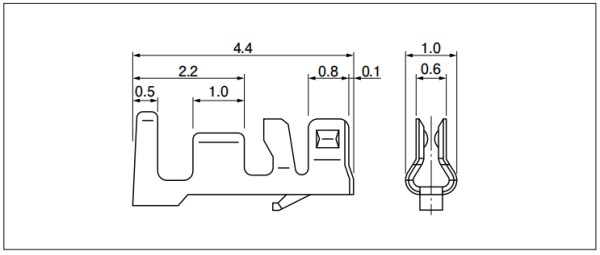

AGH Connector Contact Size
Notes:
- Model Number: SAGH-002GU-P0.3
- Suitable Wire Gauge: 0.05 - 0.13mm² (30 - 26AWG)
- Insulation O.D. (mm): 0.7 - 1.0
- Qty/Reel: 20000pcs
- Material and Finish: Copper alloy, nickel-undercoated, gold-plated
- RoHS2 compliance

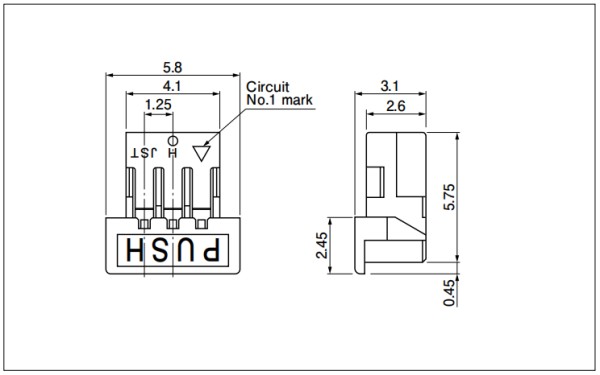

AGH Connector Housing Size
Notes:
- No. of circuits: 3
- Model Number: AGHR-03V-1-H
- Q'ty/bag: 5000pcs
- Material: PBT, UL94V-0, gray
- RoHS2 Compliance
AGH Connector Header Size

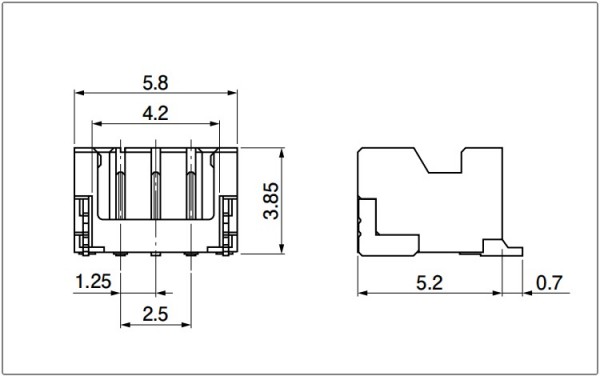

Header 3.9mm type
P/N: BM03B3.9-AGHS-GH-TF

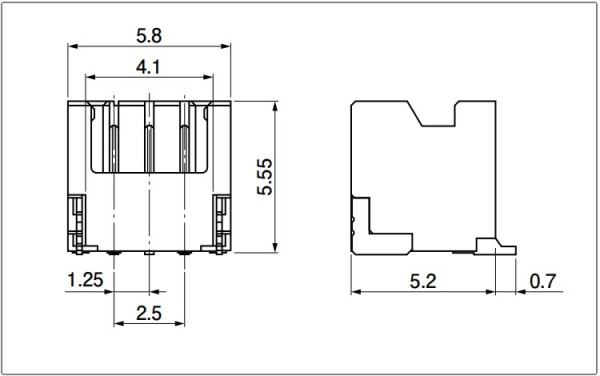

Header 5.6mm type
P/N: BM03B5.6-AGHS-GG-TF
Support Custom Wiring Harness Assembly
- Connector: 3pin
- Wire gauge: 26 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
