JST APSH Connector
The JST APSH Connector is a highly compact and efficient interconnect solution designed to meet the demands of modern electronic applications. Its standout feature is a secure locking mechanism that ensures a reliable connection even in environments subject to frequent handling, vibration, or mechanical stress. This design minimizes the risk of accidental housing detachment, providing enhanced durability and stability. Despite its small size, the APSH Connector incorporates advanced features such as an anti-reverse insertion mechanism, which effectively prevents incorrect mating and ensures proper alignment during assembly. Additionally, the connector delivers a clear tactile and audible insertion feedback, giving users confidence in its secure engagement. Its space-saving design makes it an ideal choice for devices where space constraints are critical, while its robust performance ensures reliability across a wide range of applications. The APSH Connector exemplifies precision engineering, offering both practicality and high performance in a compact form factor.
APSH Connector Specifications
- Pitch: 1.0mm
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20 mΩ max, After environmental tests/ 40 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #32 to #28, Insulation O.D./ 0.4 to 0.8 mm

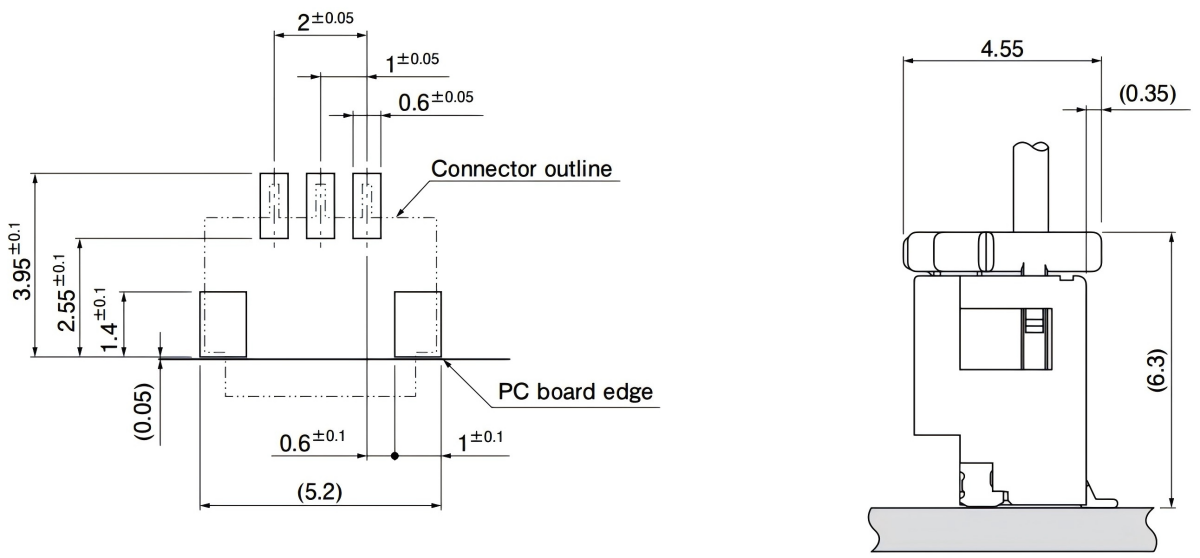

PC board layout and Assembly layout
Note:
- The above figure is the figure viewed from the connector mounting side.
- Tolerances are non-cumulative: ± 0.05 mm for all centers. The dimensions above should serve as a guideline.
APSH Terminal Size and P/N

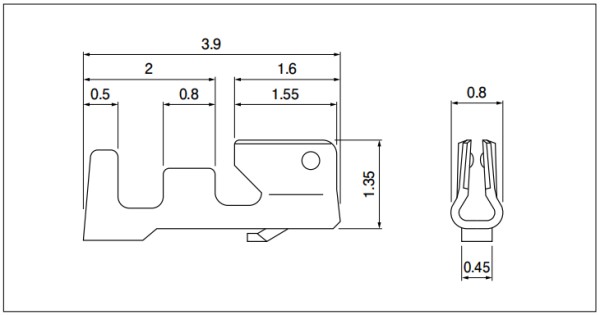

APSH Contact Size

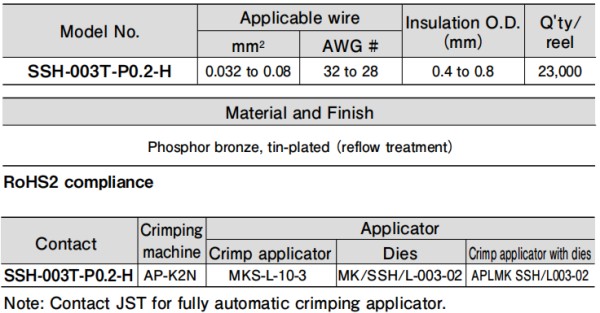

APSH Contact P/N
APSH Housing Size and P/N

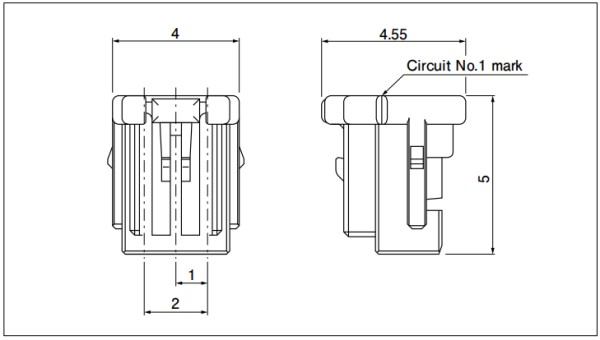

APSH Housing Size

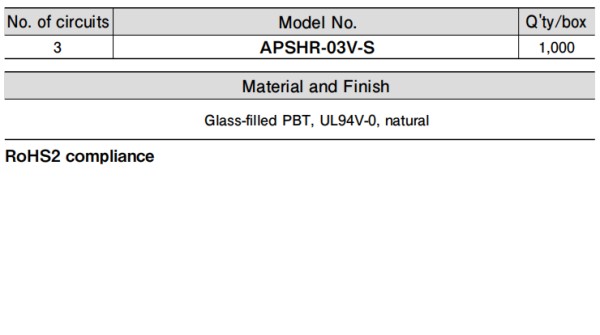

APSH Housing P/N
APSH Header Size and P/N

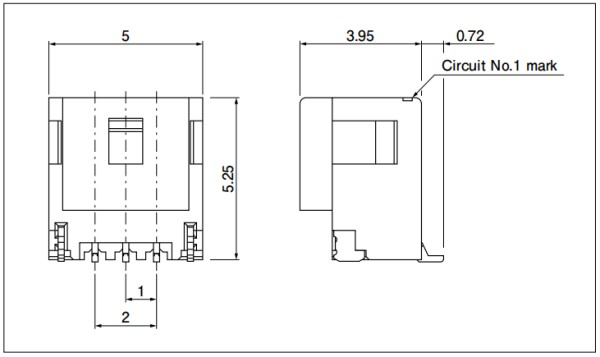

APSH Header Size

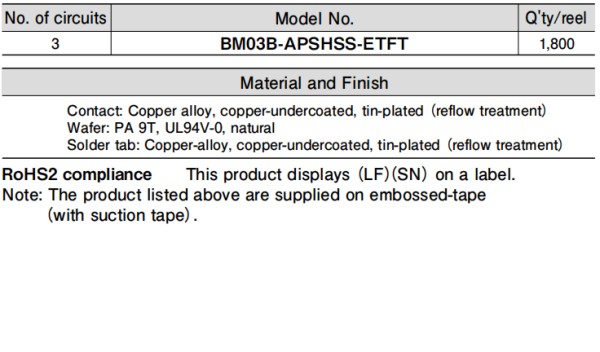

APSH Header P/N

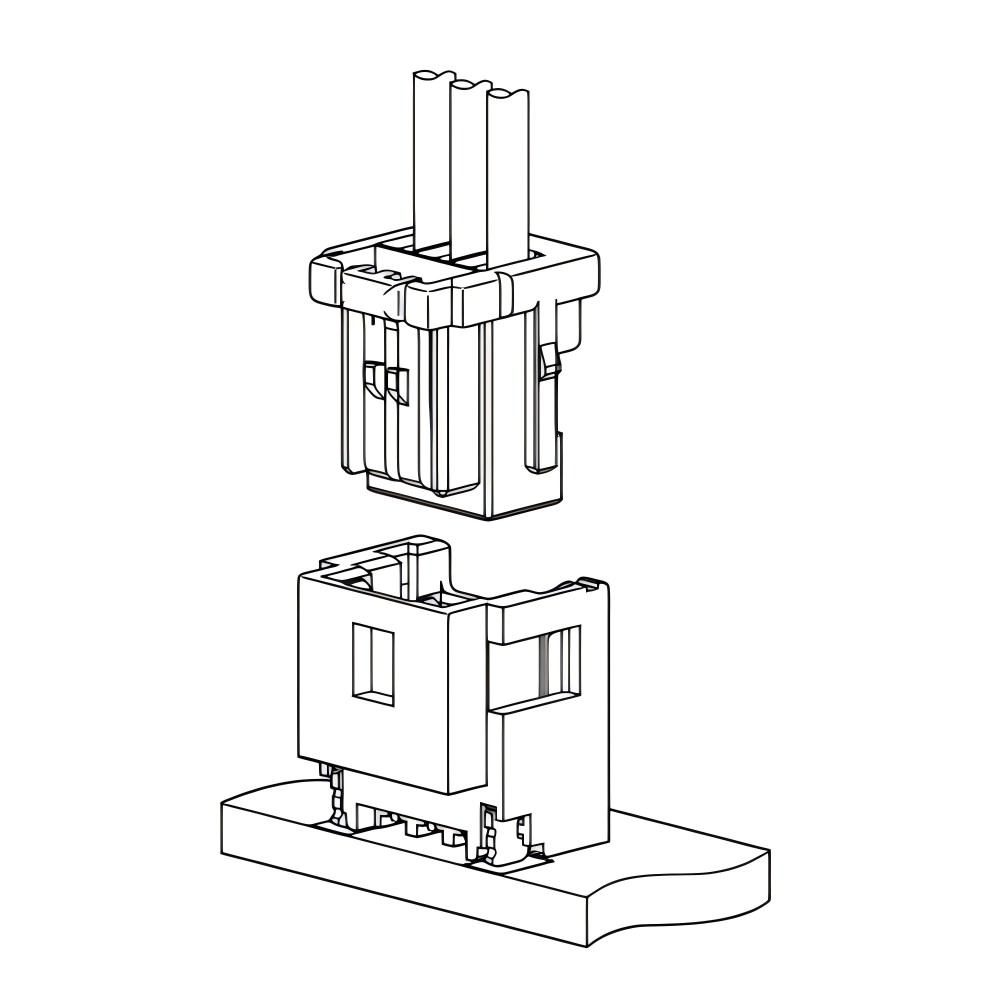

Support Custom Wiring Harness Assembly
- Connector: 3pin
- Wire gauge: 28 - 32AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
