JST AUH Connector, Wire to Board, Custom Wire Assembly

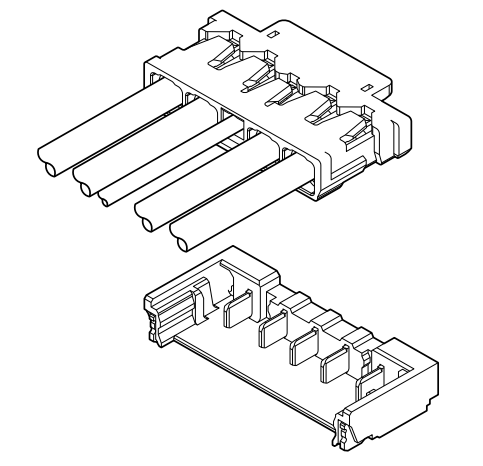

JST AUH Connector, Wire to Board Type
The JST AUH Connector is a highly compact and low-profile wire-to-board connector, designed with a height of just 1.85 mm and a width of 5.2 mm, making it ideal for space-constrained applications. With a current rating of 5 A, it efficiently handles both power supply and signal circuits. The connector features a top-entry design with side-feed connections, offering versatile integration options. Available in two configurations, the AUH series supports either 3 circuits (2 power supply circuits and 1 signal circuit) or 5 circuits (4 power supply circuits and 1 signal circuit), making it an excellent choice for DC power supply applications while optimizing board space.
Specifications
- Connector type: Wire to Board, disconnectable crimp style
- Current rating: Signal circuit/ 1 A AC/DC. Power supply circuit/ 5 A AC/DC (AWG #22)
- Voltage rating: 30V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 200 VAC/ minute
- Applicable wire:
- Signal circuit: Conductor size/ AWG #30 to #28, Insulation O.D./ 0.5 to 0.63 mm
- Power supply circuit: Conductor size/AWG #26 to #22AWG, Insulation O.D./ 0.98 to 1.16 mm
Housing

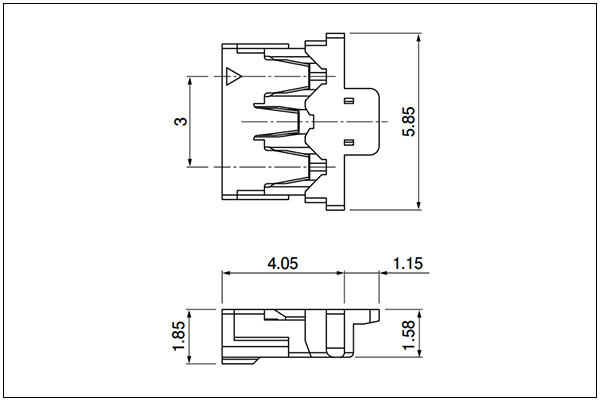

3 Circuits

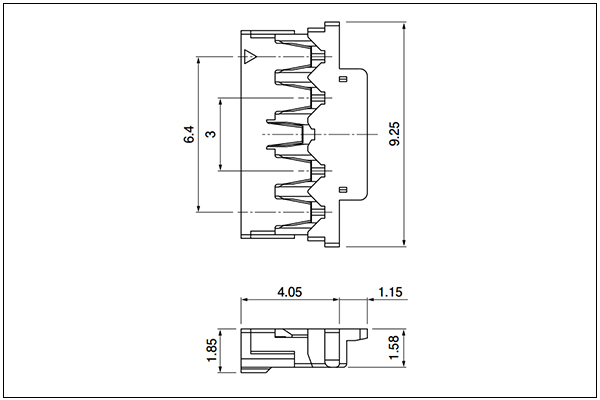

5 Circuits
| No.of circuits | Model No. | Q'ty/box |
| 3 | AUHR-03V-H | 1000 |
| 5 | AUHR-05V-H | 1000 |
Material: PBT, UL94V-0, gray
Terminal

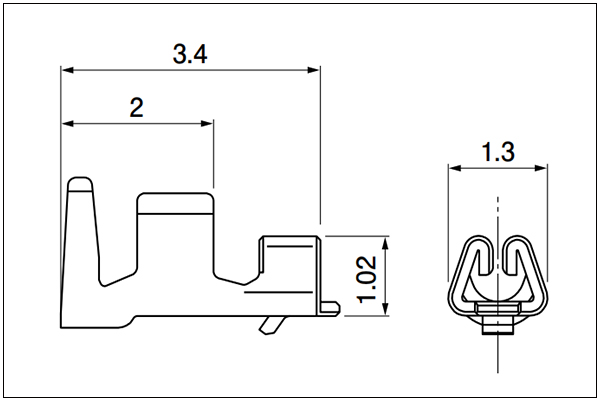

For power supply

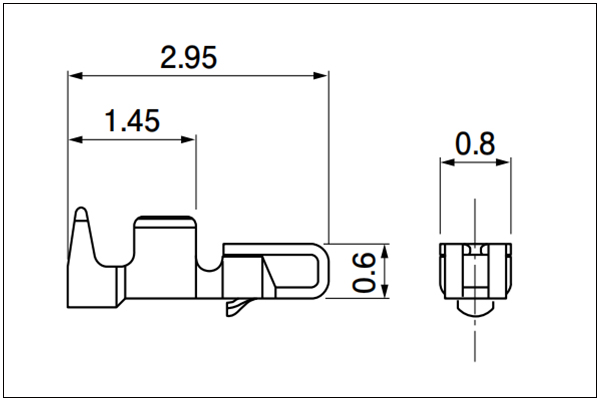

For Single
| Model No. | Applicable wire | Insulation O.D(mm) | Q'ty/reel | ||
| mm² | AWG# | ||||
| Power supply | SAUH-001G-M0.2 | 0.13 to 0.33 | 26 to 22 | 0.98 to 1.16 | 18,000 |
| Signal | SACH-003G-P0.2 | 0.05 to 0.08 | 30 to 28 | 0.5 to 0.63 | 30000 |
Material and Finish: Copper alloy, nickel-undercoated, selective gold-plated
Header

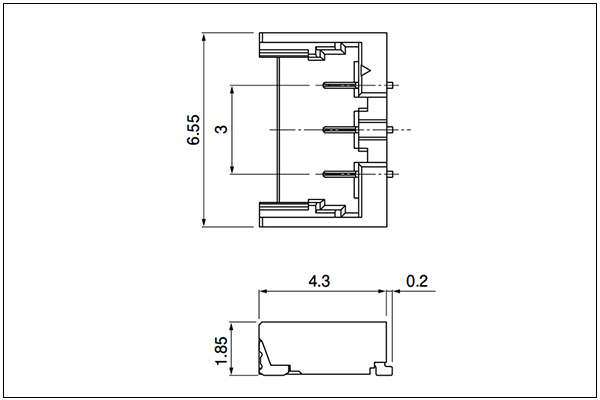

3 Circuits

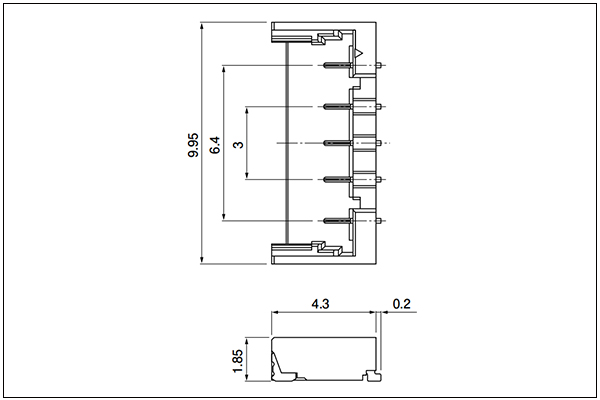

5 Circuits
| No.of circuits | Model No. | Q'ty/reel |
| 3 | BM03B-AUHKS-GA-TB | 5000 |
| 5 | BM05B-AUHKS-GA-TB | 5000 |
Material and Finish
- Contact: Copper alloy, nickel-undercoated, gold-plated (nickel-stripe)
- Housing: Heat resisting resin, UL94V-0, black
- Reinforcing tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)

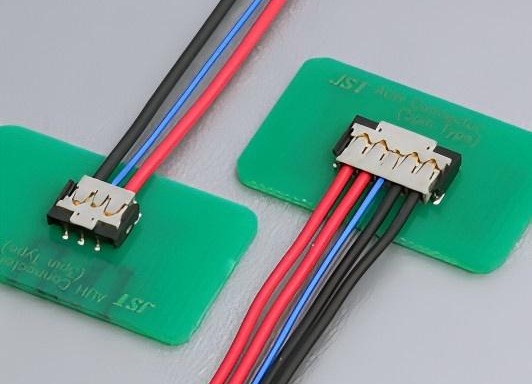

Support Custom Wiring Harness Assembly
- Connector: 3, 5pin
- Wire gauge: 22 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
