JST BD Connector, 13mm Pitch, Custom Wire Assembly

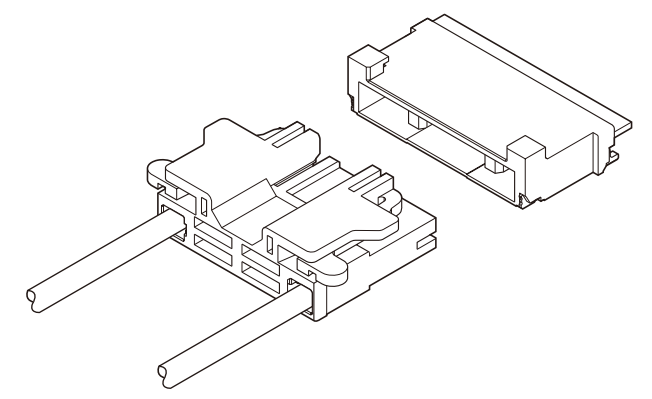

JST BD Connector, 13mm Pitch Type
The JST BD Connector is a board-to-wire crimping connector designed with a 13mm pitch, specifically engineered for high-power applications such as providing reliable power to large LCD or liquid crystal television backlights. Its robust design includes a high withstand voltage to ensure safe and stable performance under demanding conditions. A secure locking mechanism is integrated to prevent accidental disconnection during handling or operation, offering enhanced reliability for wire harness assemblies. The connector’s compact and space-saving design makes it an excellent choice for applications where space efficiency is crucial. Additionally, the crimping style supports special wires, making it versatile and adaptable for a wide range of power supply needs.
Specifications
- Connector type: Wire to Board, disconnectable crimp style
- Connector pitch: 13mm
- Current rating: 1.0A AC, DC (AWG #24)
- Voltage rating: 3,000V AC, DC
- Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10m Ω max, After environmental testing/20m Ω max.
- Insulation resistance: 1,000M Ω min.
- Withstanding voltage: 5,000V AC/minute
- Applicable wire: AWG #28 to #24

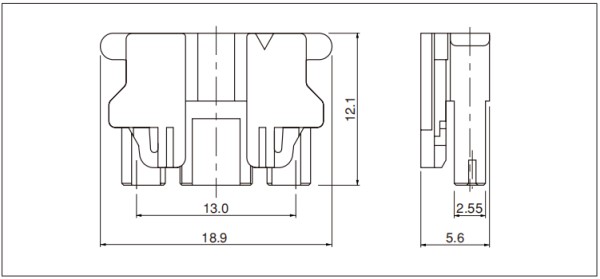

Housing
Specs:
- No. of Circuits: 2
- Model No.: BDAMR-02VAS-3
- Q'ty/reel: 1000pcs
- Materials: PBT・UL94V-0, natural (white)
- RoHS Compliance
Terminal
Spcs:
- Model No.: SBHS-002T-P0.5A
- Applicable Wire: 0.08 - 0.22mm² (24 - 28AWG)
- Insolations O.D. (mm): 0.9 - 1.7
- Q'ty/reel: 10000pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS compliance

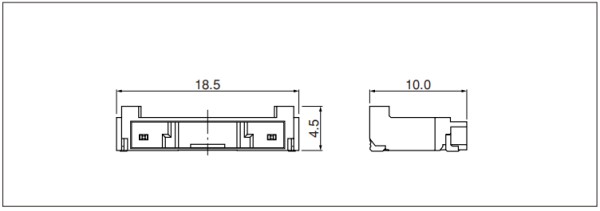

Shrouded header
Specs:
- No. of Circuits: 2
- Model No.: SM02-BDAS-3-TB
- Q'ty/reel: 1500pcs
- Materials and Finish:
- Press post: Copper alloy, nickel-undercoated, tin/copper alloy-plated
- Wafer: PPA, UL94V-0, natural (ivory)
- Solder tab: Copper alloy, nickel-undercoated, tin/copper alloy-plated
- This product displays (LF) on a label.
- The product listed above is supplied on embossed tape.
- RoHS Compliance

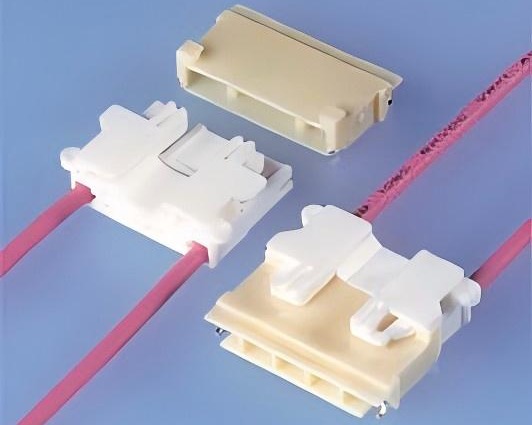

Support Custom Wiring Harness Assembly
- Connector: 2pin
- Wire gauge: 24 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
